HGLRC ELRS GEMINI RX 2.4G/915Mhz Dual-Frequency Receiver for FPV Racing Drone, Long Range, Low Latency

Description

HGLRC ELRS GEMINI RX 2.4G/915Mhz Dual-Frequency Long Range Receiver for FPV Racing Drone

The HGLRC ELRS GEMINI RX is a dual-frequency long-range receiver designed for FPV racing drones. It features dual communication links with antennas operating simultaneously on 2.4G and 915Mhz, offering superior anti-interference and stable signal performance. The receiver integrates dual-channel SX1276 and SX1281 with PA/LNA for true diversity reception. Equipped with a TCXO temperature-compensated crystal oscillator, it ensures accurate frequency stability in extreme temperatures. The plug-and-play design allows for easy installation and quick replacement. The ELRS 2.4G version provides up to 100mw return power, while the 915M version offers up to 50mw. With low latency and a refresh rate of up to 1000Hz, it supports firmware upgrades via WiFi for enhanced functionality.

HGLRC ELRS GEMINI RX 2.4G/915Mhz Dual-Frequency Long Range Receiver for FPV Racing Drone
Features:
1. Dual communication link, the antennas work at different frequencies at the same time, with super anti-interference performance;

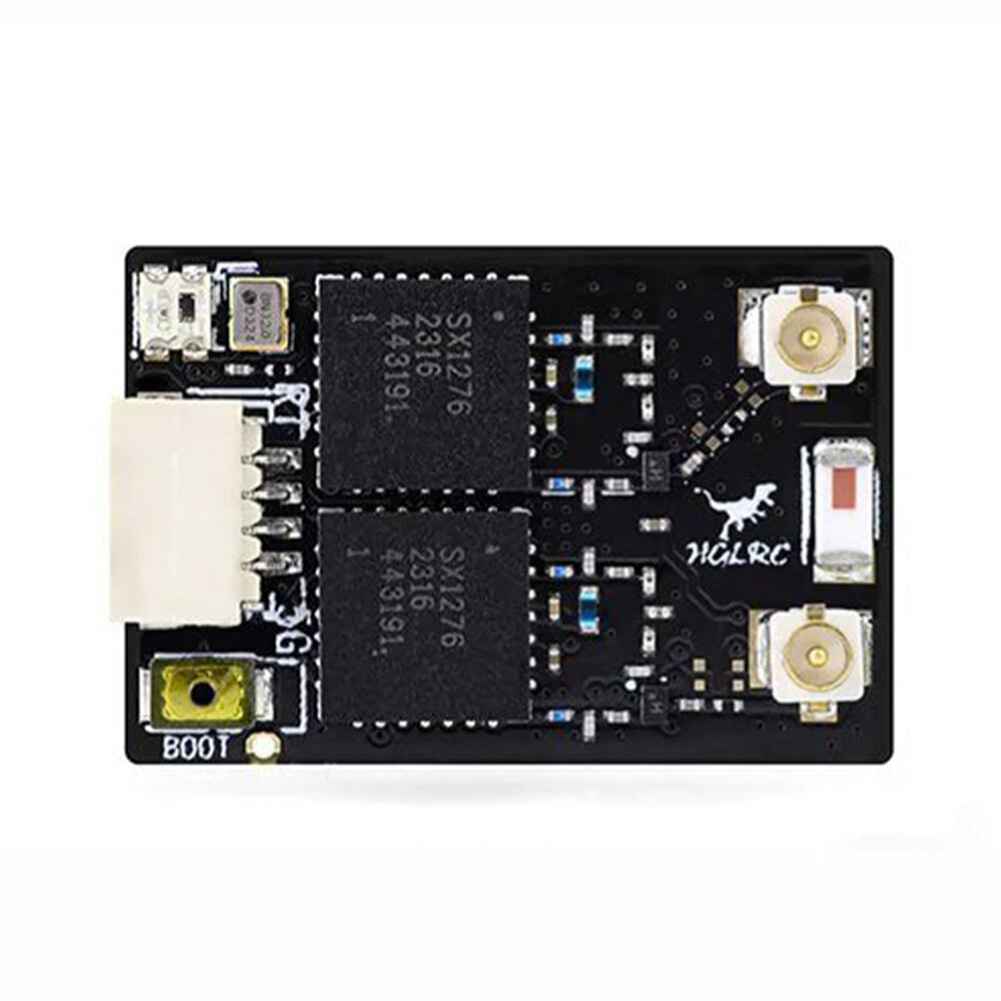

2. True diversity dual reception, integrating dual-channel SX1276 (2.4G version SX1281) and dual-channel PA/LNA, dual-antenna omni-directional reception, stable signal;
3. Using TCXO temperature-compensated crystal oscillator, the frequency is more accurate and it is not afraid of high temperatures or severe cold, and it will not lose signals during long flights;
4. Direct plug-in connection, plug and play, eliminating the trouble of soldering and enabling quick replacement while retaining the pad design;
5. The return power of Elrs 2.4G version is up to 100mw, and the ELRS 915M version can reach up to 50mw;
6.Elrs has the characteristics of long-distance remote control, low latency, and up to 1000HZ refresh rate (915M up to 200HZ);
7. It can use WiFi to upgrade firmware;
Parameters:
Brand: HGLRC
Item: ELRS GEMINI RX
Receiver firmware: HGLRC Gemini 2.4Ghz RX/HGLRC Gemini 900Mhz RX
refresh rate
2.4G:50hz-1000hz
915Mhz:25hz-200hz
chip

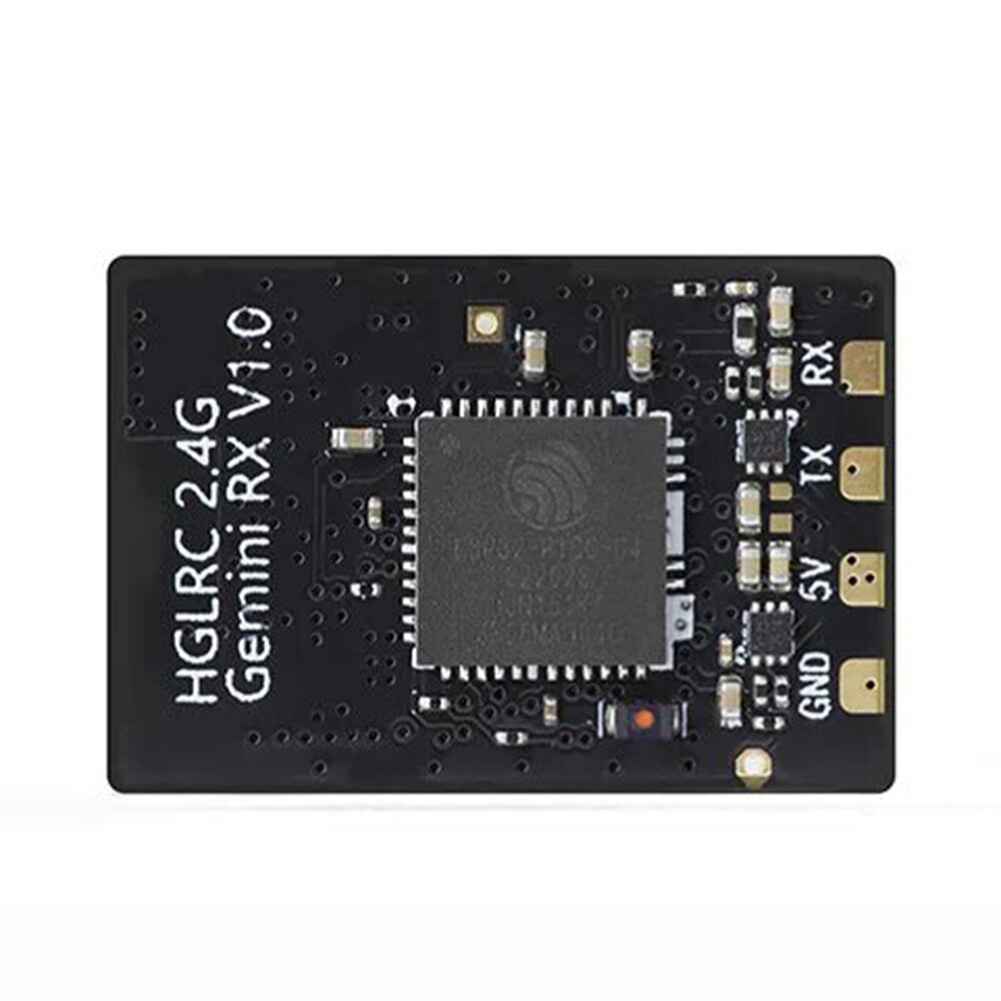

2.4G:ESP32+2*SX1281+TCXO

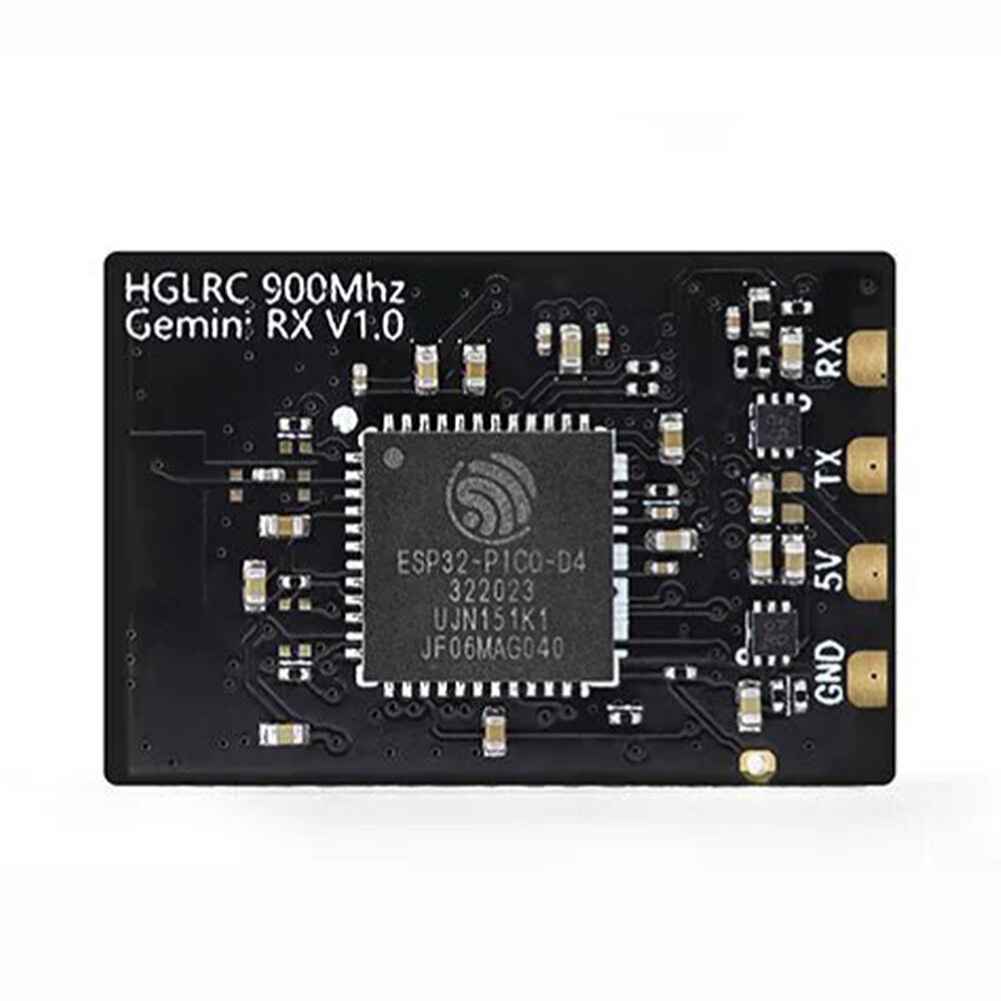

915Mhz: 2*SX1276+ESP32-PICO-D4
Receiver dimensions (without antenna)
2.4G:22mm*15.24mm
915Mhz:22mm*15.24mm

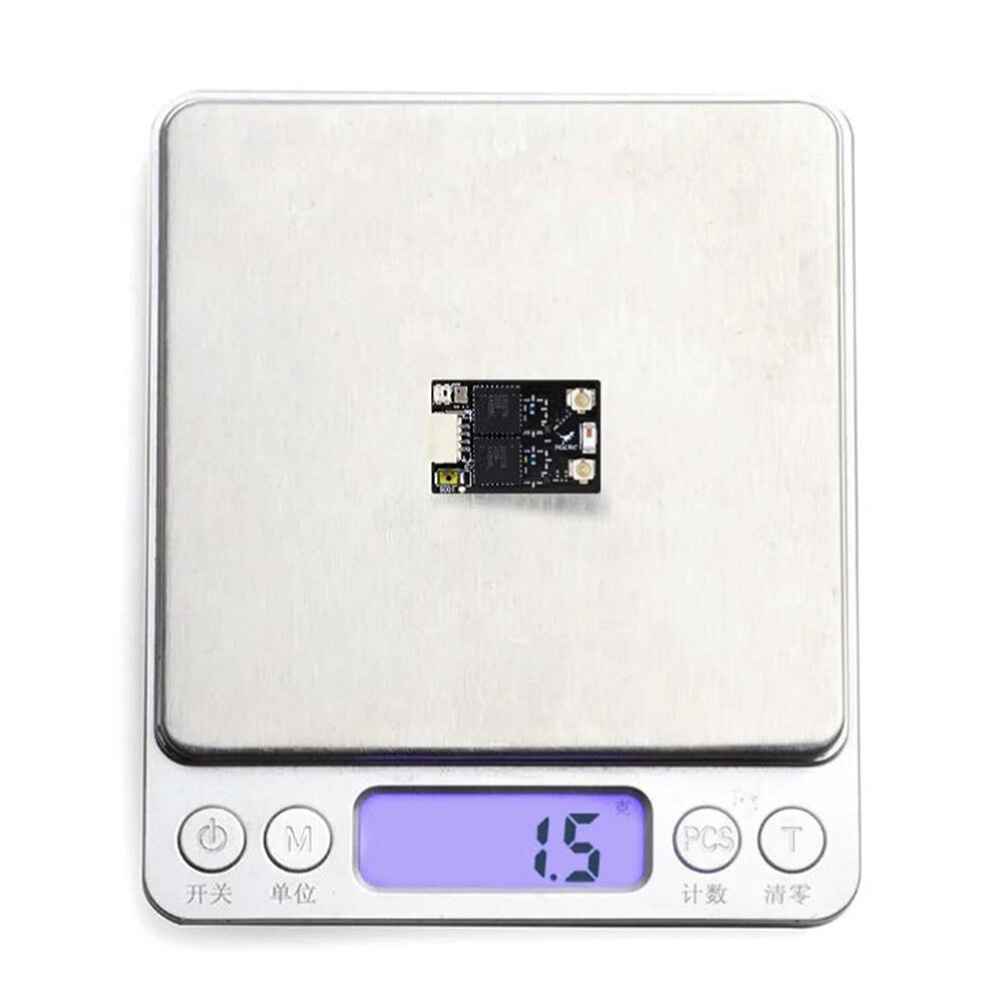

Weight (without antenna)
2.4G:1.36g
915Mhz:1.5g
return power
2.4G:100mw
915Mhz:50mw
Antenna interface: ipex1 generation
Input voltage: 3.6V-5.5V
Indicator light: Color RGB light
Binding:
The factory firmware version of HGLRC ELRS GEMINI RX dual receiver is 3.X or above. 3.X and 2.X firmware are not compatible, so the TX Module firmware needs to be upgraded to 3.X and above before binding;
1. The receiver is powered on and off 3 times continuously (power off after the light is on)
2. Observe the RGB light of the receiver. After starting from the rainbow gradient, it turns into an orange double flash state, indicating that the receiver has entered the binding state.
3. Use the ELRS remote control or TX Module to link to the receiver. If the RGB light of the receiver changes from double flashing to solid, it means the binding is successful.

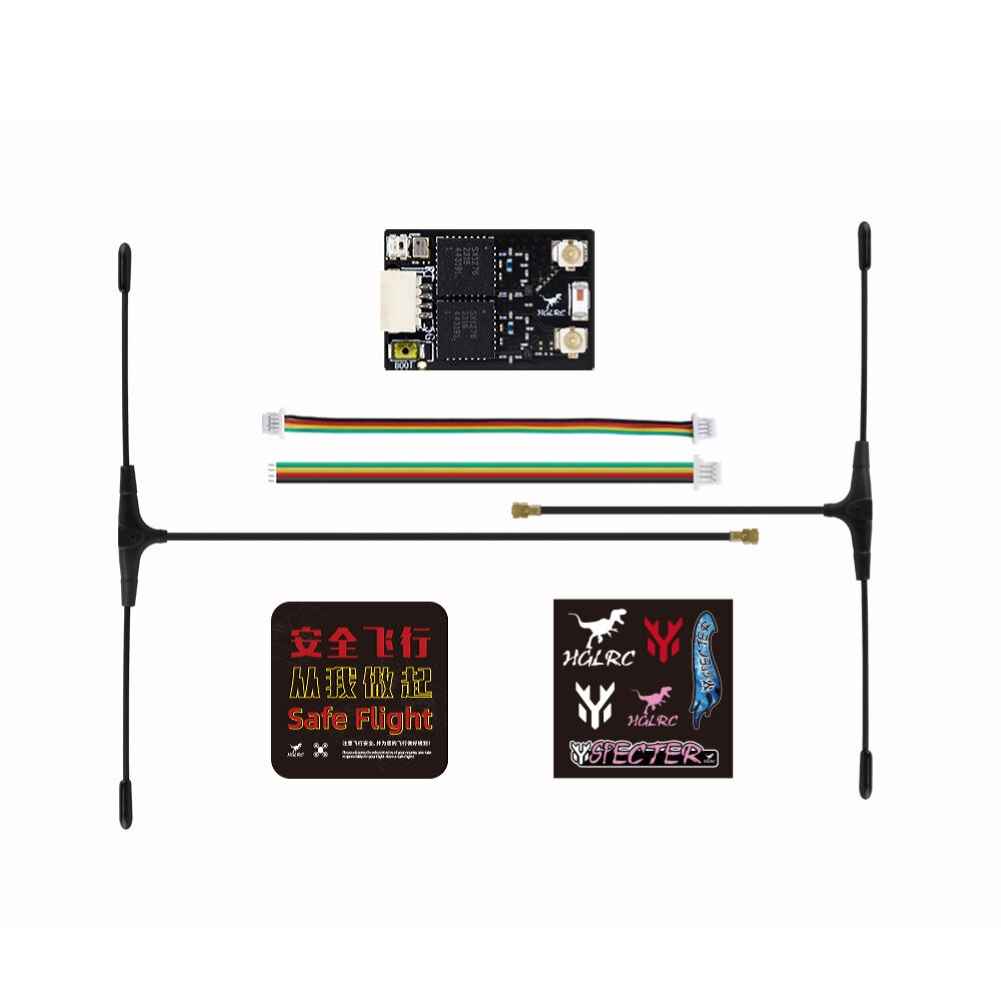

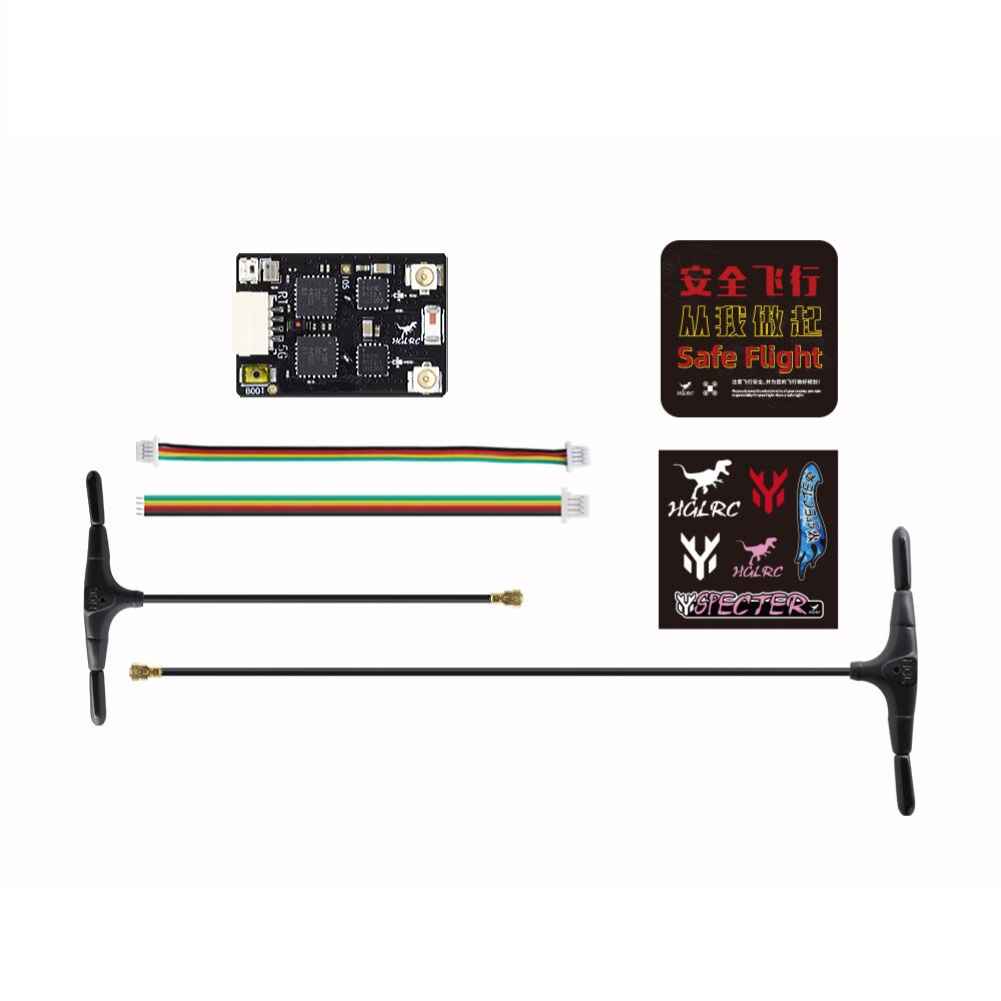

Product List:
1x HGLRC ELRS GEMINI RX (2.4/915) Dual Reception
1x (2.4G/915M) Long Antenna
1x (2.4G/915M) Short Antenna
1x Heat Shrink Tube

Package Included:
1 x HGLRC ELRS GEMINI RX (2.4/915) Dual Reception 1 x (2.4G/915M) Long Antenna 1 x (2.4G/915M) Short Antenna 1 x Heat Shrink Tube
