Description

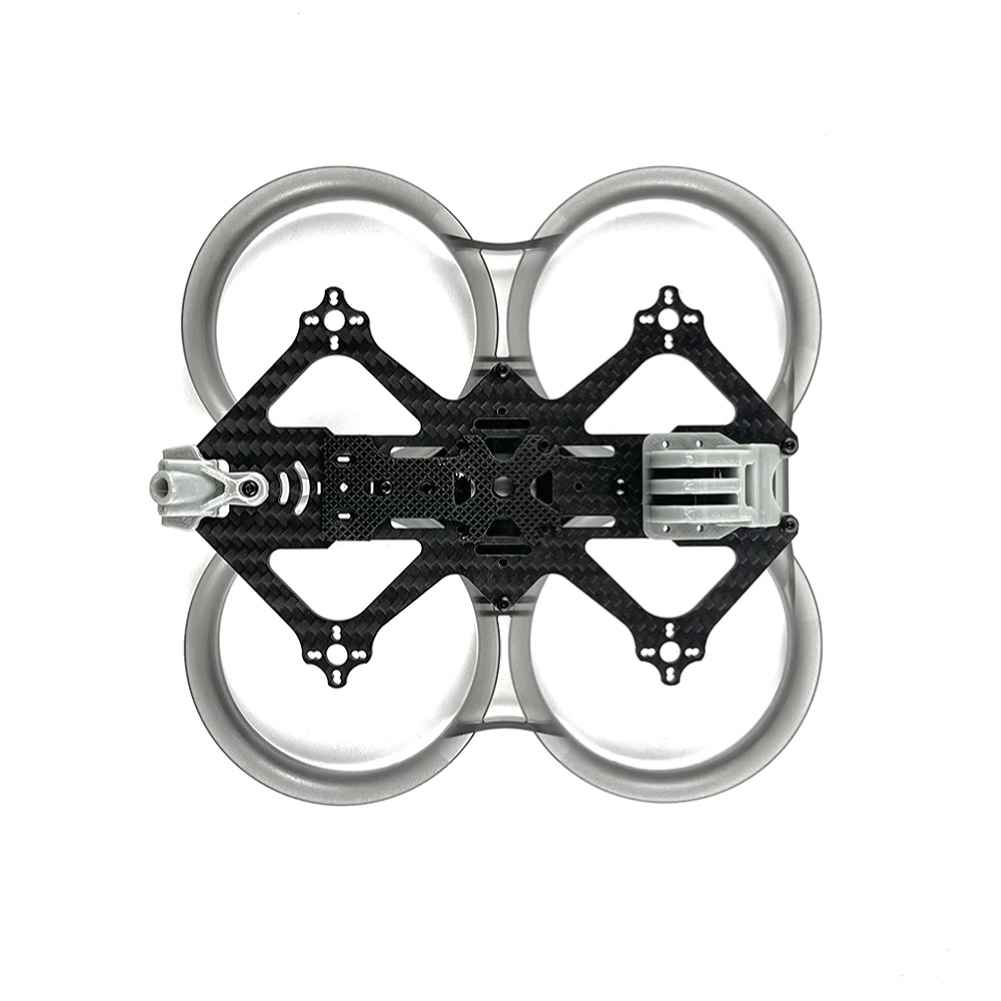

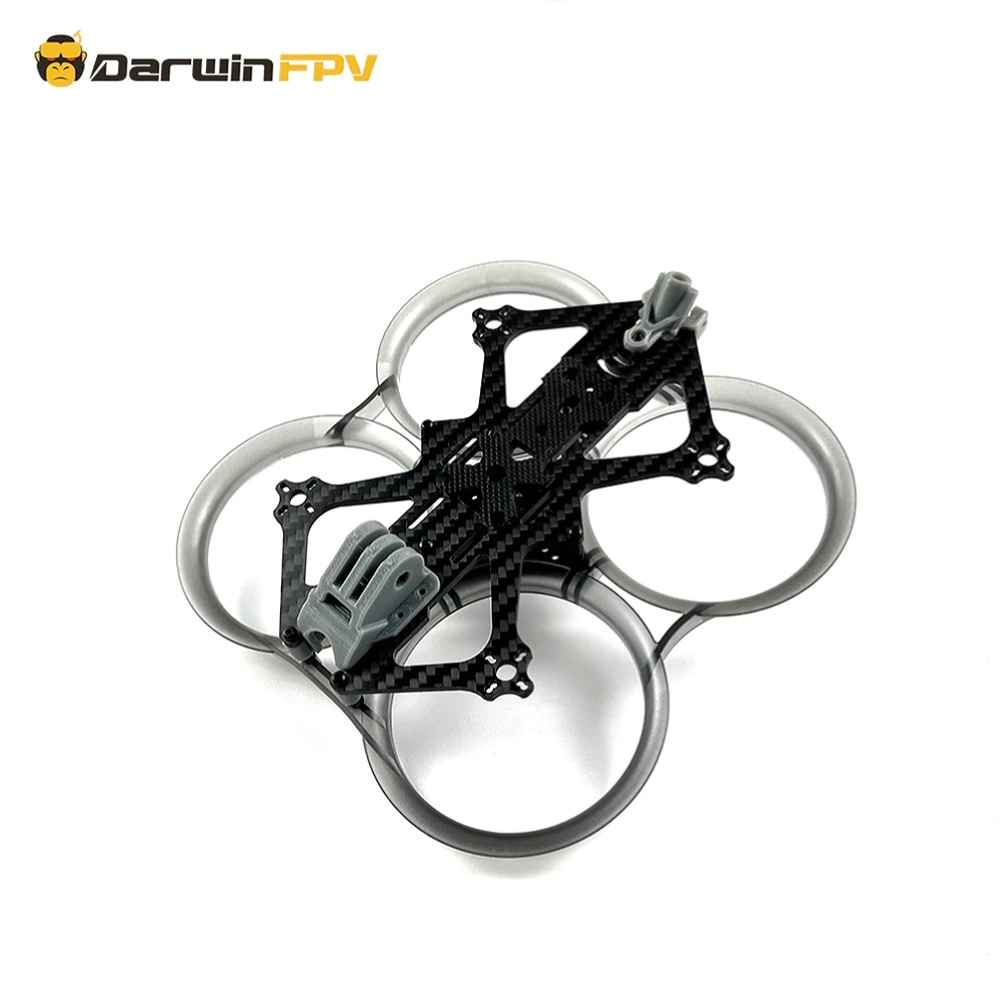

DarwinFPV CineApe 25 Frame 112mm Wheelbase Inverted 2.5 Inch Cinematic Whoop Frame Kit / Replace Bottom Plate Upper Plate for RC Drone FPV Racing
The DarwinFPV CineApe 25 frame is a pioneering inverted 2.5-inch cinematic whoop frame, crafted with high-strength carbon plates and injection-molded components for enhanced durability. Its advanced design includes a one-piece injection-molded propeller guard for increased safety and crash protection. The frame features a quick-release design requiring just seven screws for easy maintenance and accessory replacement. With multiple battery strap and stack mounting holes, it supports 20mm and 25.5mm mounting options. The extended battery anti-skid pad ensures stability, while the strong triangular arm structure and integrated antenna design enhance durability and functionality. Ideal for FPV racing, this frame combines strength and convenience.
Introduction:
The CineApe 25 frame is the first inverted 2.5-inch cinematic whoop frame of DarwinFPV. Frame is composed of upper and lower layers of carbon plates and high-strength injection molding ring, with an advanced appearance. In addition, to enhance the durability of the frame, we have also added additional reinforcement to the injection-molded boot, which now excels in crash protection. Features:

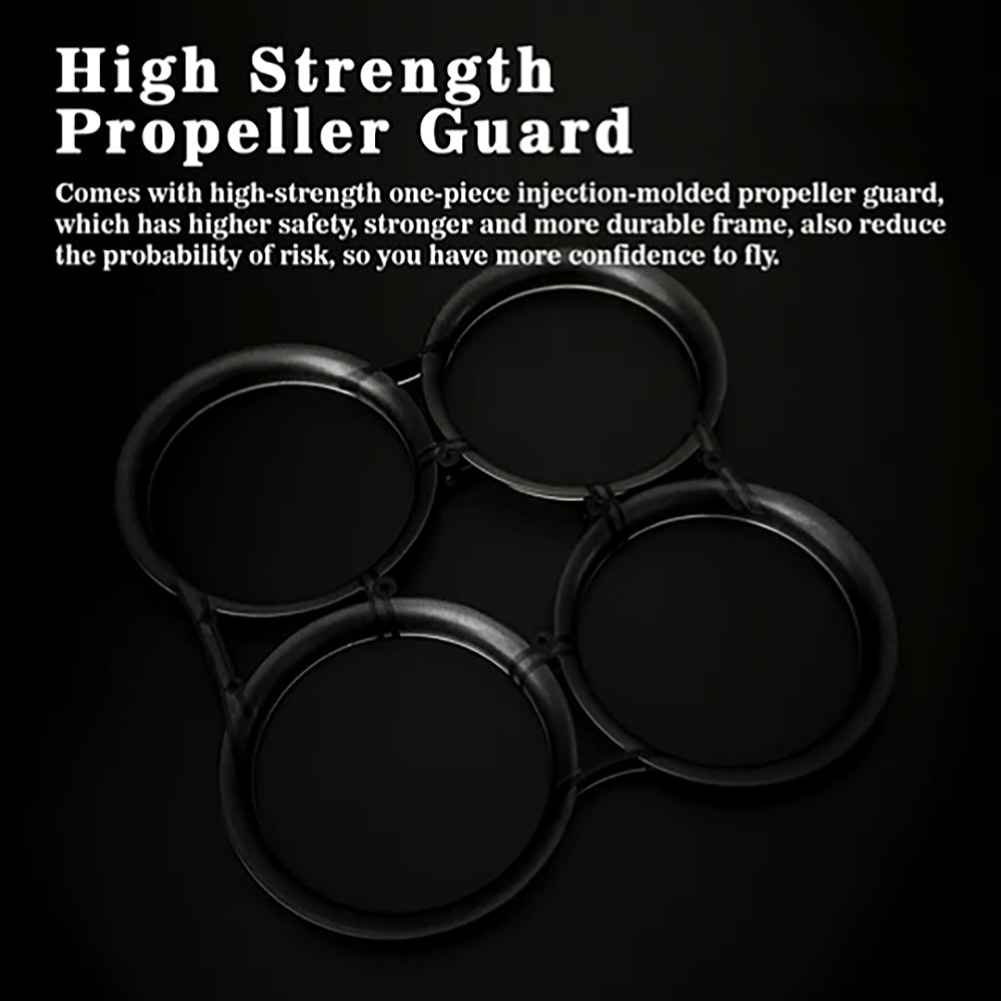

Comes with high-strength one-piece injection-molded propeller guard, which has higher safety, stronger and more durable frame, also reduce the probability of risk, so you have more confidence to fly.

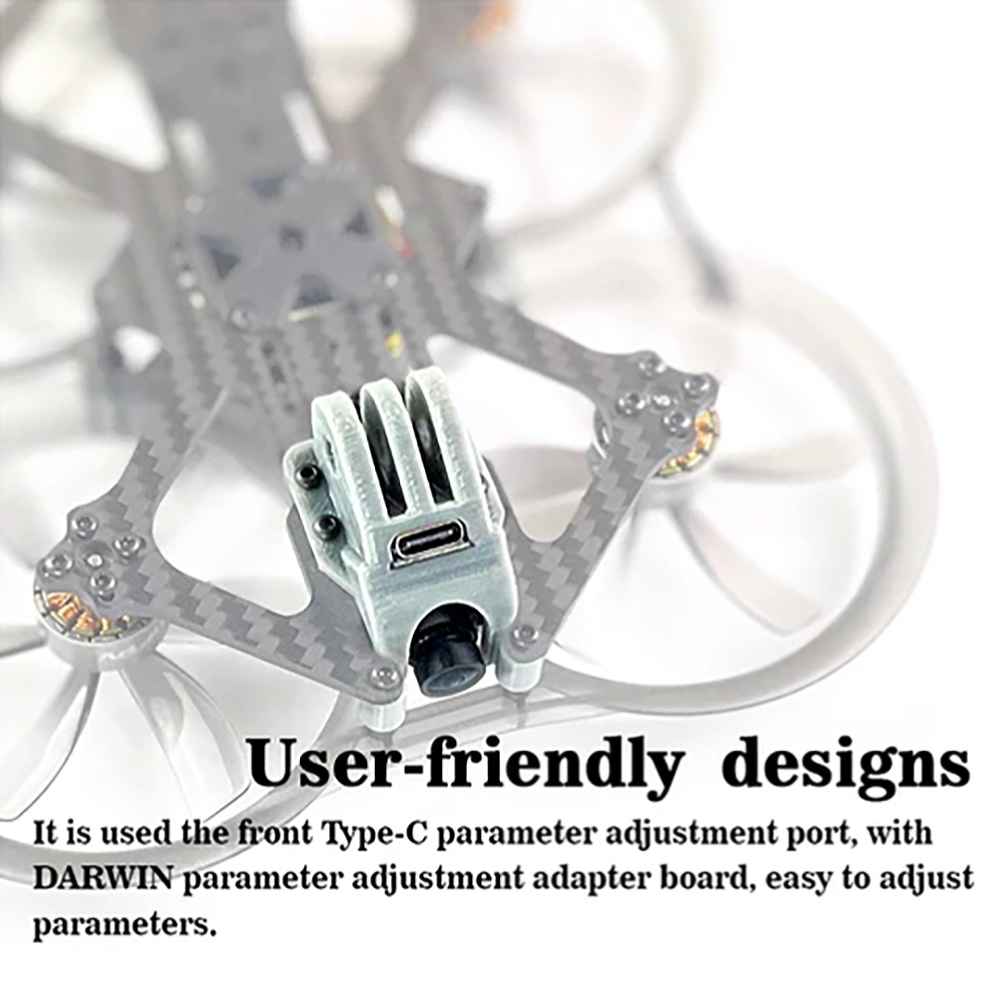

It is used the front Type-C parameter adjustment port, with DARWIN parameter adjustment adapter board, easy to adjust parameters.

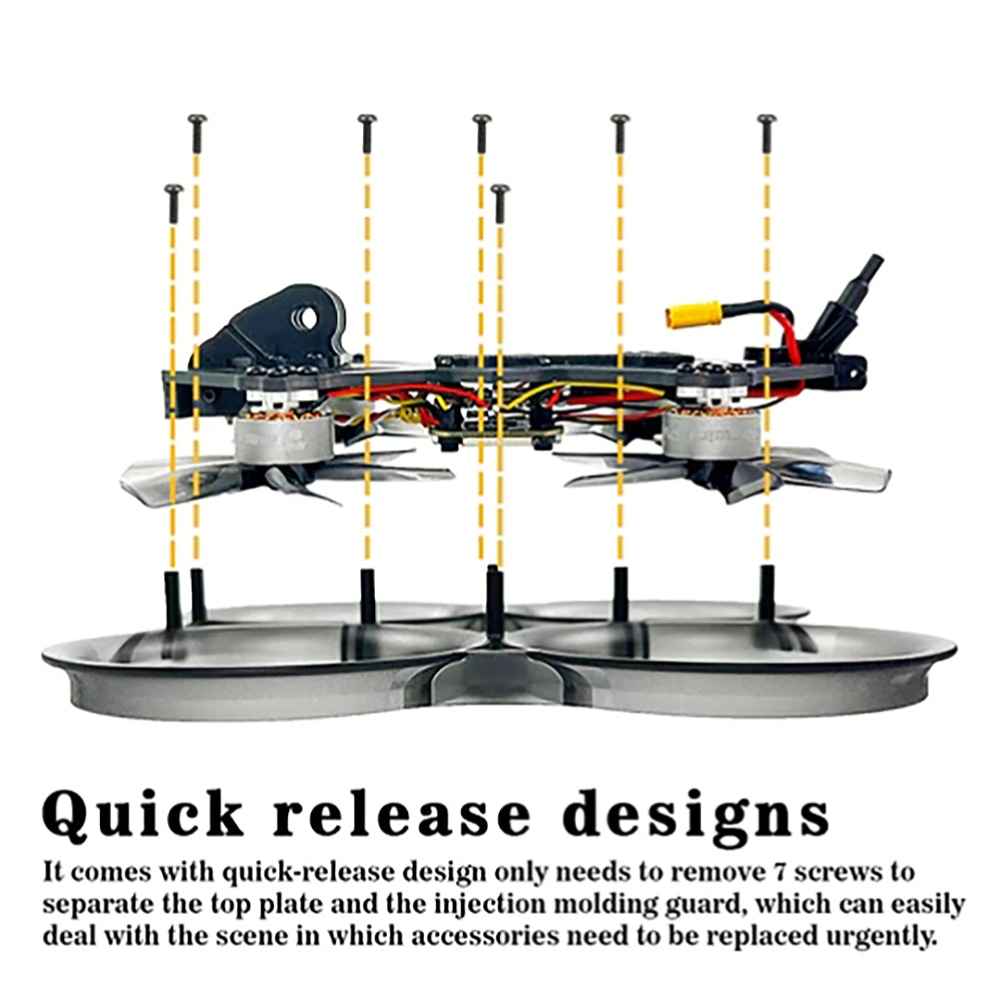

It comes with quick-release frame design only needs to remove 7 screws to separate the top plate and the injection molding guard, which can easily deal with the scene in which accessories need to be replaced urgently.

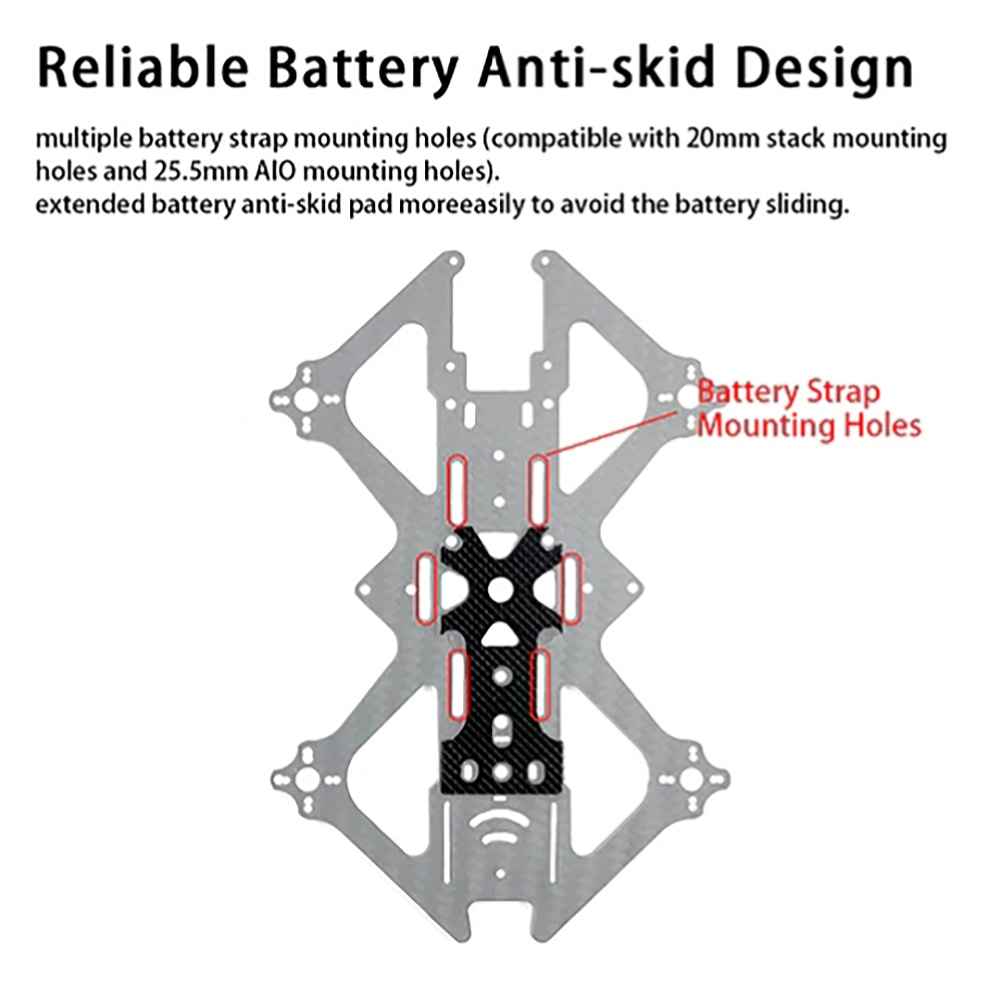

Compared with the same type of frames, CineApe 25 frame has been added multiple battery strap mounting holes, compatible with 20mm stack mounting holes and 25.5mm AIO mounting holes. The battery anti-skid pad is designed to be extended, which avoids the trouble that the anti-skid pad at the back of the battery is too small to play a non-slip effect when installing the gobro.

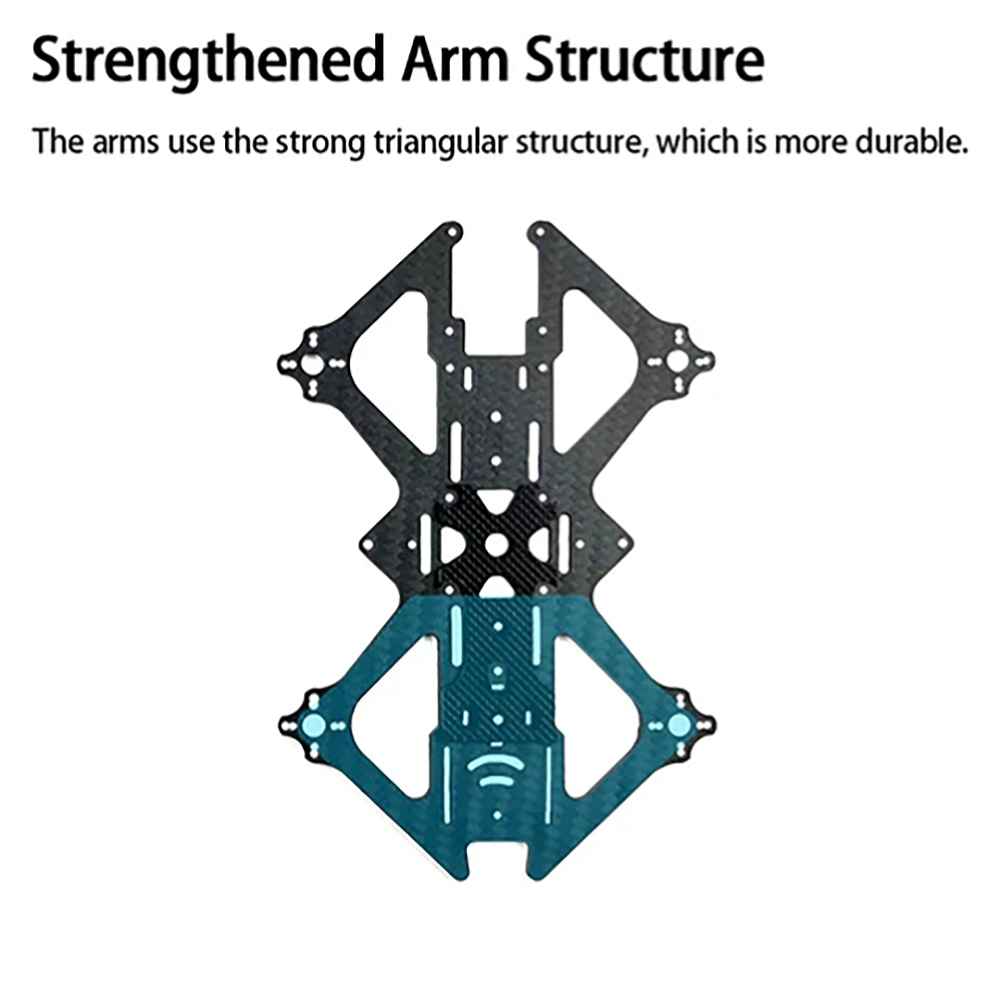

The arms use the strong triangular structure, which is more durable.

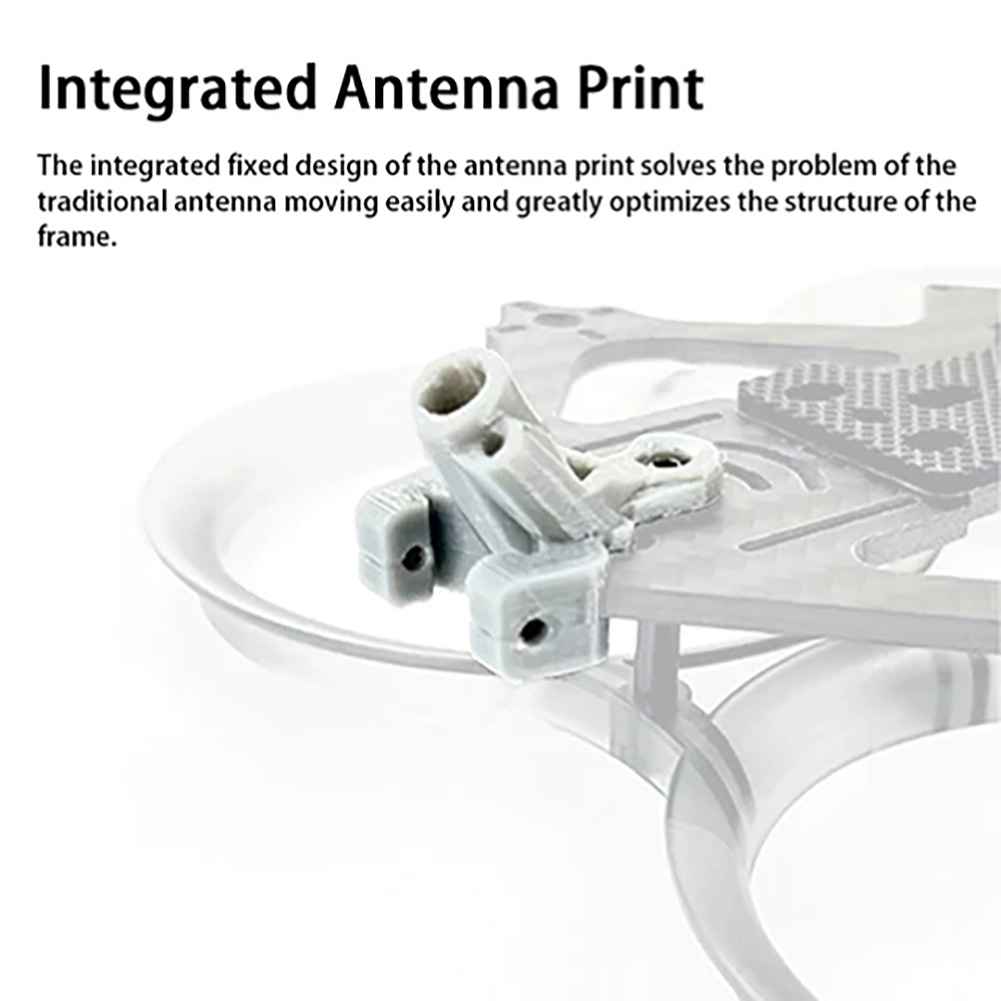

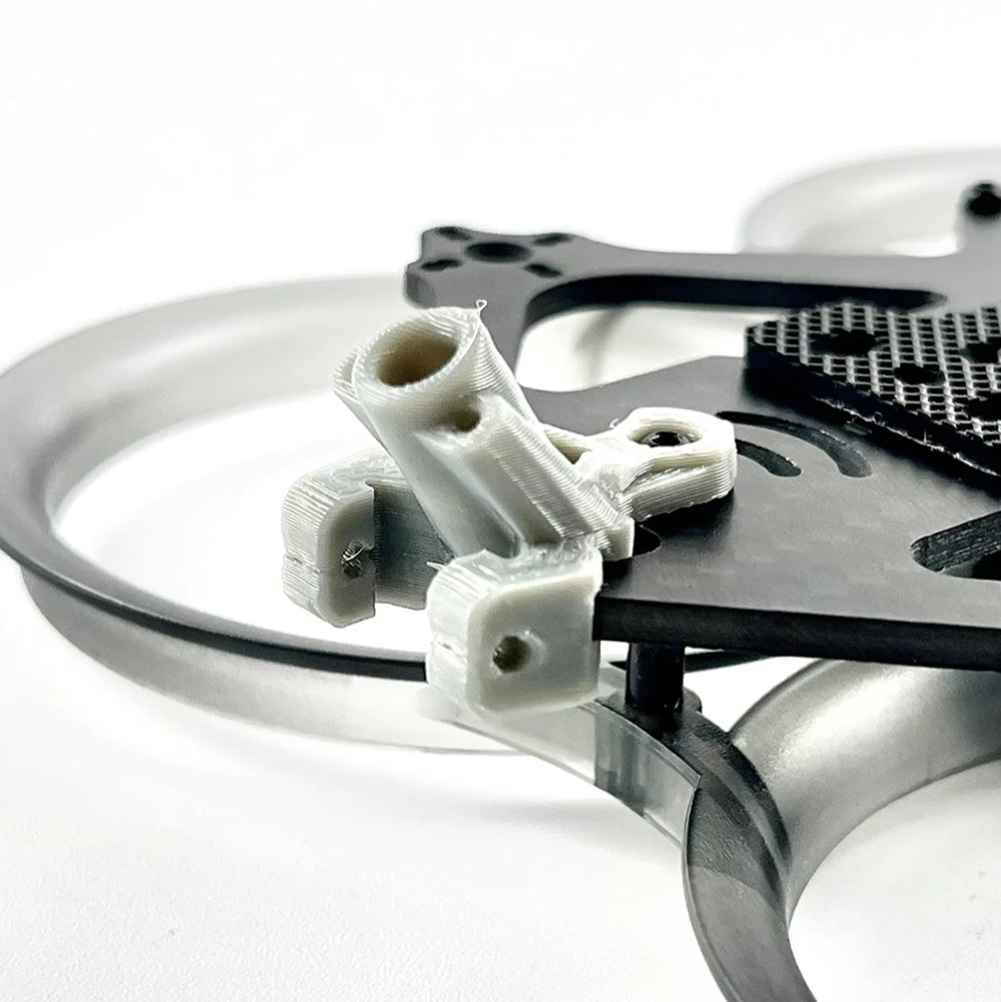

The integrated fixed design of the antenna print solves the problem of the traditional antenna moving easily and greatly optimizes the structure of the frame.
Specifications:
Wheelbase: 112mm
Top Plate Hole: 20mm x 20mmㄛ25.5mm x 25.5mm
Bottom Plate Hole: 28mm x 15mmㄗ3 holesㄘㄛ20mm x 20mmㄛ25.5mm x 25.5mm
Motor Mounting Hole: 9mm﹜12mm
Carbon Plate Camera Mounting Hole: 19mm
3D Print Camera Hole : 14mm
Weight: 66.7g
Top Plate Thickness: 2.5mm
Package Included:
1 x top plate 2.5mm
1 x bottom plate 2mm
1 x injection molding guard
1 x camera mount
1 x antenna mount
1 x battery anti-skid pad
2 x battery cable tie 10 x 170mm
7 x M2 x 12mm copper standoff
4 x M2 nylon nut
6 x M2 x 6 hexagon socket head screw
5 x M2 x 7 hexagon socket head screw
3 x M2 x 10 hexagon socket head screw
4 x M2 x 14 hexagon socket head screw
1 x sticker
1 x Propeller Guard
1 x Top Plate
1 x Bottom Plate
