DarwinFPV Betaflight F4 OSD Flight Controller with 50A 4IN1 ESC Stack, 30.5×30.5mm, for Darwin129 FPV Racing Drone

Description

30.5×30.5mm DarwinFPV Betaflight F4 OSD Flight Controller with 10V 4.5V 3.3V BEC and 50A BL_S 2-6S 4IN1 ESC Stack for Darwin129 FPV Racing Drone

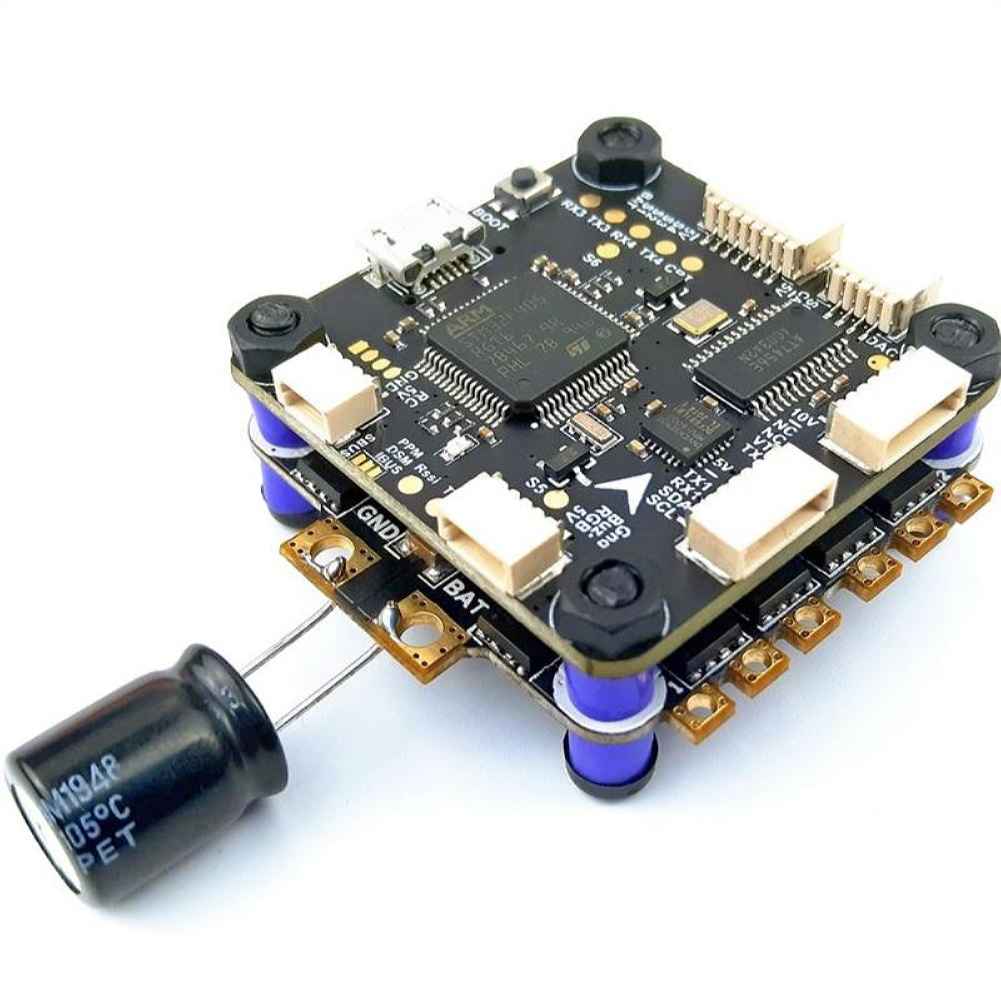

The DarwinFPV Betaflight F4 OSD Flight Controller and 50A 4IN1 ESC Stack is engineered for the Darwin129 7-inch FPV Racing Drone. This compact system features a 30.5×30.5mm mounting hole with M3 screws, ensuring easy installation. The F4 Flight Controller supports 3-6S input voltage and includes BEC outputs of 10V 1A, 4.5V, and 3.3V. It is equipped with an ML-405 MCU, MPU6500 gyroscope, and AT7456E OSD firmware. The 50A 4IN1 ESC supports 2-6S input voltage, with a continuous current of 50A and a peak of 60A for 10 seconds. It also includes a 5V2A BEC and supports DSHOT600 throttle signals. The total weight of the stack is 18g.

Notice: The color of anti-vibration ball will send randomly.
Specification:
Brand: Darwin
Item Name: 30.5×30.5mm F4 Flight Controller & 50A 4in1 ESC Stack
Application: for Darwin129 7 Inch FPV Racing Drone

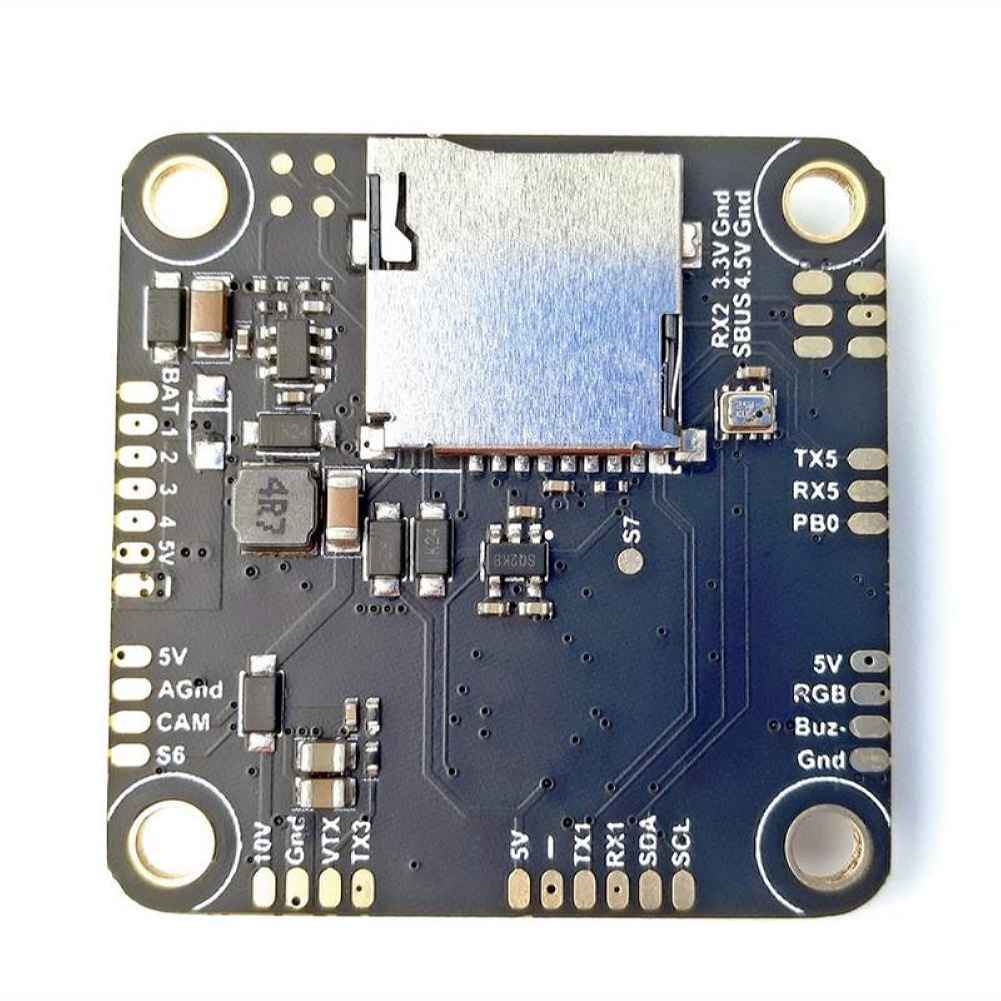

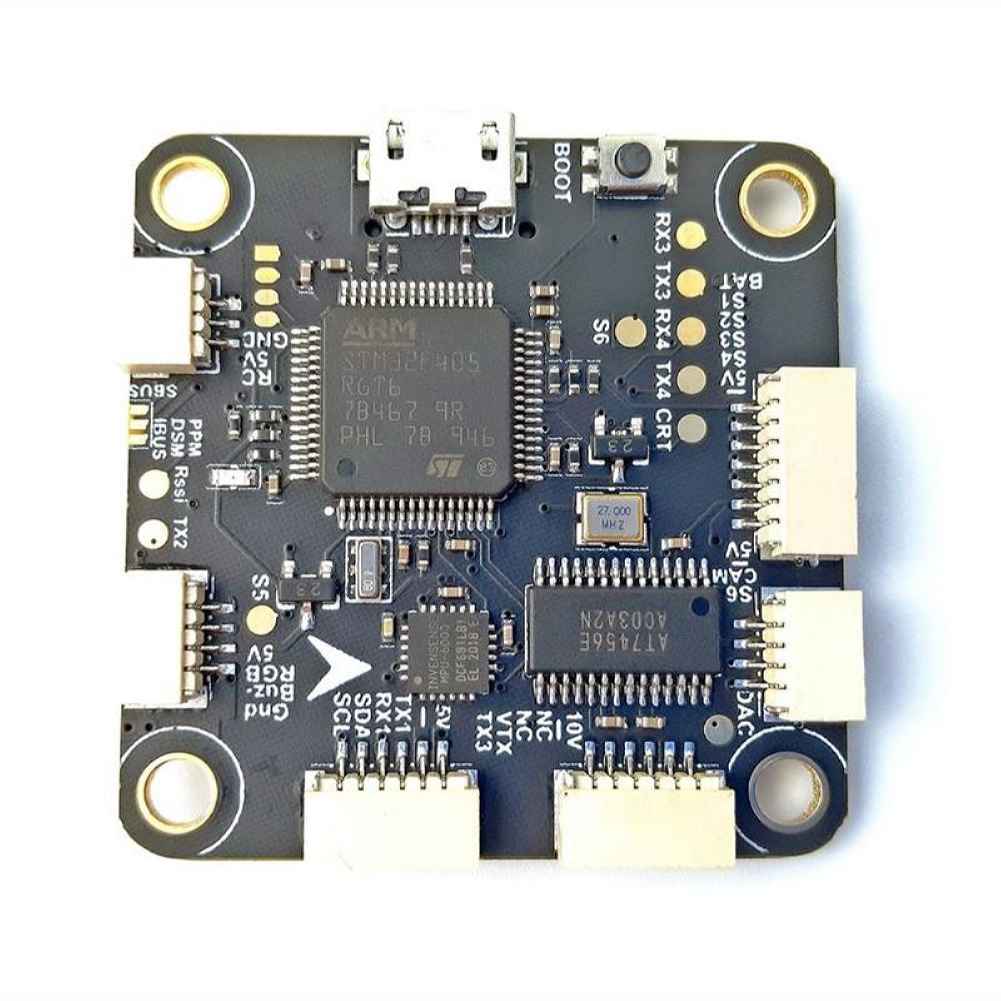

F4 Flight Controller

Input Voltage: 3-6s
BEC: 10V 1A, 4.5V, 3.3V
MCU: ml-405
Gyroscope: MPU6500
OSD: at7456e
Firmware: matekf405
Weight: 7.2g
Mounting Hole: 30.5×30.5mm, m3
Support barometer, black box

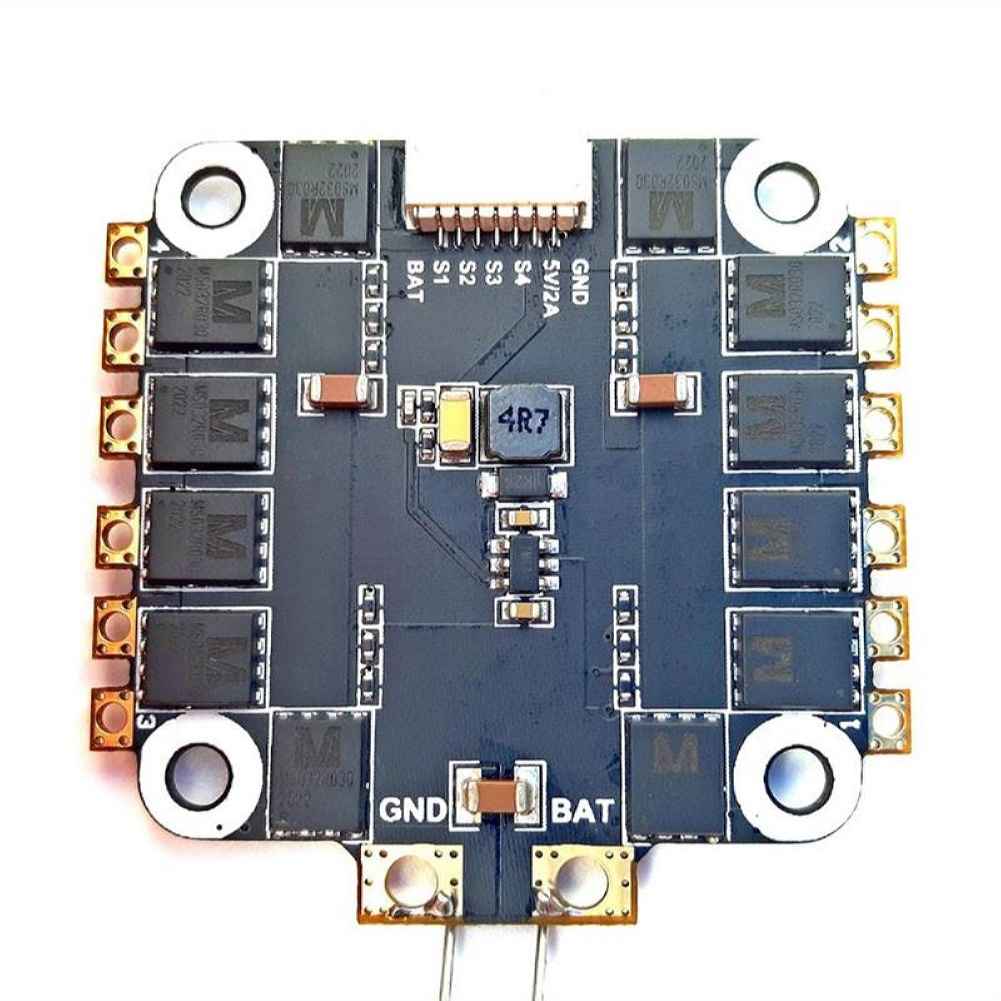

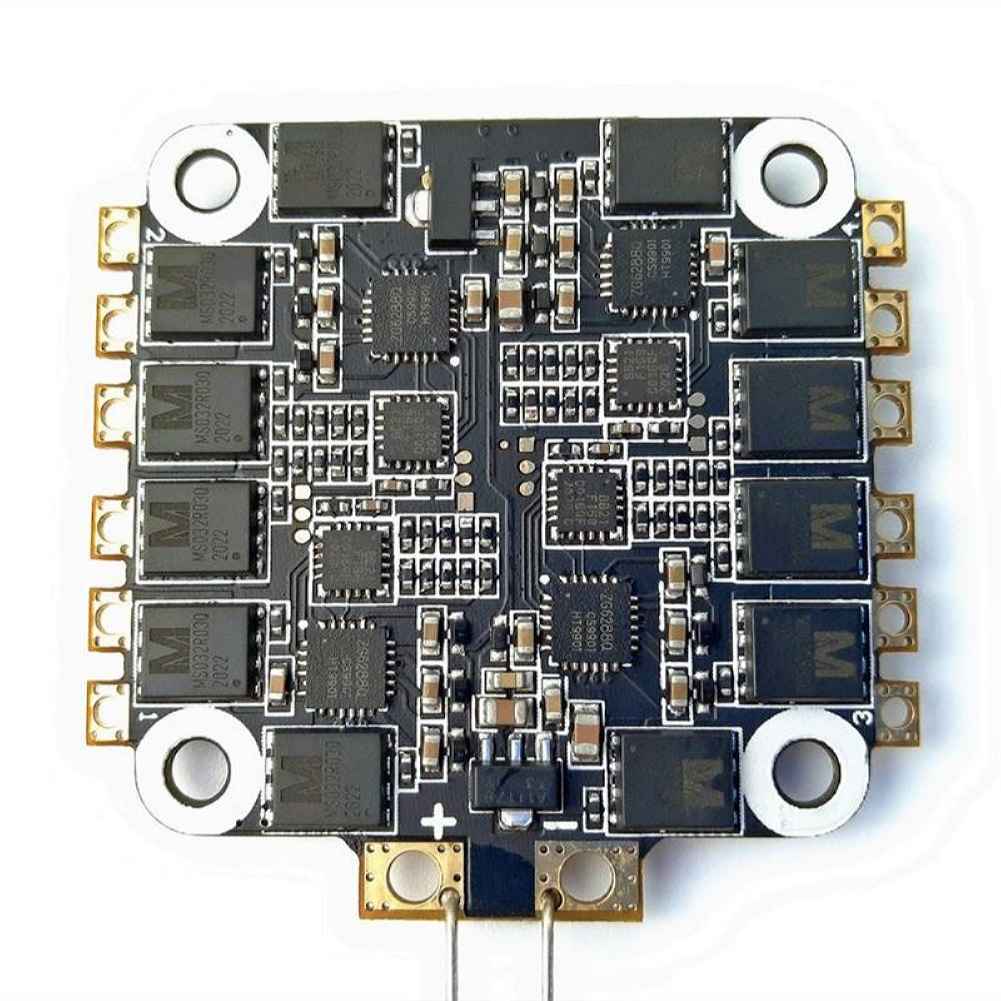

50A 4in1 ESC

Continuous Current: 50A
Peak Current: 60A (10S)
Input Voltage: 2-6S
BEC: 5V2A
ESC weight: 10.8g
Firmware: BL_S
Maximum support throttle signal: DSHOT600
Mounting hole: 30.5x 30.5mm, M3

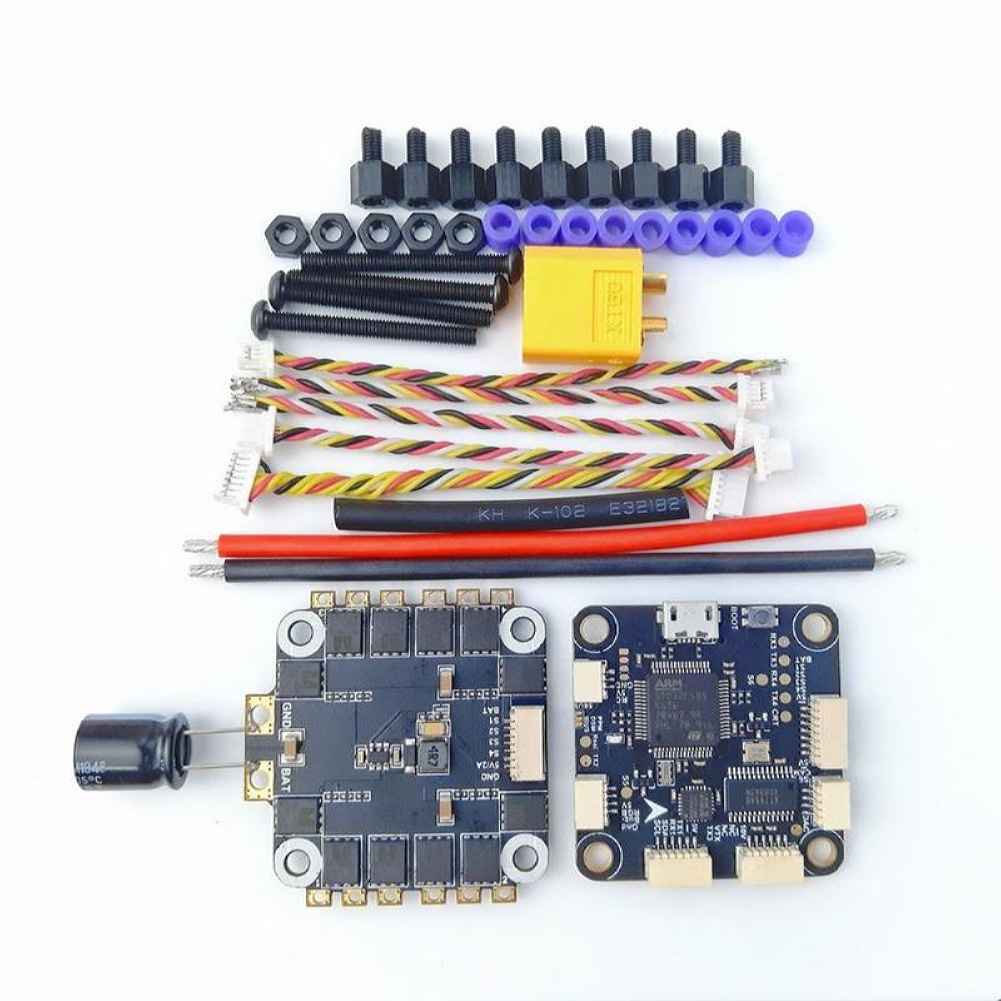

Package Included:
1 x F4 Flight Controller
1 x 50A 4in1 ESC
