Aocoda-RC F465S V4 Stack Flight Controller with OSD & 3065S 65A ESC for RC FPV Racing Drone

Description

30.5*30.5mm Aocoda-RC F465S V4 Stack Build-in F405 V4 Flight Controller with OSD 5V 9V BEC Output & 3065S 65A 3-8S ESC for RC FPV Racing Drone

The Aocoda-RC F465S V4 Stack is a high-performance flight controller and ESC combo designed for RC FPV racing drones. It features an advanced STM32F405 chip for smooth control, alongside a 16MB black box for data logging. The ICM42688P gyroscope and SPL06-001 barometer ensure precise altitude and motion detection. This unit supports multiple receiver protocols, including ELRS, CRSF, and SBUS, and offers dual BEC outputs for efficient power management. The 3065S ESC supports up to 65A continuous current and multiple ESC protocols, making it ideal for high-performance applications. This stack is designed for compatibility with 3-8S Lipo batteries and includes enhanced connectivity options.

Features:
1. Advanced Flight Controller: Equipped with STM32F405 chip for smoother and more responsive control.
2. High Storage Capacity: Features 16MB black box for efficient data logging and analysis.
3. Robust Sensor: Incorporates ICM42688P gyroscope and SPL06-001 barometer for precise altitude and motion detection.
4. Enhanced Connectivity: Supports multiple receiver protocols including ELRS, CRSF, SBUS, Frsky, Futab, and DSMX.
5. Efficient Power Management: Dual BEC output with 5V/3A and 9V/2.5A for reliable component power supply.
Specification:
Brand: Aocoda-RC
Model: F465S V4 Stack

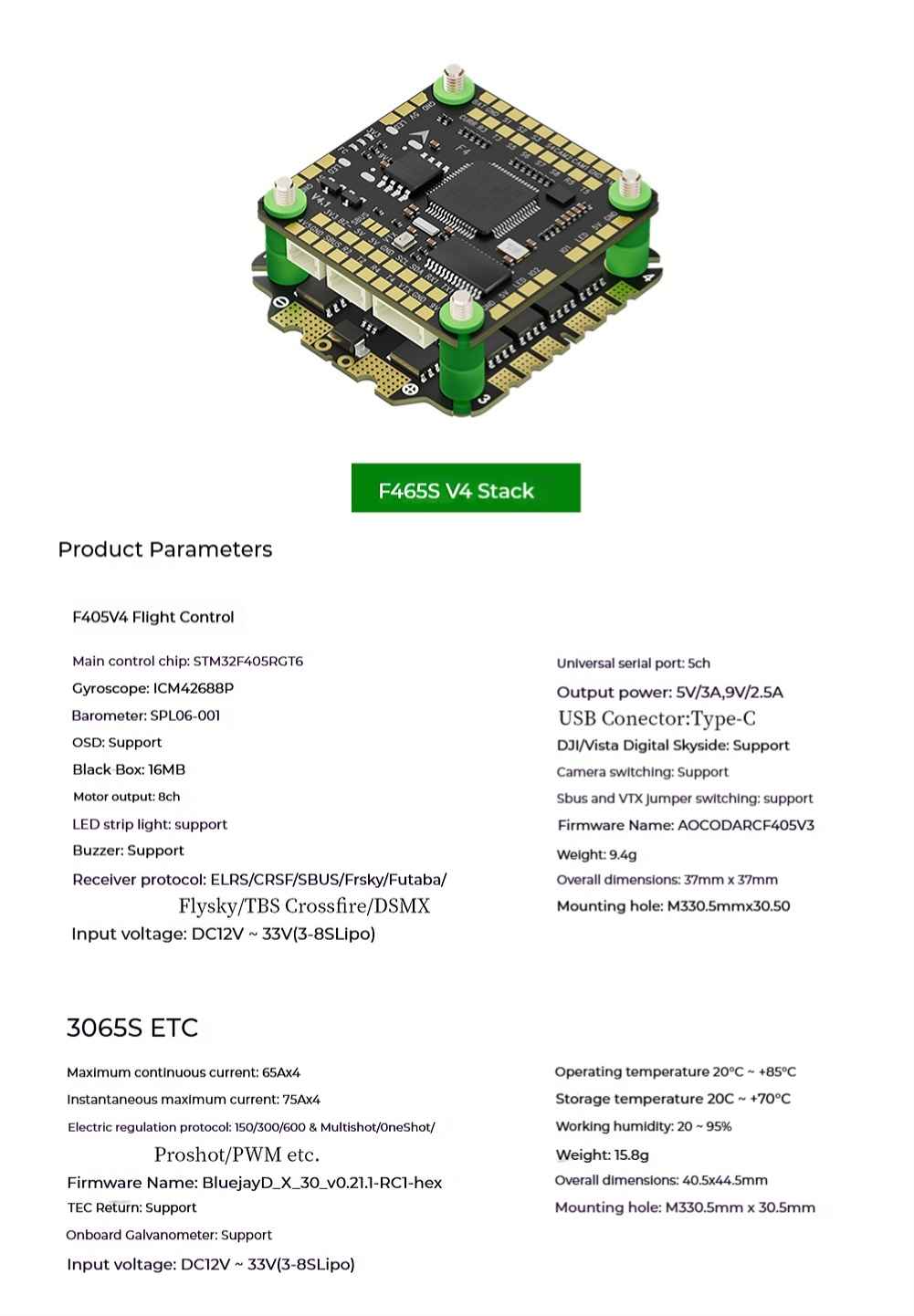

Specification

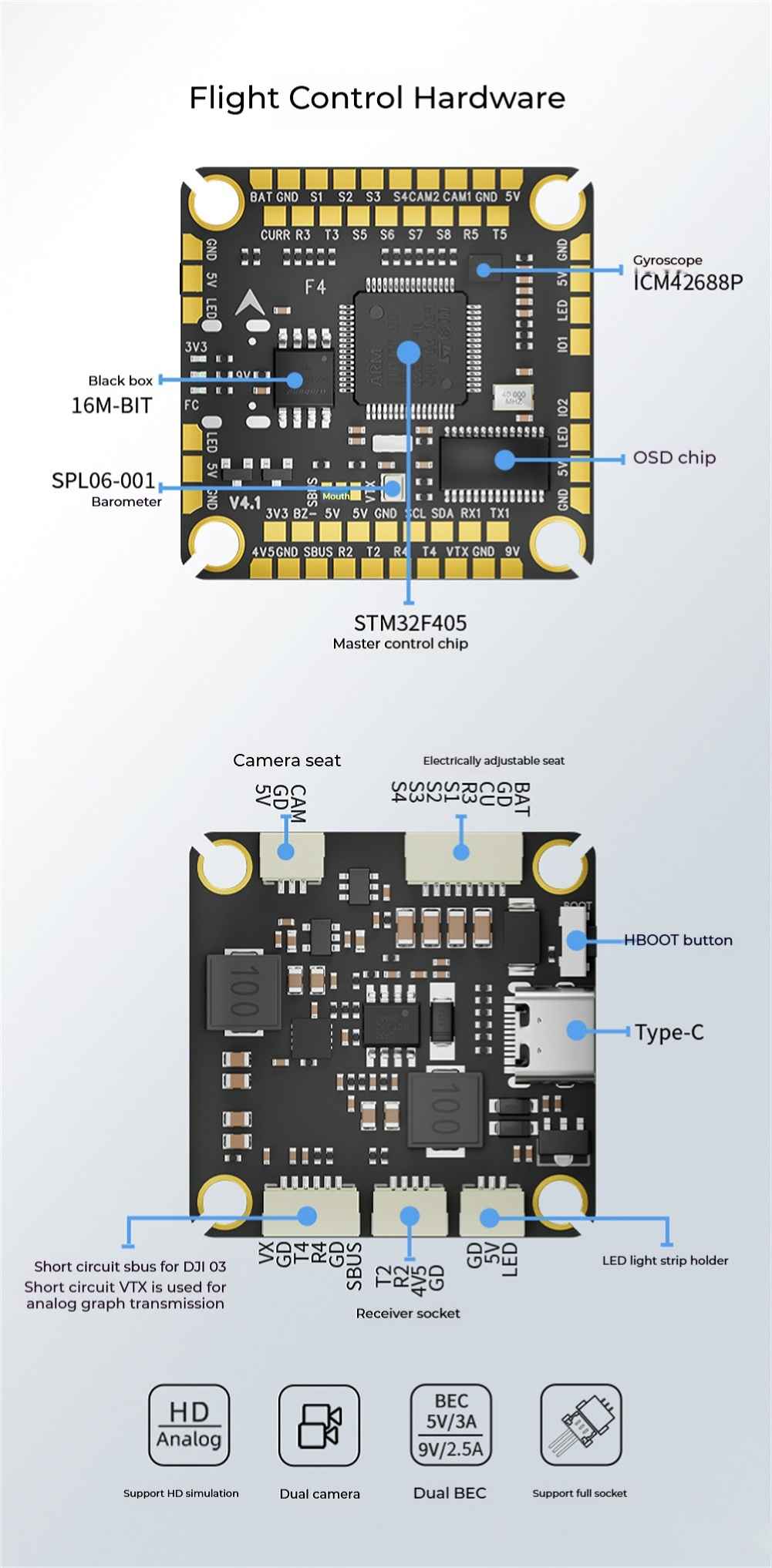

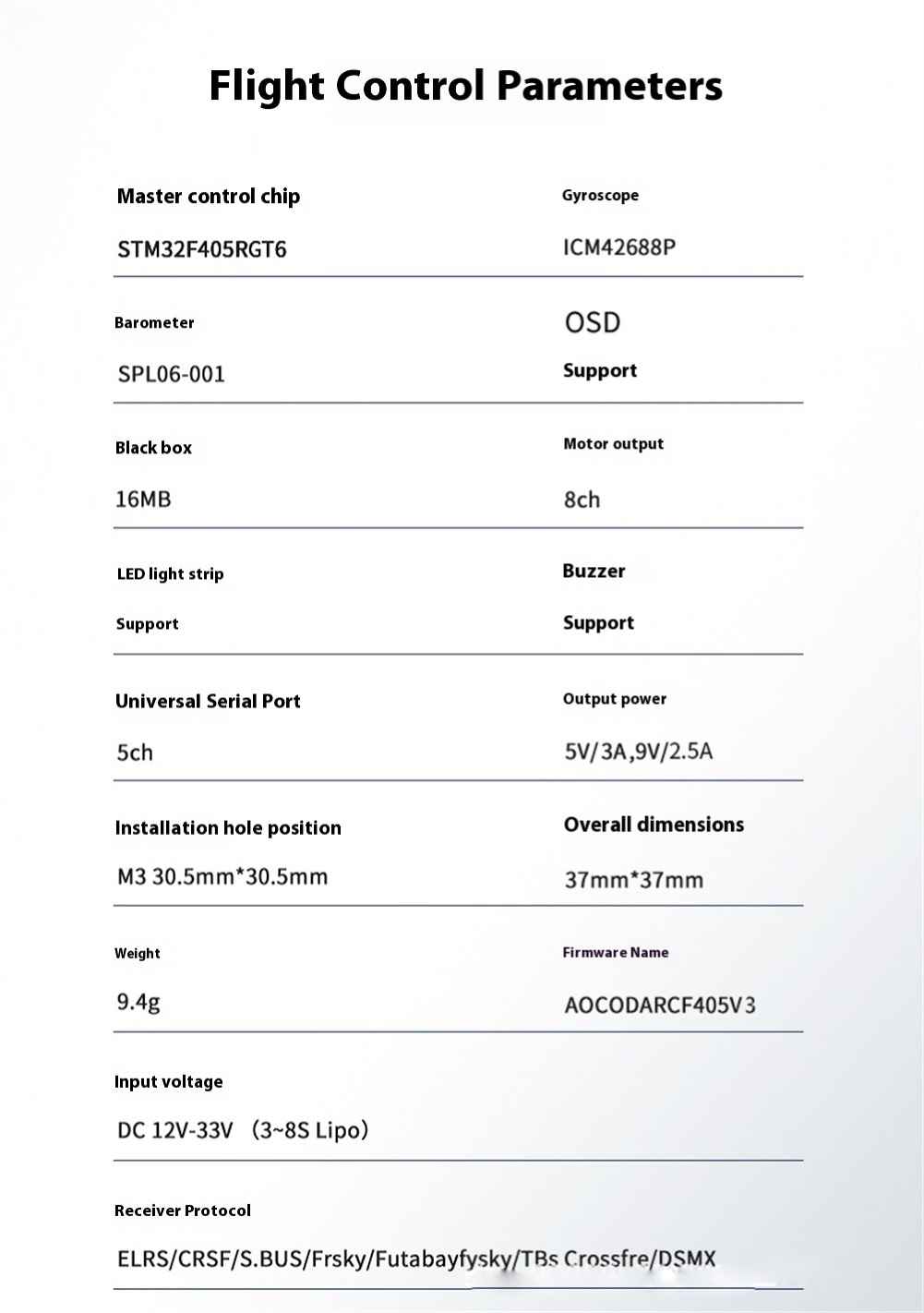

F405 V4 FC

Main Chip: STM32F405RGT6
Gyroscope: ICM42688P
Barometer: SPL06-001
OSD: Supported
Black Box: 16MB
Motor Output: 8CH
LED Strip: Supported
Buzzer: Supported
Receiver Protocols: ELRS,CRSF,SBUS,Frsky,Futab,Flysky,TBS CRSF,DSMX
Input Voltage: DC 12V~33V(3-8S Lipo)
Output Power: 5V/3A, 9V/2.5A
USB Type: Type-C
Dual Camera Support: DJI/Vista digital FPV

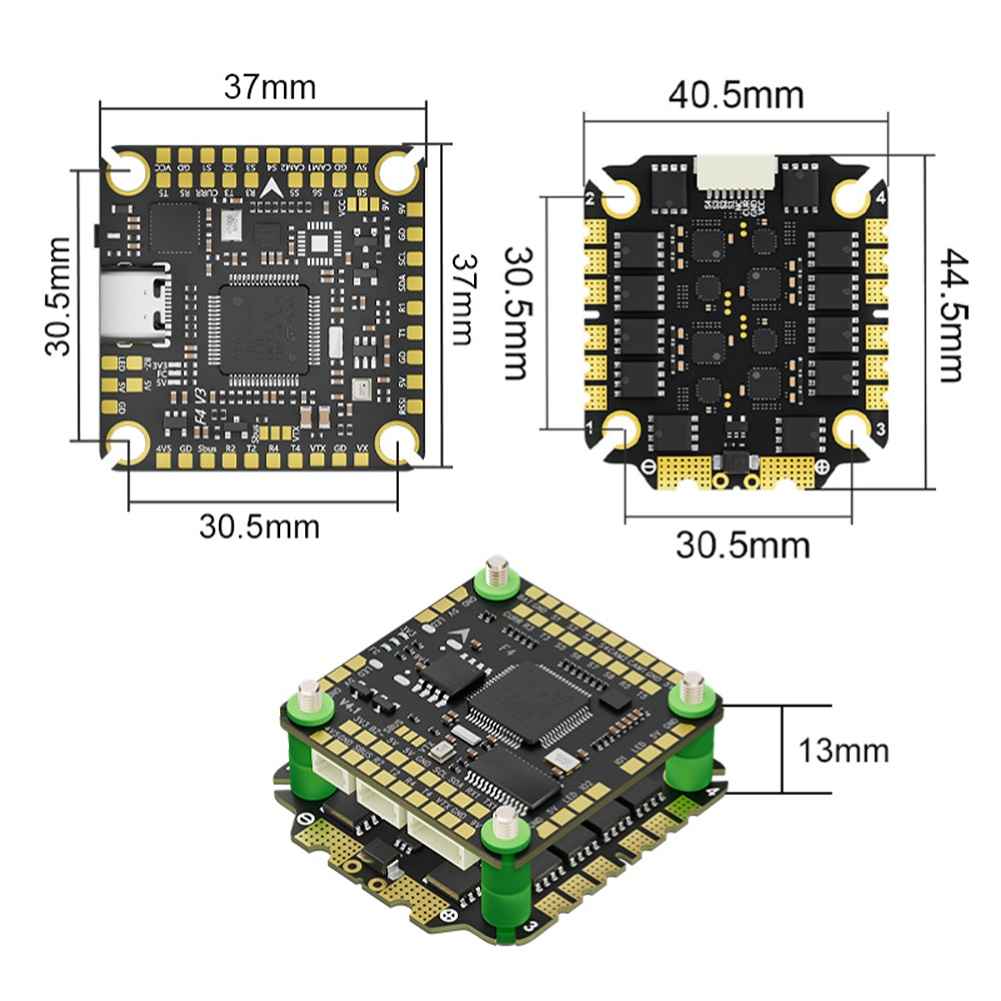

Dimensions: 37mm x 37mm
Mounting Hole: M3 30.5mm x 30.5mm
Weight: 9.4g

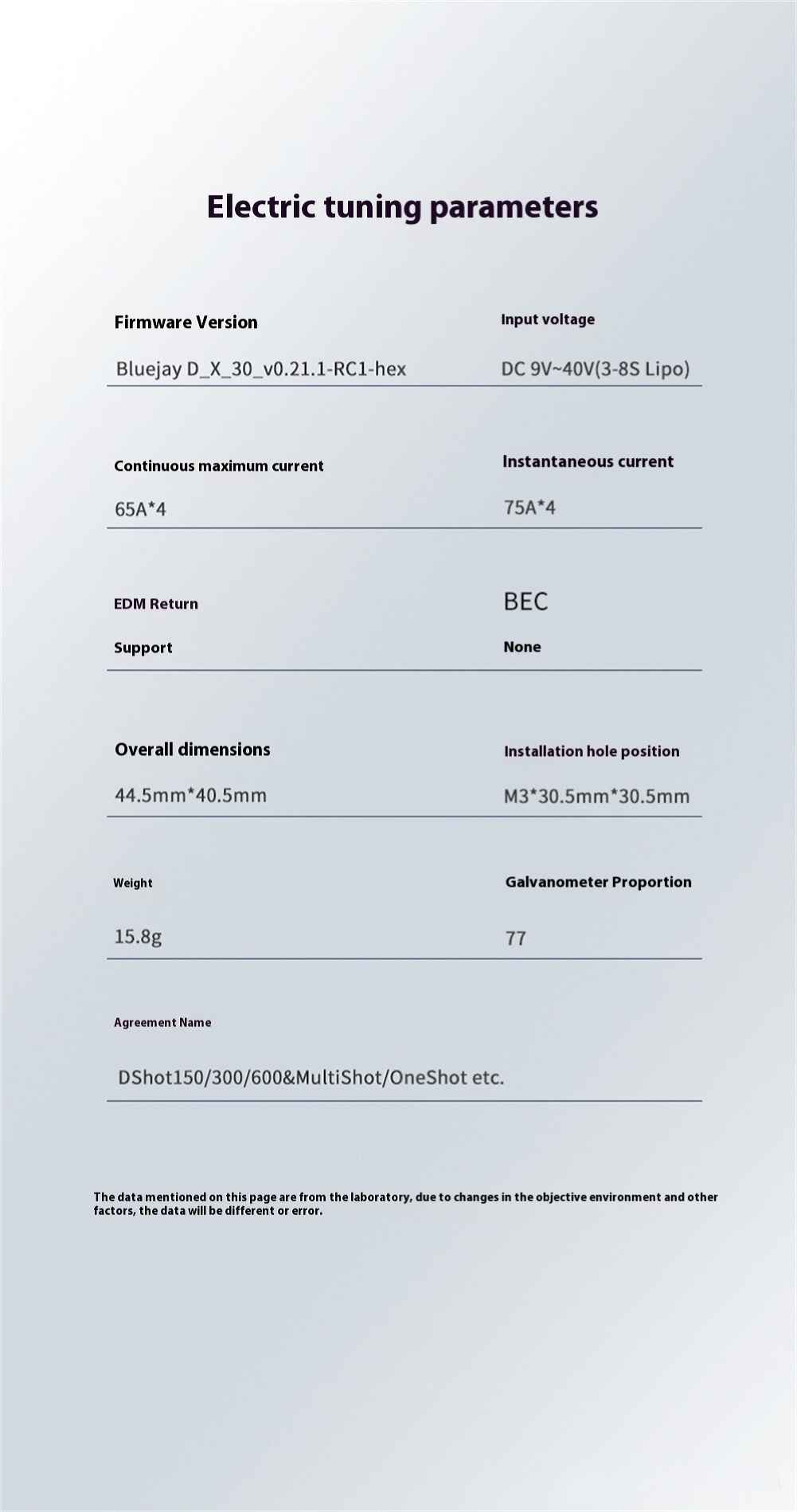

3065S ESC

Continuous Current: 65A x 4
Max Burst Current: 75A x 4
Supported ESC Protocols: DShot150,300,600,Mulitshot,OneShot,Proshot/PWM etc.
Firmware Version: Bluejay D_X_30_v0.21.1-RC1-hex
Input Voltage: DC 9V~40V(3-8S Lipo)
Current Sensor: Supported
BEC: None
Dimensions: 44.5mm x 40.5mm
Mounting Hole: M3 30.5mm x 30.5mm
Weight: 15.8g
Current Sensor Ratio: 77

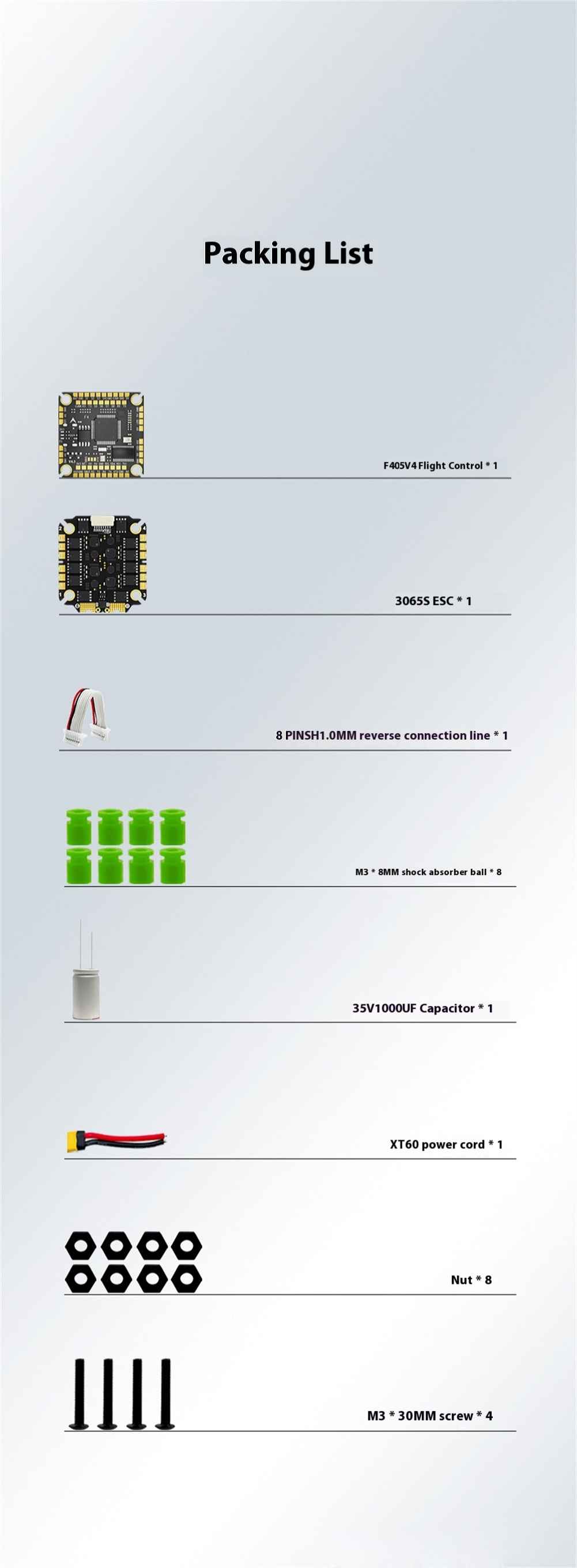

Package Included:
1 x F405 V4 Flight Controller
1 x 3065S ESC
1 x 8PIN SH1.0MM Reverse Connector
8 x M38 MM Shock Absorbing Ball
1 x 35V 1000UF Capacitor
1 x XT60 Power Cable
8 x M3 Nuts
4 x M3 30MM Screws
