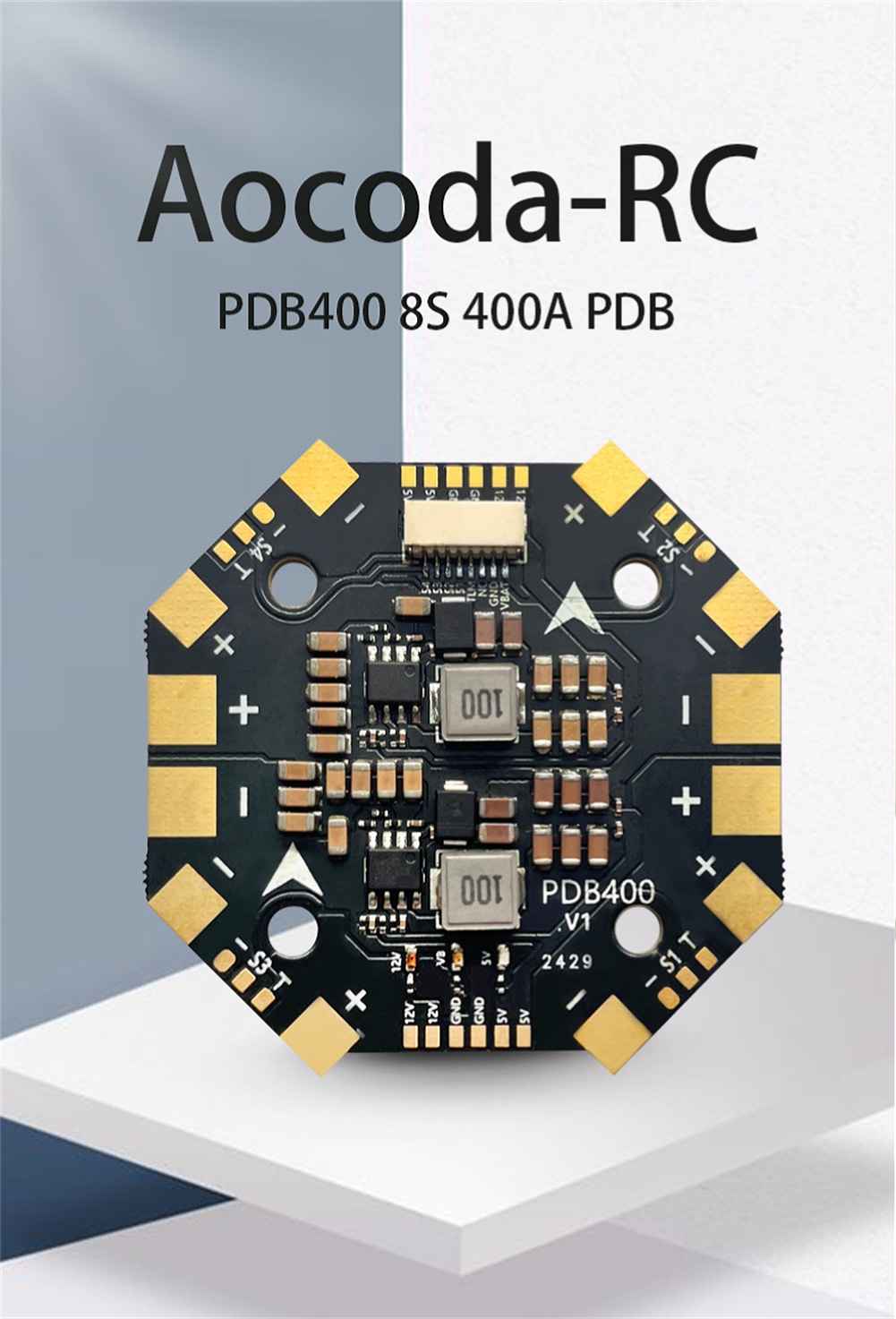

Aocoda-RC PDB400 8S 400A Power Distribution Board for FPV Racing Drones and RC Aircraft

Description

30.5*30.5mm Aocoda-RC PDB400 8S 400A PDB Power Distribution Board for RC FPV Racing Drones RC Quadcopter RC Airplane

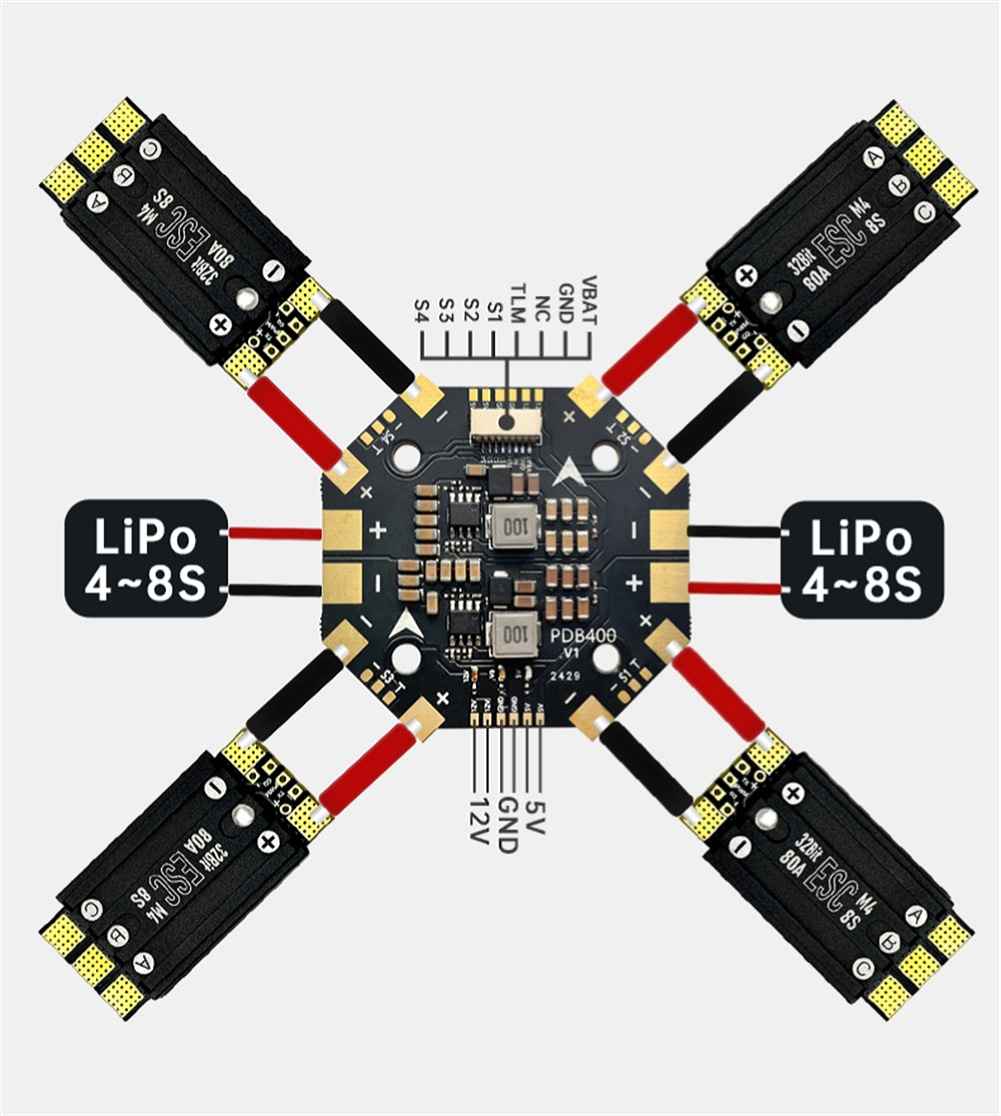

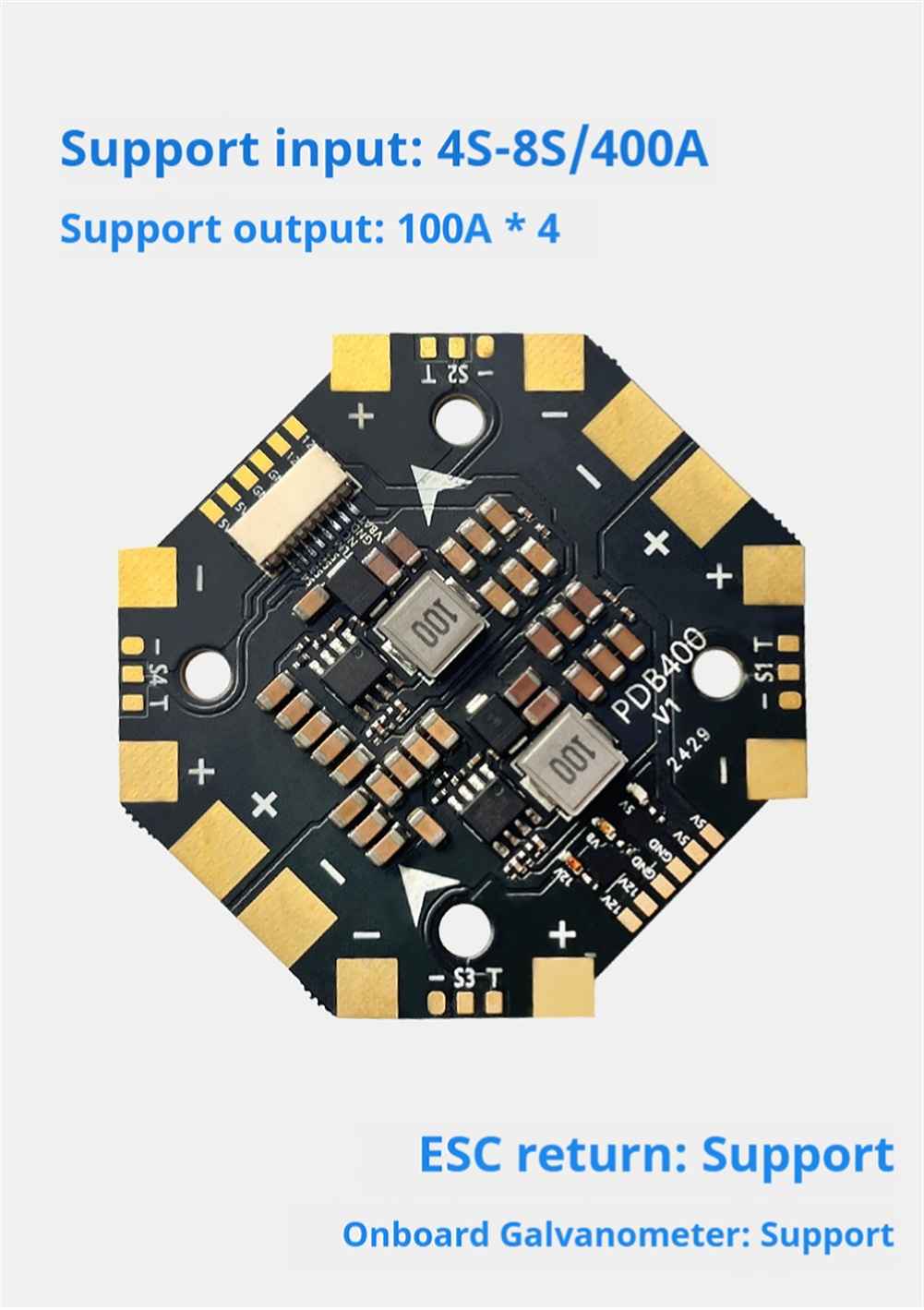

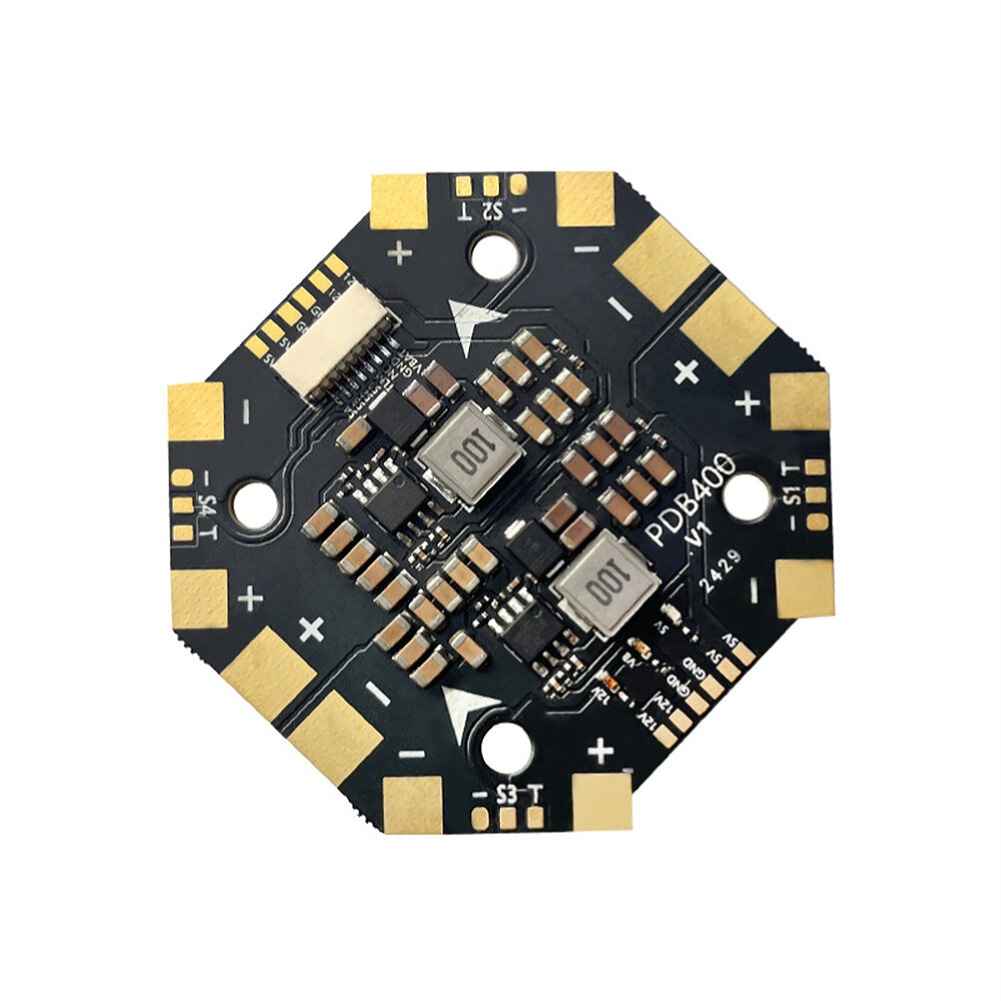

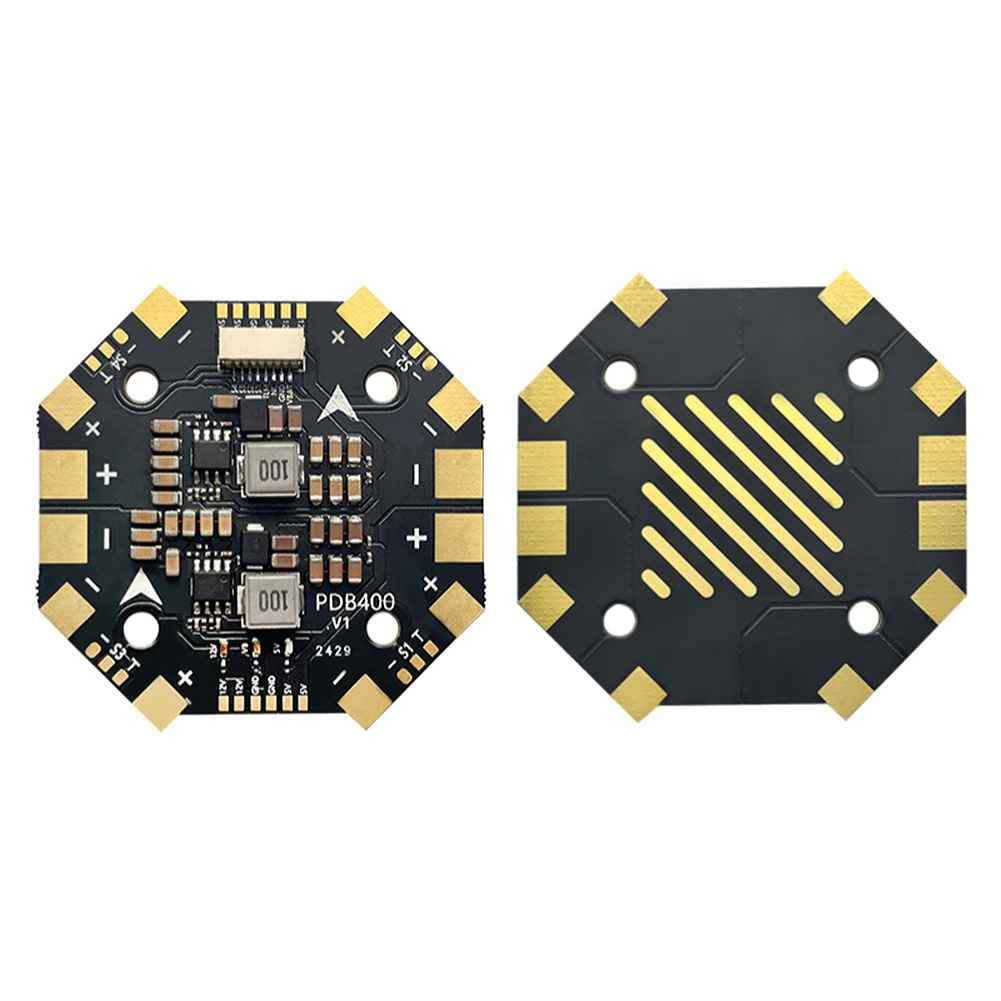

The Aocoda-RC PDB400 Power Distribution Board is designed for RC FPV racing drones and aircraft. It supports continuous maximum current of 100A and instantaneous maximum current of 110A, with an input voltage range of 3-8S LiPo. With a weight of just 22g, it features external dimensions of 56mm x 56mm and installation hole positions of M3 30.5mm x 30.5mm. The board supports electric rotary adjustment and includes an onboard ammeter for precise power management. This power distribution board ensures reliable performance for your high-speed racing drones and RC aircraft.

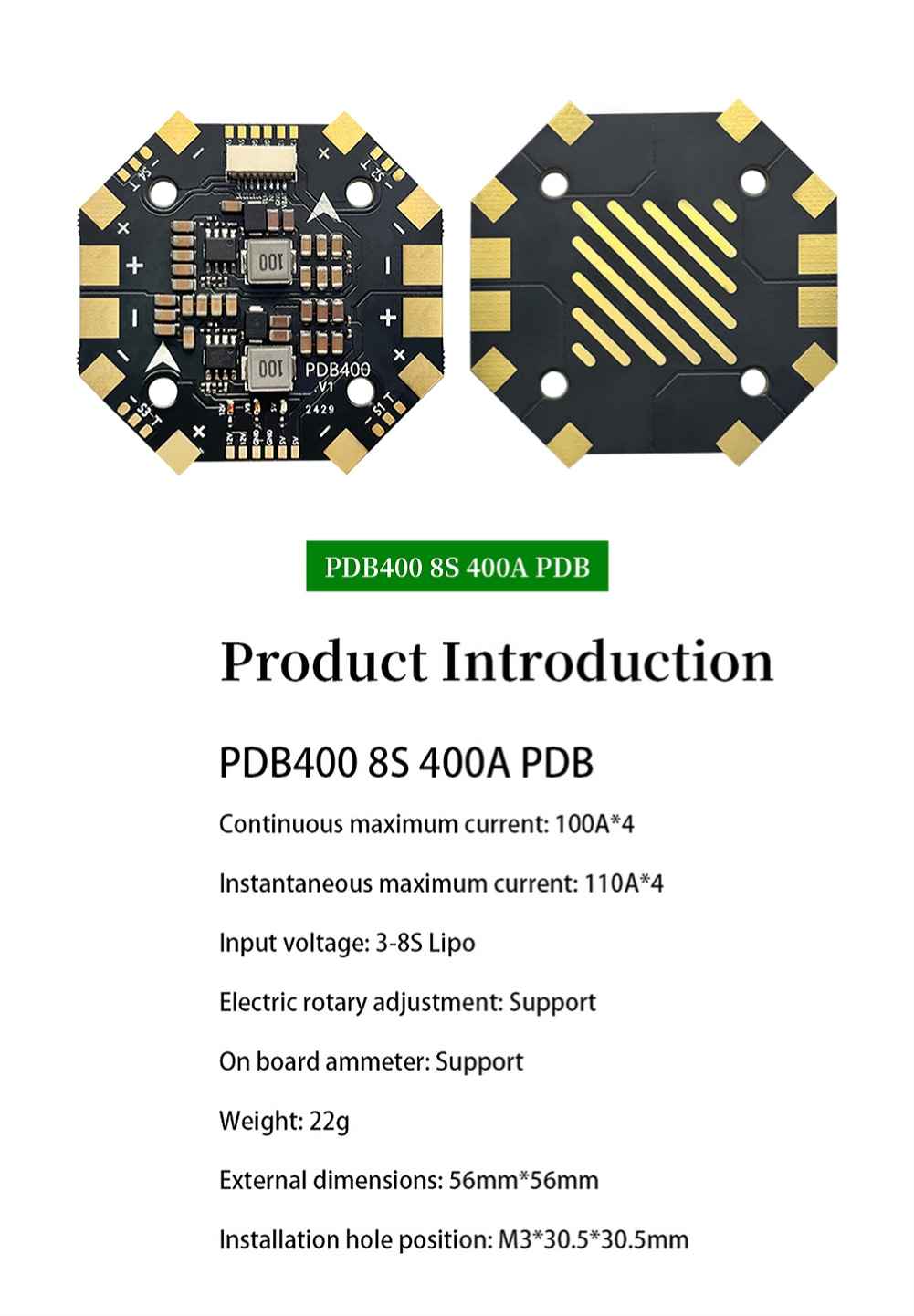

Specification:
Brand: Aocoda-RC
Item Name: PDB400 PDB Power Distribution Board
Continuous Maximum Current: 100A*4
Instantaneous Maximum Current: 110A*4
Input Voltage: 3-8S LiPo
Electric Rotary Adjustment: Support
On Board Ammeter: Support
Weight: 22g

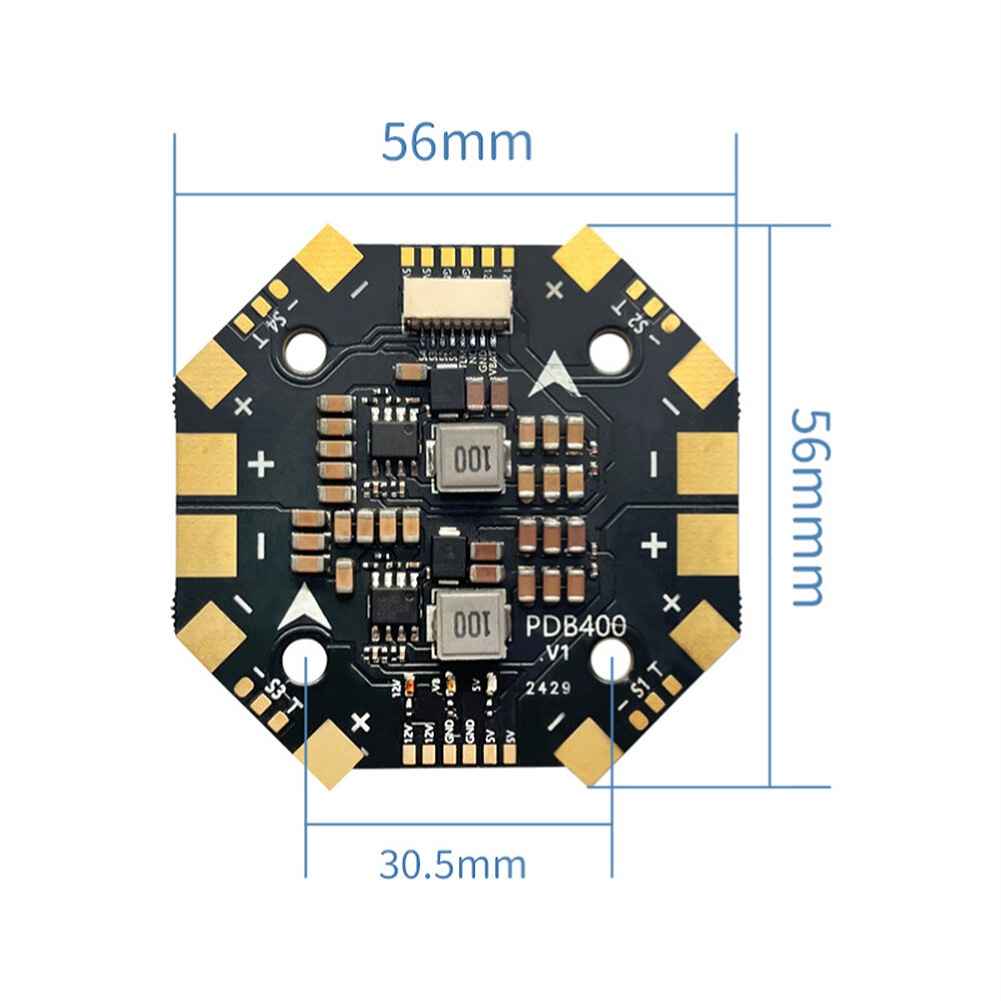

External Dimensions: 56mm*56mm
Installation Hole Position: M3 30.5*30.5mm

Package Included:
1 x PDB400 Power Distribution Board
4 x M3 8 Shock Absorber Balls
1 x XT60 12AWG 130MM Power Cable
