Axisflying Manta 5 SE DC 5 Inch Frame Kit for DJI O4 PRO FPV Racing Drone, 226mm Wheelbase, Carbon Fiber

Description

Axisflying Manta 5 SE DC 226mm Wheelbase 5 Inch 6S Frame Kit for RC DJI O4 PRO FPV Racing Drone

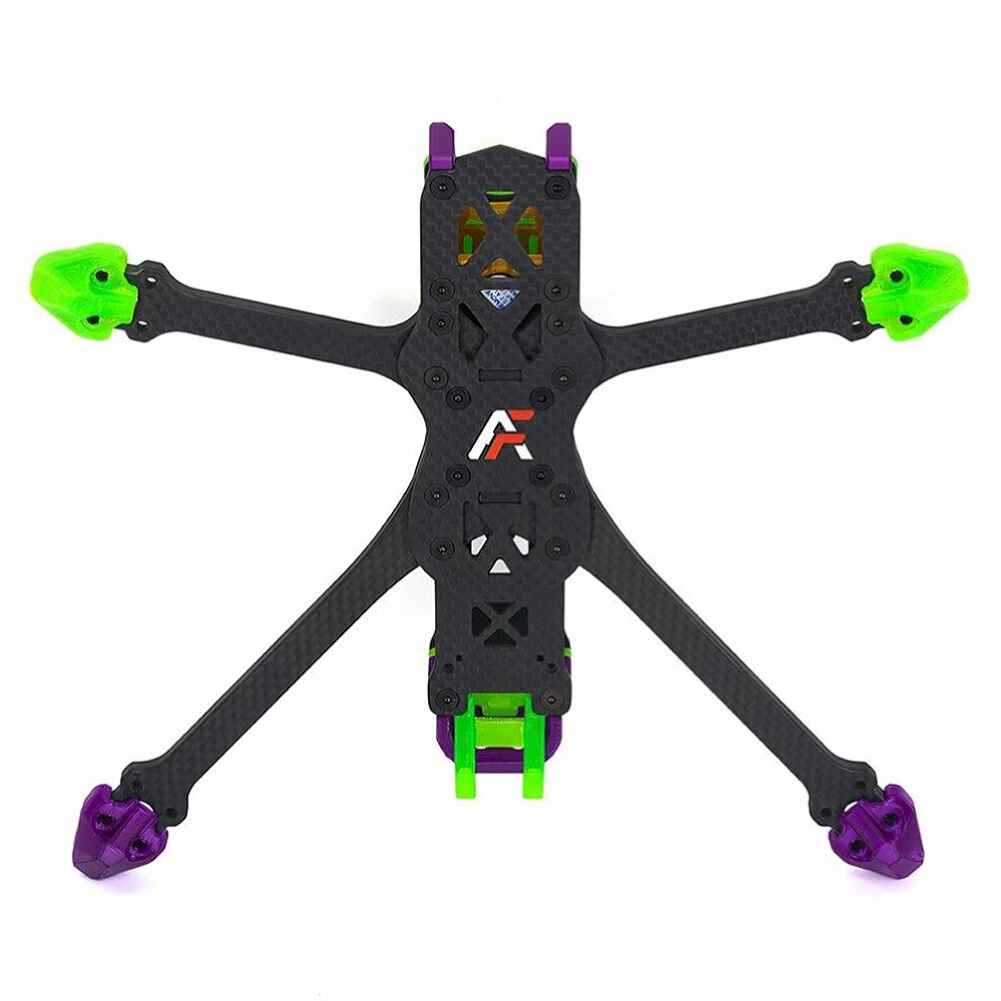

The Axisflying Manta 5 SE DC Frame Kit is designed for FPV racing drones, offering a robust 226mm wheelbase. Constructed with T700 carbon fiber, it ensures durability and lightweight performance. The frame includes a 2mm top plate, 3mm center and bottom plates, and 6mm thick arms, supporting propeller sizes up to 5.1 inches. It accommodates various installations with a maximum stack height of 20mm, including camera, VTX, and motor setups. Ideal for 6S battery configurations, it is compatible with DJI O4 PRO Air Units. The frame weighs approximately 179g, making it a perfect choice for high-speed racing.

Specification:
Brand: Axisflying
Item Name: Manta 5 SE DC Frame Kit
Wheelbase: 226mm
Carbon fiber plate: T700
Top Plate: 2mm
Center Plate: 3mm
Bottom plate: 3mm
Arm Thickness: 6mm
Max Stack Height: 20mm

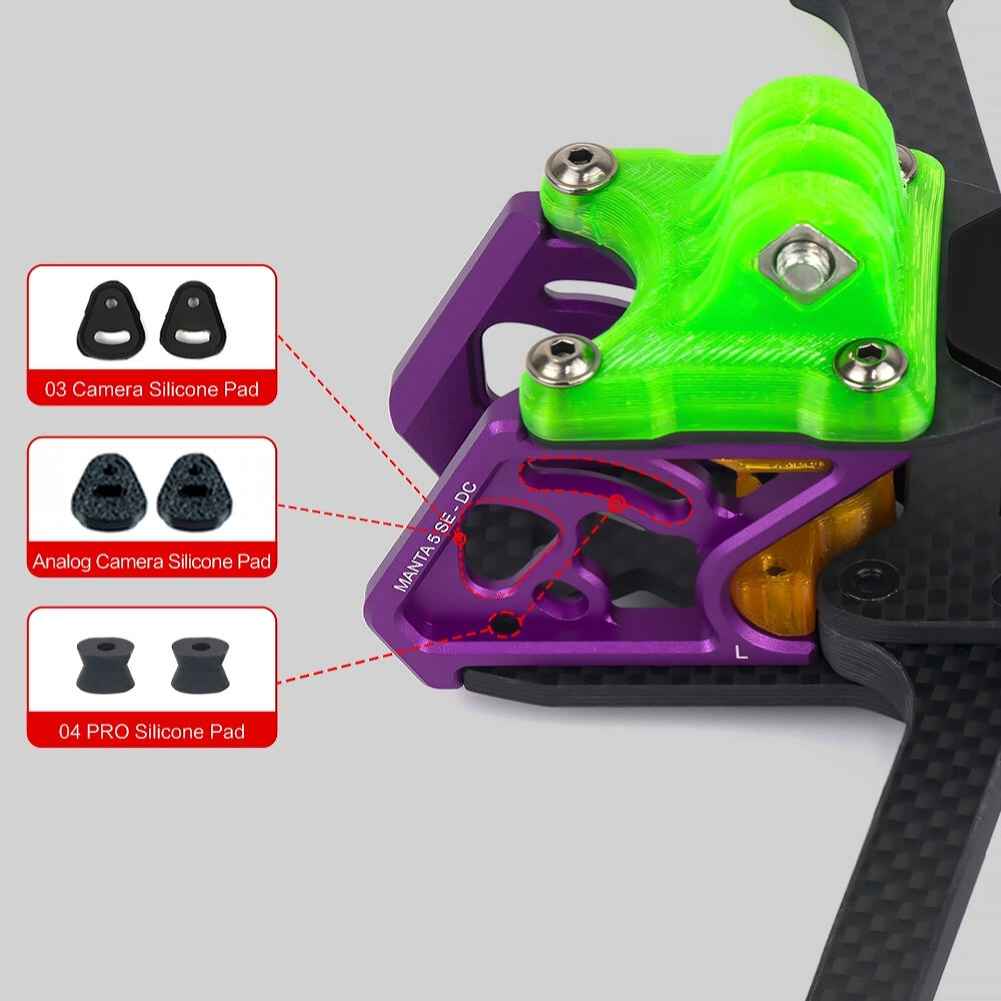

Camera Installation: 14è—©20mm
Stack Installation: 20mm(M3)&30.5mm(M3)
VTX Installation: 20mm&25mm (M2)
Motor Installation: 16mm*16mm / M3
Supported Prop Size: Max 5.1 inch
Frame Weight: 179 呼 5g(Includes printouts)
Recommended Parts(Not included):
Motor: 2207 / 2306 Series Motor
Battery: 6s 1050è—©1300
FC&ESC: 20*20mm Axisflying ARGUS F745 / 30.5×30.5mm Axisflying Argus ECO F405
Propeller: HQProp Freestyle Prop 5X4.3X3V2S 5043 5 Inch 3-Balde Propeller
VTX&Camera: DJI O4 PRO Air Unit

Package Included:
1 x Manta 5 SE DC Frame Kit
