CS-1903SG Full-Metal Hollow-Cup Mini Servo, 3KG, Coreless Motor, RC Car, Aircraft, Drone

Description

CS-1903SG 3KG Full-Metal Hollow-Cup Mini Servo RC Car Model Aircraft Model Drone Servo

The CS-1903SG Full-Metal Hollow-Cup Mini Servo is engineered for precision and performance. With a low dead band of 3ç±³s, it ensures precise control, while its high working frequency of 1520ç±³s/330hz allows for swift response times. This mini servo boasts versatile speed and torque, operating efficiently at both 6.0V and 7.4V, with stall torque ratings of 2.0kg.cm and 3.2kg.cm respectively. Compact and lightweight, it measures 28.5X8X20mm and weighs just 9.2g, making it ideal for easy installation and portability. The full-metal construction enhances durability for long-lasting use, making it a reliable choice for RC cars, model aircraft, and drones.

Specifications:
Name: CS-1903SG Full-Metal Hollow-Cup Mini Servo
Model: CS-1903SG
Dead band:3ç±³ s
Working frequence:1520ç±³ s/330hz

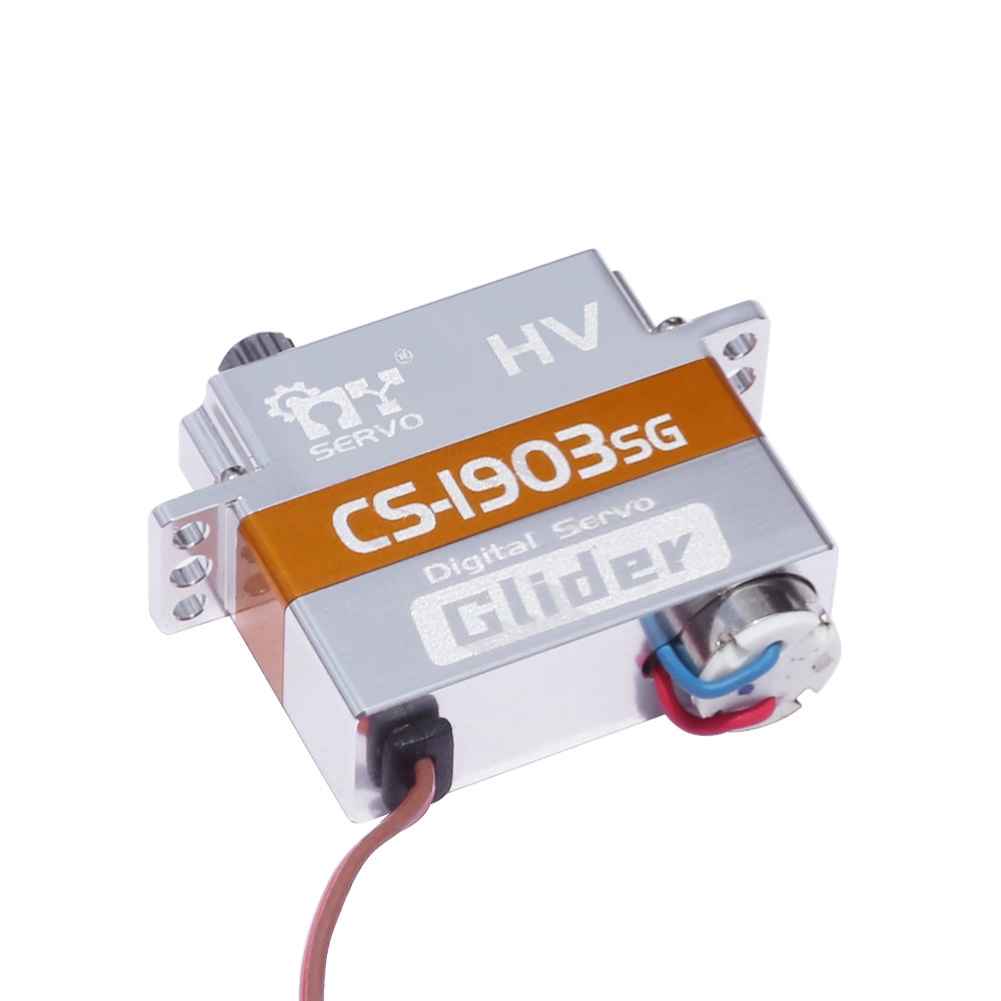

Motorã„©Coreless Motor
Operating Speed(6.0V)ㄩ0.12sec/60～
O0perating Speed(7.4V)ㄩ0.08sec/60～
Stall Torque(6.0V)ã„©2.Okg.cm
Stall Torque(7.4V)ã„©3.2kg.cm

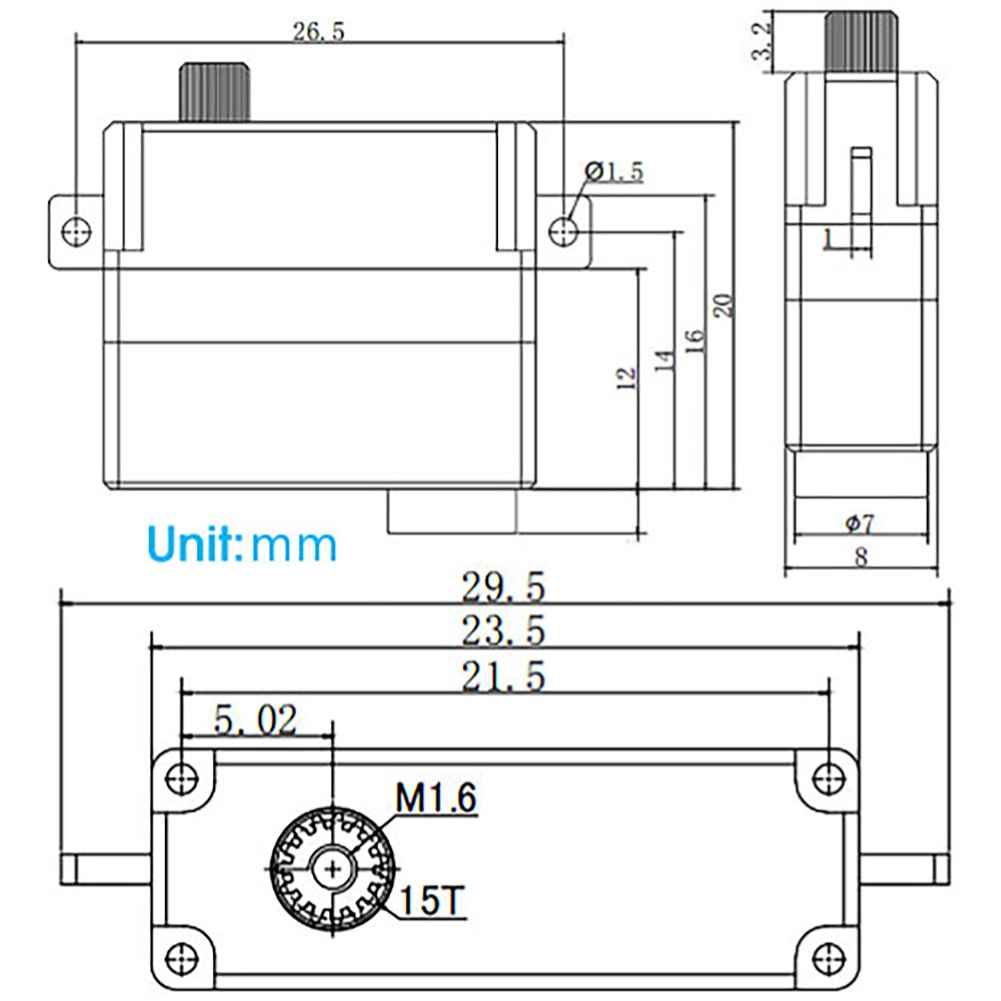

Dimensionsã„©28.5X8X20mm
Weightã„©9.2g
Connector Wire Lengthã„©JR 180 mm
Bearingã„©2BB
Output Gear Spl ine:15T
Features:
Ultimate Precision: This servo boasts a low dead band of 3ç±³s for precise control.
High Working Frequency: It operates at a high frequency of 1520ç±³s/330hz, enabling swift responses times.
Versatile Speed and Torque: It offers fast operation speeds and high stall torque at both 6.0V and 7.4V.
Compact and Lightweight: This mini servo is small in size (28.5X8X20mm) and ultra-lightweight (9.2g) for easy installation and greater portability.
Durable Build: The full-metal construction ensures robustness and longevity.

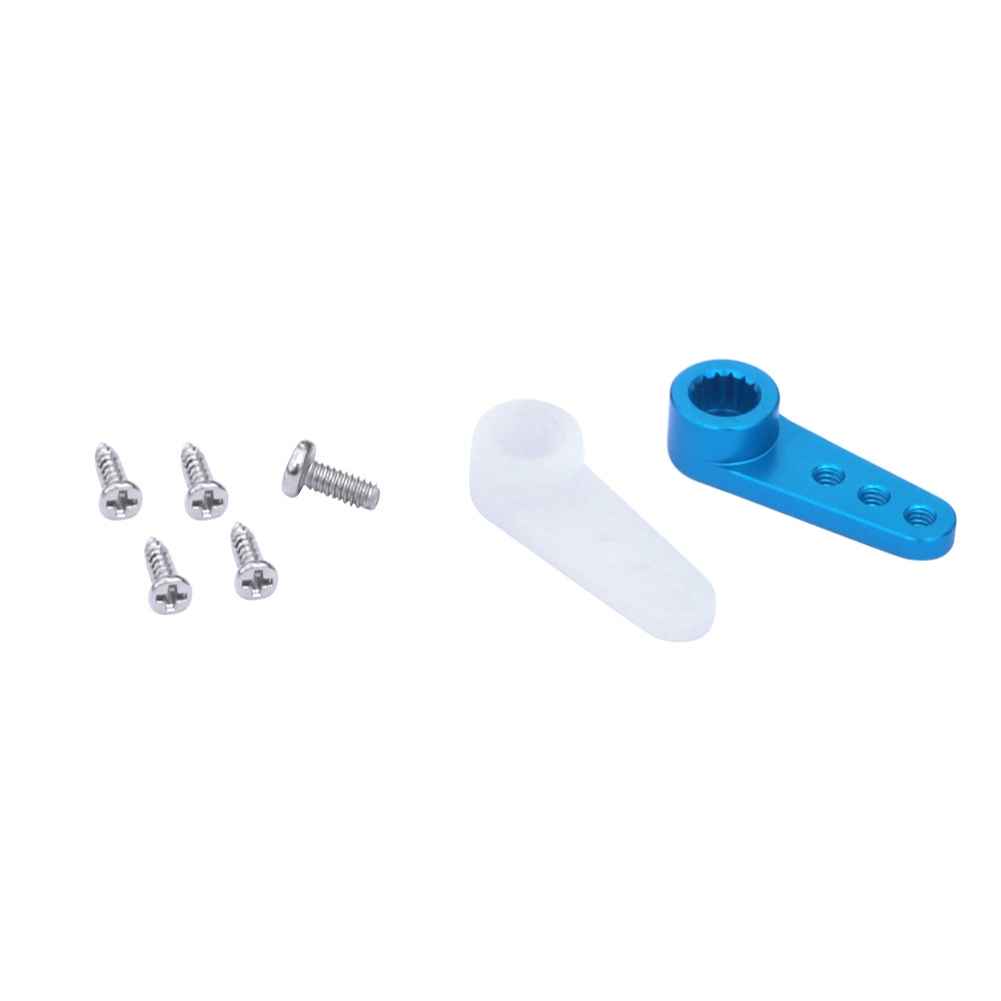

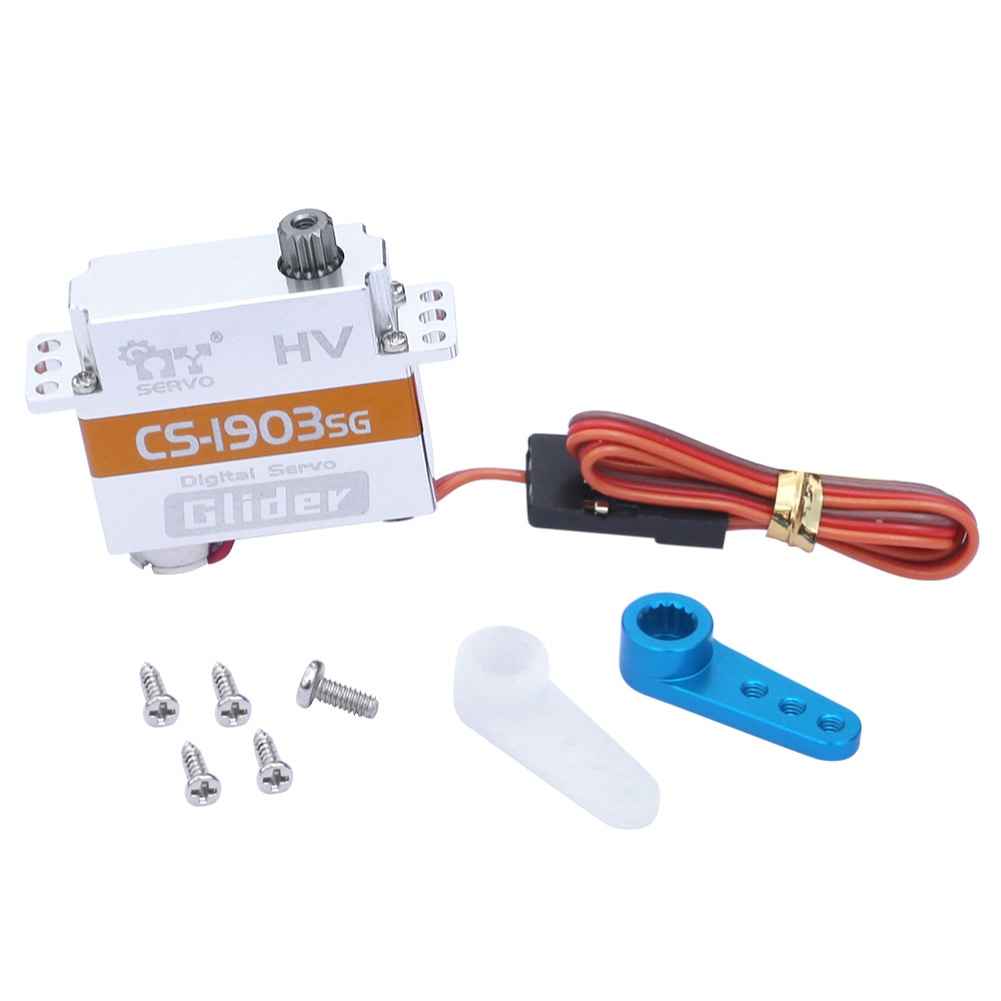

Package Included:

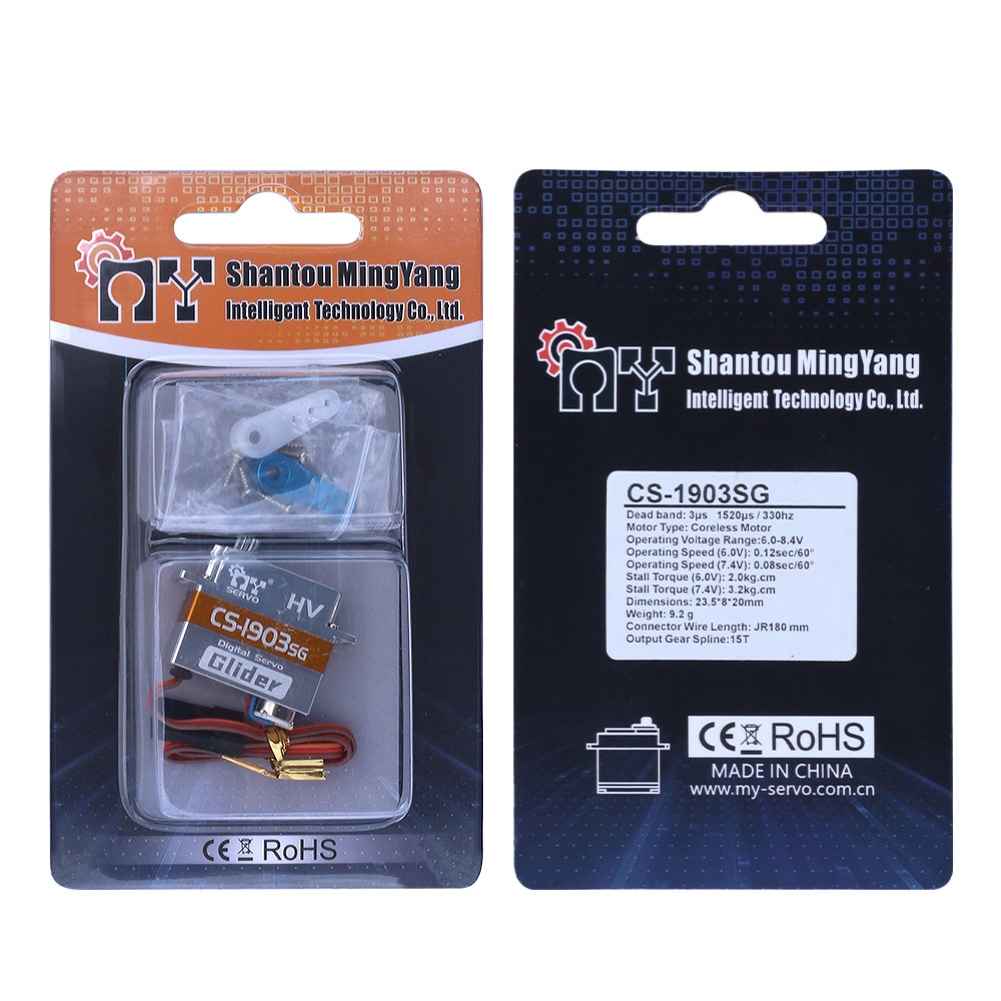

1 x CS-1903SG Full-Metal Hollow-Cup Mini Servo
