Eachine 1000TVL Mini FPV Camera, 1/3 CCD Sensor, 110掳 2.8mm Lens, NTSC/PAL Switchable, 5-20V

Description

Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Wide Voltage 5-20V Mini FPV Camera NTSC PAL Switchable

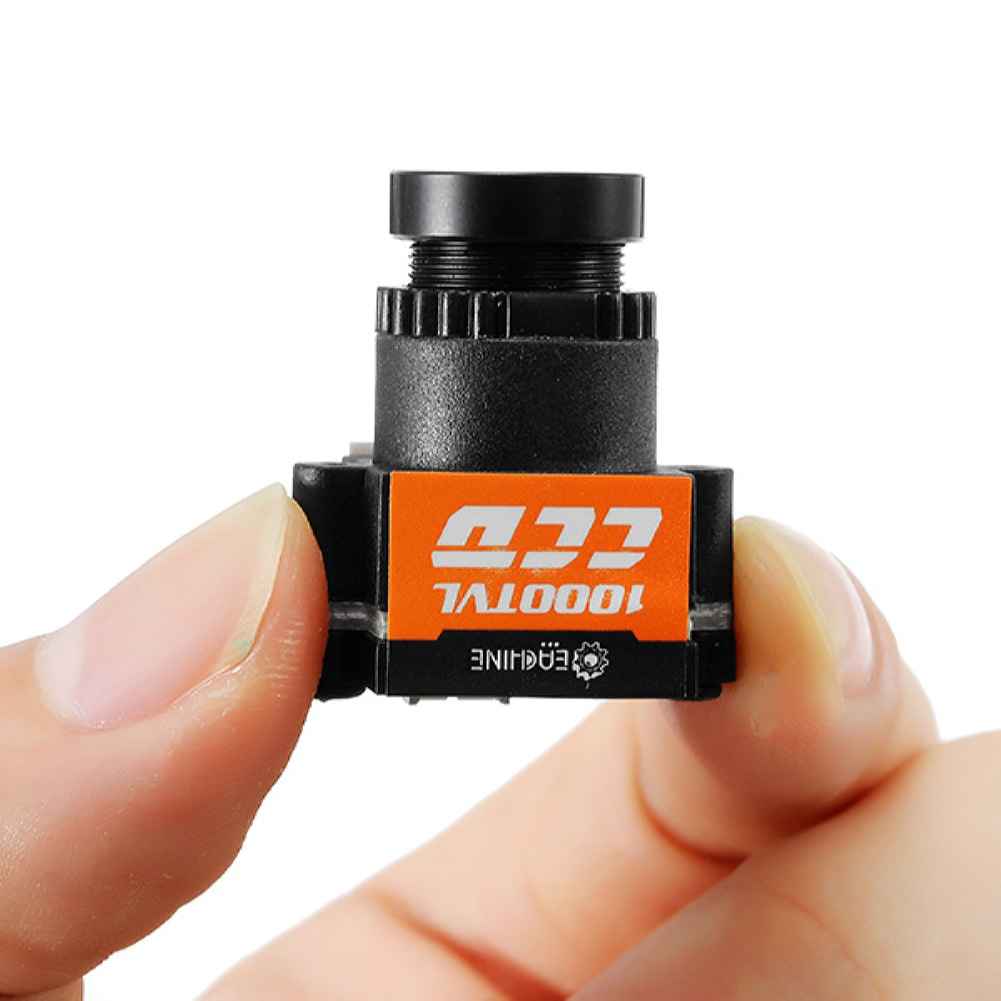

The Eachine 1000TVL Mini FPV Camera is designed for RC enthusiasts seeking high-quality video performance. Featuring a 1/3 CCD sensor and a 2.8mm IR-coated lens, it delivers ultra-high-definition resolution with a 110-degree field of view. The camera supports both NTSC and PAL formats, easily switchable to suit your preference. With a wide operating voltage range of 5-20V and ultra-low power consumption, this lightweight camera is ideal for RC multicopters. It operates efficiently within a temperature range of 0 to 40掳C. The included lens cover offers additional protection, ensuring durability during use.

Note: The fpv transmitter module and antenna showed in the picture are not included in the package.
Specification:Brand Name: EachineItem Name: Eachine 1000TVL 1/3 CCD 110 Degree 2.8mm Lens Mini FPV CameraInput Voltage: 5-20VPower Consumption: 105mA-27mALux: 0.08Lux/ F1.2Sensor: 1/3 ‘CCDFormat: NTSC/PAL(Free switch)Resolution: Ultra High Definition 1000TVL PAL: 976H X 582V NTSC: 976H X 494VLens: 2.8mm IR coatedFOV: 110 ～Operating temperature: 0 to 40～CCamera size: 28 * 24.5 * 17.5mmLen Size: 17mm *14mmScrew of Lens: M12

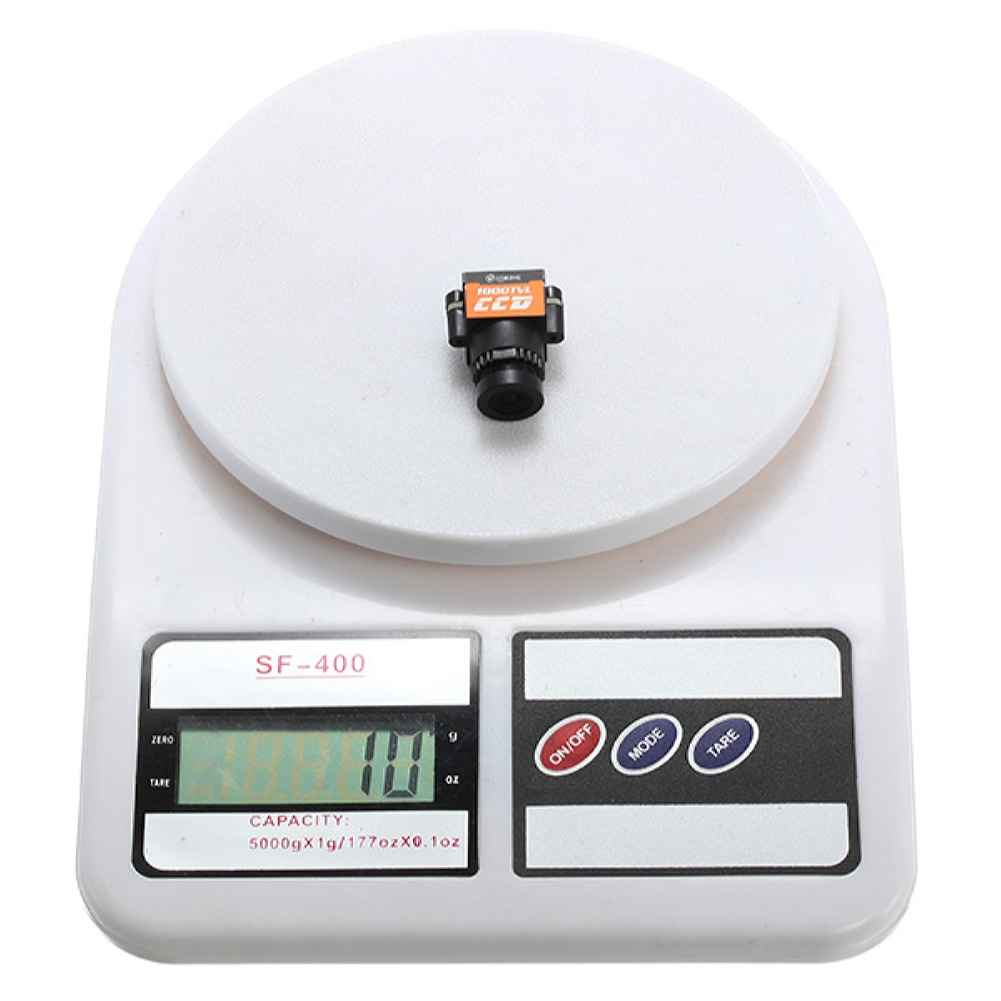

Net Weight: 10.4g ( not included the box and cable)
Features:
-With 1/3” CCD sensor

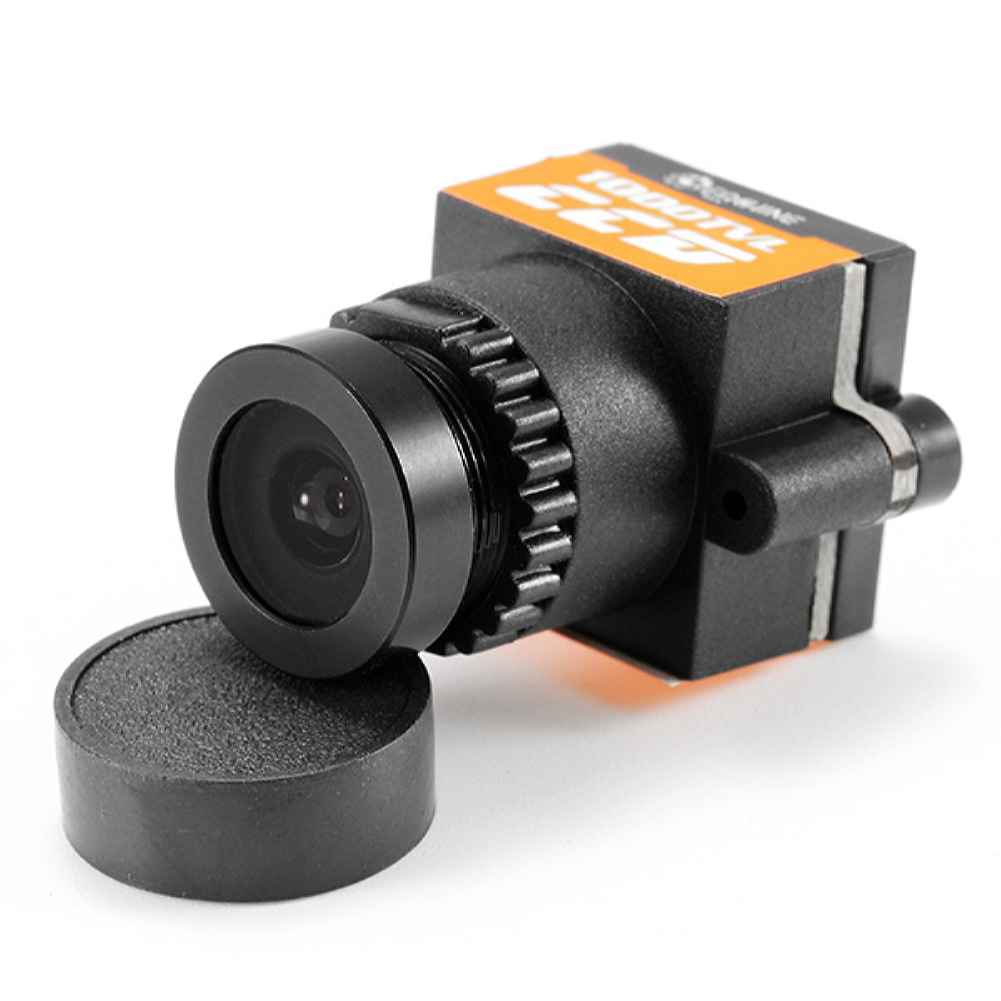

-With lens cover,well protecting the lens
-With WDR function in default
-Without OSD
-Super lightweight,ultra-low power consumption,suitable for RC multicopter

Package Included:
1 x 1000TVL FPV Camera

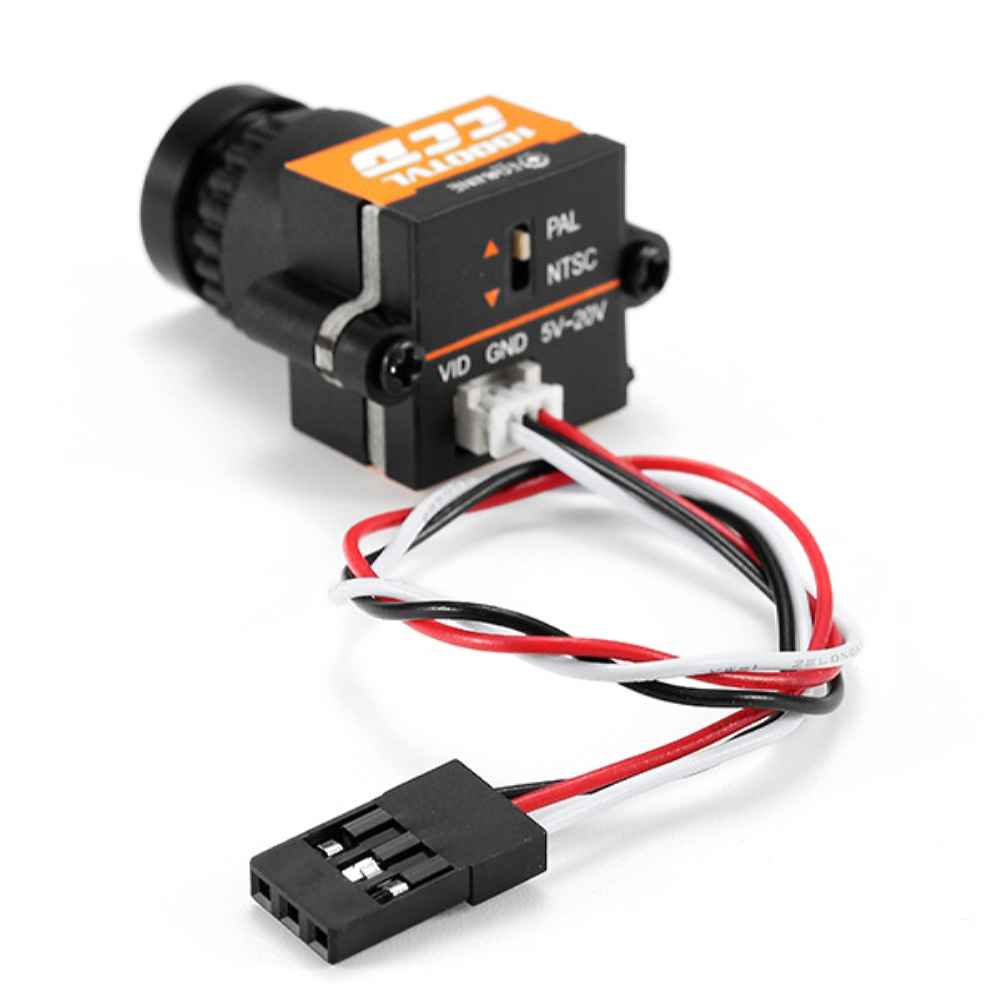

1 x Cable
1 x Lens Cover
