Eachine PRO58 RX Diversity 40CH 5.8G OLED SCAN VRX FPV Receiver for FatShark Goggles, Compatible with Teleporter and Dominator Models
Price range: $83.45 through $89.45

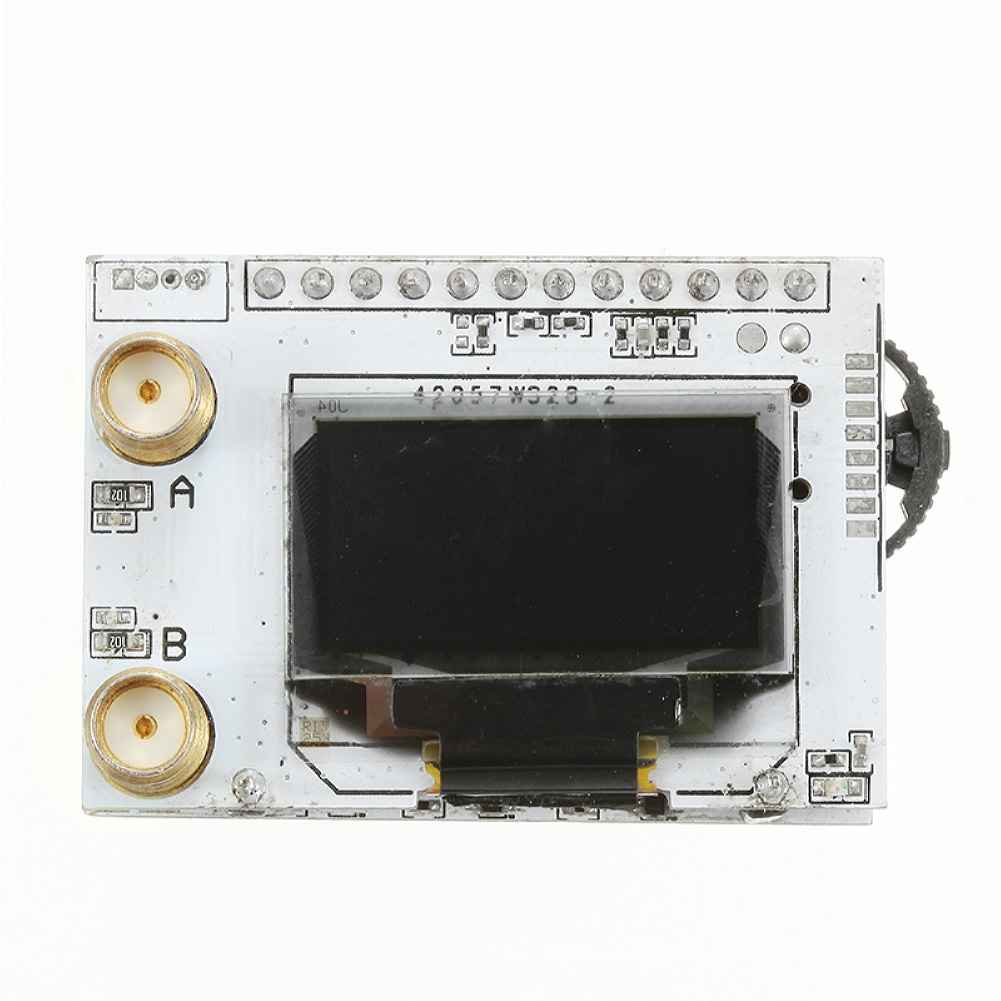

- Dual-way signal diversity for optimal performance
- Compatible with FatShark Teleporter and Dominator goggles

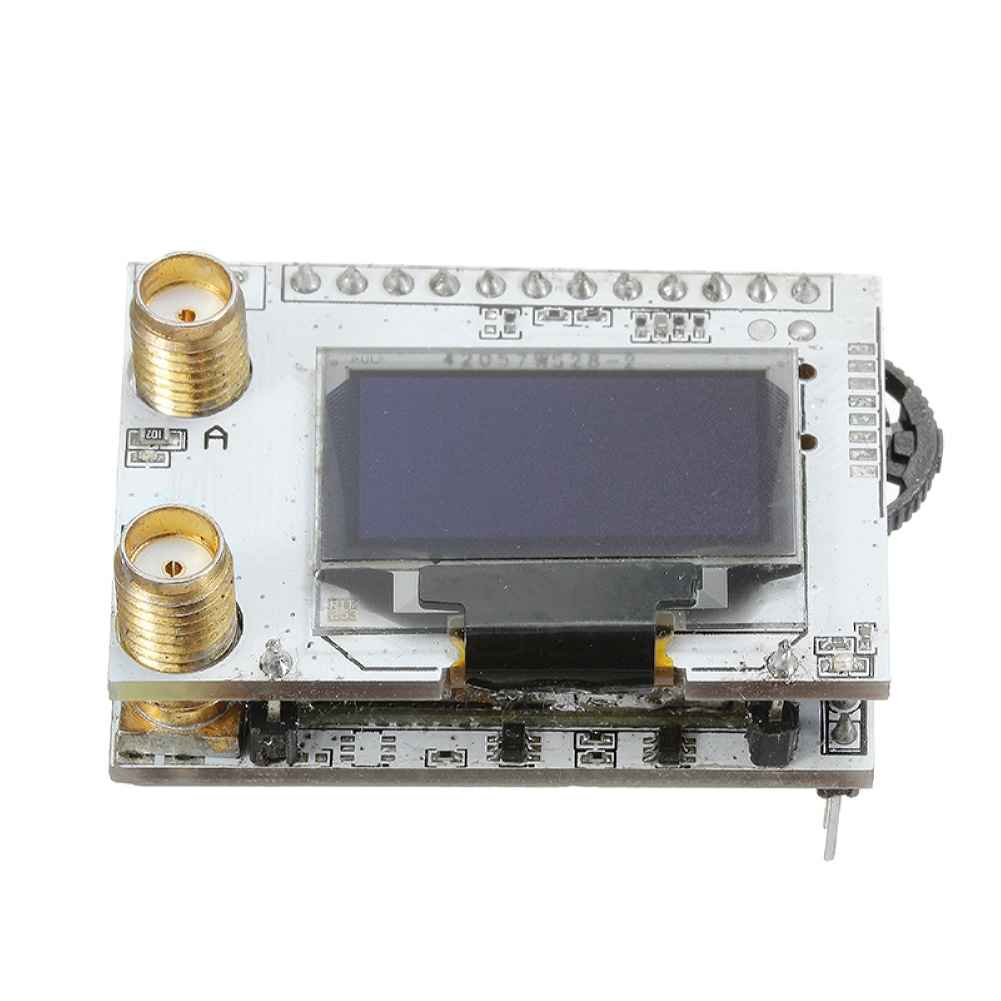

- Easy-to-use OLED display for frequency and signal strength

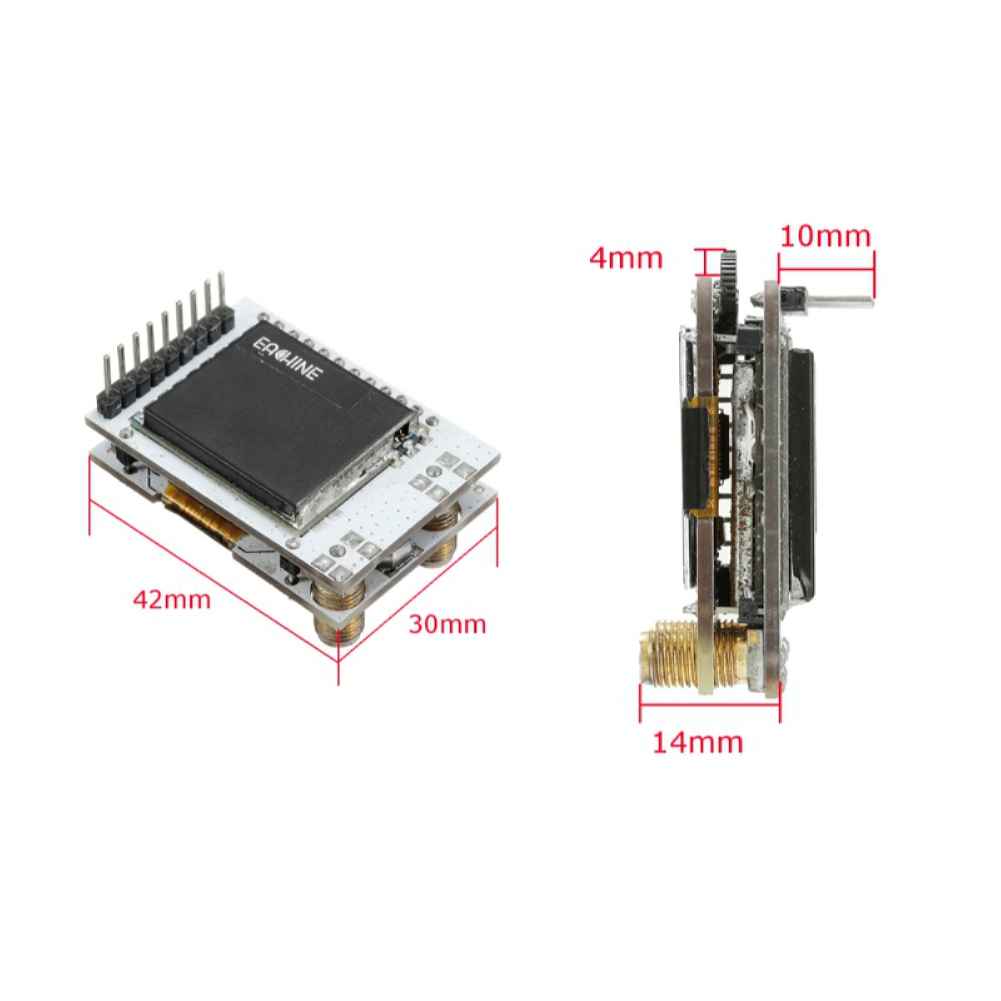

- Lightweight design at just 23g
- Includes 40 channels with RaceBand support
You May Also Like
Description
Eachine PRO58 RX Diversity 40CH 5.8G OLED SCAN VRX FPV Receiver for FatShark Goggles
The Eachine PRO58 RX Diversity 40CH 5.8G OLED SCAN VRX FPV Receiver is designed for seamless integration with FatShark goggles, including Teleporter V3, Dominator V2, V3, SE, and HD V1, V2, V3 models. This receiver features dual-way signal diversity and a comprehensive frequency scanning function, allowing users to select the best available signal. The device is powered directly from the goggles and can be partially controlled using the goggles’ buttons. The easy-to-read OLED display provides essential information such as frequency, signal strength, and working mode. The PRO58 RX is lightweight, weighing only 23g, and offers excellent sensitivity at -92dBi, ensuring a superior FPV experience.
﹡How to upgrade Achille珝 PLUS on Eachine Pro58﹡
Description : User Manual
Specifications:
– Dual way working Signal/Diversity;
– All frequencies scanning, and result selectable;
– Easy and fast way to show wireless information;
– Great RX part for FatShark or similar Goggles;
– 40ch included RaceBand;
– Nice sensitiveness -92dBi;
– 5V working, power from goggles;
– partially control by goggles buttons, the ch+ and ch-;
– SMA and RP-SMA versions both available;
– 1 built-in beeper to indicate your operations
Frequency :Build in 5.8G 40CH Raceband receive
Features :
1. Directly control by the buttons (ch+ and ch-) on FatShark Goggles, but limited with channels selection 1-8, due to FatShark inside S/W.
2. Customized booting LOG0 of EACHINE.
3. Searching mode show you all frequencies working and their strength, and you can select them on the result table. We present all frequencies in order of A-B-E-F-R sequent, each channel has a small bar to show its strength, the longer bar stand for stronger signal.
A typical searching result shows: there are 6 signals, and E one(5705M) is most strong. You can press confirm to select it, or you can up or down to select another channel and press confirm to show it,
4. Main working interface offer abundant information, including: working frequency name (like E one, in bigger size letter), exact working frequency (like 5705M), working mode (like AUTO, working on RX A, Auto way), and signal strength (right-up Conner), and if you work on diversity mode, there will be current working RX (A or B) just before the strength sign.
5. Simple and easy interface way to show you most useful information.
6. Easy to use up-down-select 3 ways button
7, Compatible with Fatshark Telepoter V3, Dominator V2 & V3 & SEa and Fatshark HD V1, V2 & V3 goggles
8, Great 5.8G performance
Package Included:
1 x 5.8G 40CH Diversity RX
