Eachine Wizard X220S FPV Racer RC Drone Omnibus F4 5.8G 40CH 30A Dshot600 2206 2300KV 800TVL CCD ARF
Original price was: $266.22.$235.59Current price is: $235.59.
You May Also Like
Description

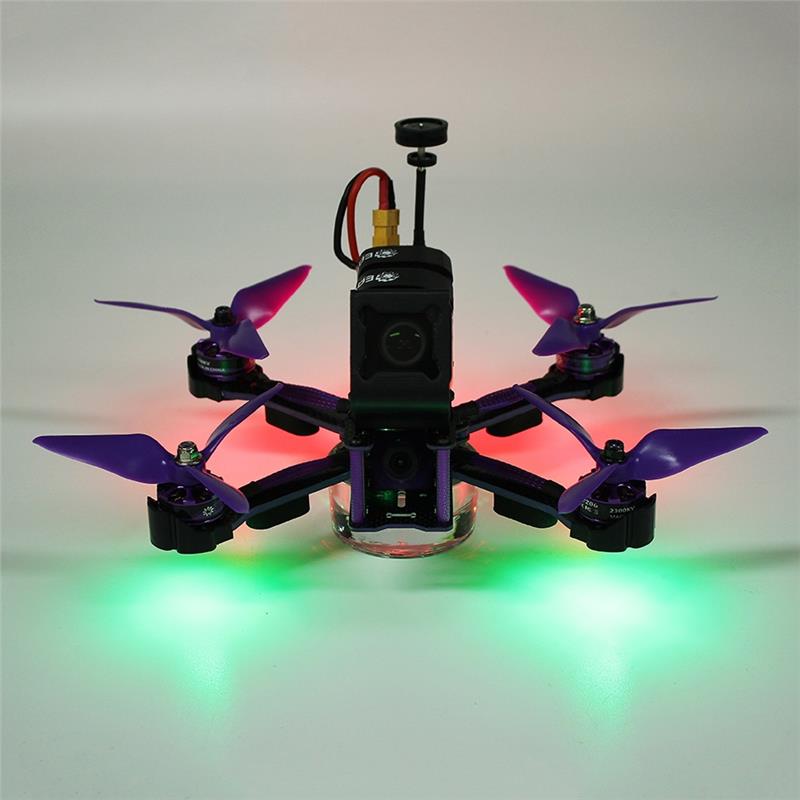

Eachine Wizard X220S FPV Racer RC Drone Omnibus F4 5.8G 40CH 30A Dshot600 2206 2300KV 800TVL CCD ARF
Eachine Wizard X220S Omnibus F4 5.8G 40CH VTX 30A BLheli_S Dshot600 ESC 800TVL Camera With 30?? Runcam3/ for Gopro Session Camera Mount
Dear customers,
Attention please.
The flexible glue anti-vibration motor pad may cause the motor to slip, please check and tighten the screws before flying.
Best regards,
Banggood
Description:
| Item | Specification |

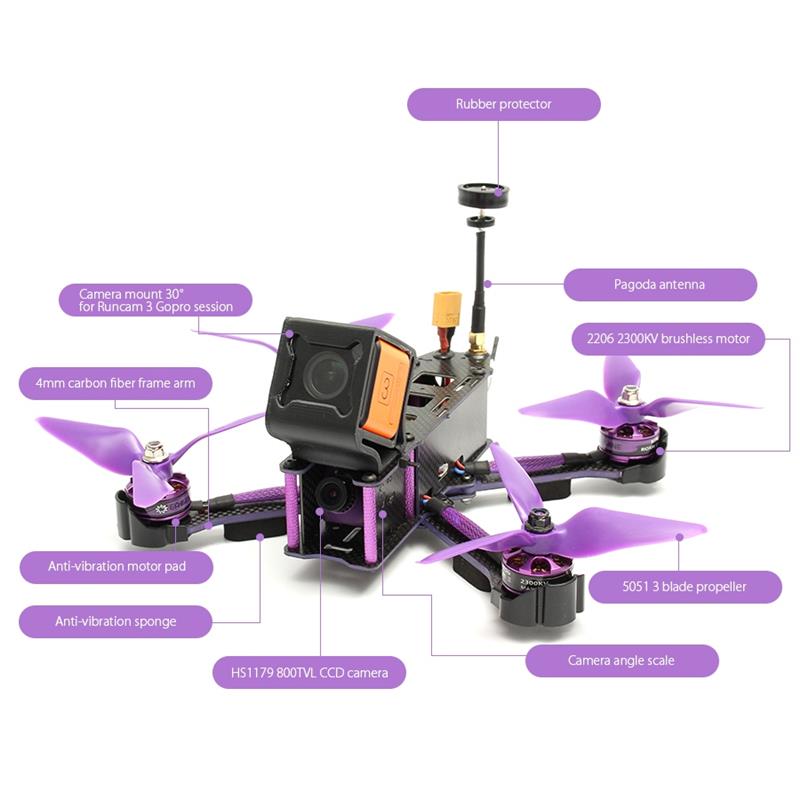

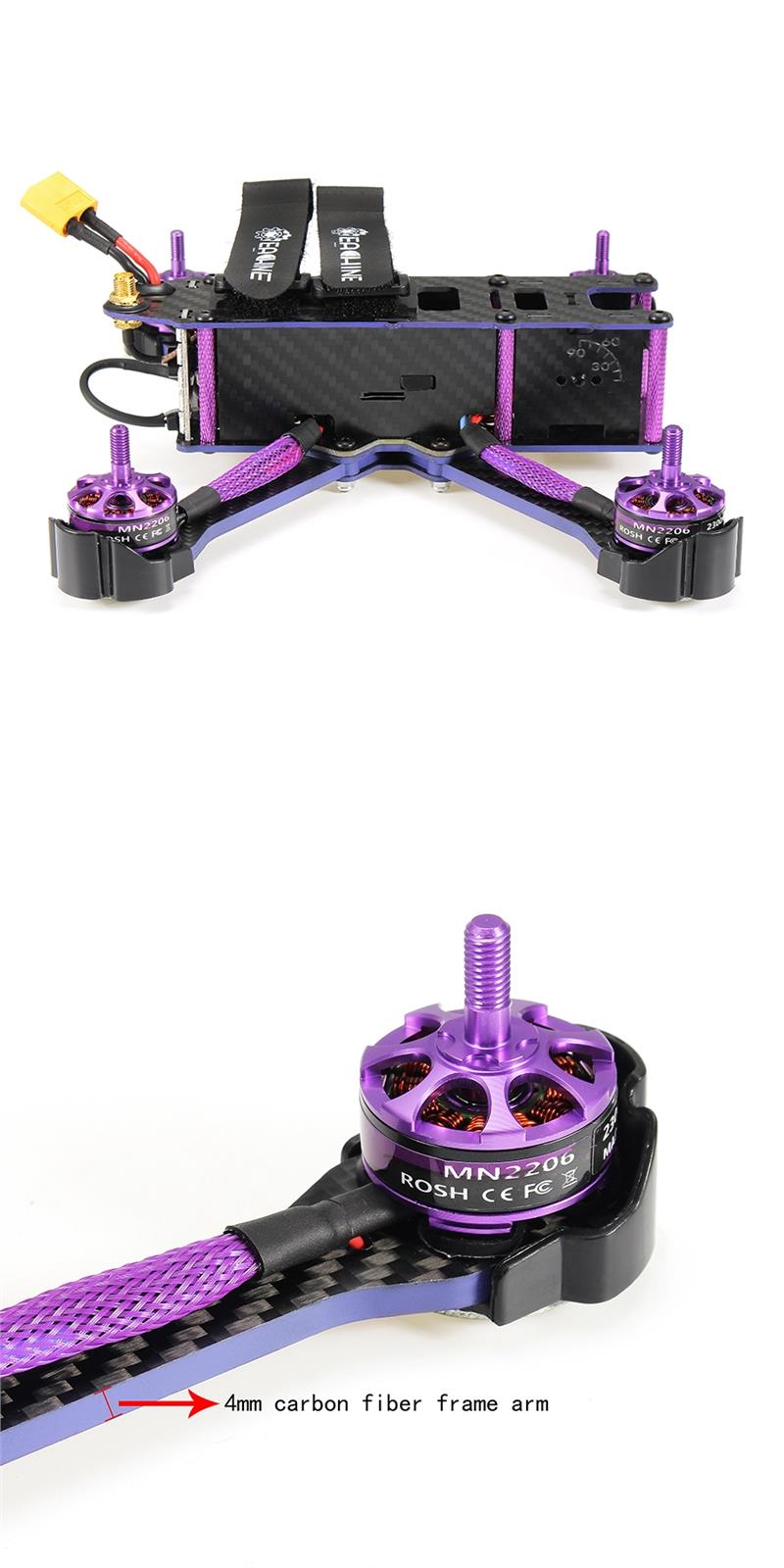

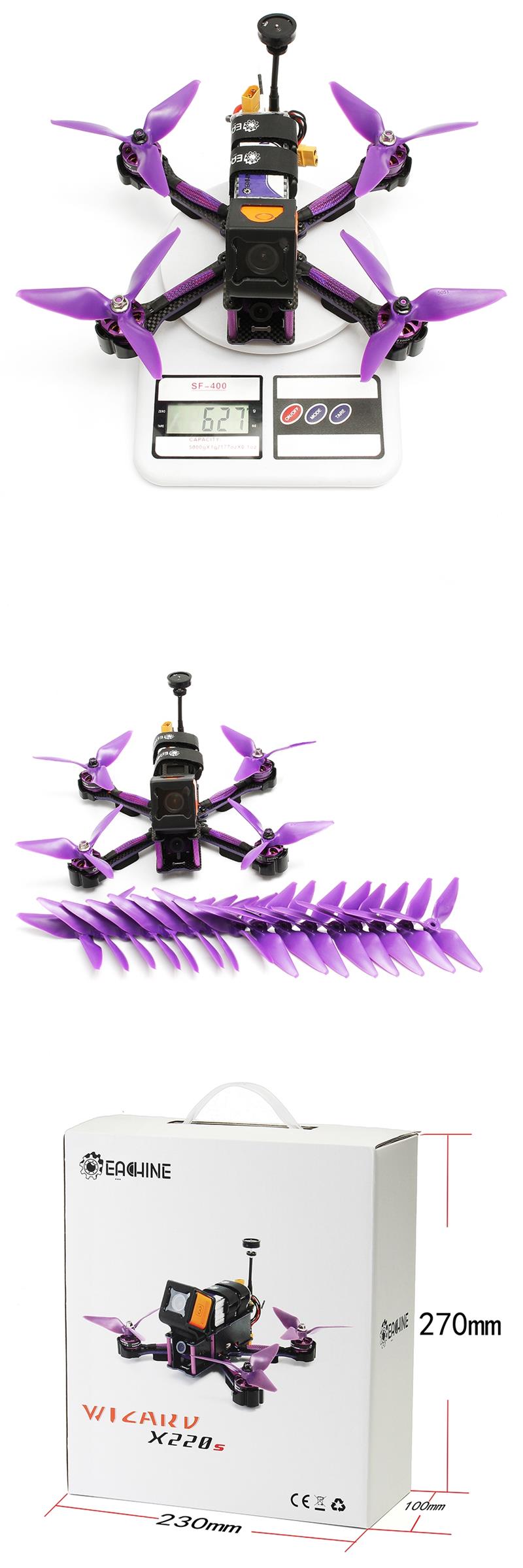

| Eachine Wizard X220S | Wheelbase: 220mm Frame arm: 4mm carbon fiber Weigh: 356g (without battery and camera mount) Take off weigh: 561g3K carbon fiber frame kit , 4mm thickness and 15mm width frame arms, the width is 10mm less than Eachine Wizard X220. Frame kit with camera angle scale and 30?? camera mount for Runcam 3 for Gopro session. Anti-vibration sponges to protect the racer frome crashing. |
| Eachine MN2206 2300KV motor | KV: 2300 Max thrust: 1100G Length: 35MM NO.OF cell: 3-5S Diameter: 28MM Framework: 12N14P Shaft: 5mm Propeller: 5 inch Weight: 28g |
| Eachine 30A BLHELI_S 4 in 1 ESC | Con. current: 30A Peak current (10S): 35A Input voltage: 2-5S BEC: 5V output Programming: YES Firmware: blheli_s Weight: 28g Size: 36*36MM |
| Eachine 1179 800TVL CCD camer A | Color: purple Sensor: CCD Resolution(horizontal center): 800TVL Shell size: 25mm*25mm Weight: 11g Resolution: PAL: 1980H??1080 (2MP) Format: PAL Video output: 1.0Vp-p/75?? Automatic gain control: 0.25/0.50/0.75/1.00 adjustable, up to 55dB. AWB: ON/OFF Exposure mode: electron exposure Electronic shutter: 1/50(1/60) – 1/100000 S Gamma correction: 0.45/1.0 Synchronization method: internal synchronization Lens: standard 2.8mm lens Working voltage: DC12V (Wide Voltage, measured that can be work in 5-13V) Workig current: 70mA (low power consumption) Workig temperature: -20-60/div>Humidity: 0%~98% Strong backlighting effect |

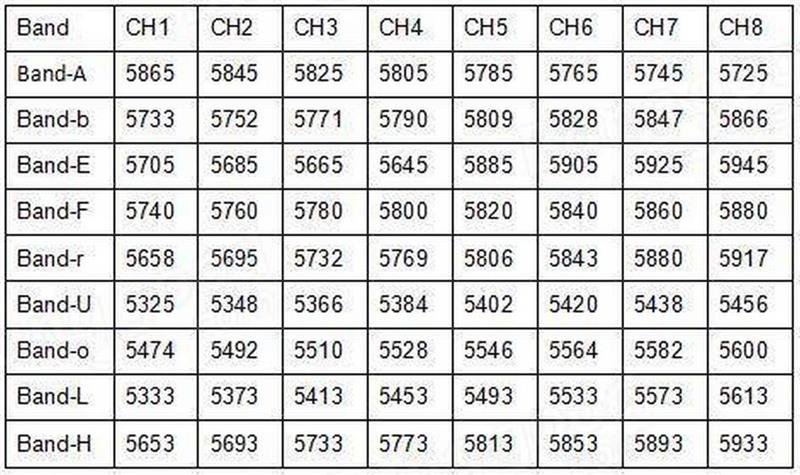

| 5.8G 40CH 25MW 200mw 600MW switchable transmitter |
Video Format : NTSC/PAL Channel: 40CH Operating Temperature : -10~85br>Connector: RP-SMA Female Antenna connector: RP-SMA Male |
| Omnibus F4 V3 flight controller | Size: 36x36mm Mount holes: 30.5×30.5mm STM32 F405 MCU, Runs Betaflight 3.0.1 firmware, could run faster loop time. Using F4 MCU controls OSD over SPI bus in DMA mode. OSD Configation has been included in Betaflight GUI. SBUS/PPM input (Pinheaders) 6PWM output (1-4Pinheaders and Sh1.0 Plug, 5-6 as Pinheaders) With barometer SPI Sensor MPU6000 Included 128Mbit Flash, please always use BEC for the FC. Supported by BETAFLIGHT and dRonin |
| Eachine 5051 3-blade propeller | Color: Send Randomly Quantity: 10 Pairs Mounting Hole: 5mm |
This is the ARF version that comes without battery, charger, receiver and remote control.
Package included:
1 x Eachine Wizard X220S frame kit
2 x 2206 2300KV motor CW
2 x 2206 2300KV motor CCW
1 x Eachine 30A BLHELI_S 4 in 1 ESC
1 x Omnibus F4 V3 flight controller
1 x 1179 800TVL camer A
1 x 5.8G 40CH 25MW 200mw 600MW switchable VTX
10 x Eachine 5051 3-blade propeller purple CW
10 x Eachine 5051 3-blade propeller purple CCW
1 x 30?? Camera Mount(For Runcam3/ for Gopro session)
1 x Pagoda antenna

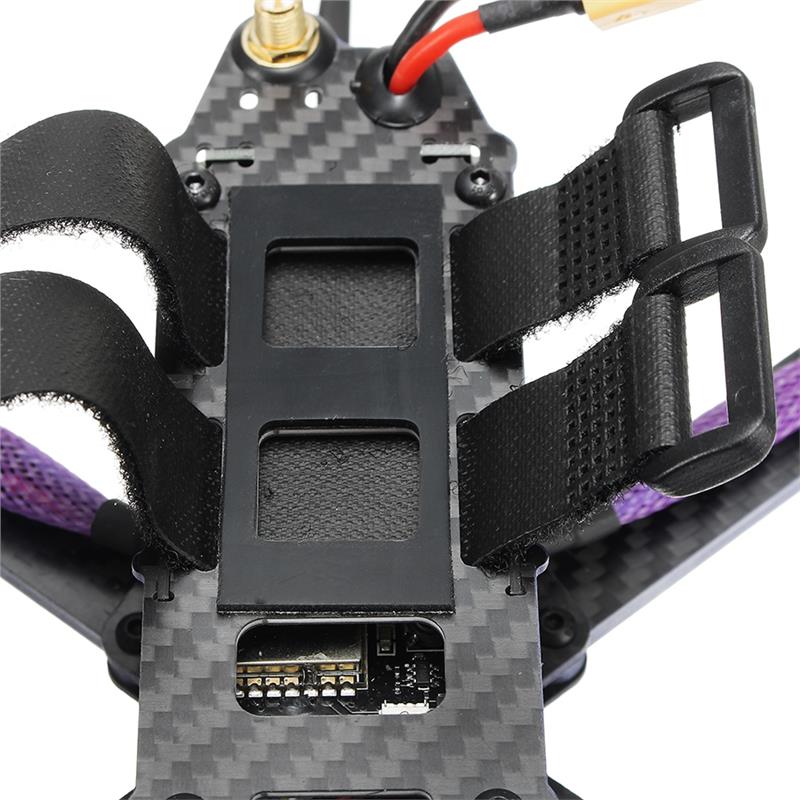

2 x Battery strap
2 x Wrench
(Package doesn’t include Runcam 3, the Runcam 3 on the pictures for reference only.)
