EMAX ES9052MD HV High Voltage Metal Gear Digital Servo for RC Models, Compact and Durable

Description

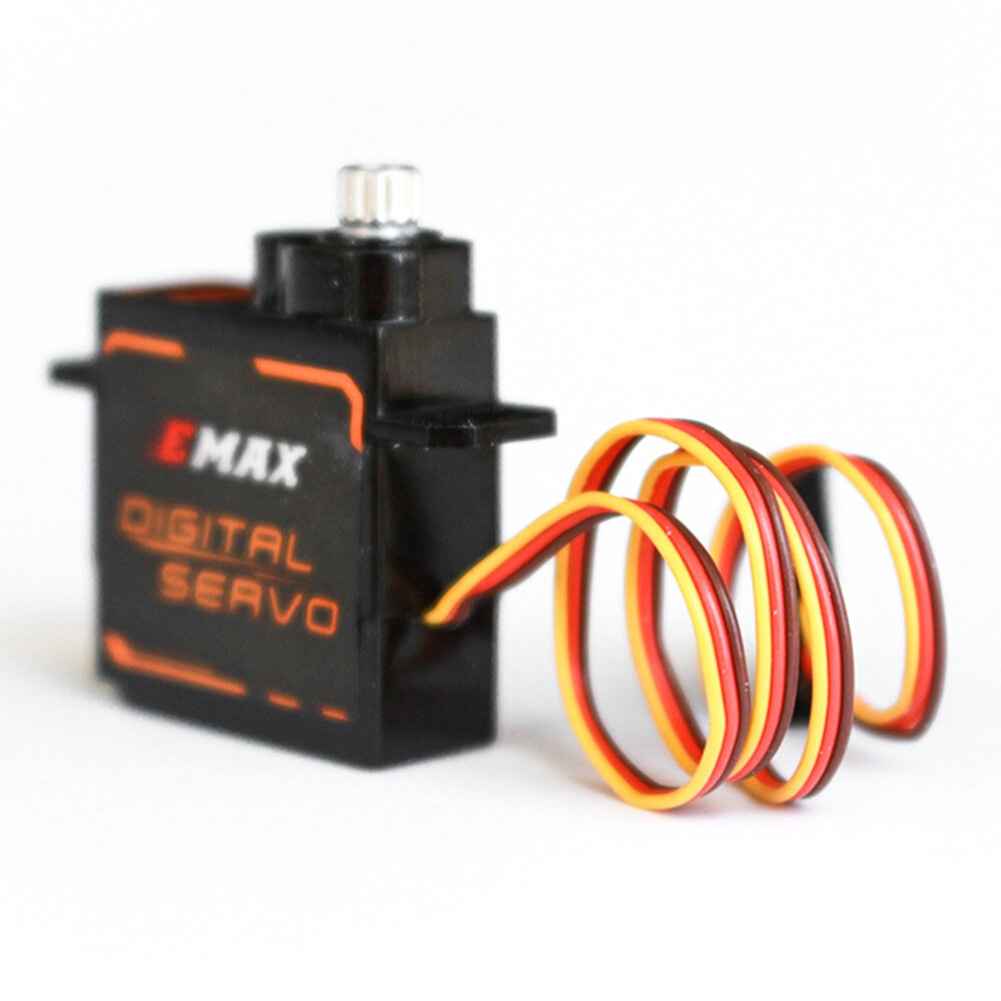

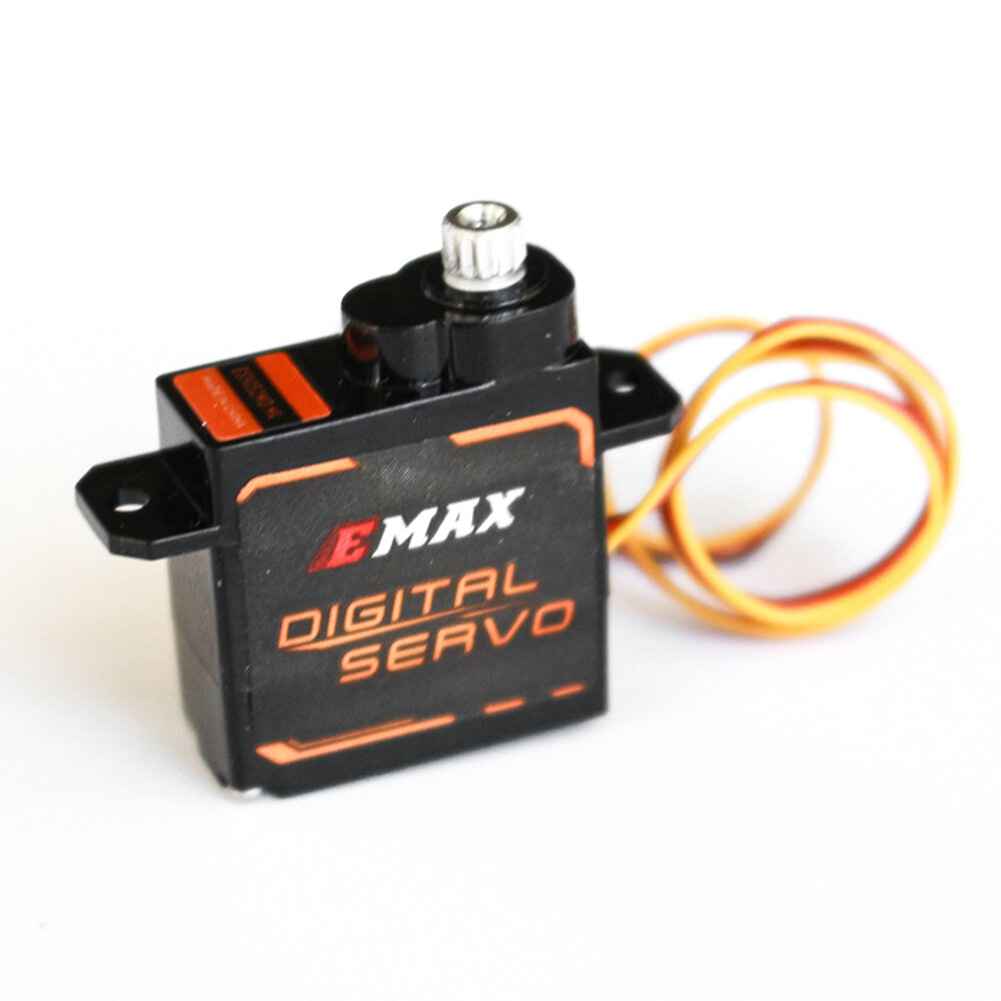

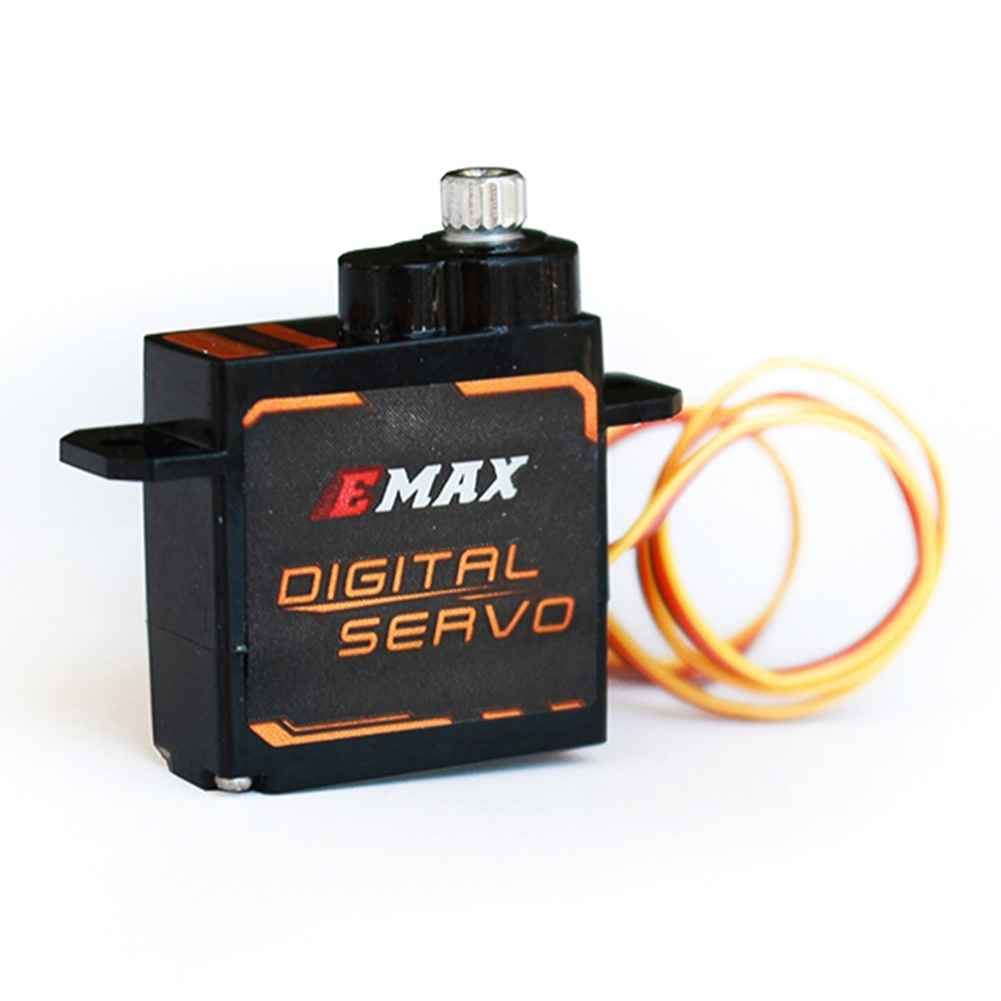

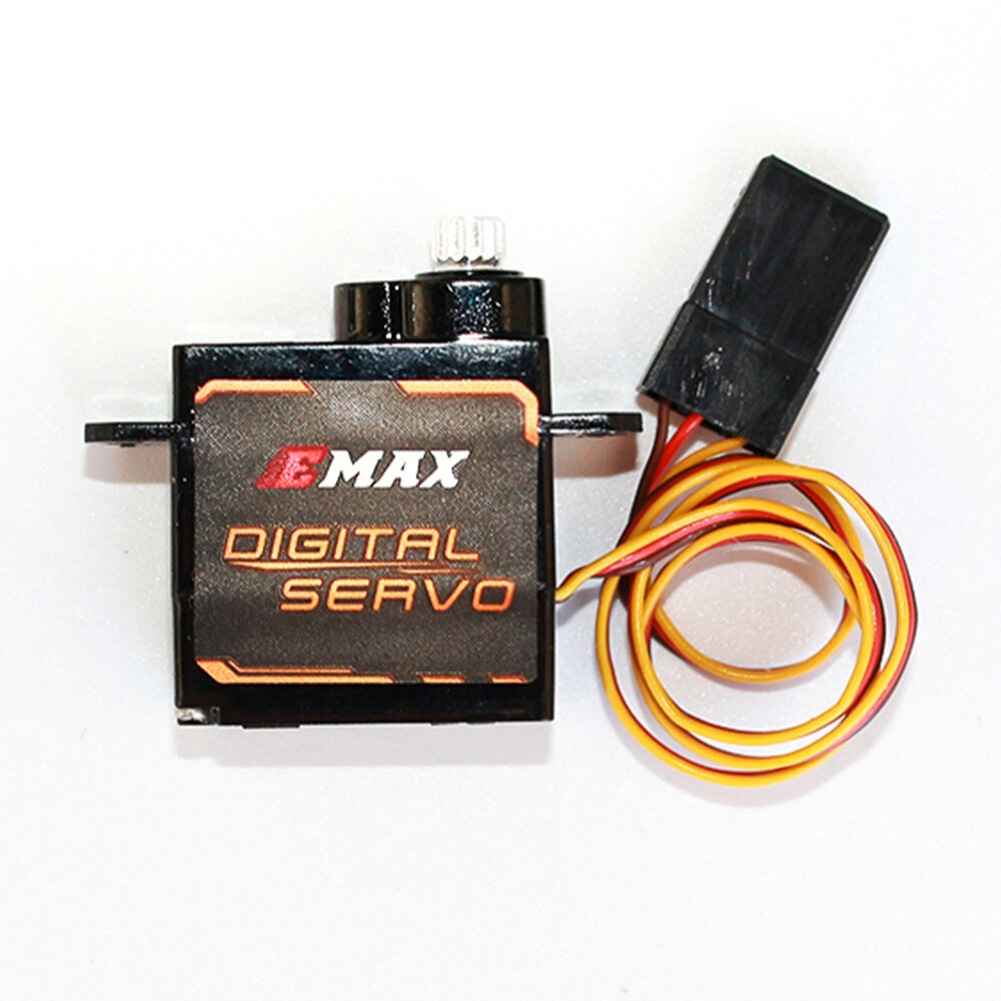

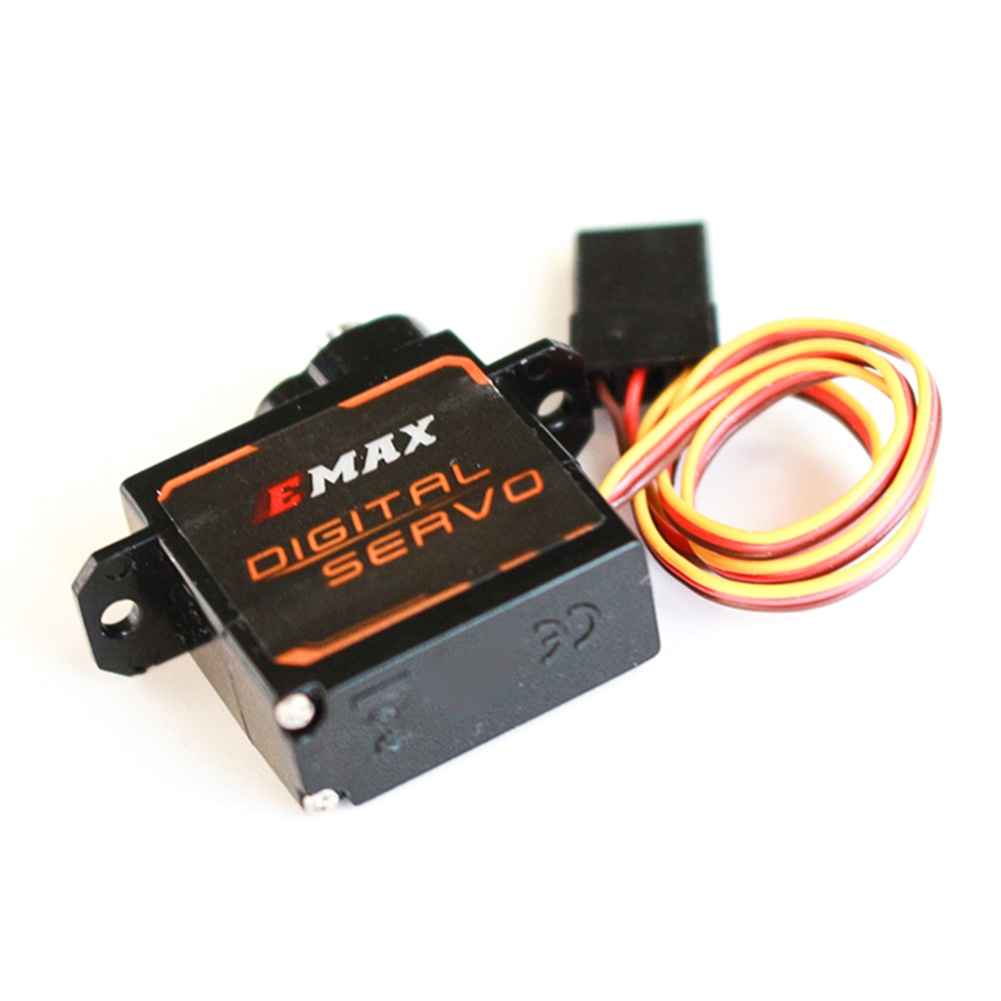

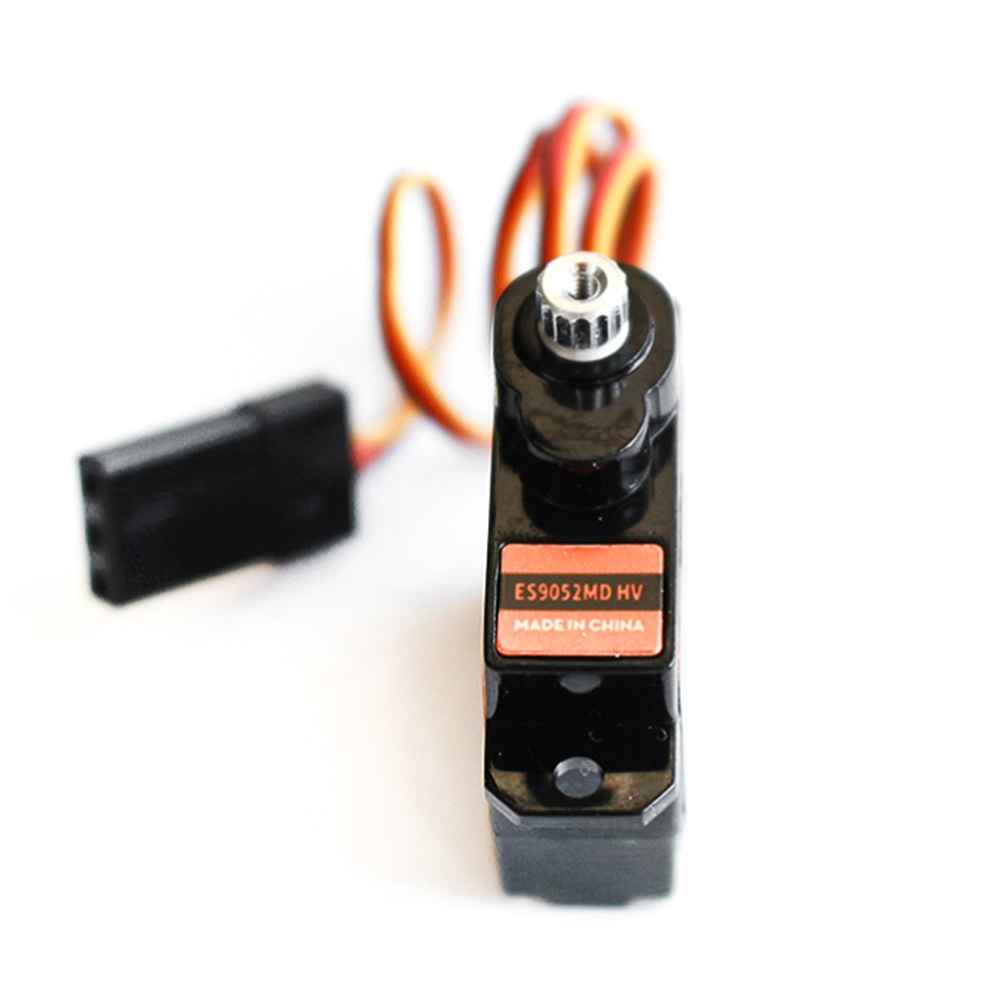

EMAX ES9052MD HV All-Purpose High Voltage Metal Gear Digital Servo

The EMAX ES9052MD HV is a high-voltage metal gear digital servo designed for RC enthusiasts seeking precision and performance. Weighing just 5.8 grams, this compact servo is easy to install in tight spaces, making it ideal for a variety of RC models. It features a PWM control system with an operating travel of 90 degrees and a maximum travel of 160 degrees, offering fast and precise movements. The servo’s durable construction ensures long-lasting use, while its high voltage capabilities enhance performance. Compatible with a wide range of RC models, the EMAX ES9052MD HV is an excellent choice for hobbyists looking for reliability and efficiency.

Mechanical Specification:

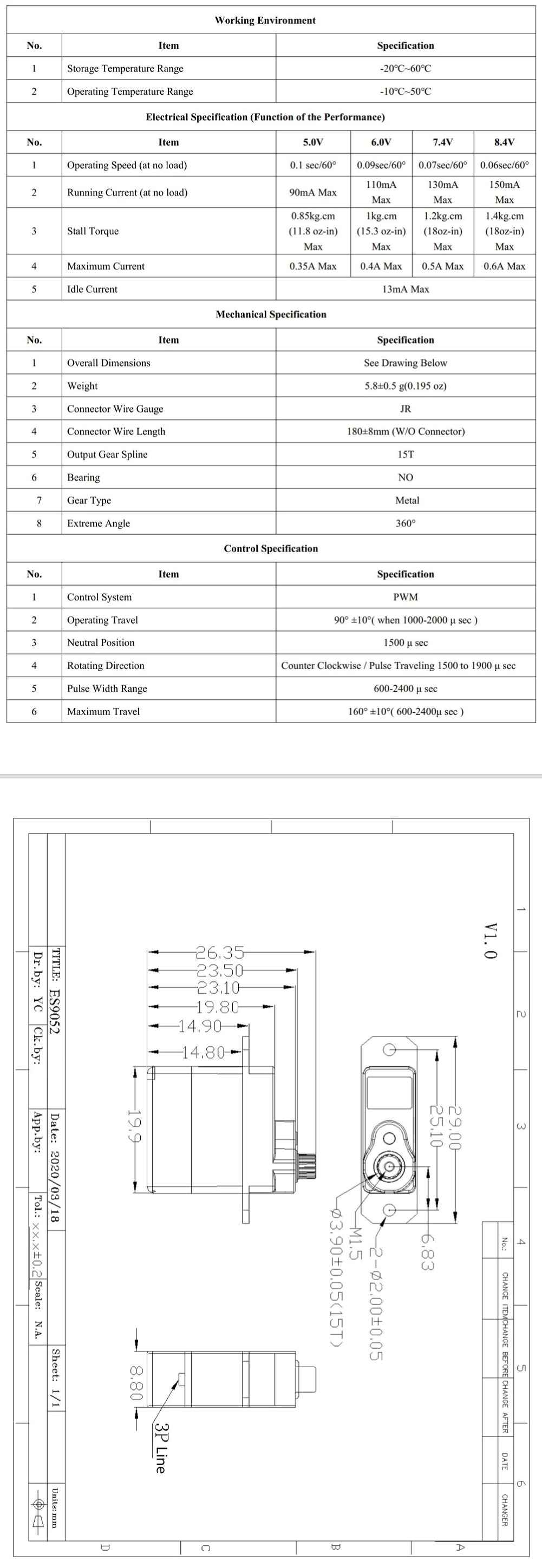

Overall Dimensions: See Drawing Below
Weight: 5.8㊣0.5 g(0.195 oz)
Connector Wire Gauge: JR
Connector Wire Length: 180㊣8mm (W/O Connector)
Output Gear Spline: 15T
Bearing: NO
Gear Type: Metal
Extreme Angle: 360～
Control Specification:
Control System: PWM
Operating Travel: 90～ ㊣10( when 1000-2000 米 sec )
Neutral Position:1500 ç±³ sec
Rotating Direction: Counter Clockwise / Pulse Traveling 1500 to 1900 ç±³ sec
Pulse Width Range: 600-2400 ç±³ sec
Maximum Travel:160～ ㊣10～( 600-2400米 sec )
Features:
-High voltage capabilities for increased performance.
-Fast and precise movement for smooth control.
-Compact size for easy installation in tight spaces.
-Durables construction for long-lasting use.
-Compatible with a wide range of RC models.

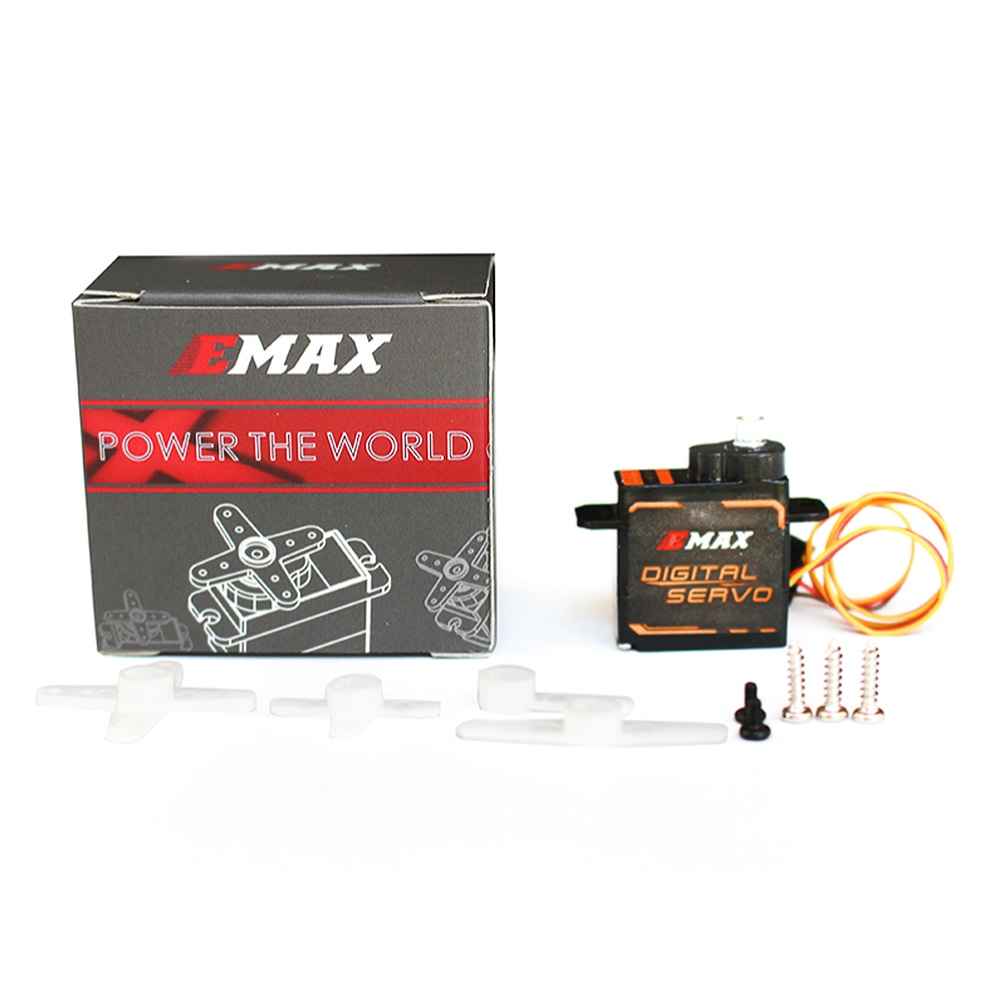

Package Included:
1 x EMAX ES9052MD HV High Voltage Servo
