FLYWOO O4 1S 5V BEC Module for 1.6-2 Inch Micro RC FPV Racing Drones, Ultra-Light 0.4g, Compatible with DJI O4 System

Description

0.4g FLYWOO O4 1S 5V BEC Module for 1.6 Inch to 2 Inch Micro RC FPV Racing Drones

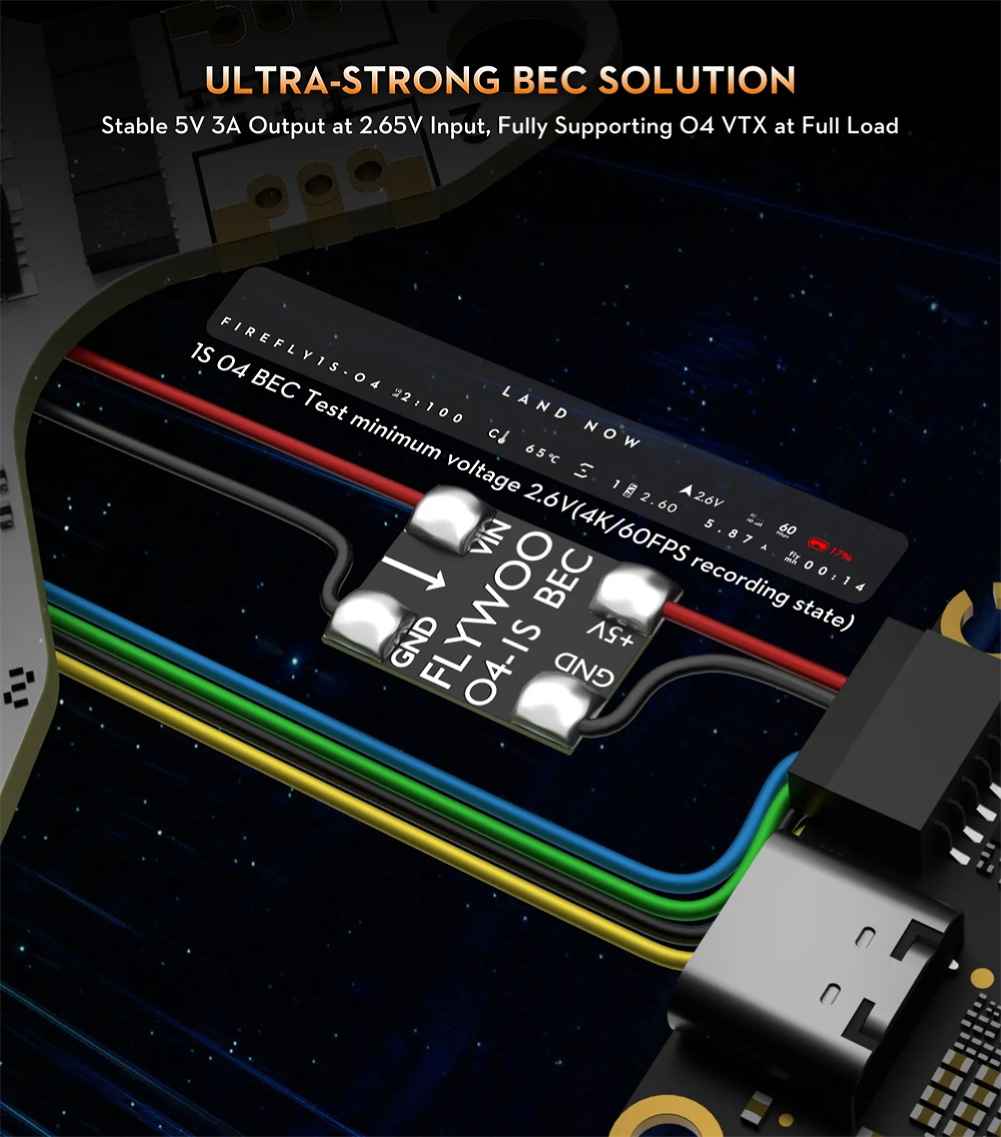

The FLYWOO O4 1S 5V BEC Module is engineered for DJI O4 systems, offering a compact power solution for 1.6 to 2-inch micro RC FPV racing drones. With dimensions of just 11mm x 8mm x 2.2mm and weighing only 0.4g, this ultra-light module ensures a continuous and stable 5V/3A output. It operates efficiently with a 1S battery voltage input of 2.65V-5V. The module features a built-in over-temperature frequency reduction protection, maintaining safe temperatures under 3A output. Its design supports all 1S-powered FPV drones, optimizing space without compromising performance.

Description:

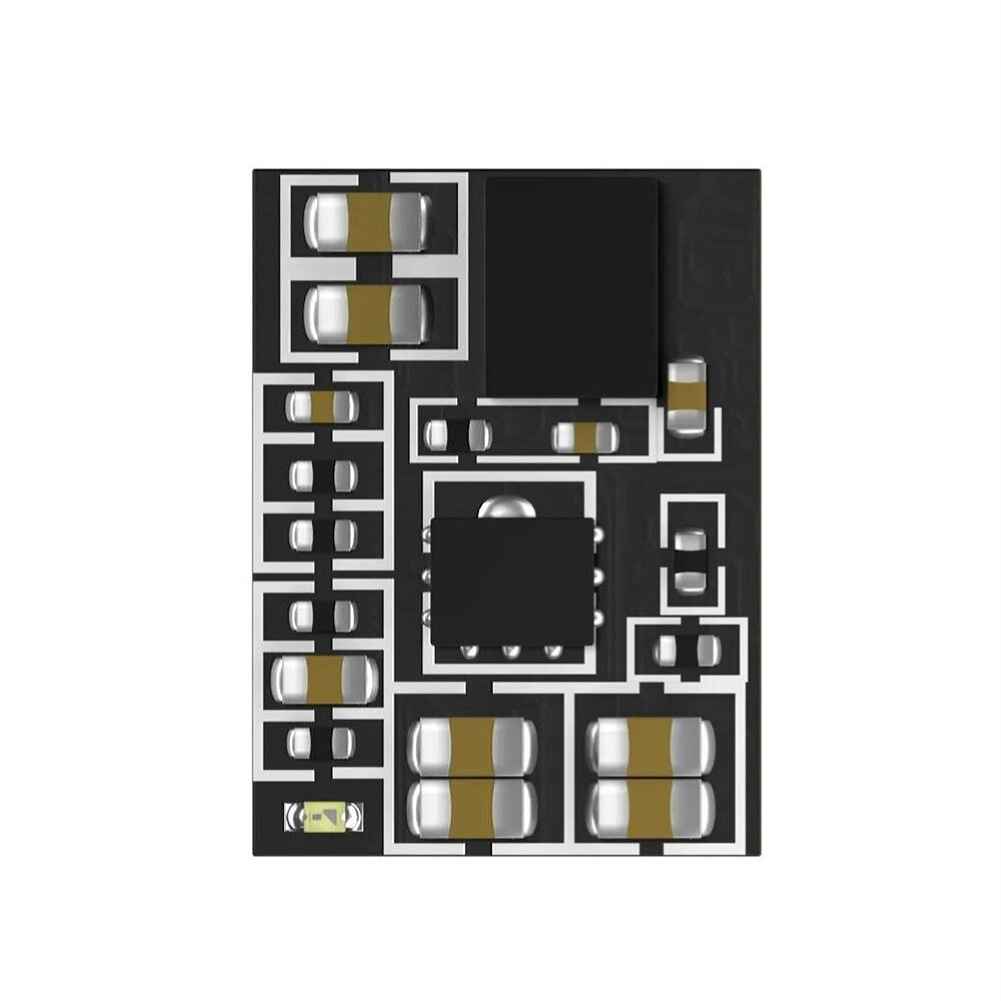

FLYWOO 1S digital image transmission power module.
The ultra-micro power supply solution designed specifically for DJI O4 system, with an extreme volume of 11.5沁8.2沁2.2mm and an ultra-light weight of 0.3g, provides 5V/3A continuous and stable output for 1S micro drone.
Specification:
Brand: FLYWOO
Item Name: O4 1S 5V BEC Module
Input Voltage: 2.65V-5V (1S battery voltage)
Output: 5V/3A

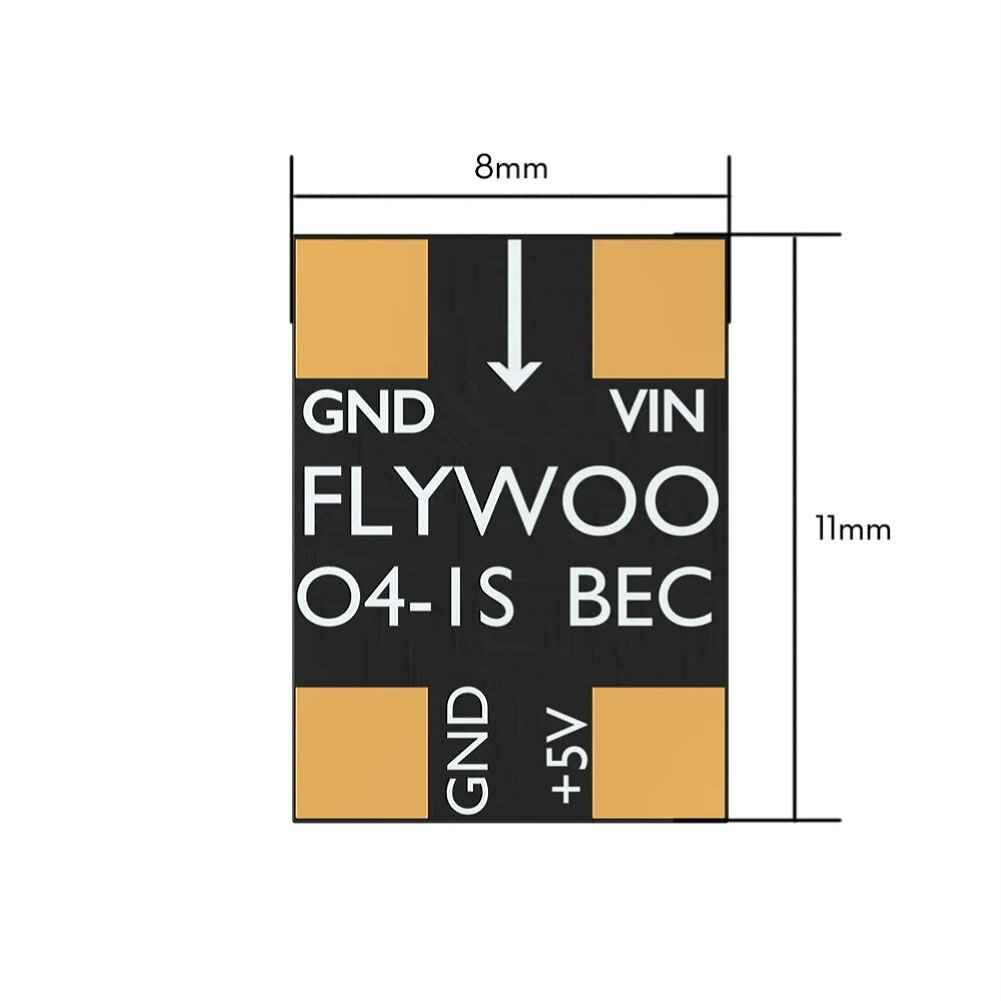

Dimensions: 11mm x 8mm x 2.2mm

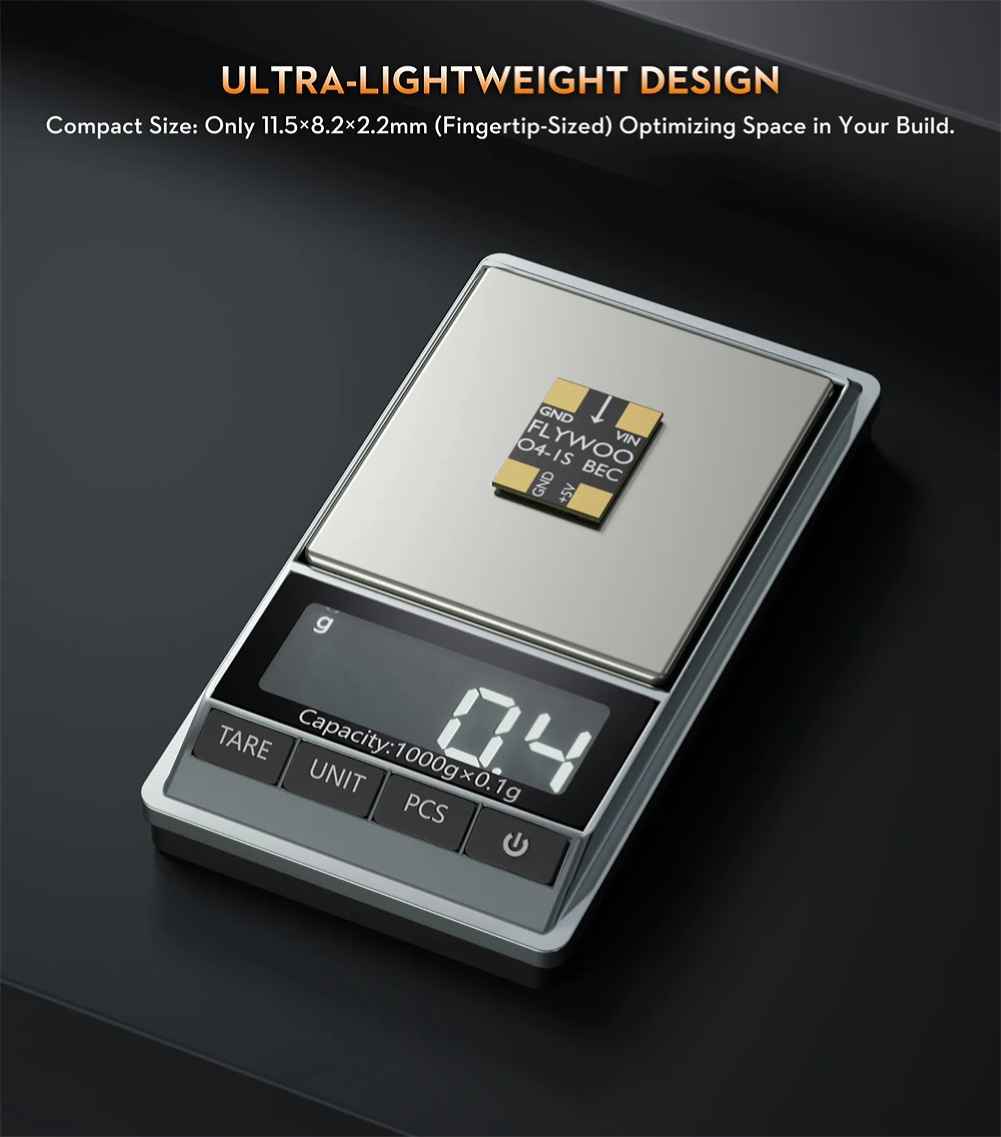

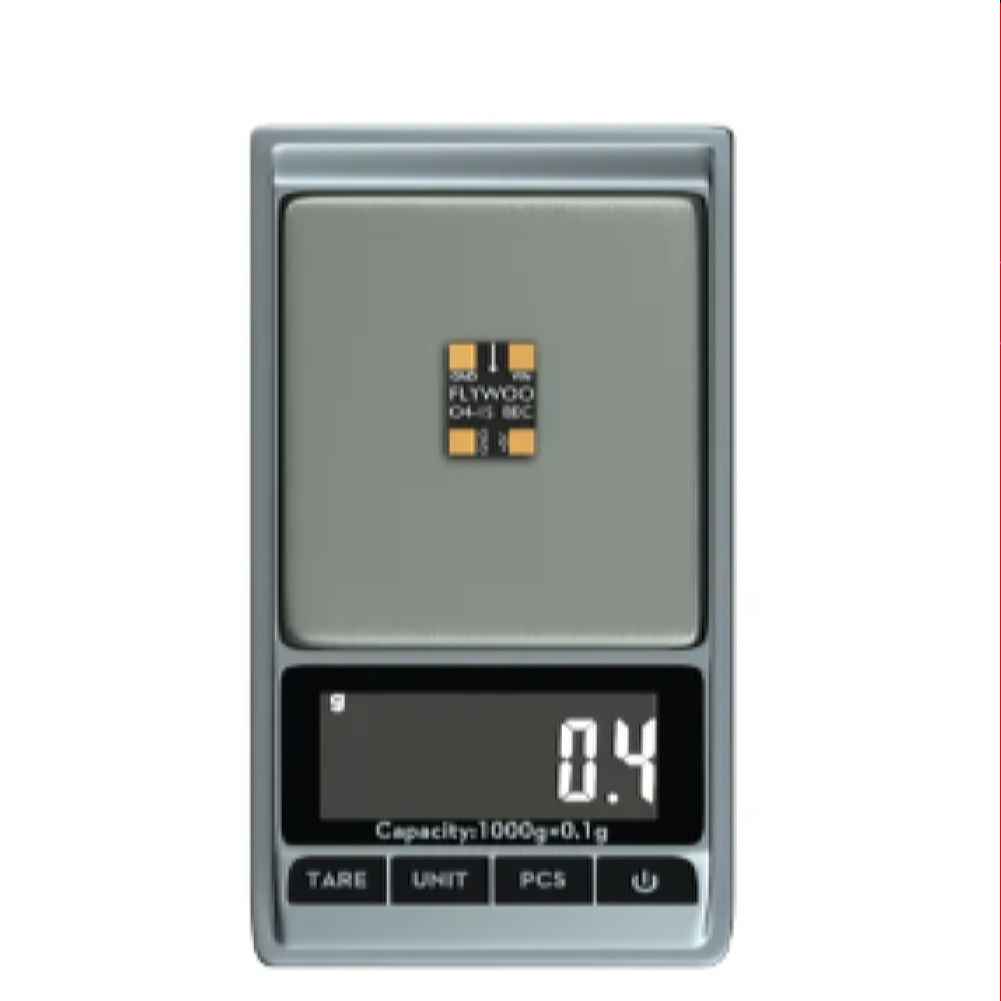

Weight: 0.4g
Feature:
– Tested temperatures under 3A output remain 沌45‵C (113‵F) at 25‵C (77‵F) room temperature. Built-in over-temperature frequency reduction protection eliminates burn risks.

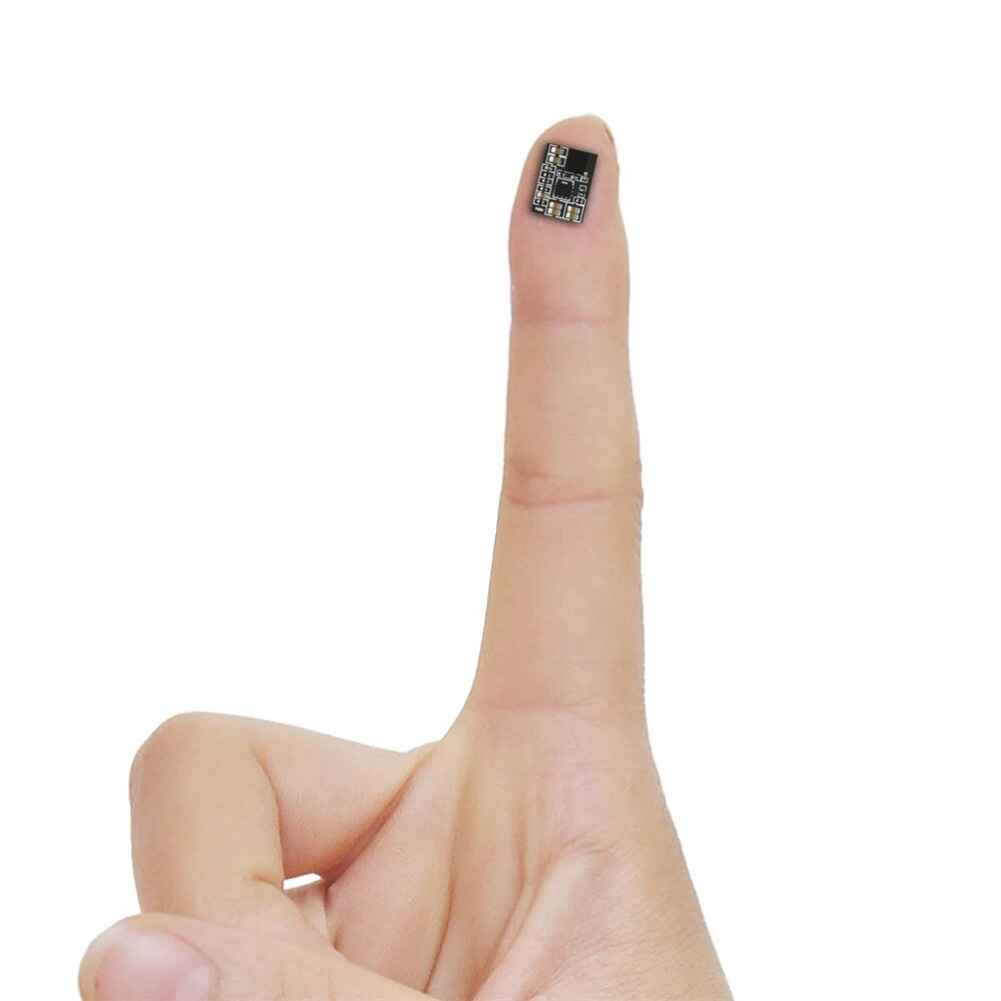

– Supports all 1S-powered 1.6′-2′ FPV drones. The ultra-compact design minimizes space intrusion.

Package Included:
1 x FLYWOO O4 1S 5V BEC Module
1 x Shrink Film
4 x Silica Wire (Red/Black)
