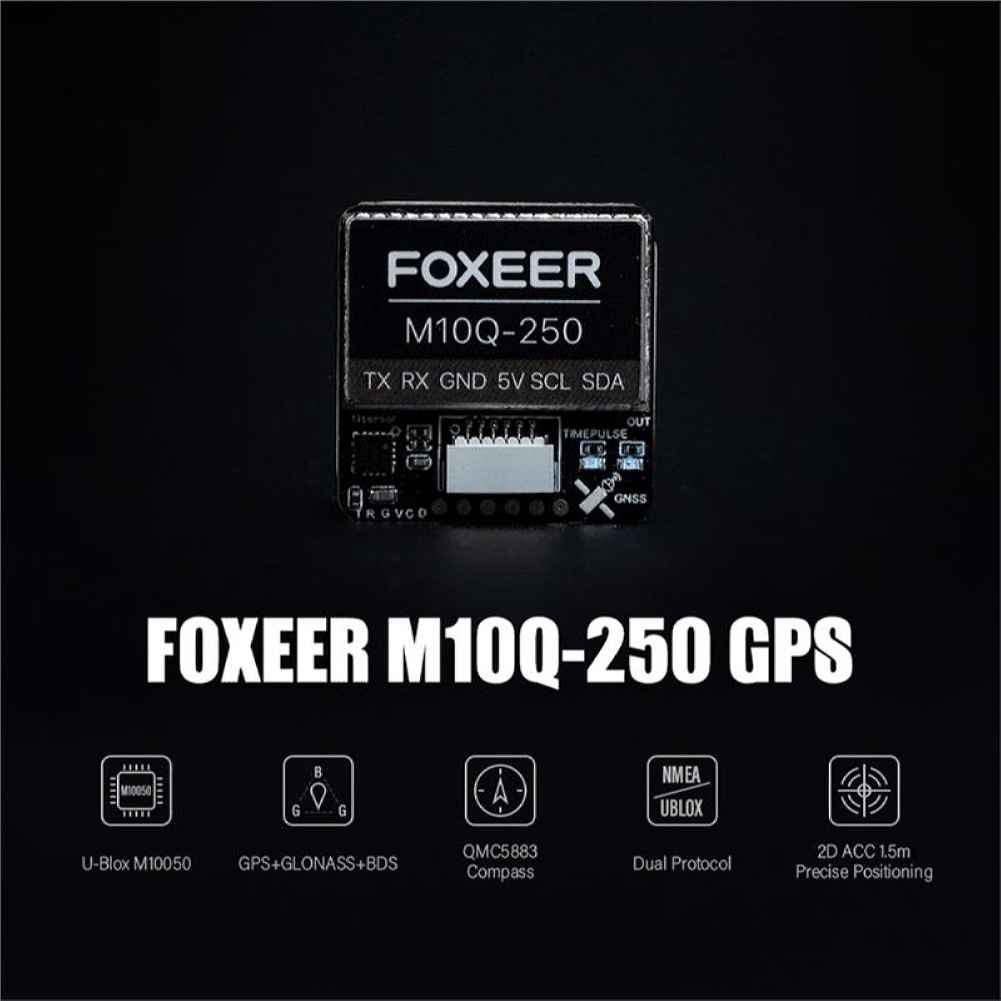

Foxeer M10Q 250 5883 Compass GPS with M10 Chip and Ceramic Antenna for RC Drone FPV Racing

Description

Foxeer M10Q 250 5883 Compass GPS M10 Chip Built-in Cimatic Antenna for RC Drone FPV Racing

The Foxeer M10Q 250 5883 Compass GPS is designed for RC drone FPV racing, featuring the advanced M10 10th generation chip. This GPS operates on multiple frequencies, including GPS L1, GLONASS L1, BDS B1, GALILEO E, SBAS L1, and QZSS L1, ensuring precise navigation. It is equipped with a ceramic antenna and a built-in QMC5883 compass for enhanced accuracy. The device supports a baud rate of 115200bps and a dual NMEA/UBLOX protocol, with an output frequency ranging from 1Hz to 10Hz. With a speed accuracy of 0.05m/s and horizontal positioning accuracy of 2D ACC1.5m, this GPS is reliable for high-speed racing. It can operate in extreme temperatures from -40鎺矯 to +85鎺矯 and has a lightweight design weighing only 12g.

Specification:
Chip: M10(10th Generation Chip)
Frequency: GPS L1GLONASS L1BDS B1GALILEO ESBAS L1QZSS L1
Input Voltage: 5V
Antenna: Ceramic Antenna
Channel: 72
Battery: Built-in

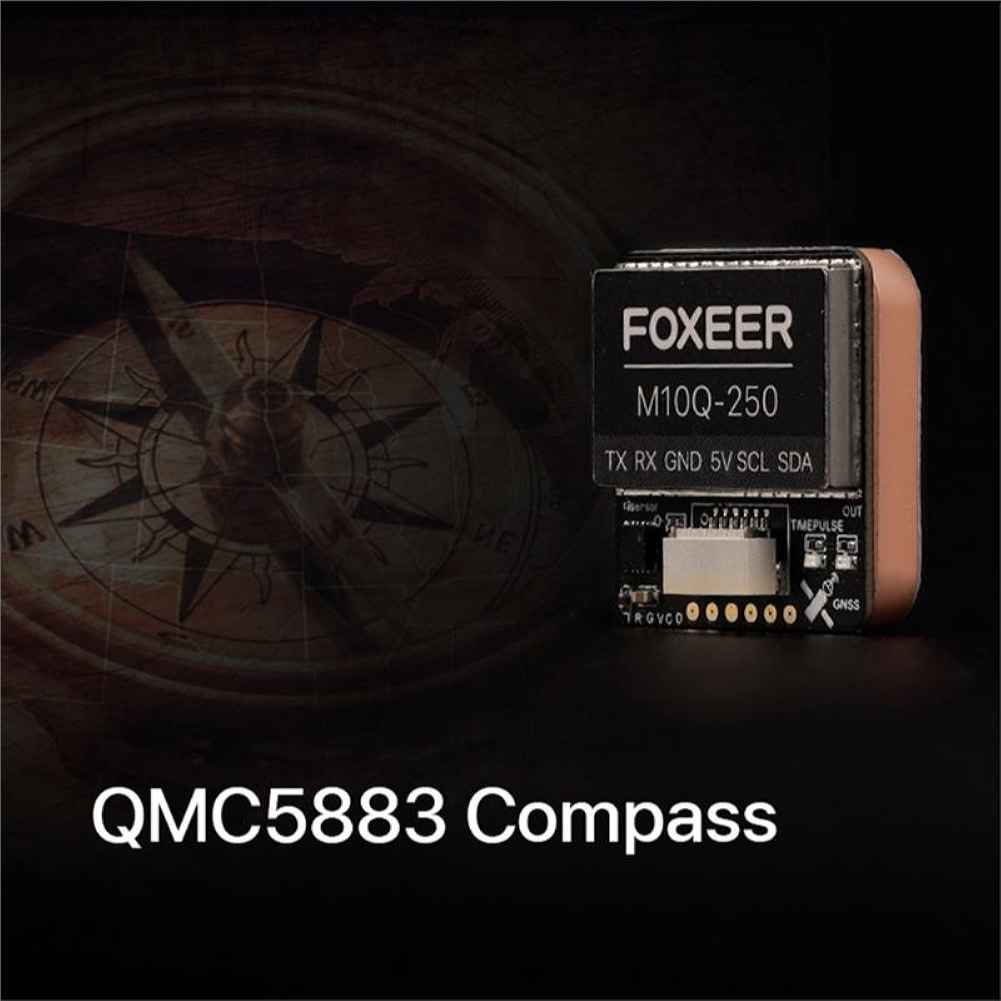

Compass: QMC5883
Baud Rate: 115200bps

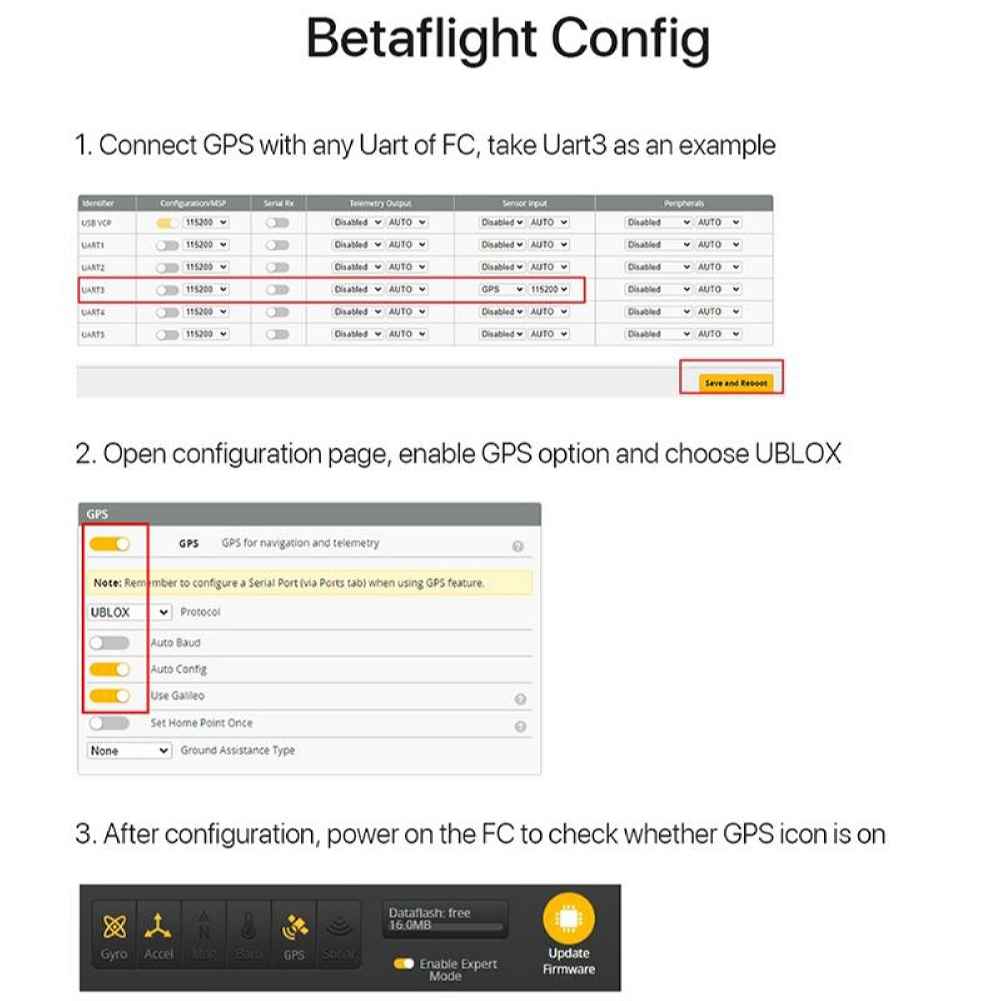

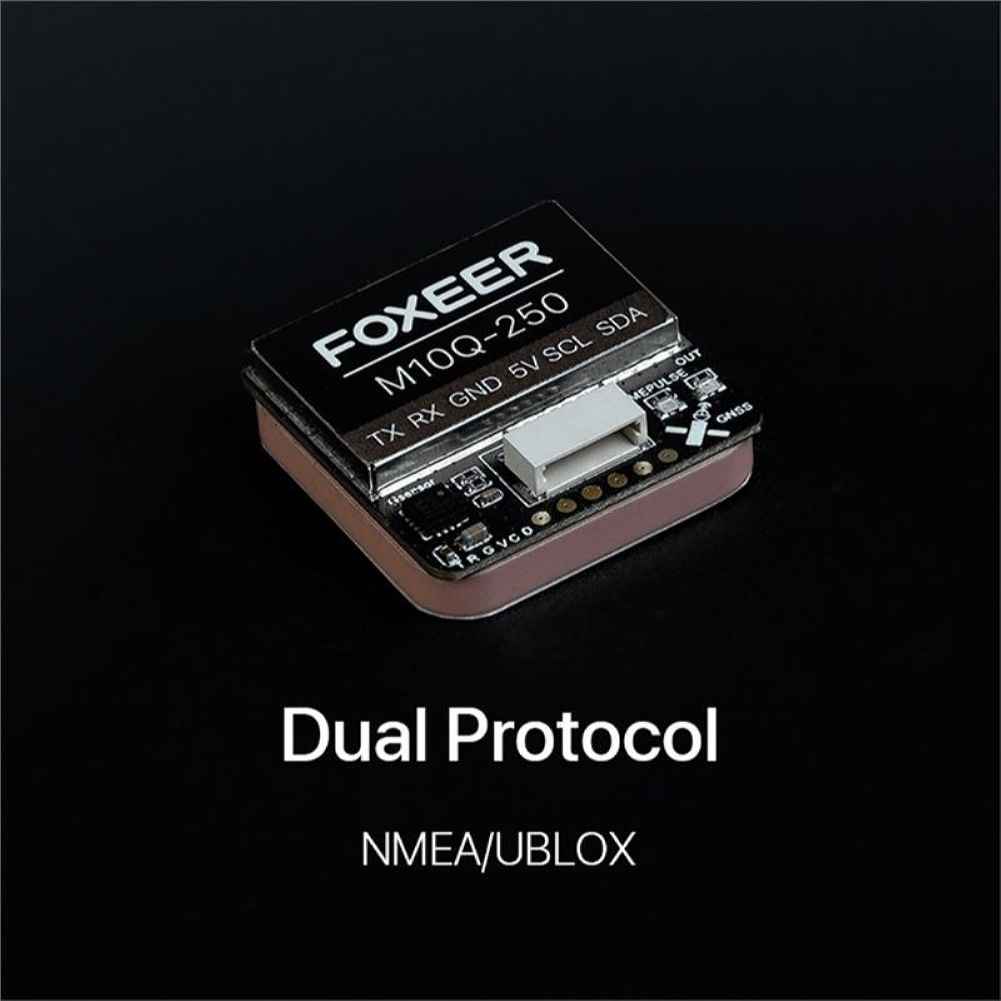

Protocol: Dual NMEA/UBLOX
Output Frequency: 1Hz-10Hz,10Hz default
Speed Accuracy: 0.05m/s
Horizontal Positioning Accuracy: 2D ACC1.5m(outdoor)
Receiver Sensitivity:Trace -166dBm; Capture -160dBm
Dynamic Characteristics:Height 50000m; Speed 500m/s; Acceleration 4G
Operating Temperature:-40C-+85C
Storage temperature:-40C-+105C
Weight:12g

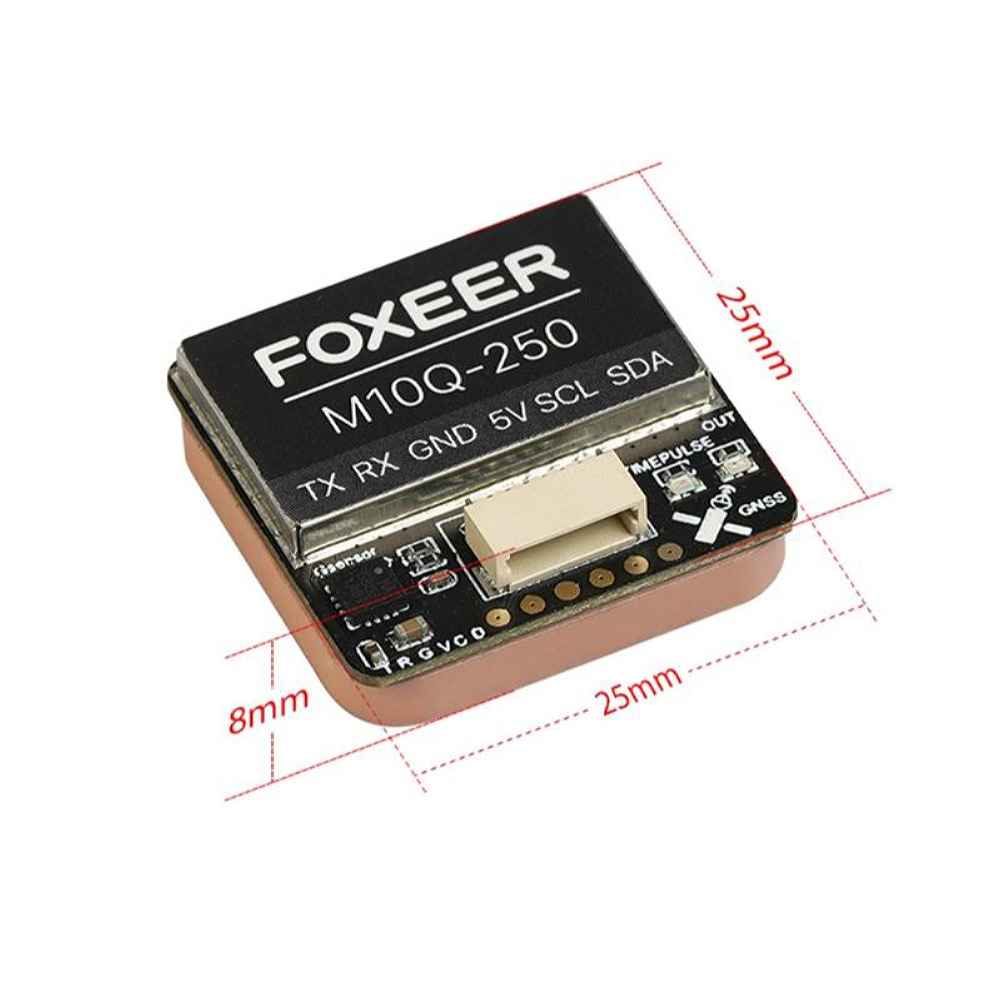

Size:25*25*8mm

Package Included:
1 x Foxeer M10Q 250 5883 Compass GPS
