GEPRC 1S 3.8V 380mAh 530mAh 90C 180C LiHV Lipo Battery with PH2.0/A30 Plug for TinyGO Micro FPV Racing Drone

Description

2 PCS GEPRC 1S 3.8V 380mAh 530mAh 90C 180C with PH2.0 / A30 Plug Lipo Battery for TinyGO Micro Indoor FPV Racing RC Drone

The GEPRC 1S 3.8V LiHV Lipo Battery is expertly crafted for Micro Indoor FPV racing drones, offering both 380mAh and 530mAh capacities. This high-voltage battery is designed to enhance flight performance by reducing weight and extending flight time. It features a high-performance, low-resistance cell with a continuous discharge rate of 90C, ensuring ample power for your drone. The battery is equipped with a convenient USB charging board for efficient recharging. With a full charge voltage of 4.35V and a minimum discharge voltage of 3.6V, timely recharging is essential to maintain optimal performance. Compatible with 1.6-2 inch FPV drones, this battery is ideal for drone enthusiasts seeking reliable power.

Introduction:

GEPRC 1S 530mah 3.8V LiHV High-voltage lithium battery is specially designed for Micro Indoor FPV, with small volume and high voltage characteristics.
It plays a key role in reducing weight and increasing flight time of Micro Quadcopters. Using High-performance & Low resistance cell, it can discharge at 90C continuously, providing sufficient power for flight. GEPRC LiHV 1S battery’s USB charging board is used for charging,
It’s extreme convenient and High-efficiency!
The full charge voltage of the battery is 4.35V, when the flight voltage drops to 3.6V, the battery needs to be charged in time!
Specification:
Brand Name: GEPRC
Item Name: 1S 380mah/530mah 3.8V Lipo Battery
Quantity: 2 PCS

530mah 90C PH2.0 Plug

Battery Type: LiHV
Cell Config: 1S1P
Capacity: 530mAh
Nominal Voltage: 3.8V
Min. Discharge Voltage: 3.6V
Discharge Rate: 90C
Connector: PH2.0
Compatible Models: 1.6-2 Inch FPV drones
Dimension: 64沁17沁6.5mm

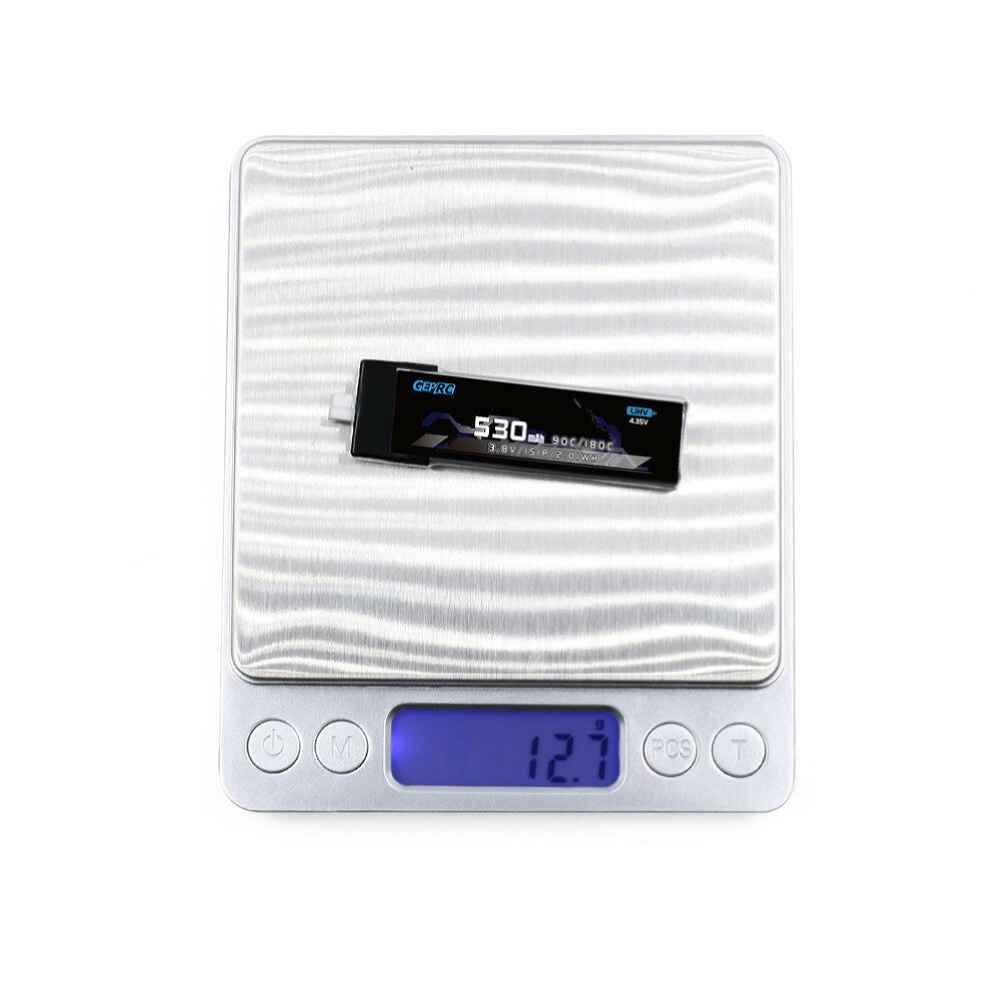

Weight: 12.7呼0.5g

530mah 90C/180C A30 Plug

Battery Type: LiHV
Cell Config: 1S1P
Capacity: 530mAh
Nominal Voltage: 3.8V
Min. Discharge Voltage: 3.6V
Discharge Rate: 90C/180C
Connector: A30
Compatible Models: 1.6-2 Inch FPV drones
Dimension: 66×17.5×6.5mm
Weight: 12.7呼0.5g

380mah 90C PH2.0 Plug

Battery Type: LiHV
Cell Config: 1S1P
Capacity: 380mAh
Nominal Voltage: 3.8V
Min. Discharge Voltage: 3.6V
Discharge Rate: 90C
Connector: PH2.0
Compatible Models: 1.6-2 Inch FPV drones
Dimension: 52沁17沁7mmWeight:9.7呼0.5g

Package Included:
2 x 1S 380mah/530mah 3.8V Lipo Battery
