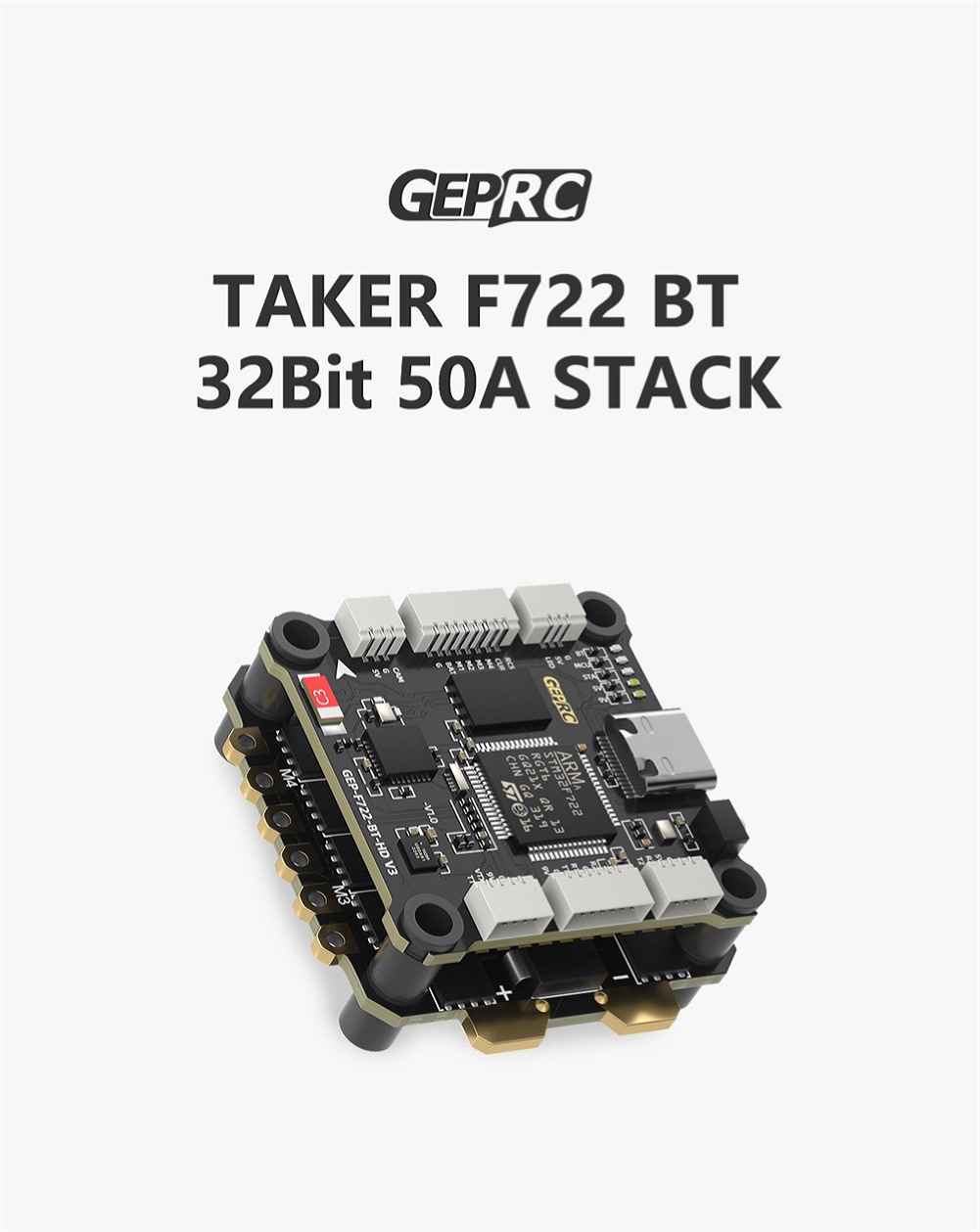

GEPRC TAKER F722 BT HD V3 Flight Controller & 50A 4-in-1 ESC Stack for 3-6S RC FPV Racing Drones

Description

30.530.5mm GEPRC TAKER F722 BT HD V3 Flight Controller 3-6S 50A 32Bit 4In1 Brushless ESC Stack for RC FPV Racing Drone

The GEPRC TAKER F722 BT HD V3 Flight Controller is designed for RC FPV racing drones, offering reliable performance with its STM32F722 chip and 42688-P gyroscope. It includes a 512M black box for data storage and supports Bluetooth parameter tuning. The system features an integrated LC filter and a type-C USB interface for enhanced connectivity. The GEP-BL32 50A 96K 4-in-1 32Bit ESC ensures smooth flight, with easy installation via shock-absorbing mounts. It directly connects to the DJI Air Unit and includes a barometer, dual BEC outputs (9V@2.5A and 5V@3A), and BetaFlight OSD. Compatible with 3-6S LiPo, it supports multiple protocols including Dshot 150/300/600.

Note: Pre-installed with BL32 test firmware, extensively tested for safety and reliability(AM32 also supported; customer flashing required.)

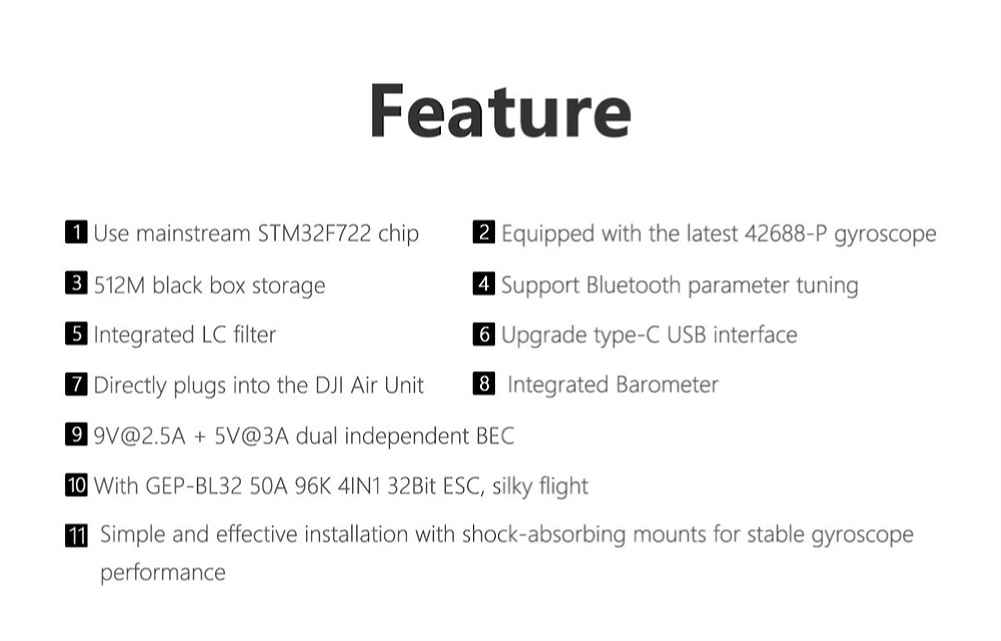

Feature:
1. Use mainstream STM32F722 chip
2. Equipped with the latest 42688-P gyroscope
3. 512M black box storage
4. Support Bluetooth parameter tuning
5. Integrated LC filter
6. Upgrade type-C USB interface
7. With GEP-BL32 50A 96K 4IN1 32Bit ESC, silky flight
8. Directly plugs into the DJI Air Unit
9. Simple and effective installation with shock-absorbing mounts for stable gyroscope performance
10. Integrated Barometer
11. 9V@2.5A + 5V@3A dual independent BEC

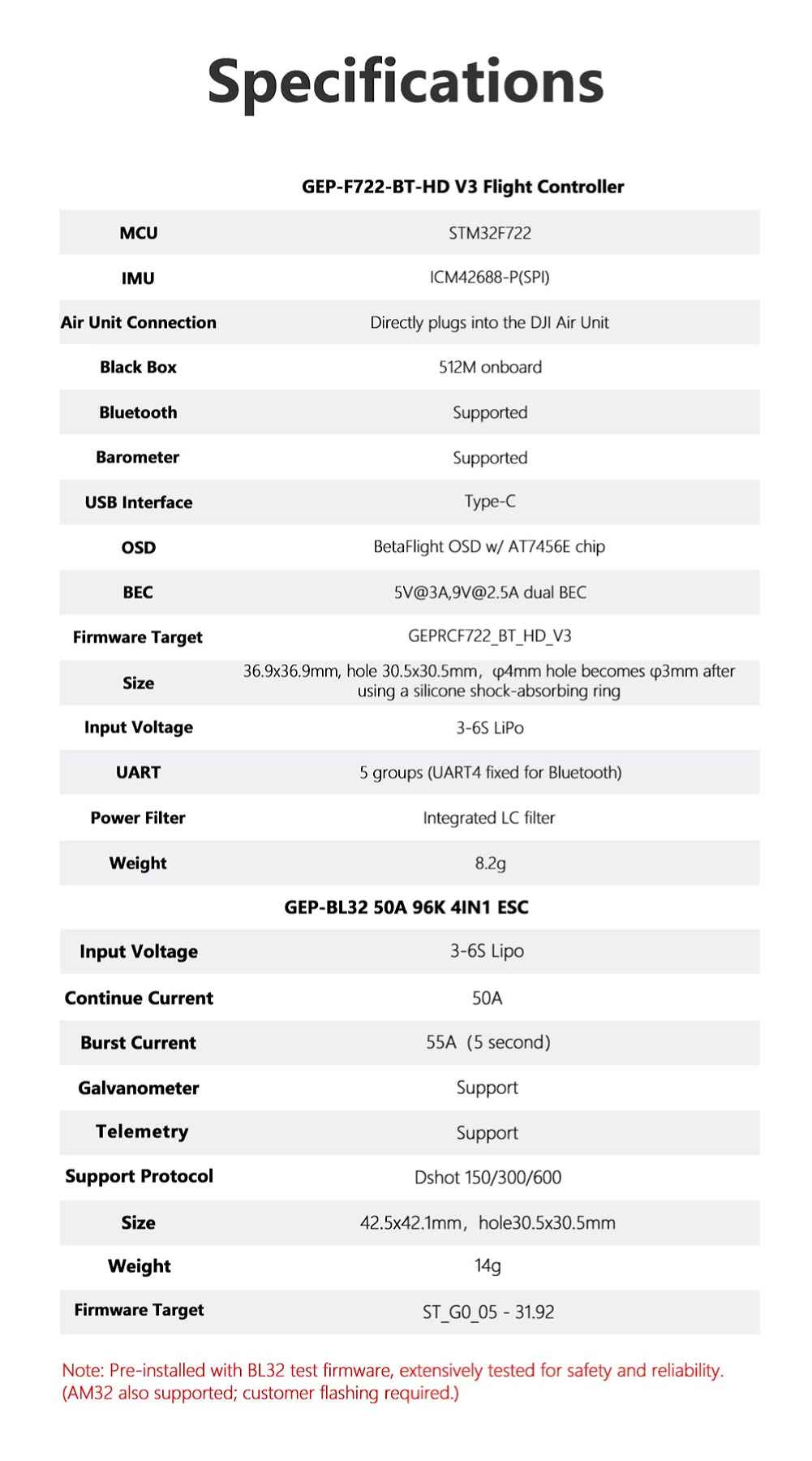

Specification:
Brand: GEPRC
Model: TAKER F722 BT 32Bit 50A STACK

Specification

F722 BT HD V3 Flight Controller

MCU: STM32F722
IMU券ICM42688-P(SPI)
Air Unit Connection: Directly plugs into the DJI Air Unit
Black Box: 512M onboard
Bluetooth: Supported
Barometer: Supported
USB Interface: Type-C
OSD: BetaFlight OSD w/ AT7456E chip
BEC: 5V@3A, 9V@2.5A dual BEC
Firmware Target: GEPRCF722_BT_HD_V3
Size: 36.9沁36.9mm, hole: 30.5沁30.5mm, 嫉4mm hole becomes 嫉3mm after using a silicone shock-absorbing ring
Input Voltage: 3-6S LiPo
UART: 5 groups (UART4 fixed for Bluetooth)
Power Filter: Integrated LC filter
Weight: 8.2g

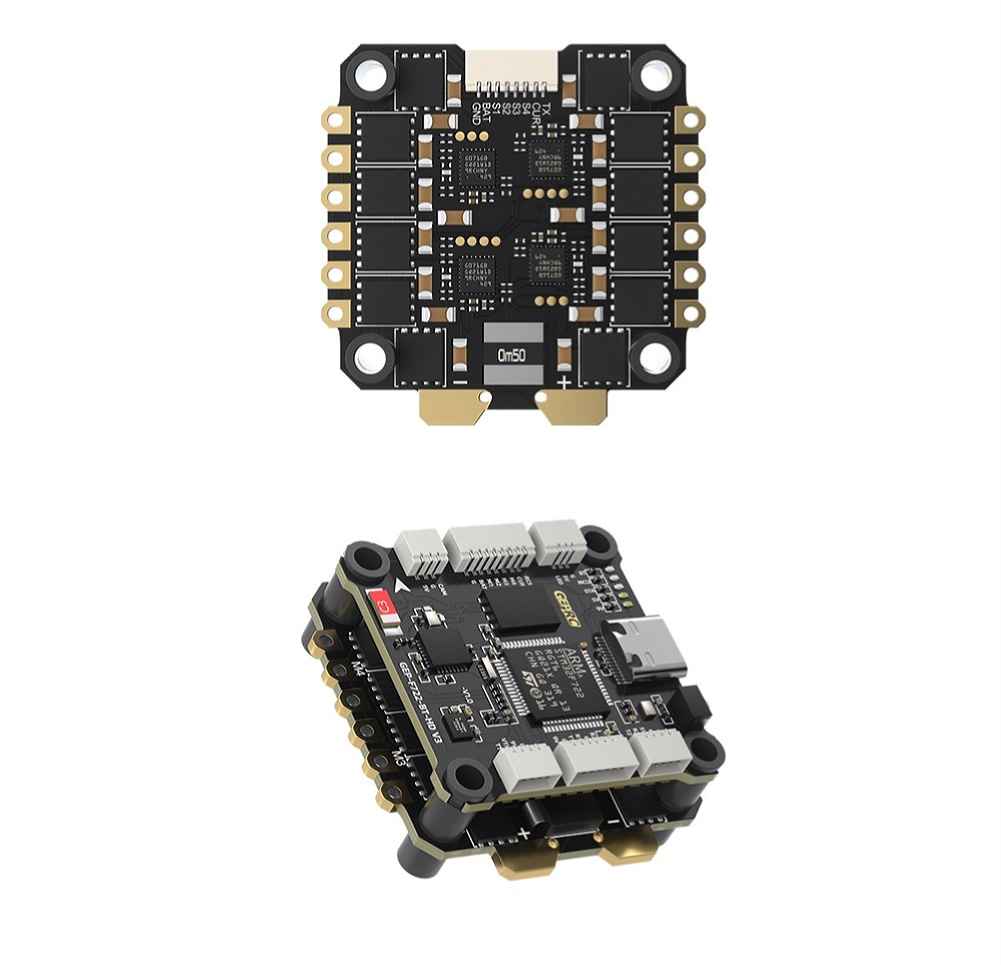

50A 4IN1 ESC

Input Voltage: 3-6S Lipo
Continue Current券50A
Burst Current: 55A (5 second)
Galvanometer券Support
Telemetry: Support
Support Protocol: Dshot 150/300/600
Size券42.5沁42.1mm佾hole30.5沁30.5mm
Weight券14g
Target: ST_G0_05 藩 31.92

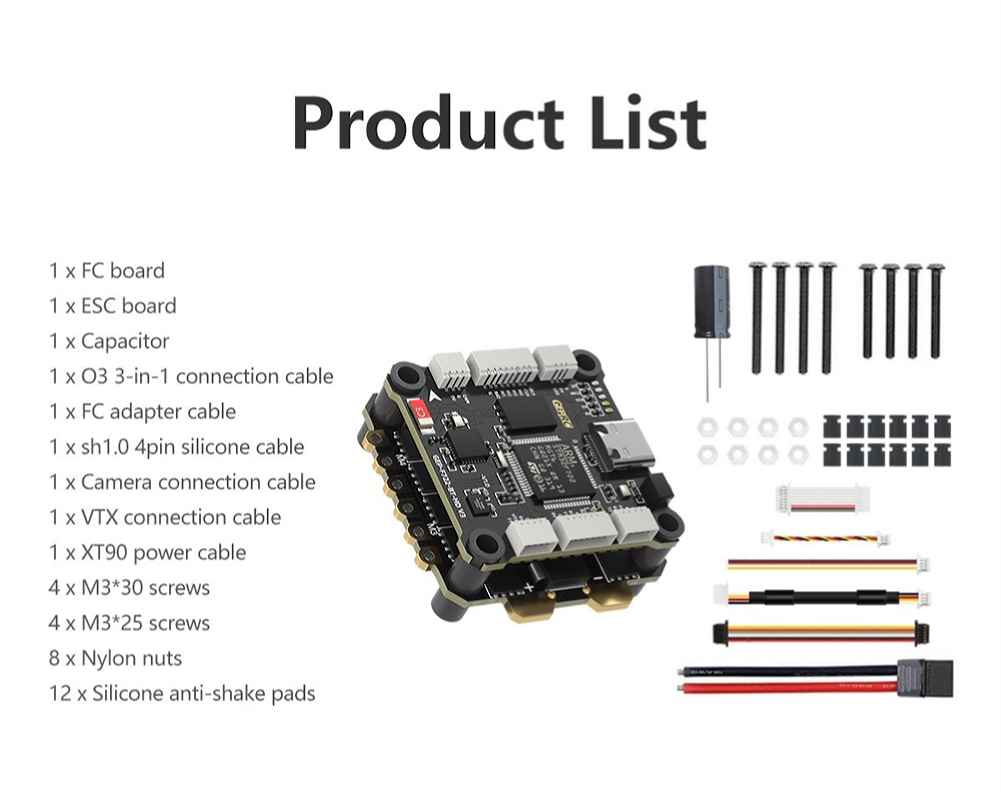

Package Included:
1 x FC board
1 x ESC board
1 x Capacitor
1 x DJI O3 3-in-1 connection cable
1 x FC adapter cable
1 x sh1.0 4pin silicone cable
1 x Camera connection cable
1 x VTX connection cable
1 x XT90 power cable
4 x M3 30 screws
4 x M3 25 screws
8 x Nylon nuts
12 x Silicone anti-shake pads
