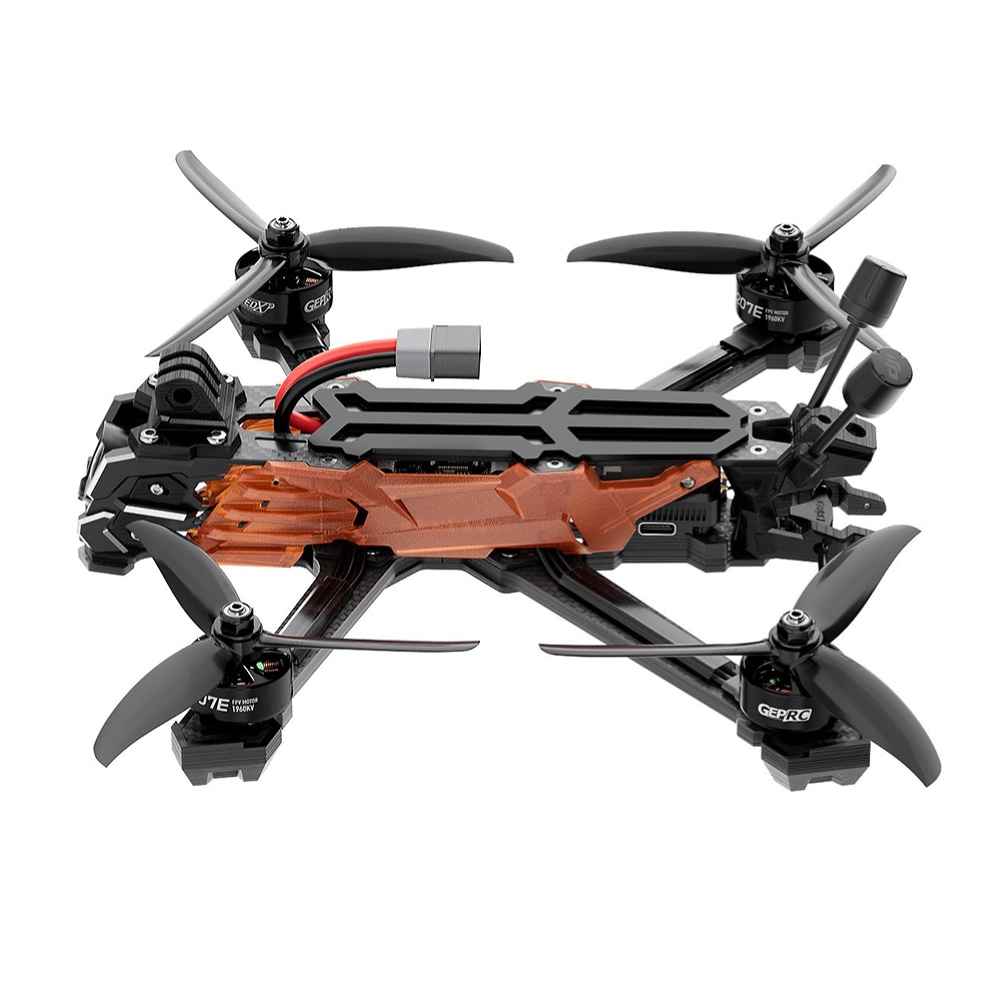

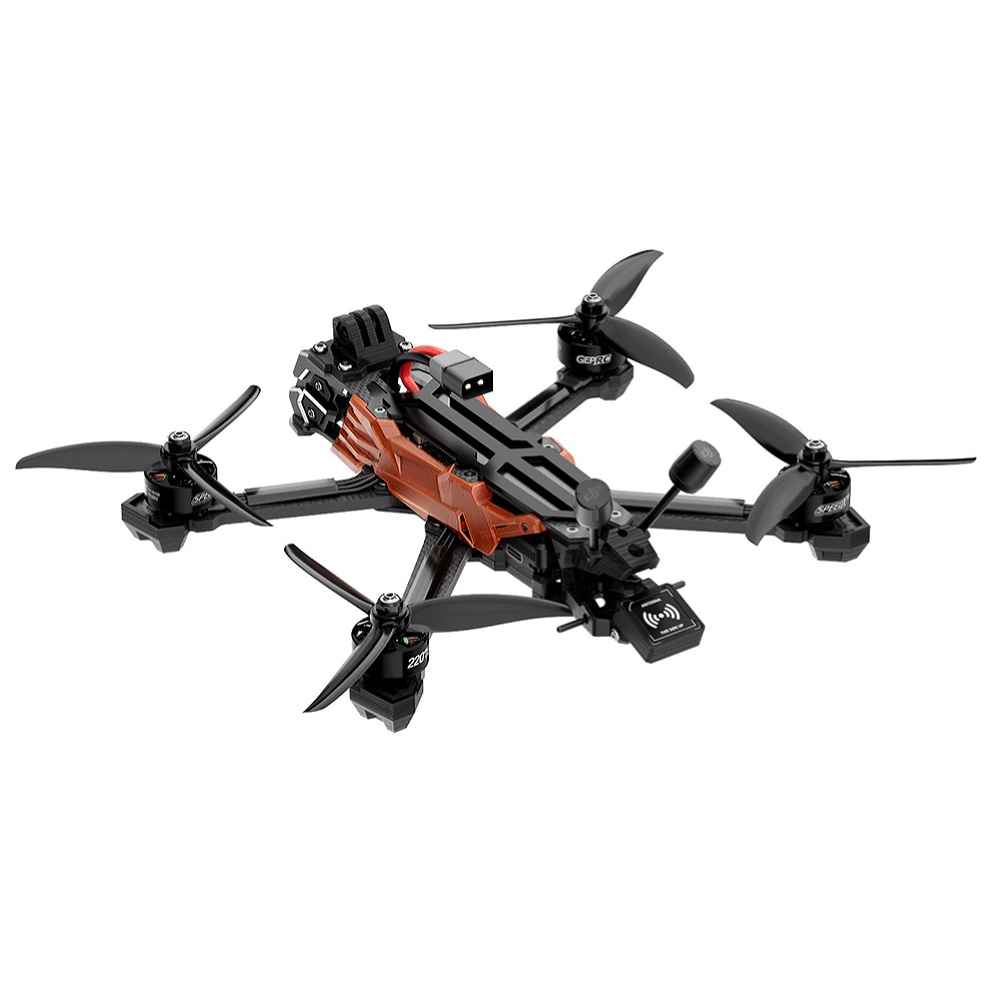

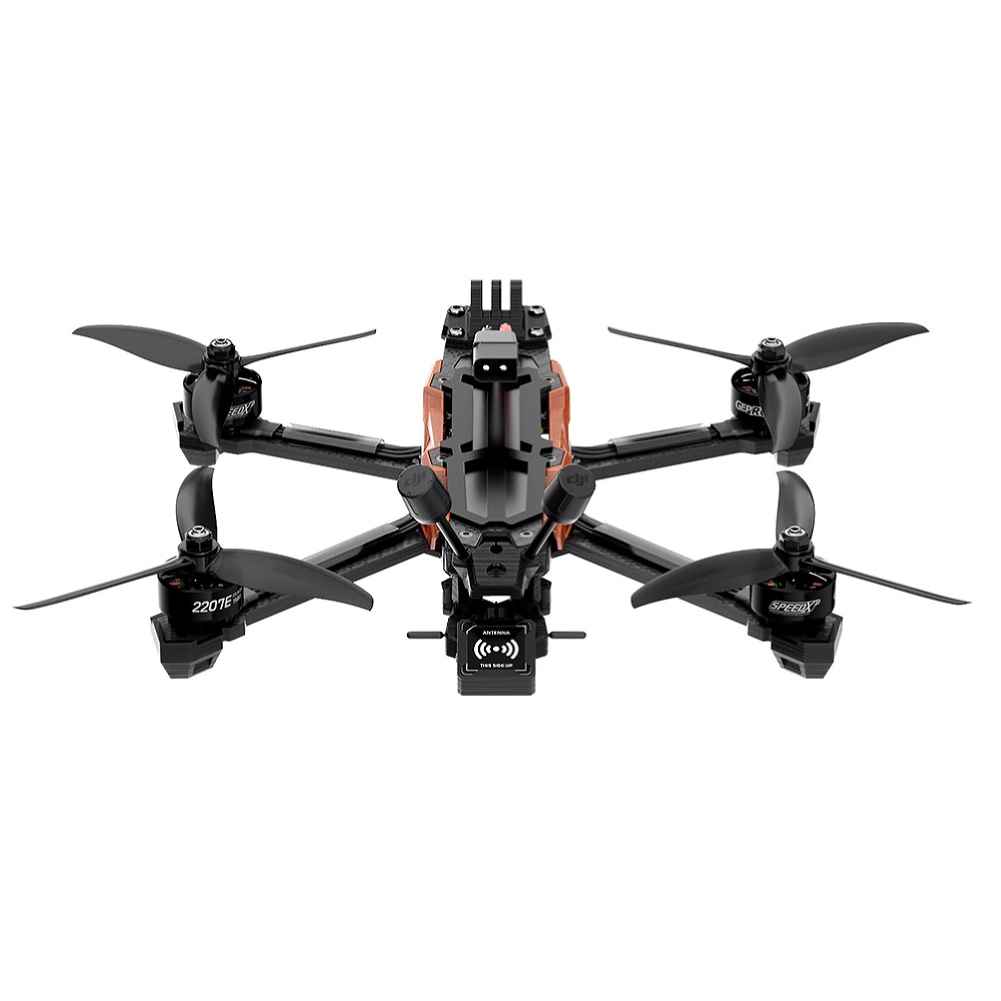

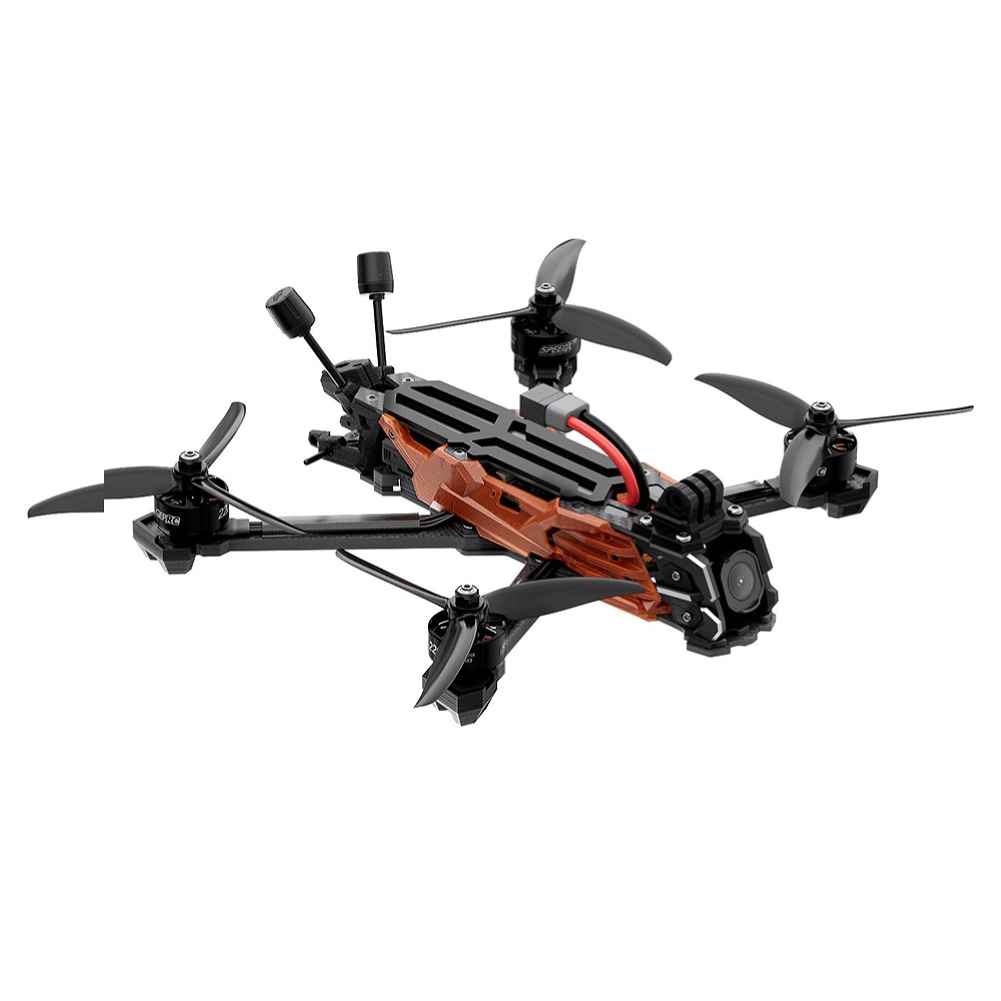

GEPRC Vapor D5 O4 Pro 5-Inch 6S GPS FPV Racing Drone, 2207E 1960KV Motor, DJI O4 Air Unit Pro Compatible

Description

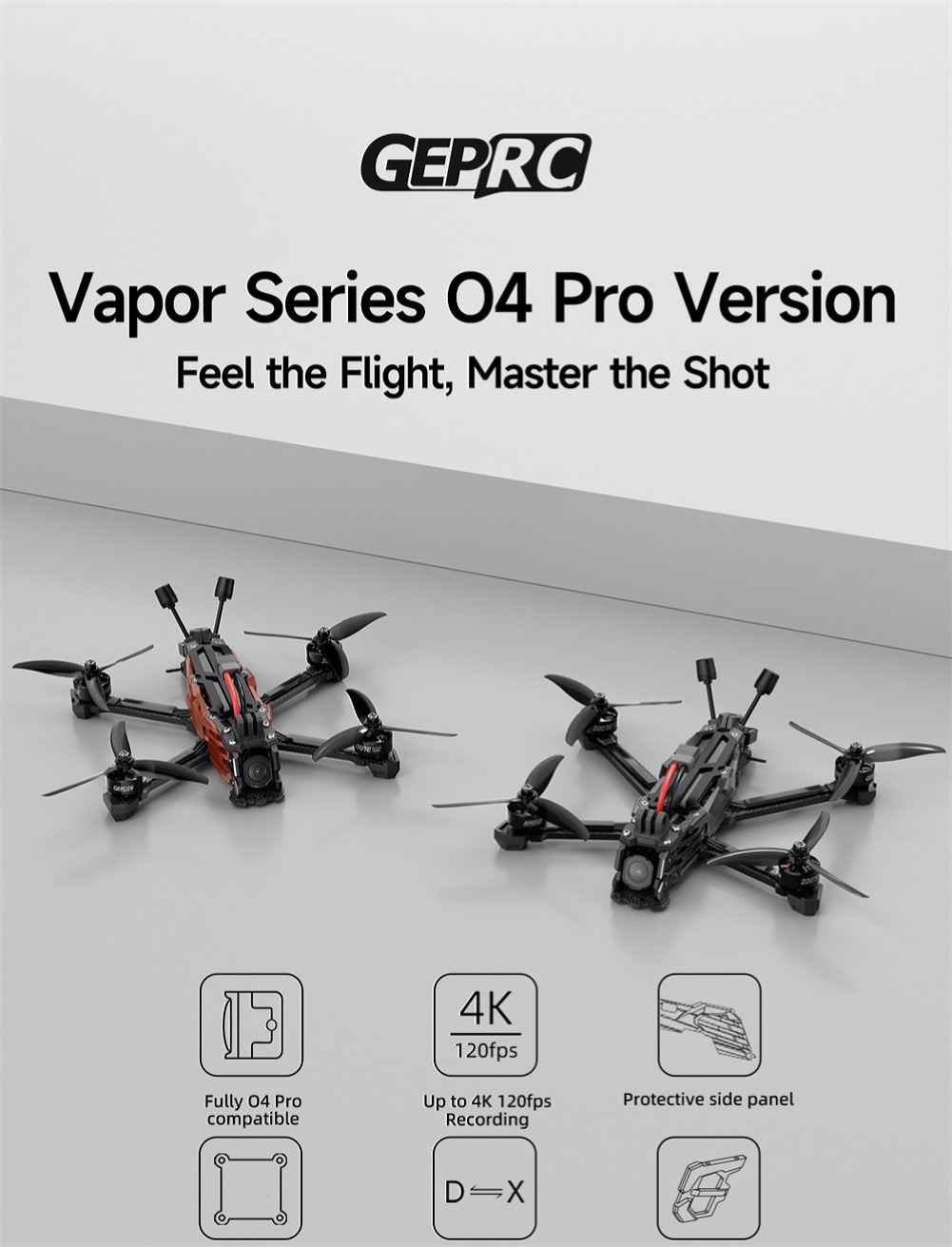

GEPRC Vapor D5 O4 Pro 238mm 5 Inch 6S GPS Freestyle RC FPV Racing Drone PNP BNF with 2207E 1960KV Motor

The GEPRC Vapor D5 O4 Pro is meticulously engineered for FPV racing enthusiasts, featuring seamless compatibility with the DJI O4 Air Unit Pro VTX. Its robust design includes CNC aluminum lens components and shock-absorbing silicone to minimize vibrations, while the mech-inspired side panels add a bold aesthetic. The advanced CMOS sensor of the DJI O4 Air Unit Pro ensures superior image clarity and sensitivity. With GEPRC-tuned PID settings, pilots can enjoy a smooth and immersive flight experience. The drone is available in Wide X and DC models, catering to varied flight preferences. Enhanced by GEPRC SPEEDX2 E-series motors, it promises powerful and reliable performance.

Description:
The GEPRC team has redesigned the Vapor series for optimal compatibility with the DJI O4 Air Unit Pro VTX.
New aluminum lens components and shock-absorbing silicone reduce vibrations, while the sharp new side panels give it a boldd, mech-inspired look. The DJI O4 Air Unit Proã„™s larger CMOS sensor enhances image detail and sensitivity, and the GEPRC-tuned PID settings ensure a smooth and immersive flight experience.

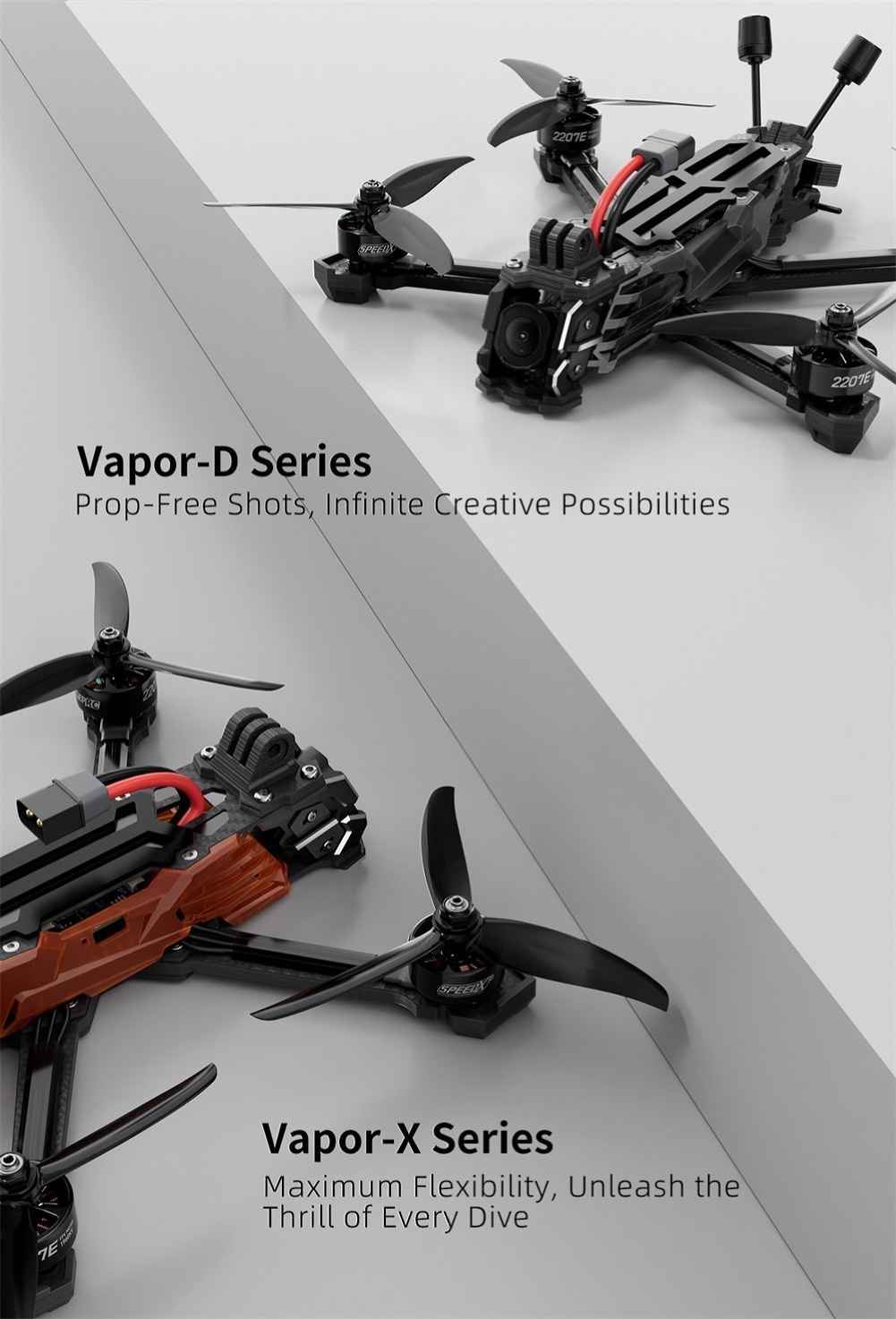

Available in two models, Wide X and DC, to suit different flight needs.
Feature:

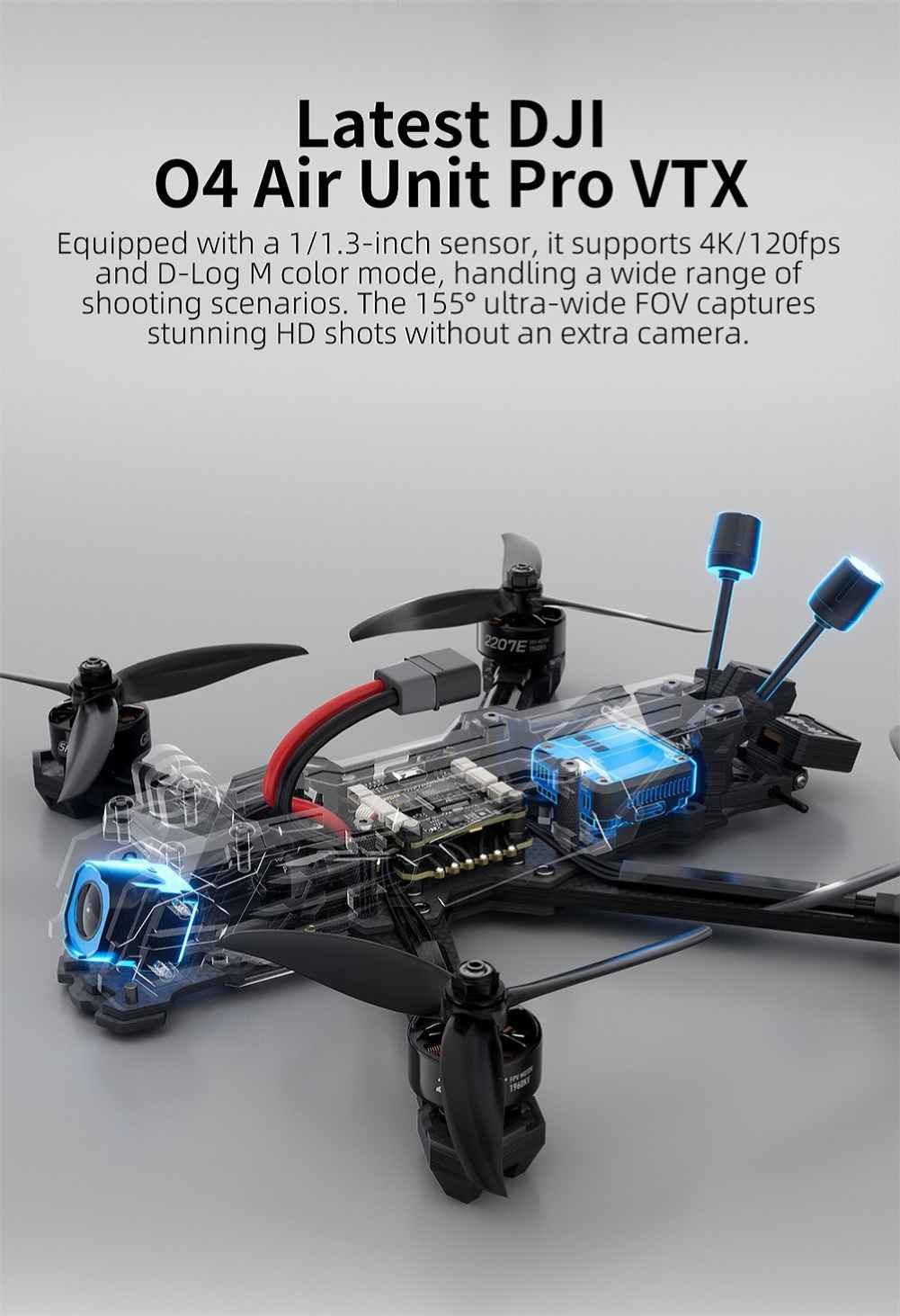

– DJI O4 Air Unit Pro features a powerful CMOS sensor for improved image clarity and enhanced light sensitivity.
– CNC aluminum lens housing for a durabl, boldd design.
– GEPRC SPEEDX2 E-series motors for smooth, powerful performance.
– Front lip design provides extra lens protection for confident flying.

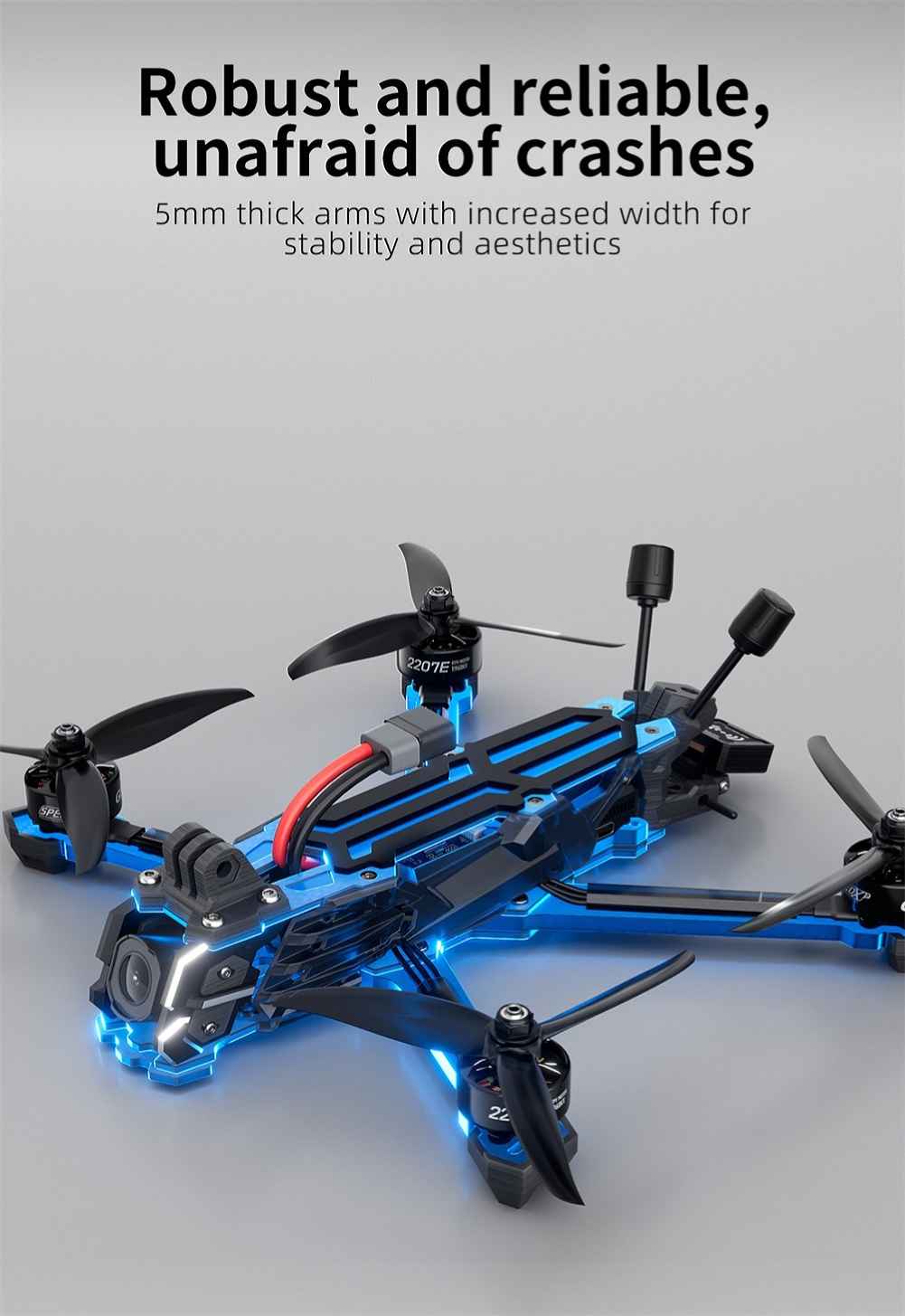

– Wider 5mm carbon fiber arms for increased durability and a sleek build.

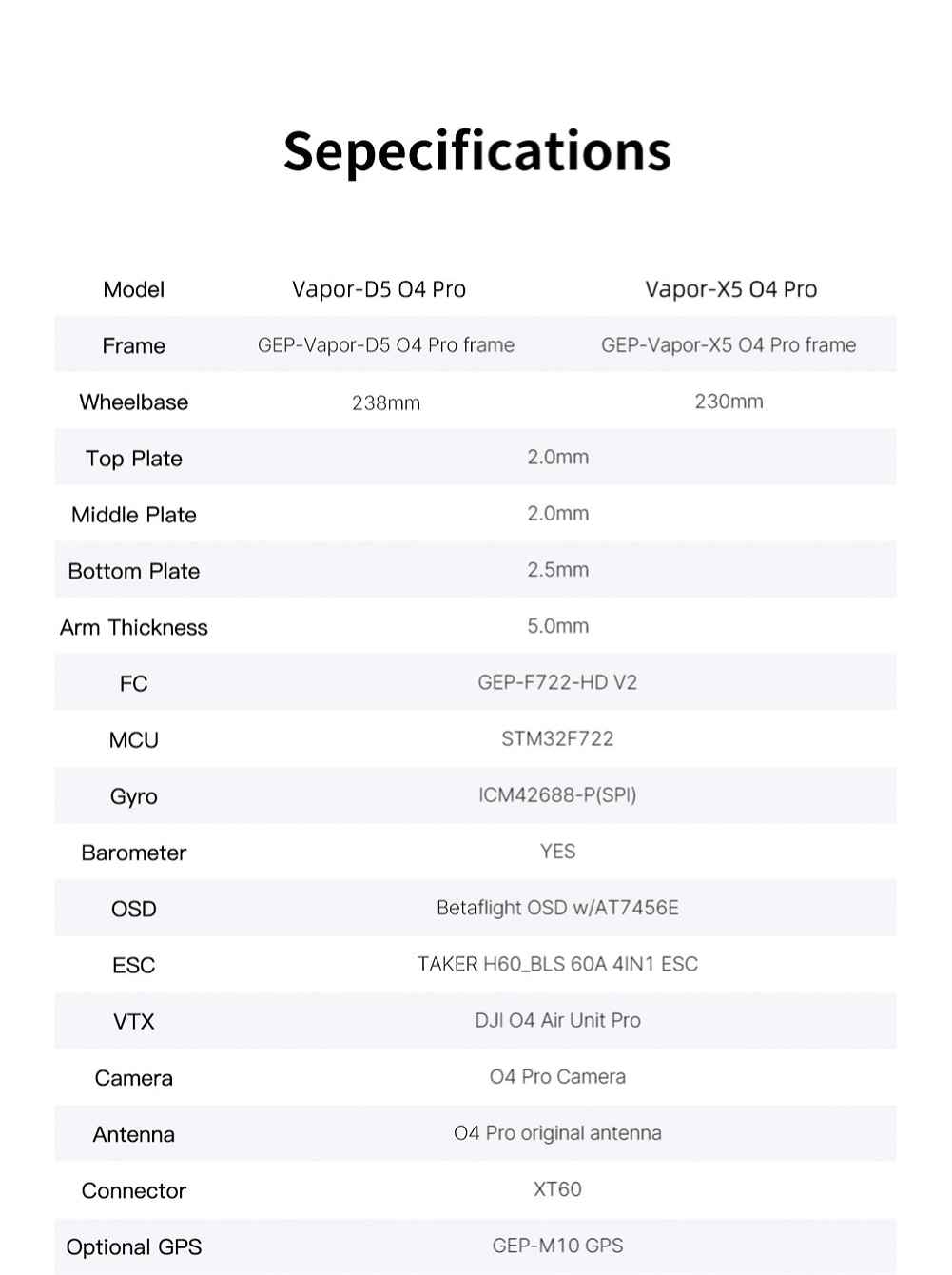

Specifications:
Brand: GEPRC
Model: Vapor D5
GPS: Geprc GEP M10 GPS

Model:

Vapor X5 O4 Pro

Vapor D5 O4 Pro

Model for Frame:

Vapor X5 Frame

Vapor D5 Frame

Wheelbase:

230 mm

238mm

Top Plate:

2.0 mm

Middle Plate:

2.0 mm

Bottom Plate:

2.5 mm

Arm Thickness:

5.0 mm

FC:

GEP-F722-HD v2

MCU:

STM32F722

Gyro:

ICM42688-P(SPI)

Barometer:

YES

OSD:

Betaflight OSD w/AT7456E

ESC:

TAKER H60_BLS 60A 4IN1 ESC

VTX:

DJI O4 Air Unit Pro

Camera:

O4 Pro Camera

Antenna:

O4 Pro Original Antenna

Connector:

XT60

Optional GPS:

GEP-M10 GPS

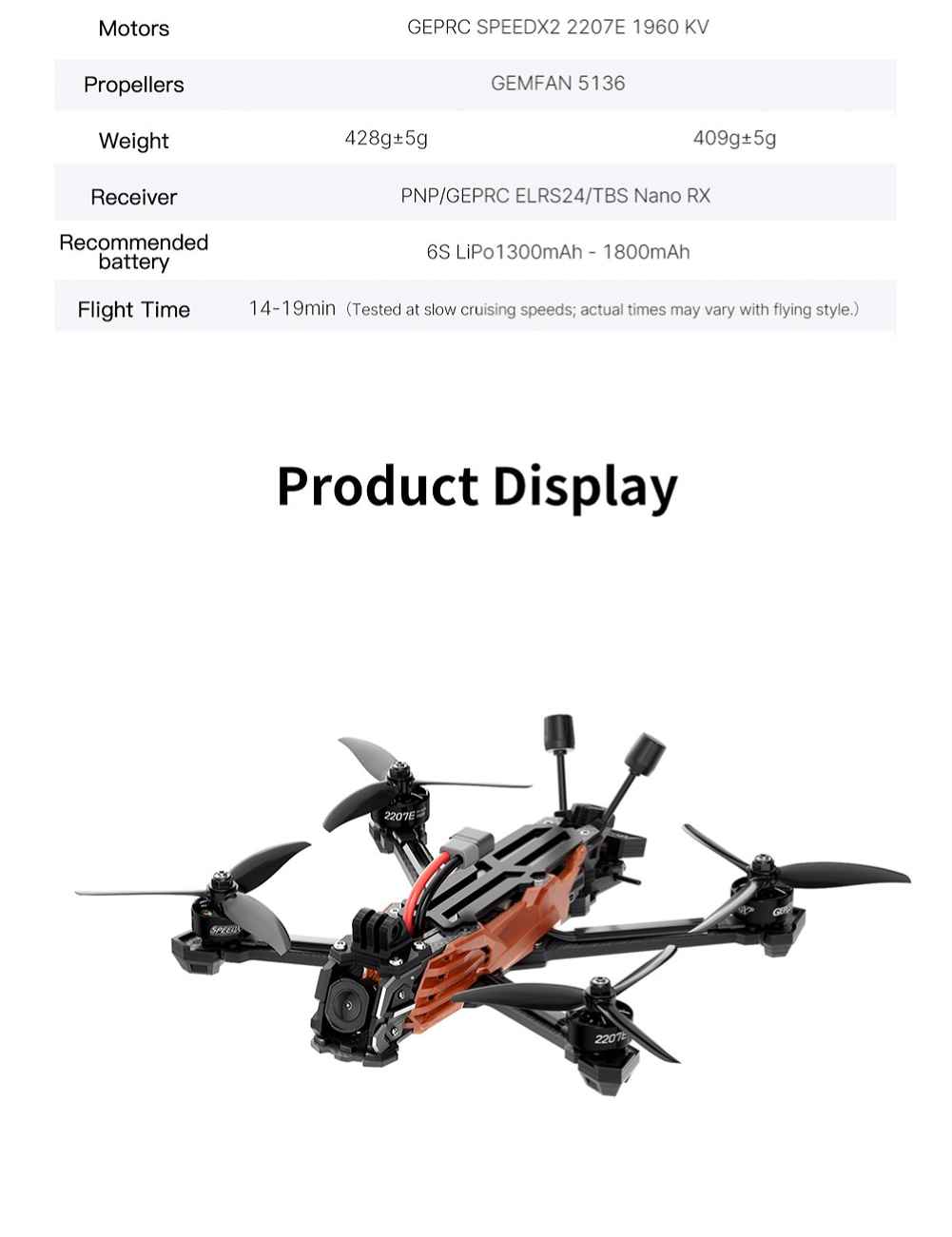

5-inch Motor:

GEPRC SPEEDX2 2207E 1960KV

5-inch Propeller:

GEMFAN 5136

PNP Version Weight:

409g呼5g

428呼5g

Receiver:

PNP/GEPRC ELRS24/TBS Nano RX

Recommended Battery:

6S LiPo1300mAh è—© 1800mAh

Flight Time:

14-19min

Package Included:
1 x Vapor D5 Drone (Optional Version) 2 x GEMFAN 5136 2 x Battery Anti-Slip Pads 1 x Spare Screw pack 1 x Vapor Side Panel 2 x M20 250mm Battery Straps 1 x L-Shaped Screwdriver 1.5mm 1 x L-Shaped Screwdriver 2.0mm 1 x GPro Mount
