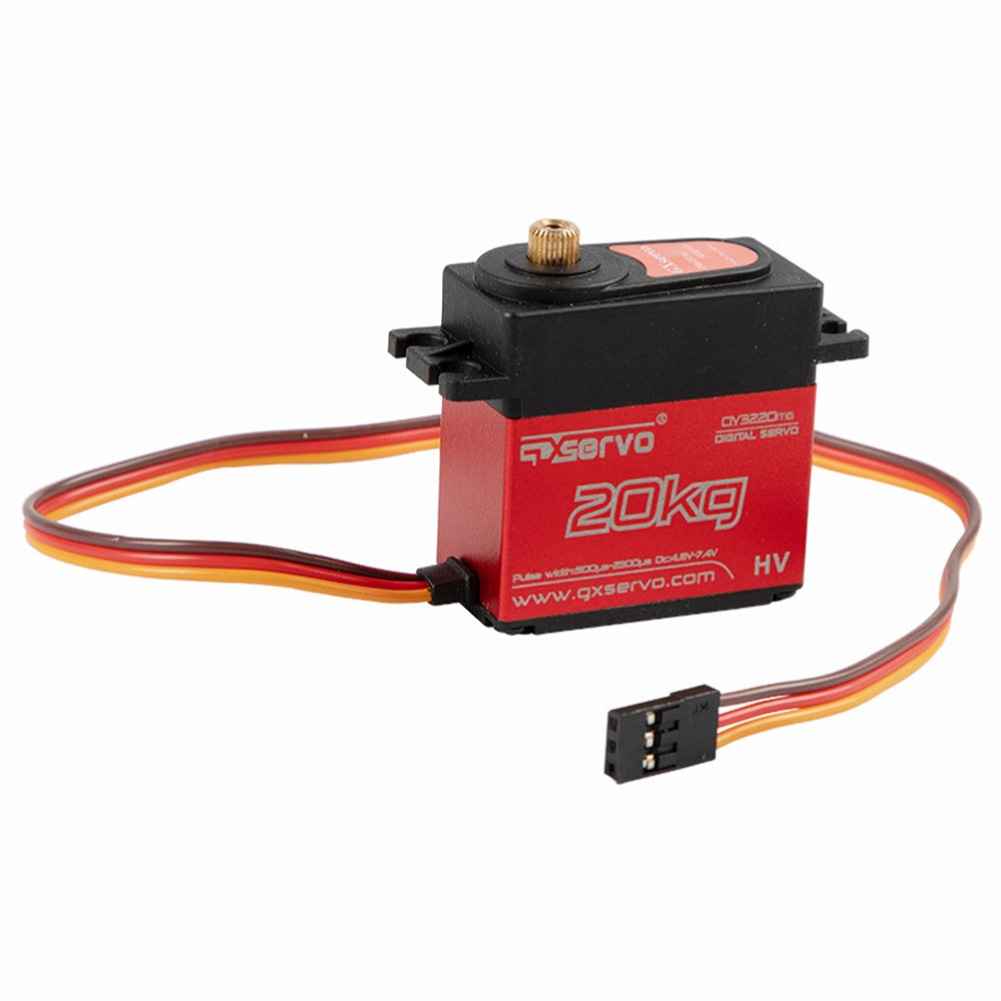

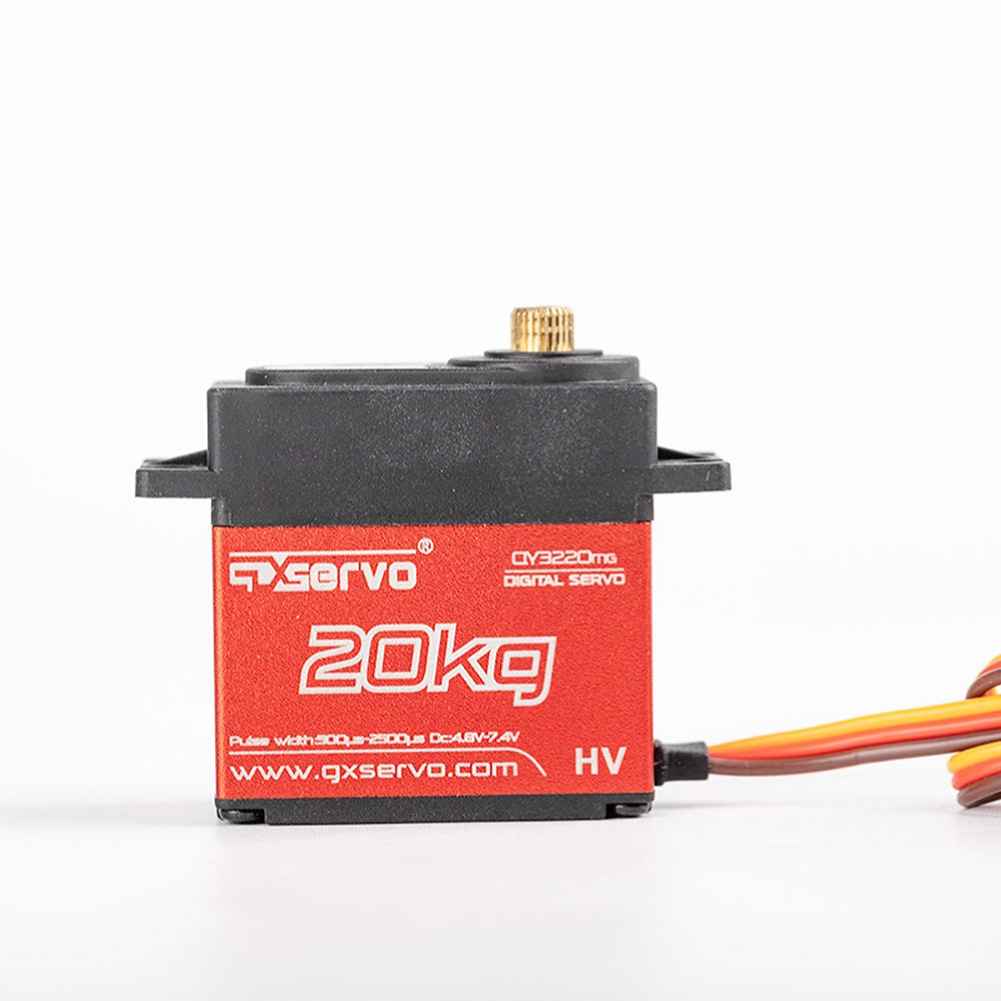

GXservo QY3220MG 20KG High Torque Digital Servo for DIY Robotic RC Cars, PWM Control, 6.0V-7.4V

Description

GXservo QY3220MG 20KG High Torque Digital Servo steering gear robotic steering gear for DIY Robotic RC Car

The GXservo QY3220MG is a high-performance digital servo designed for DIY robotic RC cars. It features a PWM control system with a working angle of 90 degrees, suitable for various applications such as robot joints and steering mechanisms. Operating within a temperature range of -20°C to +60°C, this servo offers a torque of 15KG.CM to 20KG.CM and speeds of 0.18s/60° and 0.16s/60°. Powered by an iron core strong magnetic carbon brush motor, it operates at voltages between 6.0V and 7.4V. The servo is equipped with double ball bearings and imported copper steel gears, ensuring durability and smooth operation for over 15,000 cycles. Ideal for smart applications and remote control models.

Specifications:
Control system: PWM control system
Working angle: 90 ‘+_ 5 §
Temperature range: -20 degrees Celsius to + 60 degrees Celsius
Direction: counterclockwise pulse 1500 To 2500 USEC
Voltage range: 6.0V ~ 7.4V
Driving method: Field effect quality tube driving
Test voltage: AT 6.0V / AT 7.4V
Motor type: Iron core strong magnetic carbon brush motor 1723
Torque: 15KG.CM/20KG.CM
Potentiometer: Indirect transmission
Speed: 0.18S / 60 degrees , 0.16S / 60 degrees
Amplifier Type: Digital
No-load current: 300MA / 450MA
Size: 40 * 20 * 39MM
Load current: 2300MA / 2900MA
Weight: 60G (without accessories)
Dead band width: 2 microseconds
Ball bearings: double ball bearings
Cycle: >15,000 times

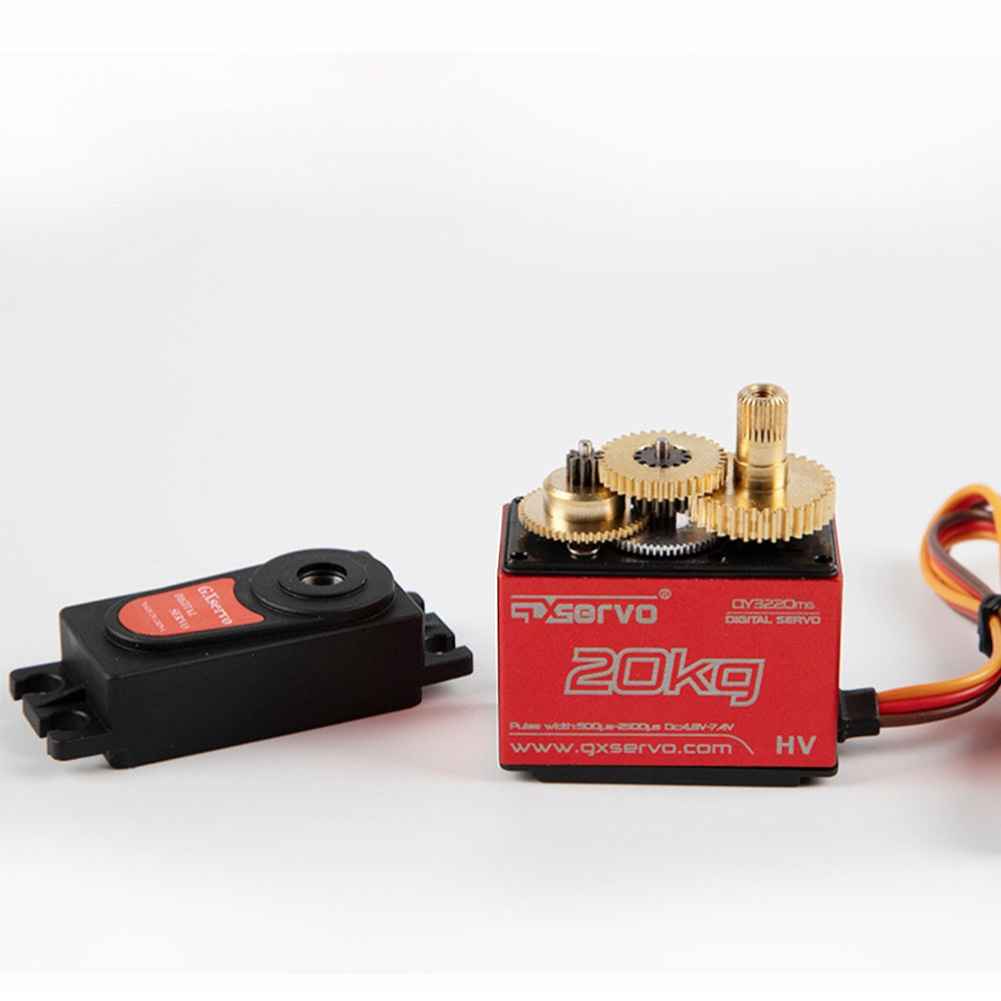

Gear material: imported copper steel material
Functional Application:
Switching device
Robot joint
Steering mechanism
automated industry
Bezel device
Smart Security
Gripping device
Multi-turn
Smart application
Education DY
Point control device
Robot arm joint
UAV applications
Remote control model
Self-driving car applications

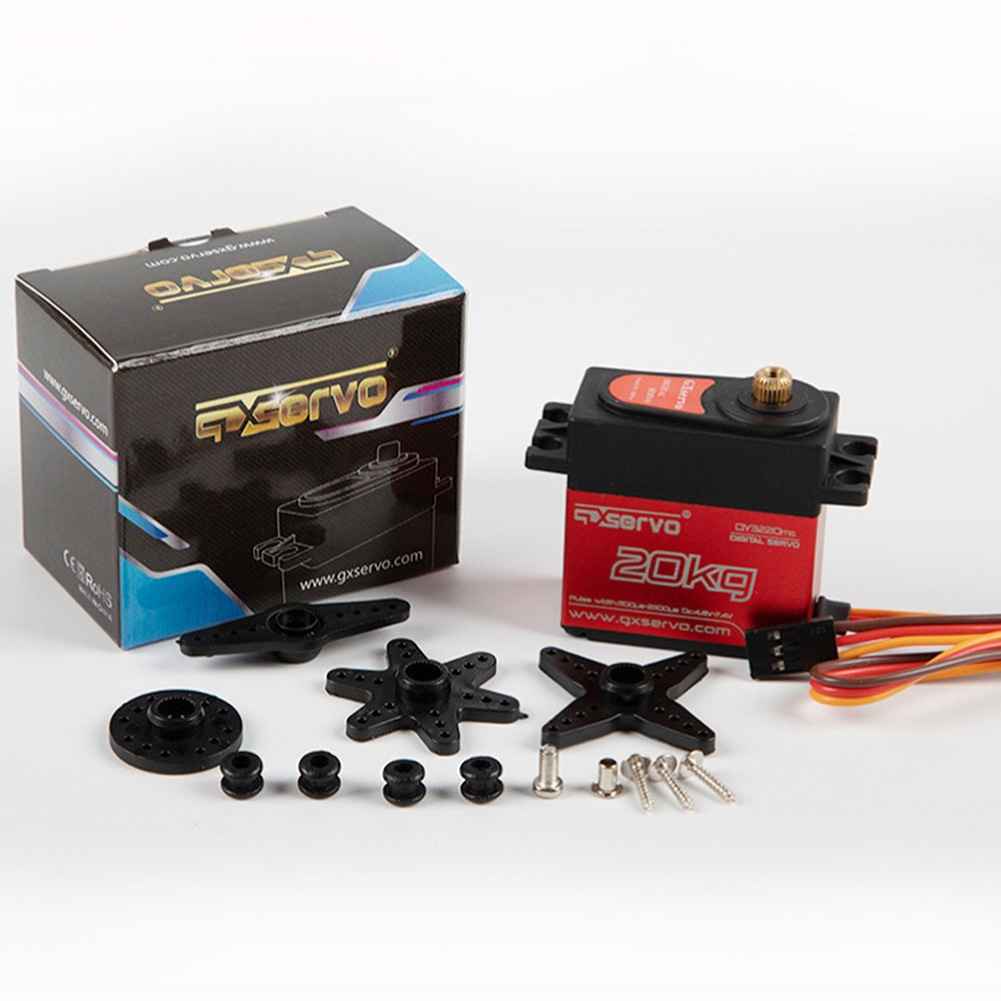

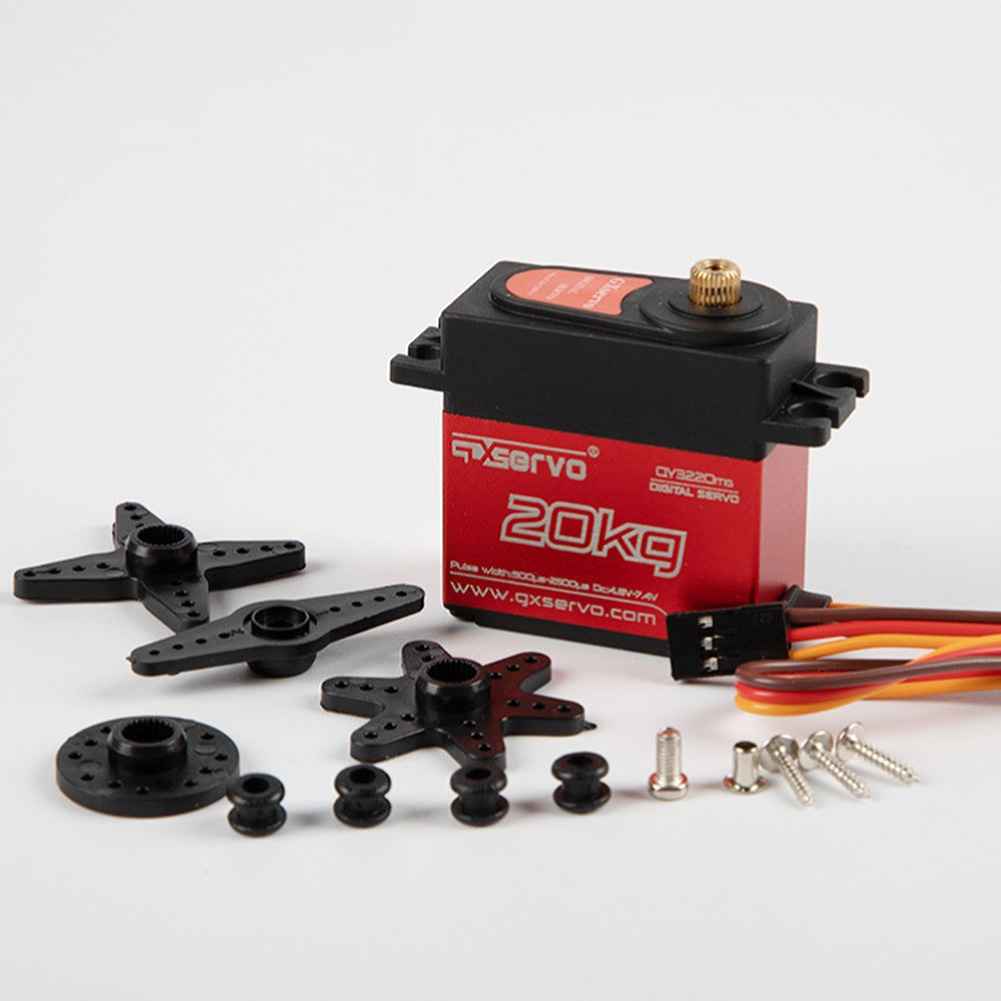

Package Included:
1 x Servo
1 x Accessory Kit
