iFlight BLITZ 5.8G 40CH 1.6W VTX FPV Transmitter, 2-8S, for Nazgul XL5 ECO Evoque F5 F6 Chimera7 RC FPV Racing Drone

Description

iFlight BLITZ 5.8G 40CH 1.6W VTX FPV Transmitter 2-8S 25.5×25.5mm / 30.5×30.5mm for Nazgul XL5 ECO Evoque F5 F6 Chimera7 RC FPV Racing Drone

The iFlight BLITZ 5.8G VTX FPV Transmitter offers stable output power with four adjustable levels up to 1600mW, providing robust performance for long-distance FPV racing. It supports 40 channels and features a fast frequency lock to prevent startup interference. The transmitter includes a built-in output power self-check function and utilizes the IRC Tramp protocol for telemetry. Its unique CNC aluminum alloy heat sink and LED indicators ensure efficient heat management and clear visibility of power and frequency changes. Designed to fit 25.5×25.5mm and 30.5×30.5mm mounting holes, it’s compatible with various Nazgul and Chimera drone models.

Features:
– Stable output power
– 4 power levels up to 1600 MW
– 40 channels (including bands)
– Fast frequency lock, no startup interference to other pilots
– Built-in output power self-check function
– Vtx uses IRC vagrant protocol for telemetry
– The maximum power of the image transmission is up to 1.6W, which is more resistant to interference and not afraid of long-distance voyages

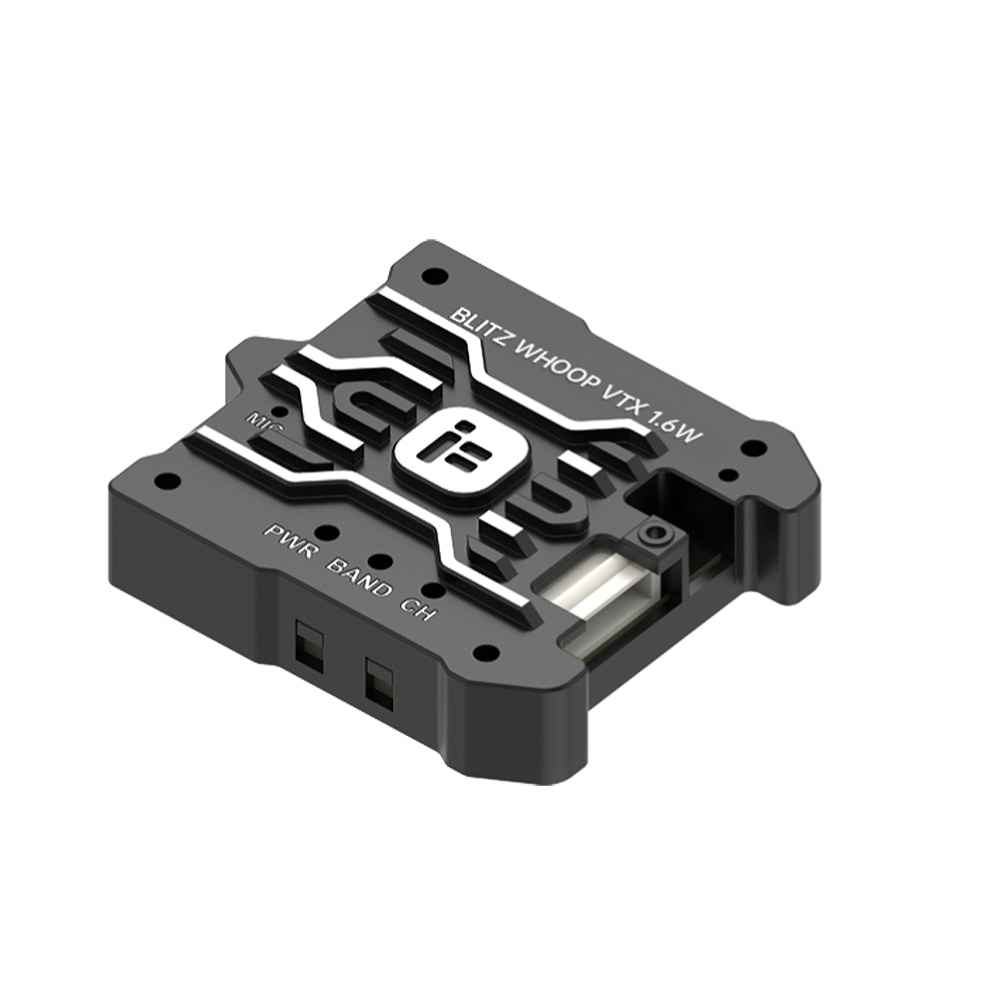

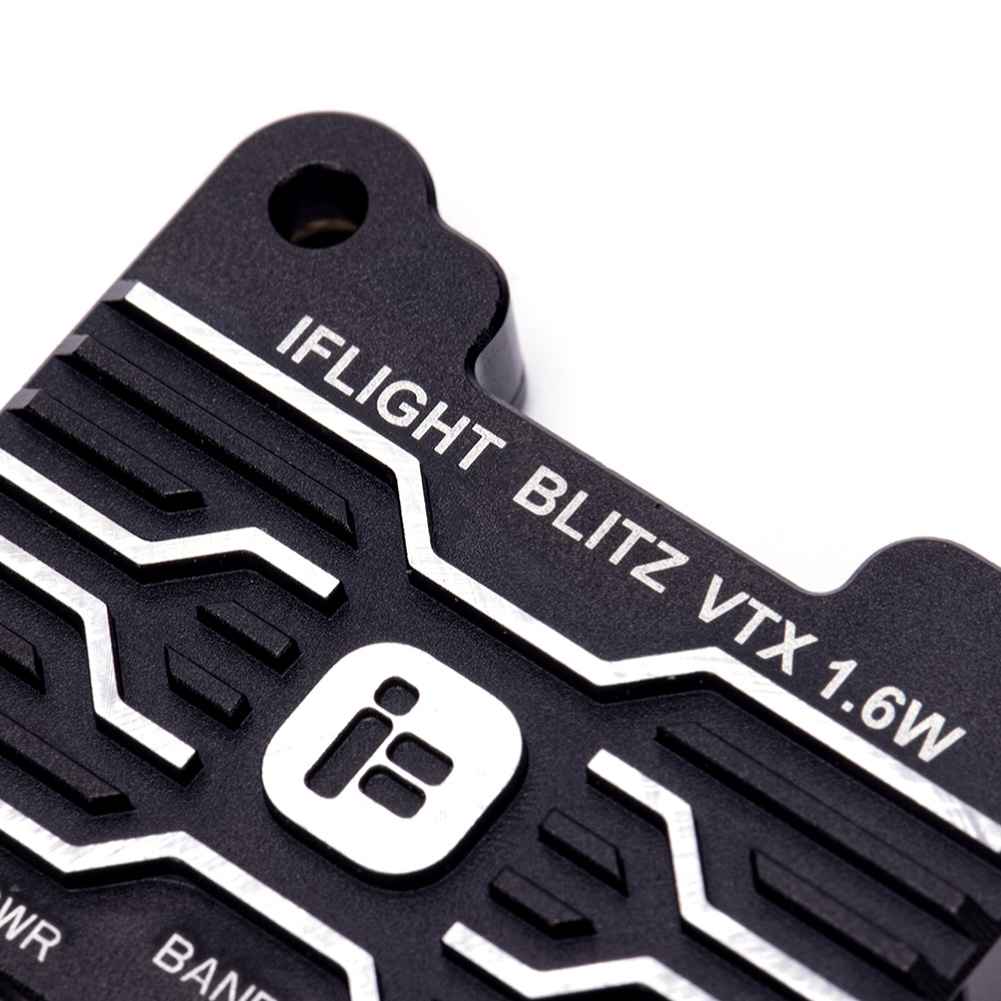

-Unique CNC aluminum alloy heat sink with built-in M3 screw fixing holes
-With LED indicator light to follow the power and frequency changes, the image transmission power and frequency are clear at a glance
Specification:
Brand: iFlight
Model: BLITZ
Item Name: FPV Drone VTX Transmitter
Image Transmission: 5.8G
Power: 1.6W
Power levels: PIT/25mW/400mW/800mW/1600mW
Channels: 40 (Including Belt)
Mounting Hole:25.5×25.5mm/?1.6,30.5×30.5mm?3
Input Voltage: DC7-34V, Supports 2-8S Battery Input
Output power: 25mW/400mW/800mW/1600mW

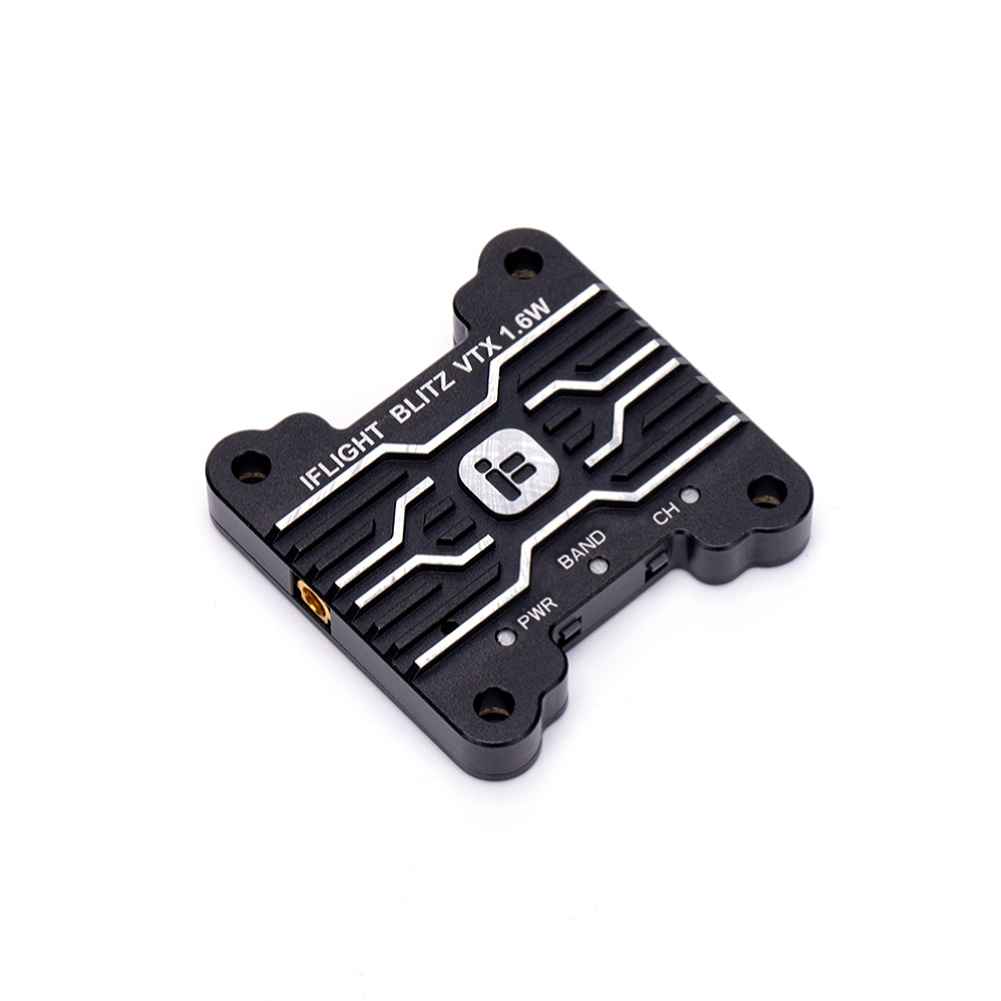

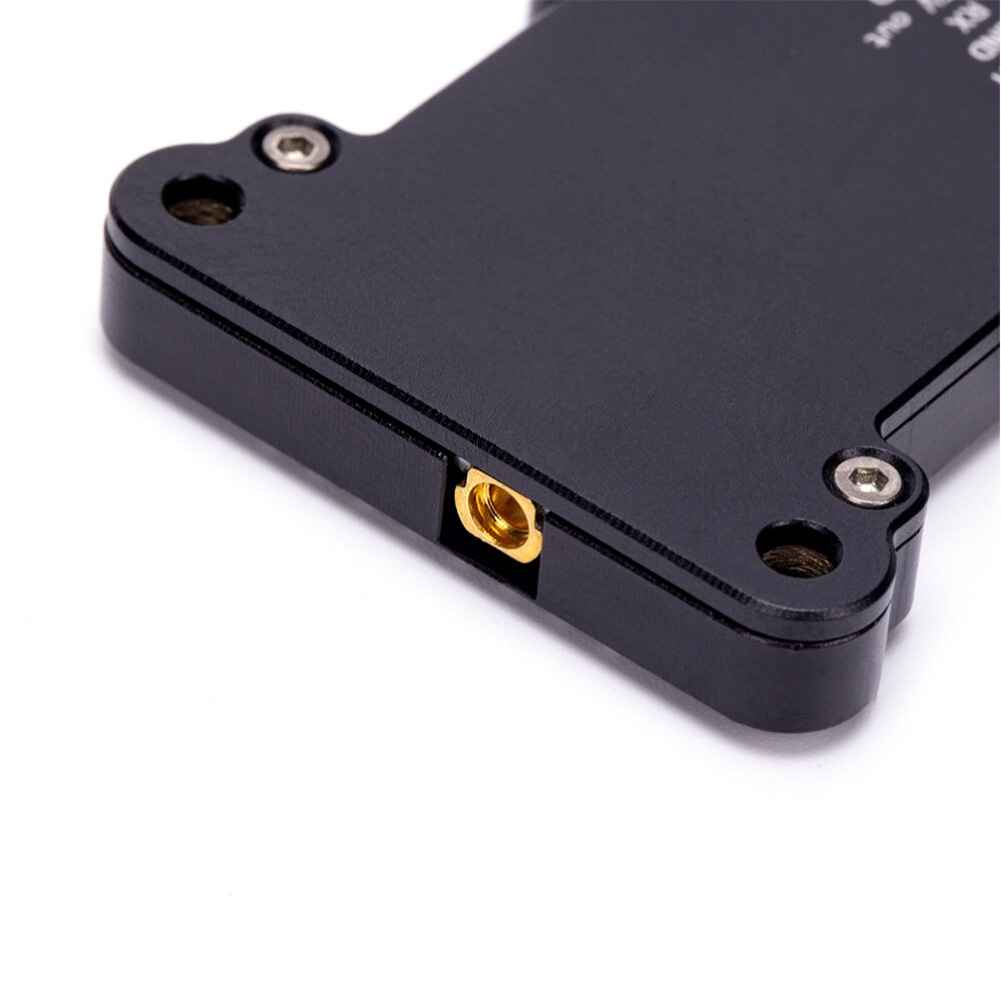

Antenna interface: MMCx
Input interface: SH1.06P
Image transmission protocol: IRCTramp

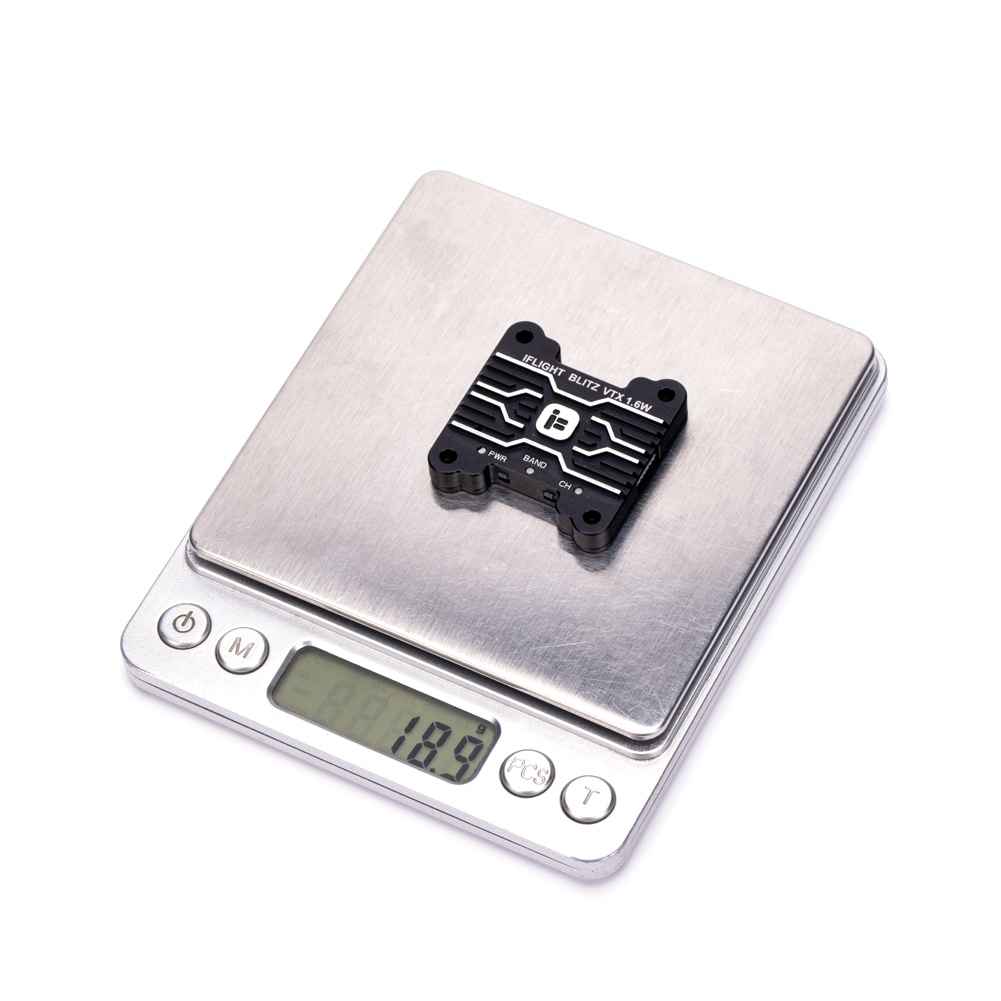

Weight: 18.9g(30.5×30.5mm) / 16.5g(25.5×25.5mm)
Fits:
25.5mmx25.5mm for Nazgul Evoque F5 F6 Chimera 7 XL10
30.5mmx30.5mm for Nazgul XL5 series

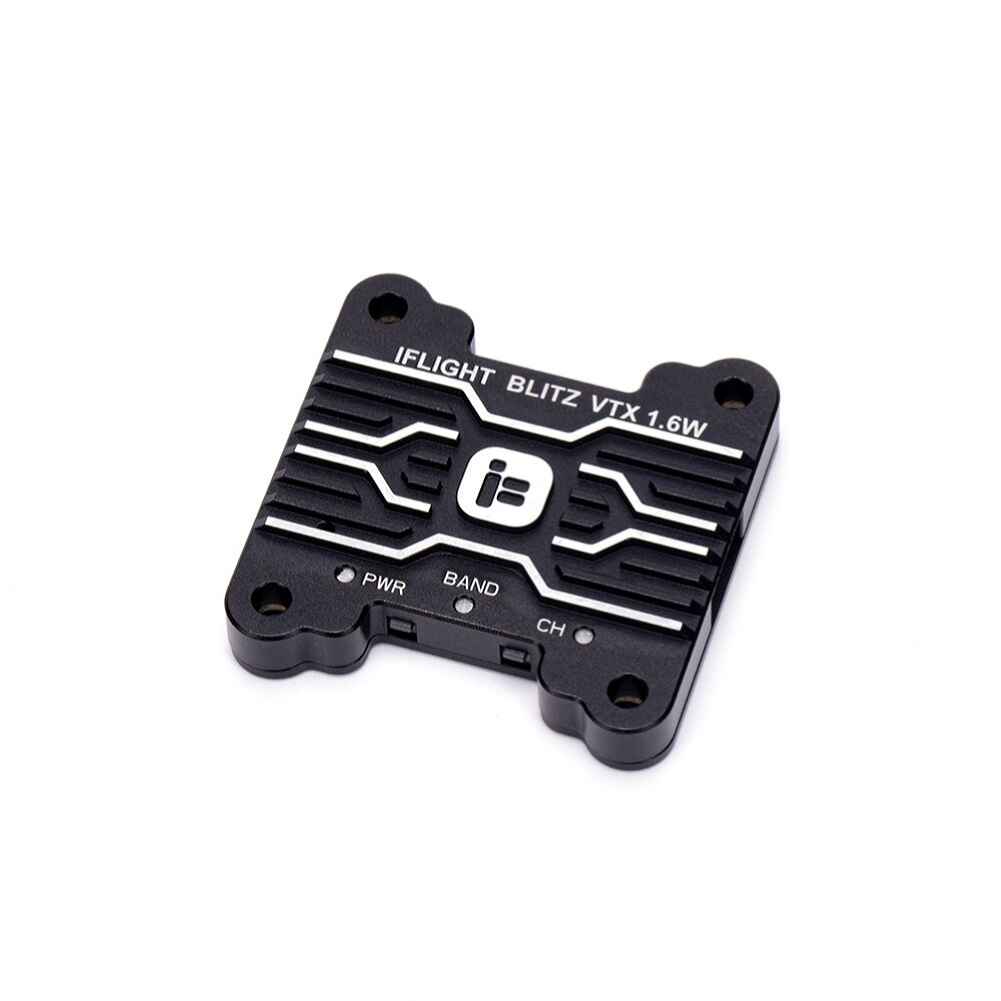

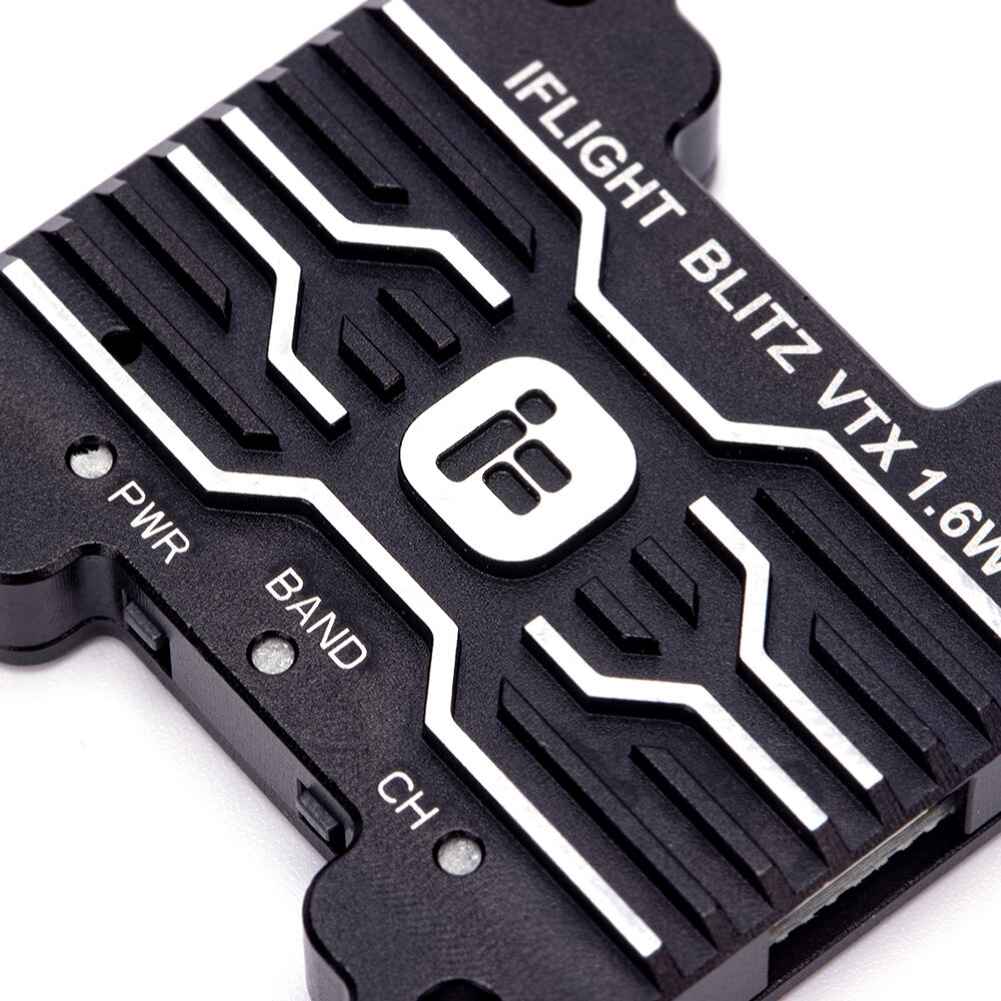

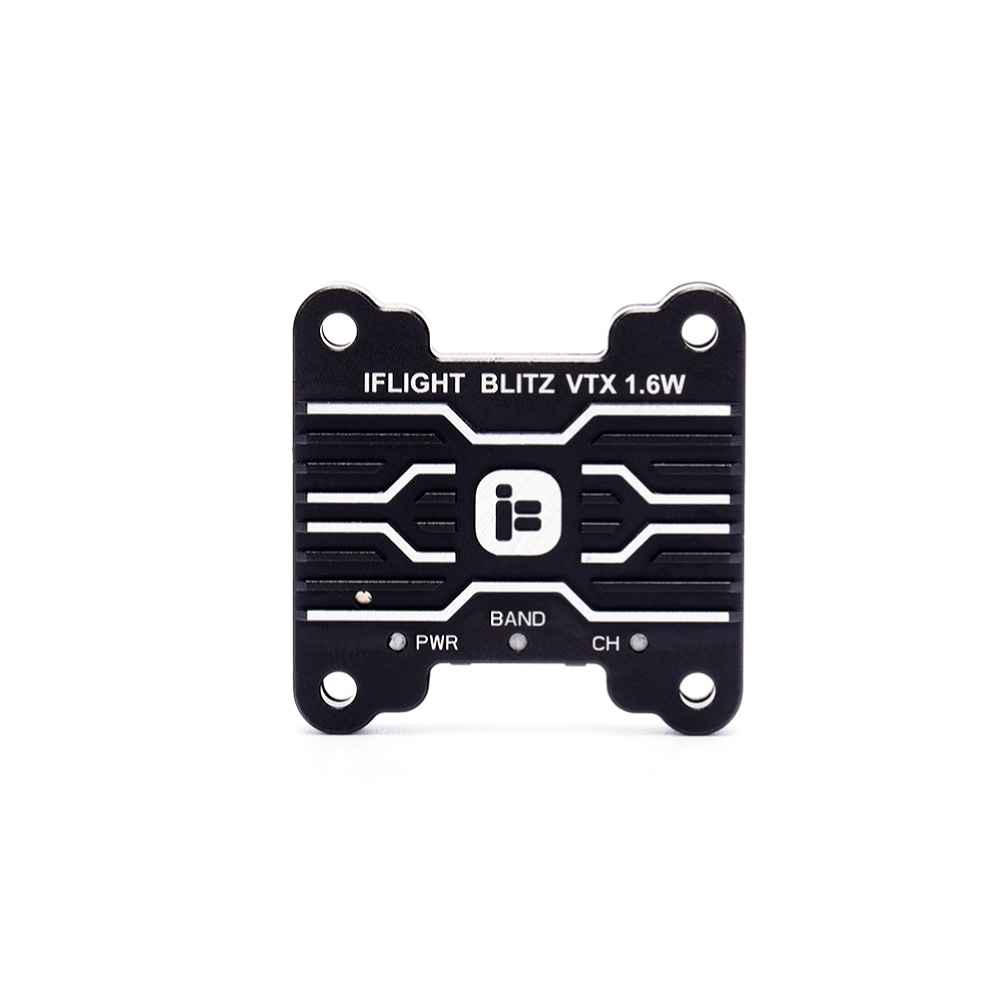

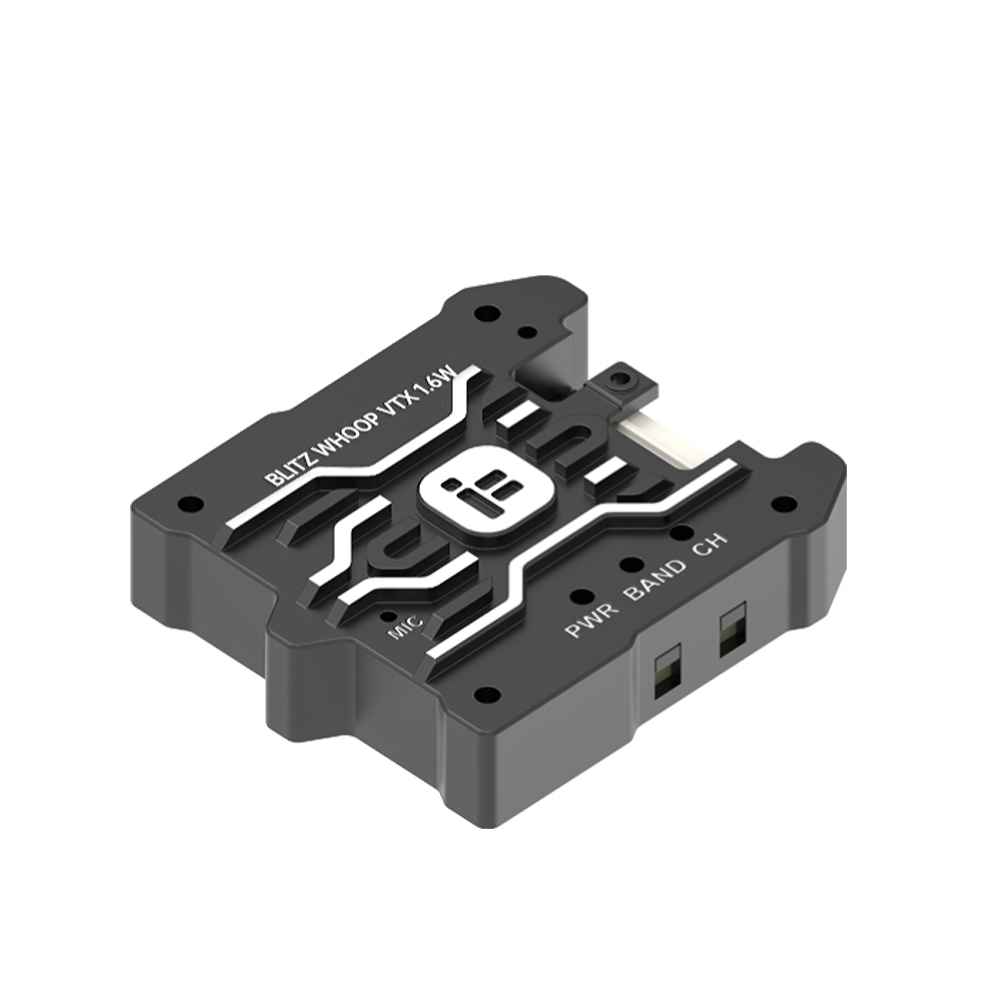

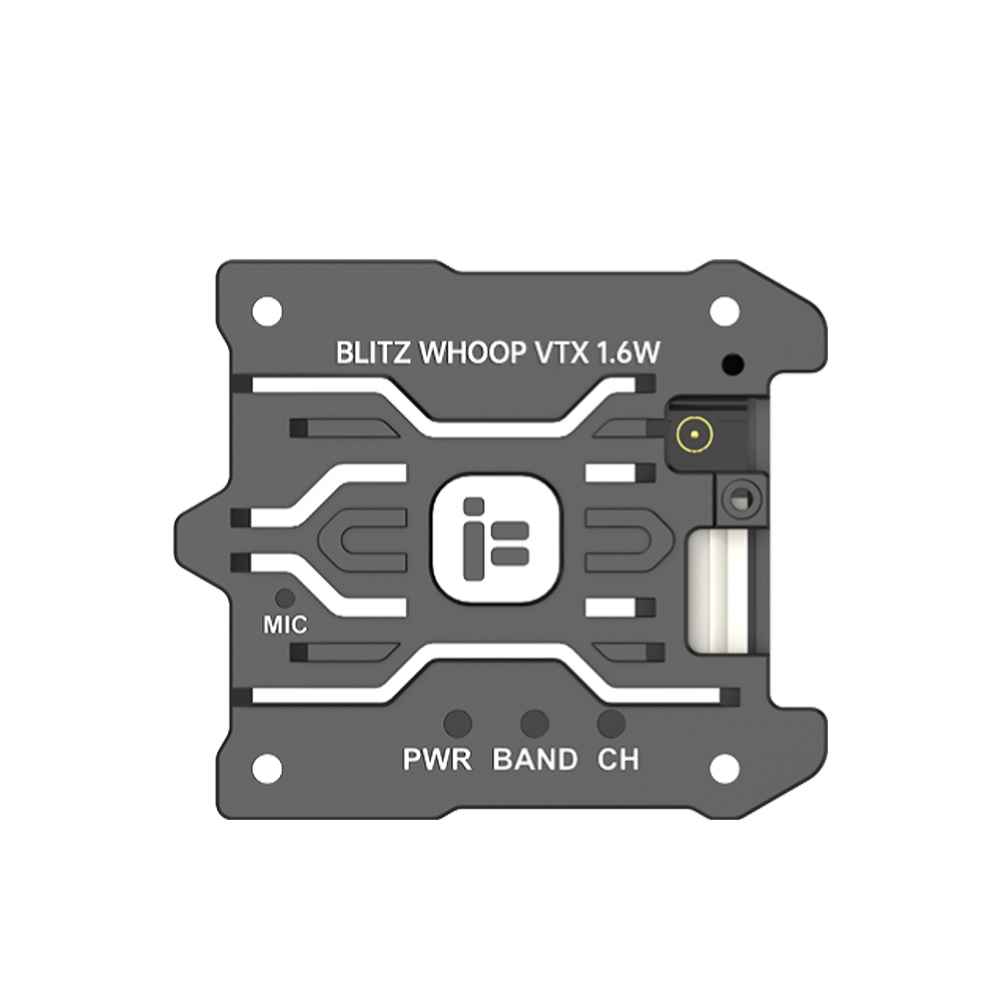

Indicator and function switching:
Channel and frequency button:
Press for 2 seconds – blue (BAND): LED flashes to indicate frequency band A to R, press for 2 seconds to switch frequency bands Short press – red (CH): LED flashes to indicate channels 1 to 8, short press to switch channels
Power button:
Press for 2 seconds – enter or exit PIT mode, green LED is always on to enter PIT mode
Short press – green (output power): LED flashes to indicate the output rate of the image transmission, short press to change the output power Flash 1 time = 25mW, flash 2 times = 400mW, flash 3 times = 800mw, flash 4 times = 1600mW

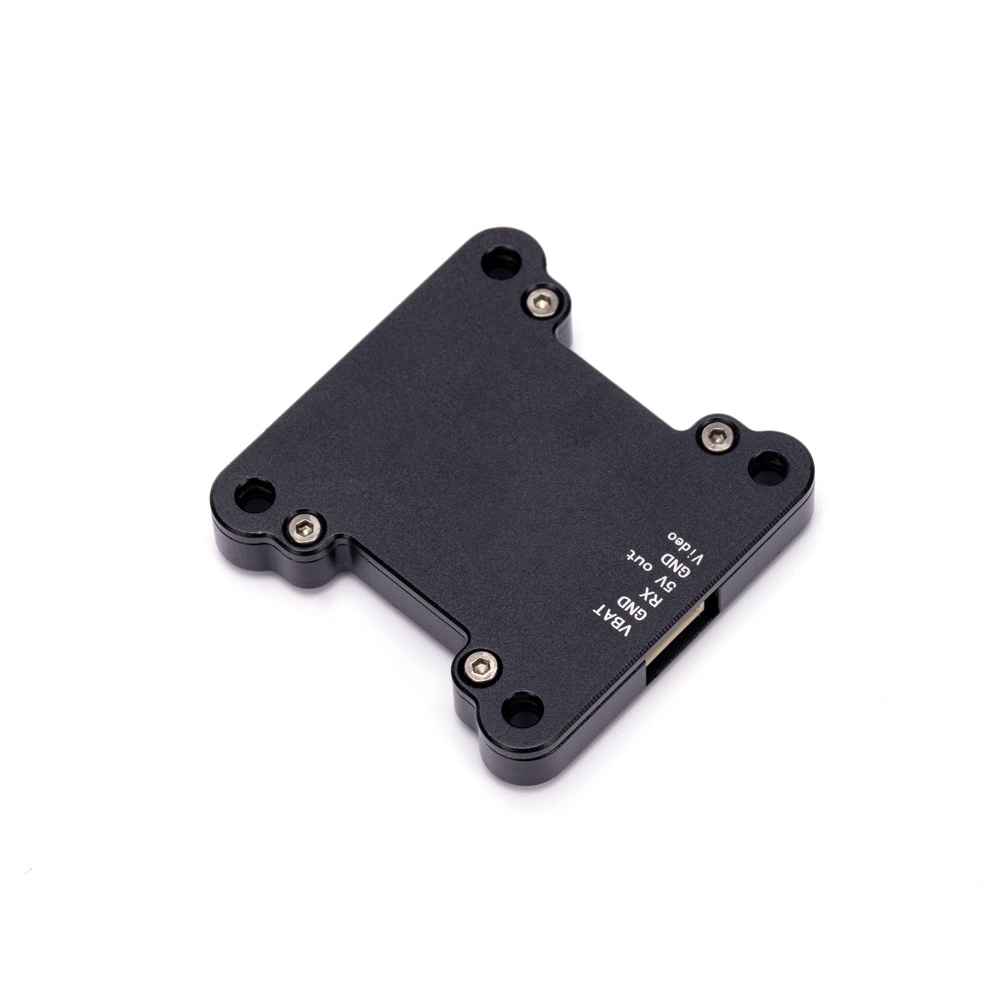

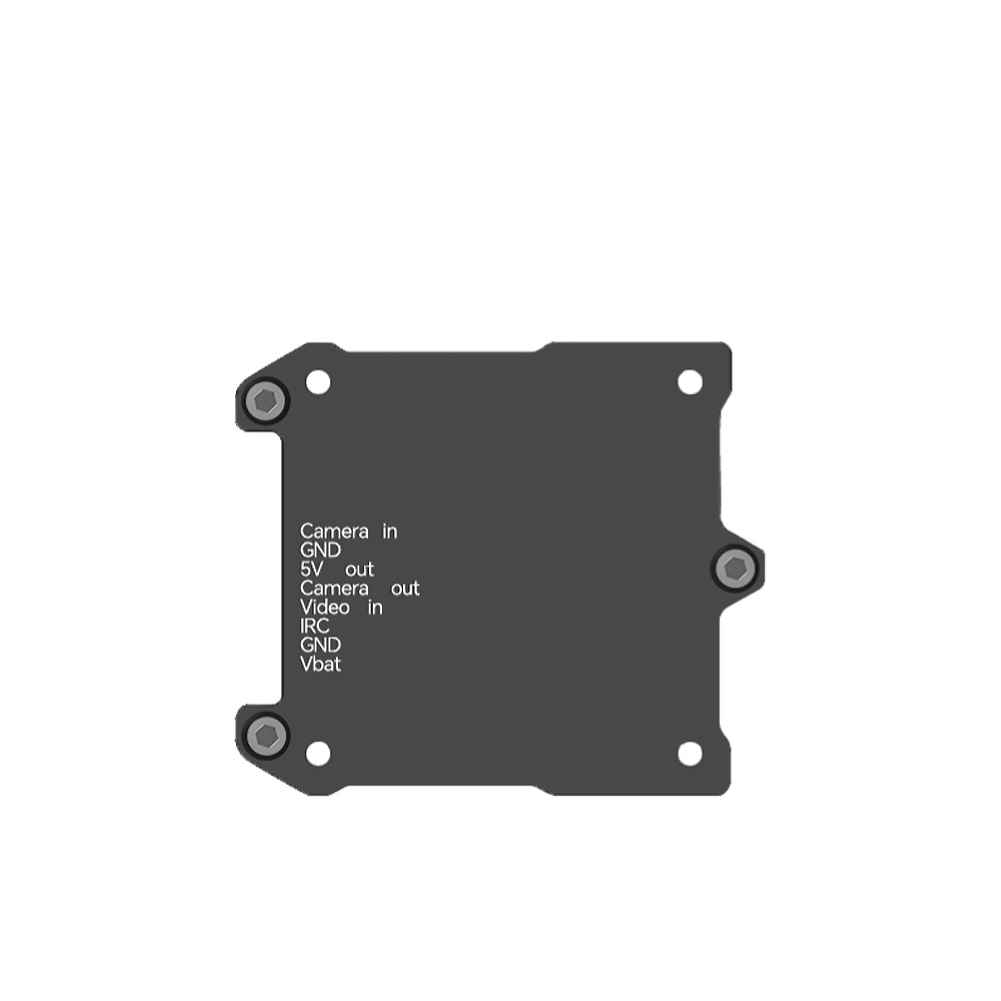

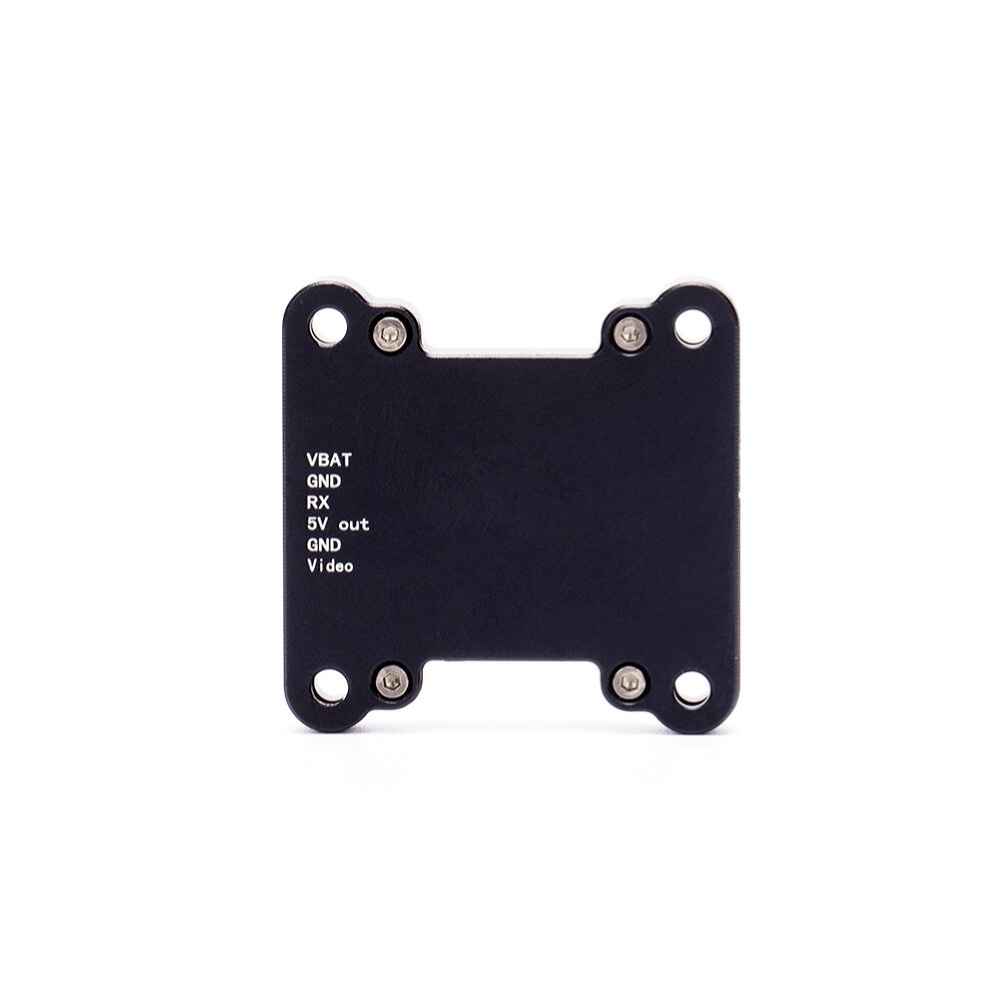

Port Description:
V B A T: 2-8S/7-34V DC positive input
GND: negative pole
5V OUT: 5V power supply output
GND: negative pole
RX: IRC Tramp signal input
VIDEO: video input port

Package Included:
1 x iFlight VTX Transmitter
