20mm*20mm iFlight BLITZ Mini ATF435 Stack Flight Controller OSD with 5V BEC E55S Mini 55A 2-6S 4IN1 ESC for Nazgul Evoque F4 FPV Racing Drone

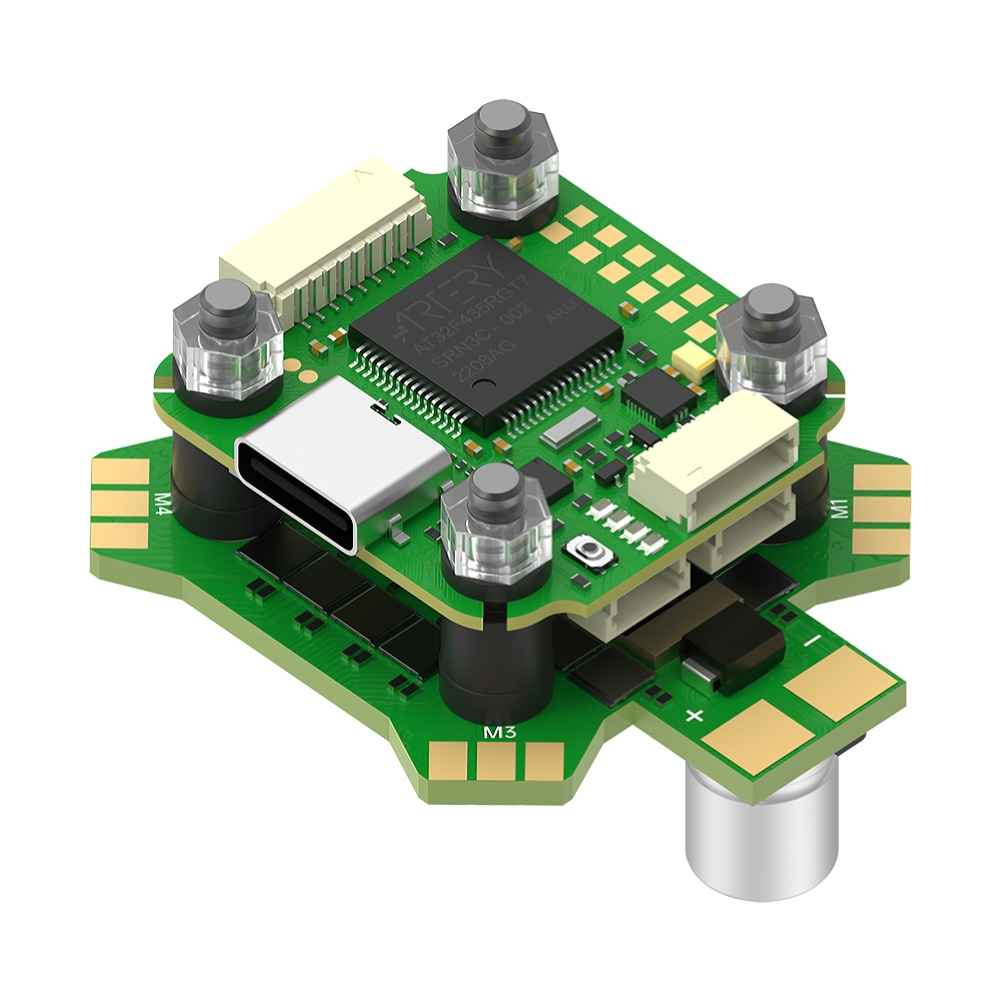

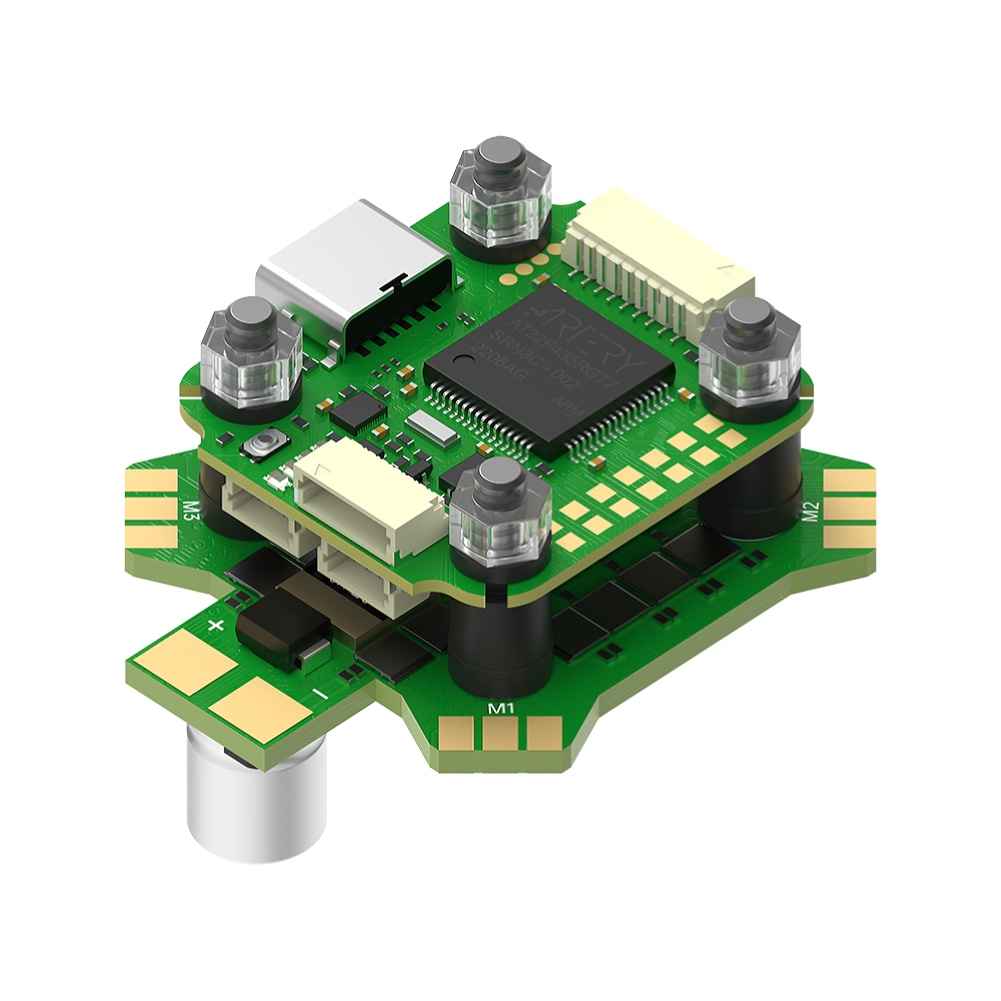

The iFlight BLITZ Mini ATF435 Stack is designed for the Nazgul Evoque F4 FPV Racing Drone. It includes a BLITZ Mini ATF435 Flight Controller with an AT32F435RGT7 MCU, BMI270 gyro, and DPS310 barometer. The controller features a 16MB Blackbox flash, six UARTs, and supports Smartaudio/IRC Tramp VTX protocols. The E55S Mini 4IN1 ESC supports 2-6S lipo input, with a constant current of 55A and a burst of 65A. It also includes a current sensor and supports various DShot protocols. The compact design, with a mounting pattern of 20x20mm and a weight of just 16.3g, makes it ideal for high-performance drone racing.
FC Specifications:

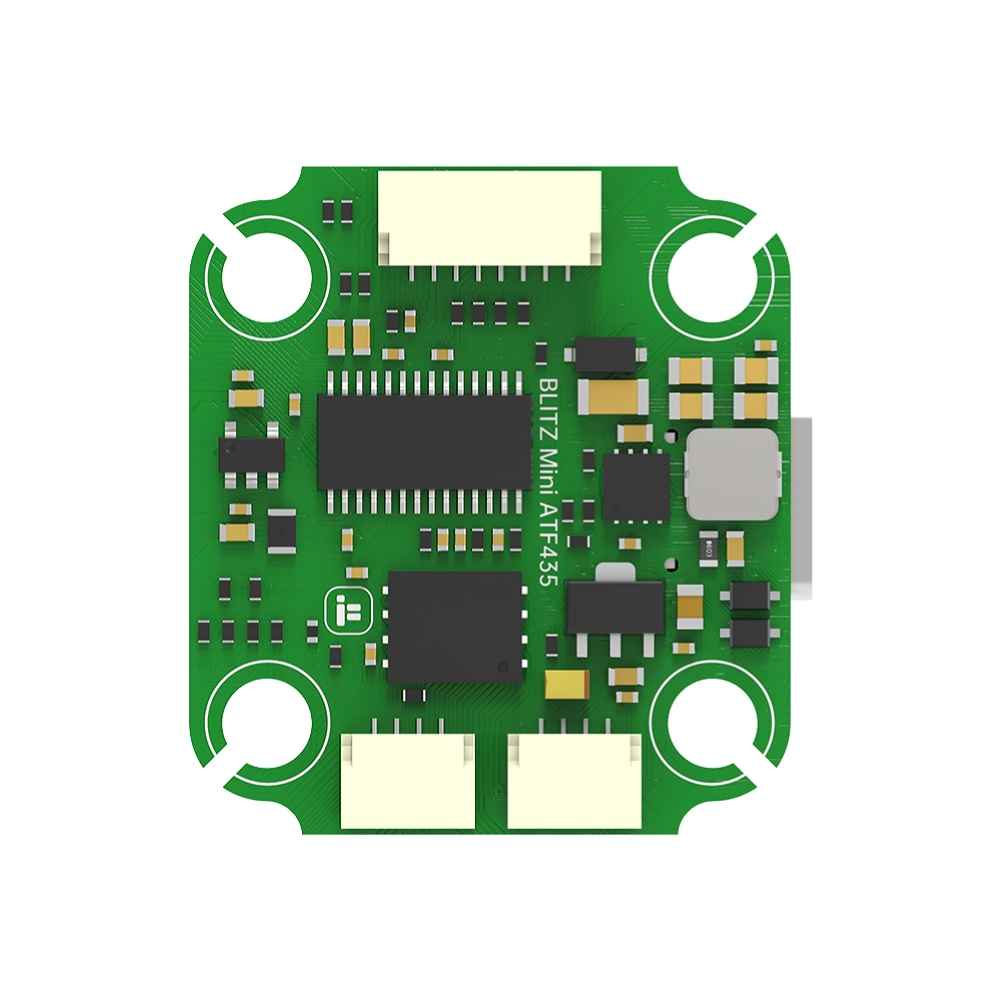

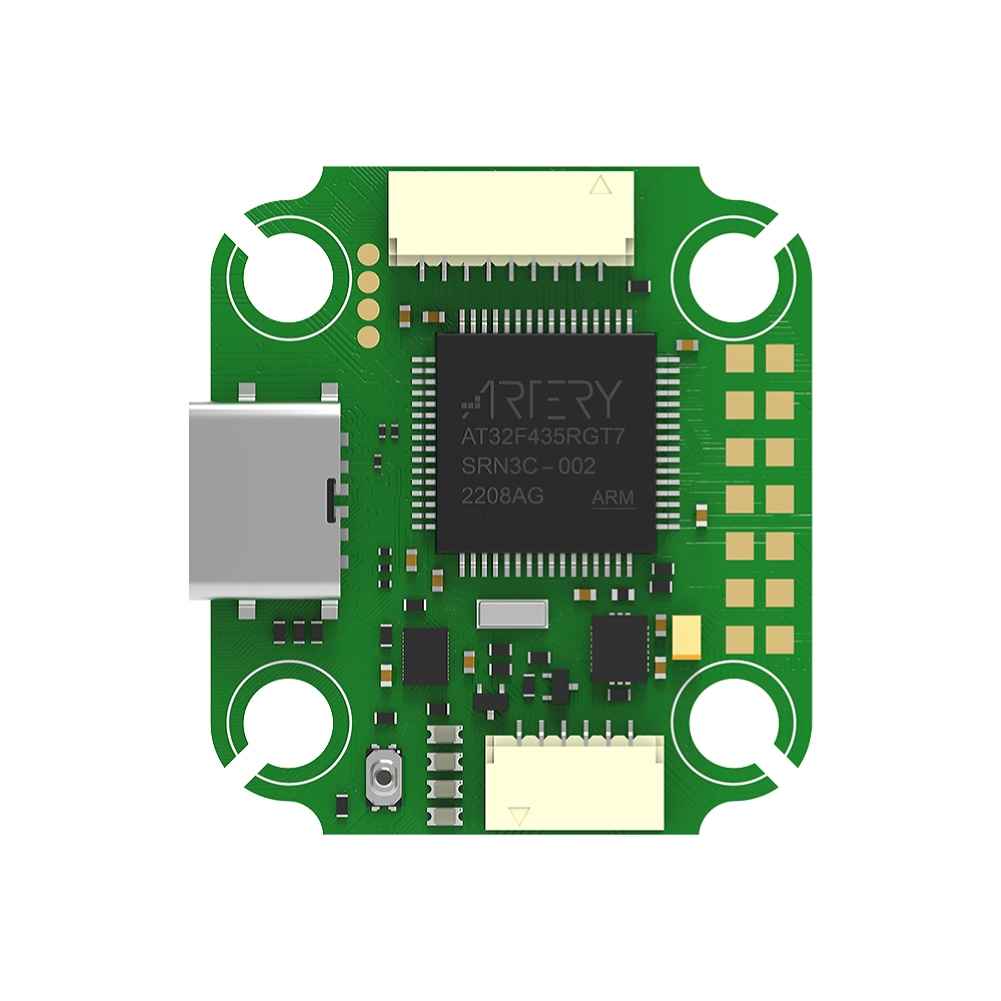

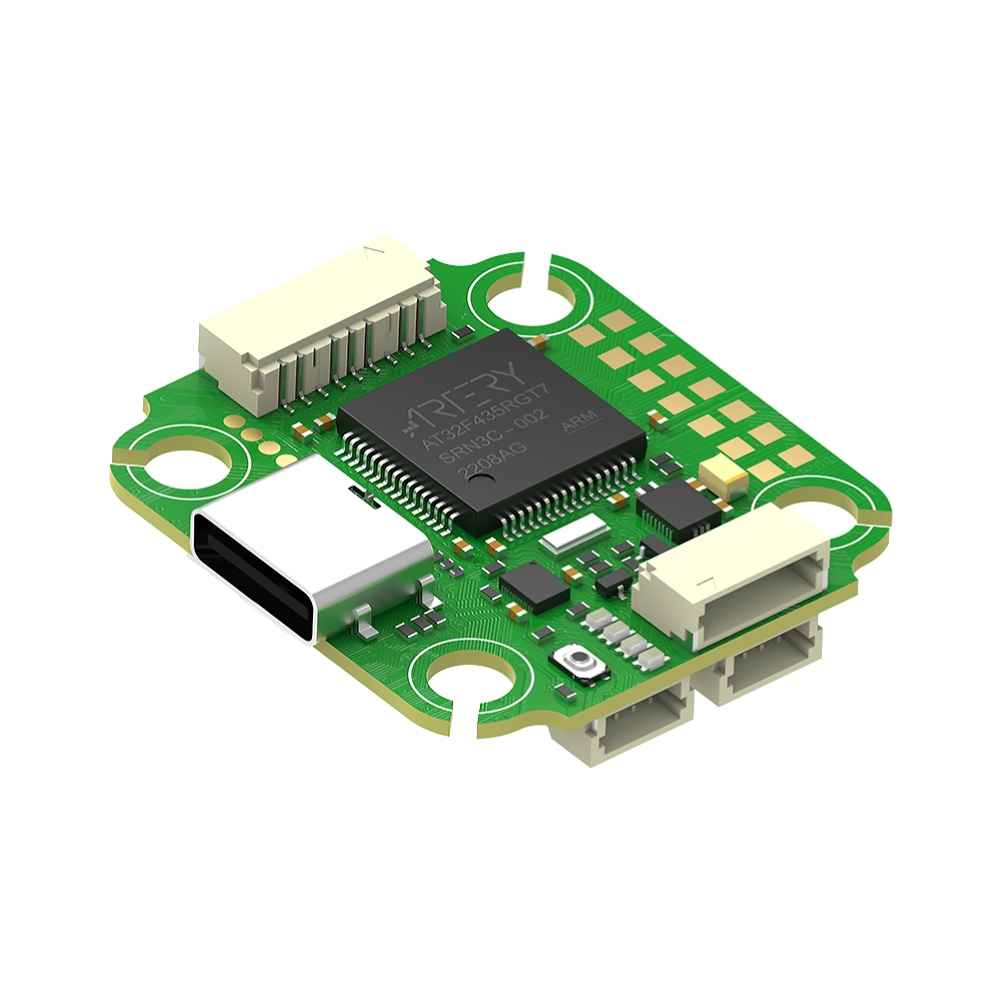

BLITZ Mini ATF435 Flight Controller
MCU: AT32F435RGT7 Gyro: BMI270 Barometer: DPS310 OSD Chip: AT7456E Flash: 16MB (Blackbox flash) UARTS: 6 Motor outputs: 4x (SH1.0 connector) I2C serial: SDA / SLA pads Smartaudio / IRC Tramp VTX protocol supported LED controller: Yes Beeper pad: Yes Firmware target: IFLIGHT_BLITZ_ATF435 Mount pattern: 20*20mm/嫉4 Dimensions: 30.5*27mm Weight: 5g BEC: 5V 2.5A Wiring Suggestion UART 1 for VTX HD / Analog UART 2 for a Receiver UART 3/4/5 for GPS or other sensors that require a serial port UART 6 for ESC Telemet

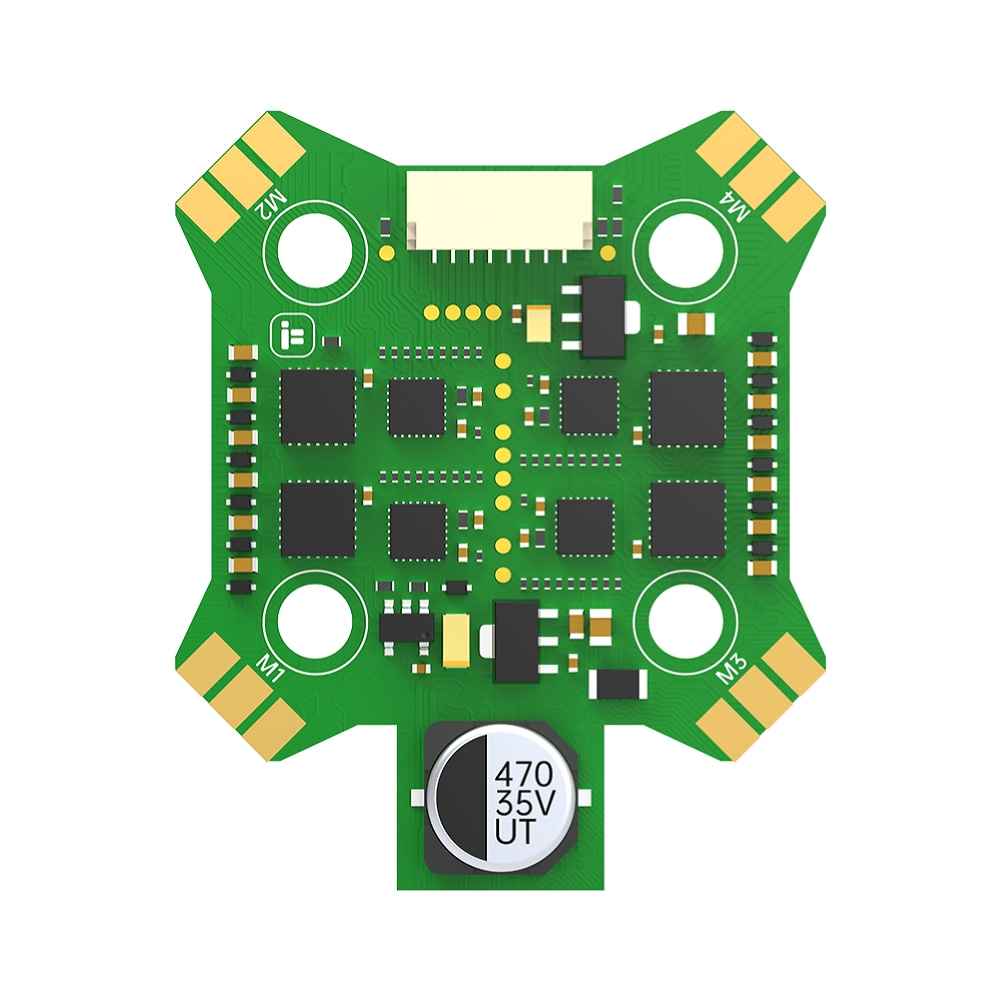

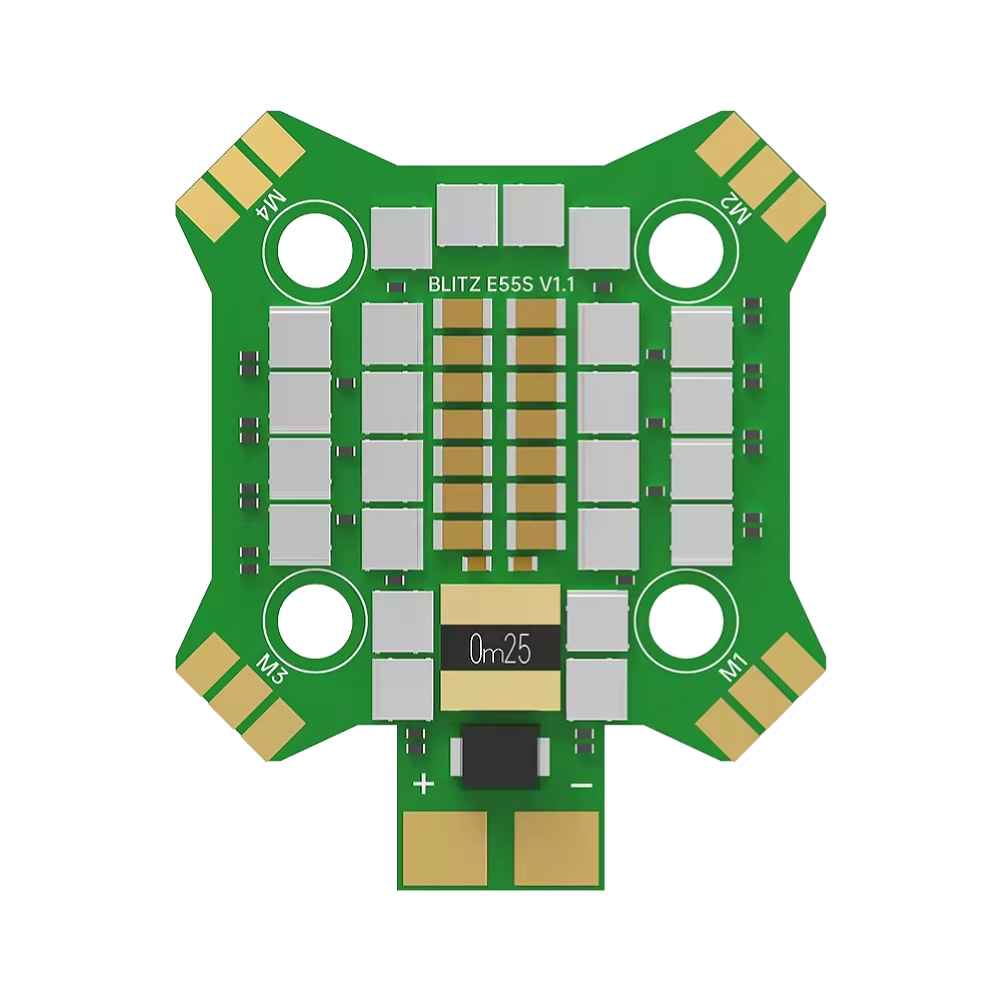

BLITZ E55S Mini
Mounting Holes: 20*20mm/?4mm Weight: 11.3g Supports 2-6S lipo input MCU: BB21 Constant: 55 Amps Burst: 65 Amps Telemetry Output: No Current sensor: Yes Current rate: 300 BEC: No Supports: DShot DShot150/300/600/MultiShot/ OneShot etc. Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)
Packing List:
Flight Controller Version
1 x BLITZ Mini ATF435 Flight Controller
Brushless ESC Version
1 x BLITZ Mini E55S 4-IN-1 2-6S ESC
FC & ESC Version
1 x BLITZ Mini ATF435 Flight Controller 1 x BLITZ Mini E55S 4-IN-1 2-6S ESC 1 x Power cables & ESC signal wires
Package Included: 1 x BLITZ Mini ATF435 Flight Controller 1 x BLITZ Mini E55S 4-IN-1 2-6S ESC 1 x Power cables & ESC signal wires
Recommended Category: Toys & Games > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > Multi Rotor Parts
Specifications
Weight
0.05 kg
Model
Brushless ESC, FC&ESC, Flight Controller
