JX Servo DHV56MG 5.6g Digital Coreless Metal Gear HV Servo, 1.2kg Torque, 0.10sec Speed for RC Airplane

Description

JX Servo DHV56MG 5.6g DS Digital Coreless MG Metal Gear HV Servo 1.2kg 0.10sec For RC Airplane

The JX Servo DHV56MG is a high-voltage digital coreless servo, designed for RC airplanes. Weighing just 5.6g, it provides a stall torque of up to 1.2kg/cm at 7.4V and operates at a speed of 0.10sec/60 degrees. Its compact dimensions of 19.8×8.2×21.5mm make it suitable for small gliders and DLGs. The servo features a metal gear train for enhanced durability and precision. It operates within a voltage range of 4.8 to 7.4V DC and includes a 150mm servo lead with a JR plug, compatible with JR and Futaba systems. Ideal for mini airplanes using single-cell LiPoly batteries, this servo combines lightweight design with robust performance.

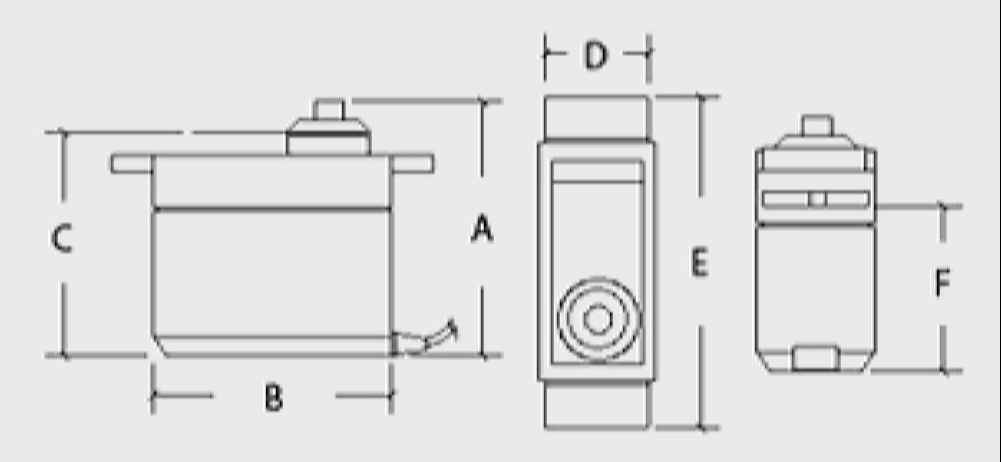

Weight(g)

5.6

A(mm)

27

B(mm)

20

C(mm)

24

D(mm)

8.2

E(mm)

28

F(mm)

16

Description:Brand:JX ServoItem:DHV56MG Servo (high voltage version)Weight: 5.6gDimension: 19.8×8.2×21.5mmStall torque: 0.85kg/cm (4.8V),1.05kg/cm (6V),1.2kg/cm (7.4V)Operating speed: 0.14sec/60degree(4.8v),0.12sec/60degree(6V),0.1sec/60degree(7.4V)Operating voltage: 4.8~7.4V DCServo lead: 150mm length
Servo plug: JR (Fits JR and for Futaba)
Features:
The JX D56MG servo is great for small gliders and DLGs or just about any other mini airplane using single cell LiPoly batteries (3.7V) and where the ruggedness of a metal gear train is required.
The coreless motor provides excellent holding power and precision at a great price.

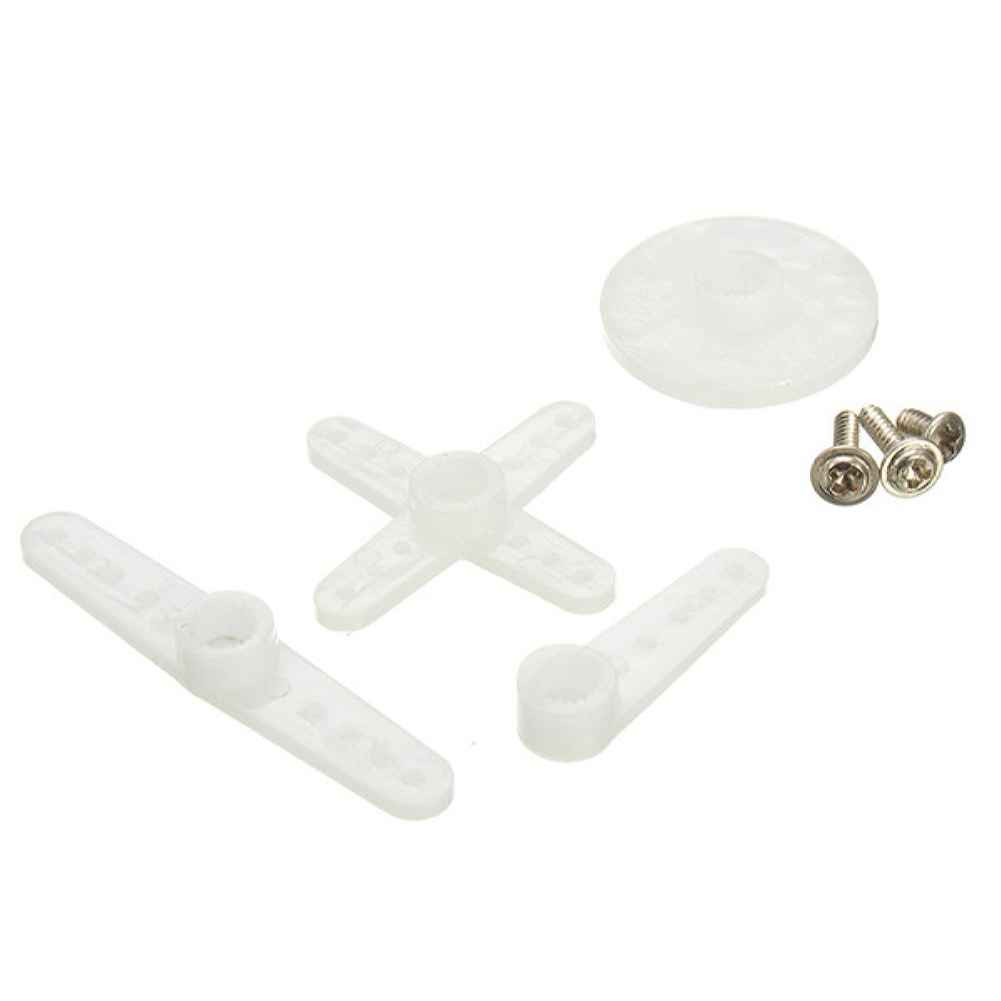

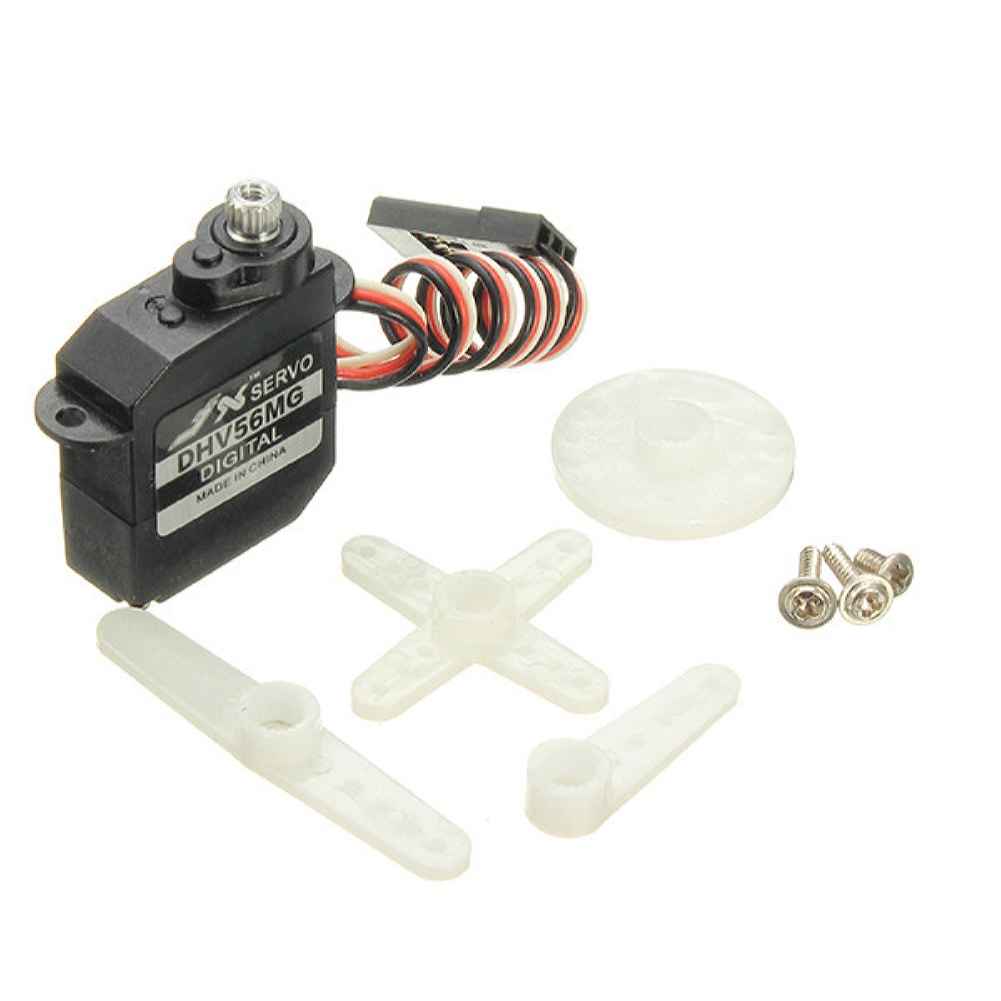

Package Included:
1 x JX Servo DHV56MG 5.6g Coreless Servo
