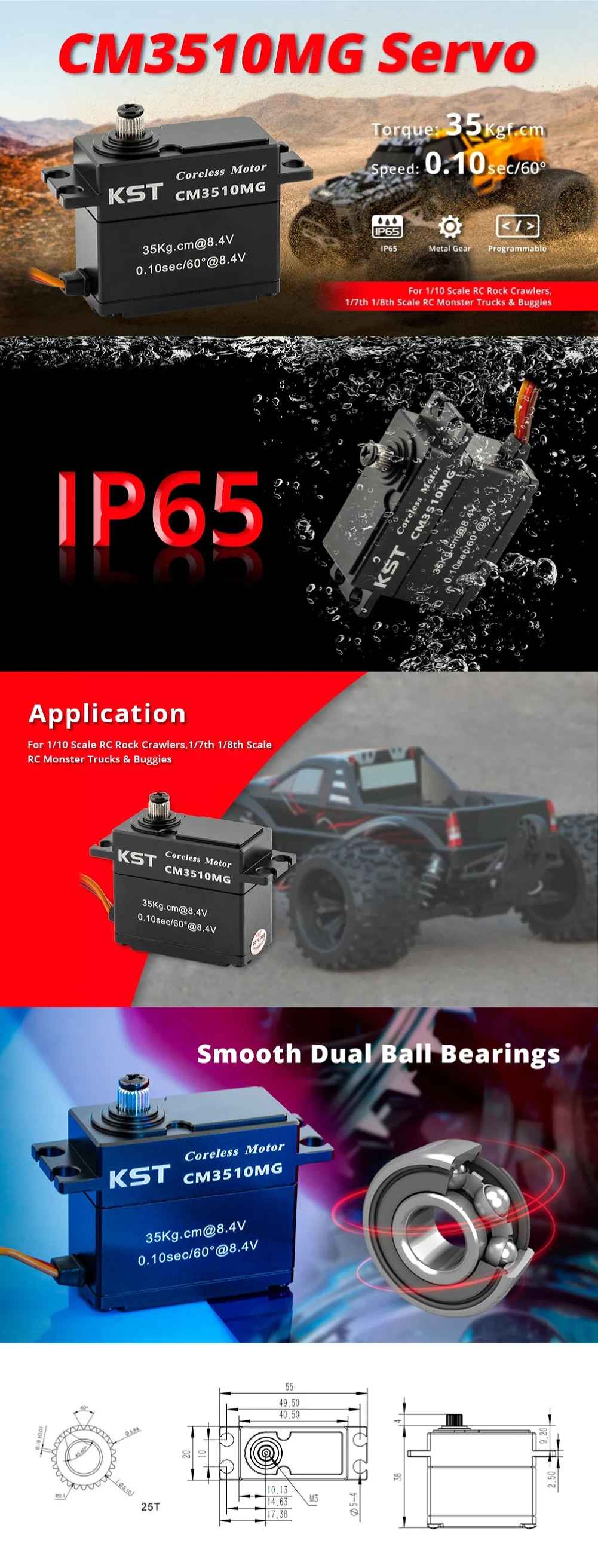

KST CM3510MG Coreless DC Motor Metal Gear Servo, IP65 Waterproof, 35Kgf.cm, 0.10sec, for 1/10 RC Rock Crawler, 1/7 1/8 RC Monster Truck
Original price was: $111.98.$96.30Current price is: $96.30.
- Ultra-high torque of up to 35Kgf.cm
- Fast response time of 0.10sec/60‵
- IP65 waterproof rating for tough conditions
- Coreless DC motor with metal gear set
- CNC aluminum casing for enhanced durability
You May Also Like
Description
KST CM3510MG Coreless DC Motor Metal Gear Servos IP65 Waterproof 35Kgf.cm 0.10sec for 1/10 Scale RC Rock Crawler and 1/7th 1/8th Scale RC Monster Truck
The KST CM3510MG Servo is engineered for high performance, offering an impressive torque of up to 35Kgf.cm and a swift response time of 0.10sec/60～. It operates within a voltage range of DC4.8V-8.4V, making it versatile for various RC models. With an IP65 waterproof rating, this servo is designed to withstand harsh conditions, ideal for both 1/10 scale RC rock crawlers and 1/7th and 1/8th scale RC monster trucks. Its construction features a coreless DC motor and a robust metal gear set, housed in a durable CNC aluminum casing, ensuring long-lasting performance. Additionally, it supports programmable settings and includes a soft start for smooth operation.
Specifications:
Item: CM3510MG Servo
Rated Voltage: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque: 20Kgf.cm@4.8V / 25Kgf.cm@6.0V / 30Kgf.cm@7.4V / 35Kgf.cm@8.4V
Speed: 0.20sec/60‵@4.8V / 0.15sec/60‵@6.0V / 0.13sec/60‵@7.4V / 0.10sec/60‵@8.4V
Stalling Current: 2.10A@4.8V / 2.90A@6.0V / 3.30A@7.4V / 3.65A@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: 呼50‵ =100‵ Total
Temperature Range: -10ï¹ ã„’ã„’+65ï¹
Soft Start: Yes
Programmable: Yes
Case Material: Aluminum Alloy
Motor Type: Coreless DC Motor
Gear Set Material: Metal gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP65
Case Dimensions: 40.5mm*20mm*38mm呼0.2mm
Weight: 70g呼10%
Features:
Boasts an ultra-high torque of up to 35Kgf.cm and a speedy 0.10sec/60‵ response time.
Certified with IP65 waterproofing, designed to thrive in challenging conditions.
Equipped with a high-performance coreless DC motor and durable metal gear set.
CNC Aluminium casing ensures enhanced durability and longevity.
Perfectly compatible with 1/10 Scale RC Rock Crawlers, 1/7th, and 1/8th Scale RC Monster Trucks & Buggies.
Package Included:
1 x CM3510MG Servo
3 x Plastic Servo Horn
1 x Servo Horn Screw
4 x Grommet
4 x Eeylet
5 x Mounting Screw
