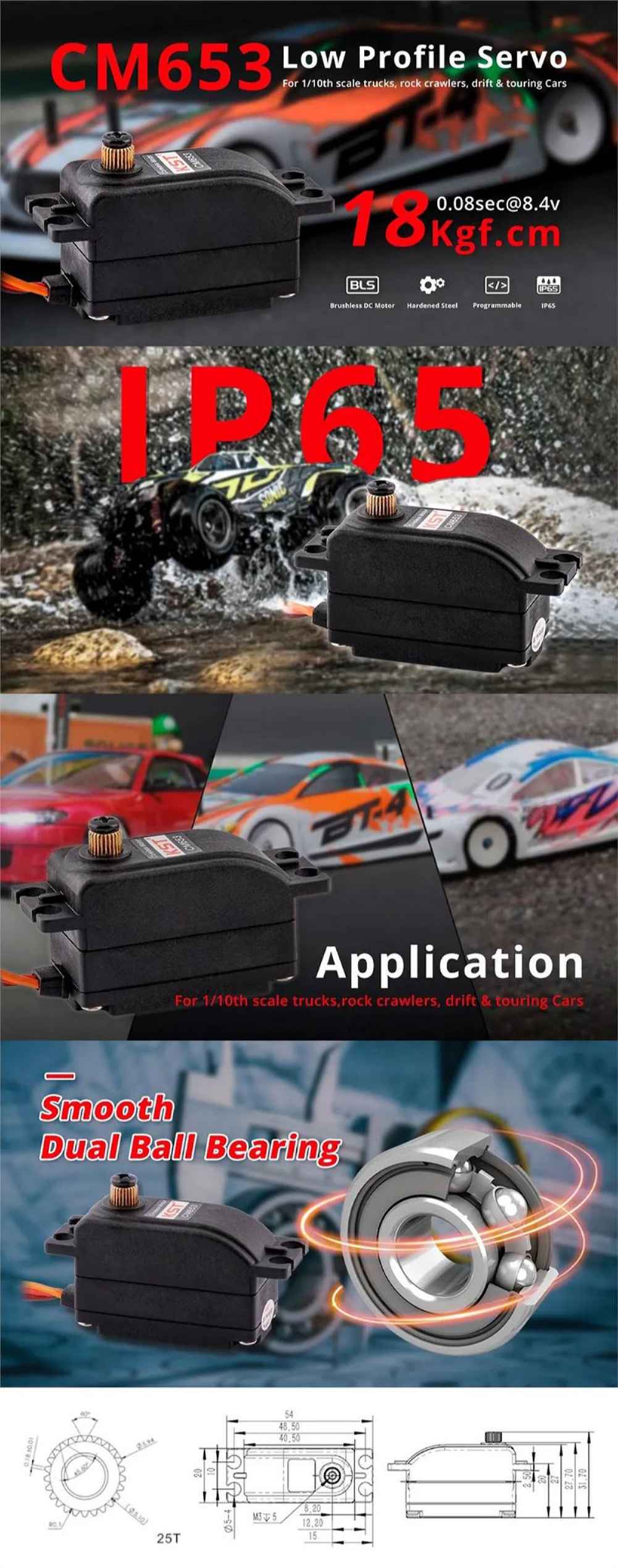

KST CM653 Low Profile Coreless Metal Gear Servo, IP65 Waterproof, 18Kgf.cm, 0.08sec, Ideal for 1/10 RC Cars

Description

KST – CM653 Low Profile Coreless Metal Gear IP65 Waterproof 18Kgf.cm 0.08sec Servo

The KST CM653 Low Profile Servo is designed for RC enthusiasts seeking speed and power. With its coreless DC motor and metal gears, it provides ultra-high torque and excellent speed, making it ideal for 1/10th scale trucks, rock crawlers, drift, and touring cars. The servo delivers fast responses and high efficiency, while its IP65 splash-proof rating ensures durability in various conditions. It features double ball bearings and is programmable for custom performance. Compatible with programming box/USB link, the CM653 operates within a voltage range of DC4.8V-8.4V, offering a torque of up to 18Kgf.cm and a speed of 0.08sec at 8.4V.

CM653 Low Profile servo offers fast responses, high efficiency, ultra-high torque, excellent speed and IP65 splash-proof. Perfect for 1/10th scale trucks, rock crawlers, drift & touring cars.
Features
Low Profile Servo with fast responses and high efficiency
Ultra-high torque & Excellent speed
IP65 splash-proof
Double ball bearings
Coreless DC Motor
Metal Gear
Programing box/USB link compatible
Ideal for 1/10 RC Drifting Car & RC Touring Car
Specification
Item: CM653 Low Profile Servos
Rated Voltag: DC7.4V
Voltage Range: DC4.8V-8.4V
Torque:
10Kgf.cm@4.8V
12Kgf.cm@6.0V
15Kgf.cm@7.4V
18Kgf.cm@8.4V
Speed:
0.12sec/60锝濦4.8V
0.10sec/60锝濦6.0V
0.09sec/60锝濦7.4V
0.08sec/60锝濦8.4V
Stall Current:
2.60A@4.8V
3.20A@6.0V
3.60A@7.4V
4.05A@8.4V
Working Frequency: 1520us/333Hz
Default Travel Angle: 銑?0锝?=100锝?Total
Temperature Range: -10鈯ワ純锛?65鈯?br/>Soft Start: Programmable
Programmable: Yes
Motor Type: Coreless DC Motor
Gear Set Material: Metal Gear
Position Sensor: Potentiometer
Ball Bearing: 2BB
Waterproof: IP65
Case Dimensions: 40.5*20*27.5銑?.2mm
Weight: 43g銑?0%

Package Included:
1 x Servo
