PTK 6820 MG 20kg High Torque 180? Stainless Steel Gear Digital Waterproof RC Servo for Robot and Aircraft

Description

PTK 6820 MG 20kg High Torque 180 Stainless Steel Gear Metal Digital Waterproof RC Servo for Robot Fixed Wing Car and Aircraft Model

The PTK 6820 MG RC Servo is engineered for high performance in robotics, fixed-wing aircraft, and cars. Featuring stainless steel gears and a plastic housing, this digital servo is designed to withstand extreme conditions with an operating temperature range of -15ç°žC to +60ç°žC. It offers a 180ç°ž angle range and is equipped with a double ball bearing for smooth operation. The servo operates at a voltage range of 5V to 8.4V, with a stall torque reaching up to 27 kg-cm at 8.4V. It is programmable and provides a fast operating speed, making it ideal for precise control. The servo’s compact dimensions and lightweight design ensure easy integration into your models.

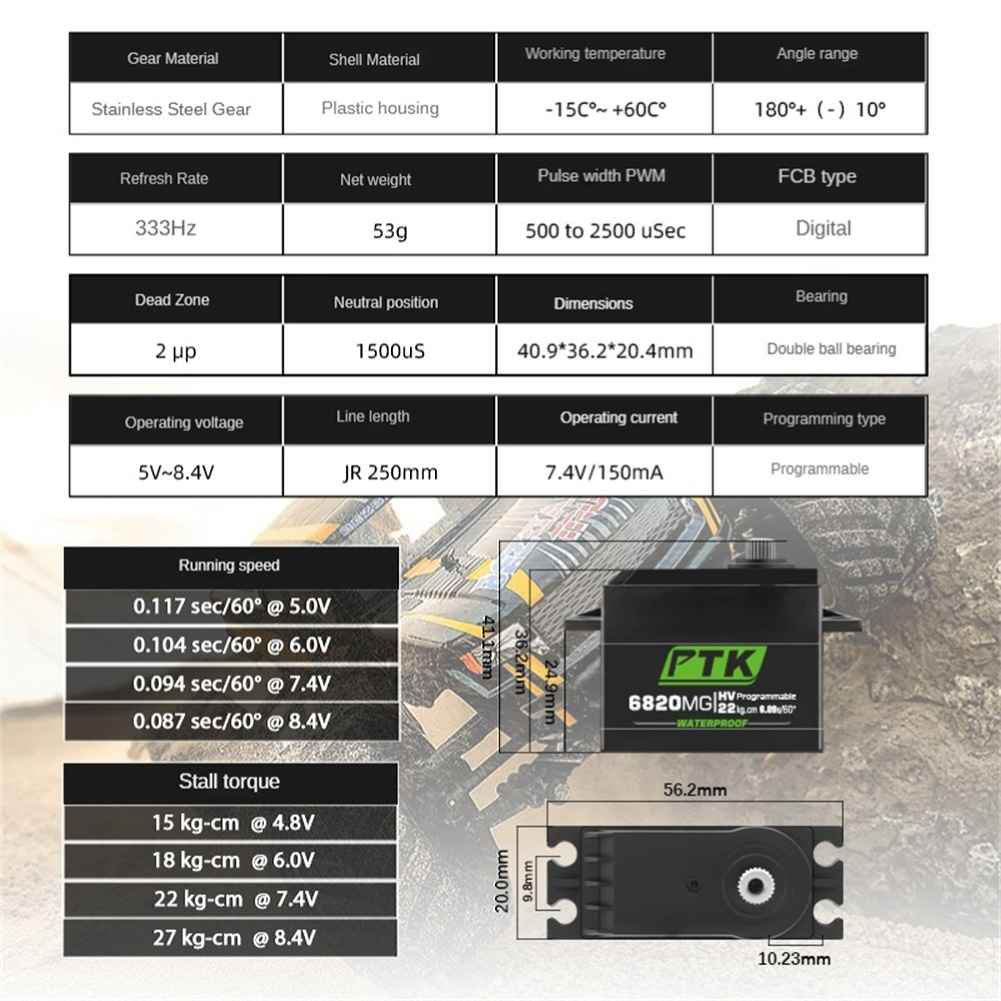

Specifications:

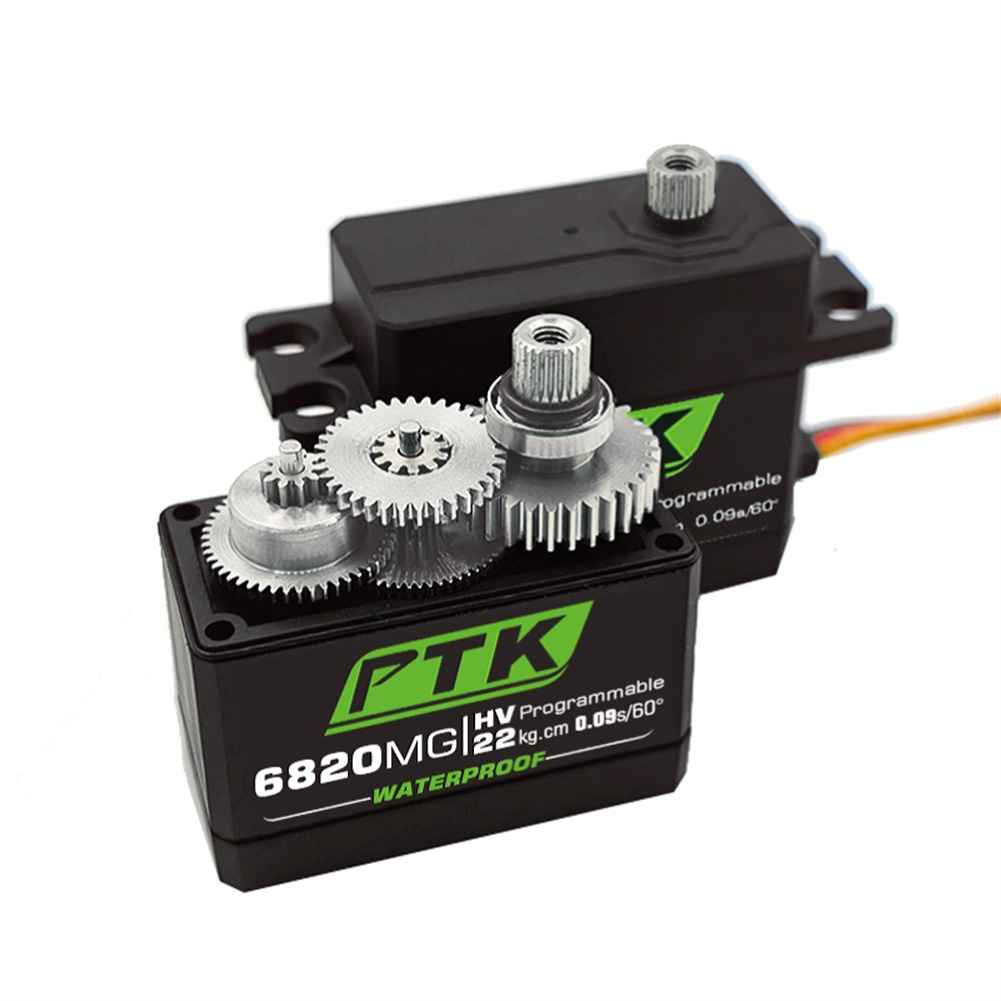

Gear Material: Stainless Steel Gear
Casing Material: Plastic Housing
Operating Temperature: -15‵C~+60‵C
Angle Range: 180‵+侈-佩10‵
Refresh Rate: 333 Hz
Net Weight: 53g
Pulse Width PWM: 500 to 2500 uSec
Dead Zone: 2è­™s
Neutral Position: 1500uS
Dimensions: 40.9*36.2*20.4mm
Bearing: Double Ball Bearing
Operating Voltage: 5V~8.4V
Wire length: JR 250mm
Operating current: 7.4V/150mA
Programming type: programmable
Operating speed:
0.117 sec/60‵ @ 5.0V
0.104 sec/60‵ @ 6.0V
0.094 sec/60‵ @ 7.4V
0.087 sec/60‵ @ 8.4V
Stall torque:
15 kg-cm @ 4.8V; 18 kg-cm @ 6.0V; 22 kg-cm @ 7.4V; 27 kg-cm @ 8.4V

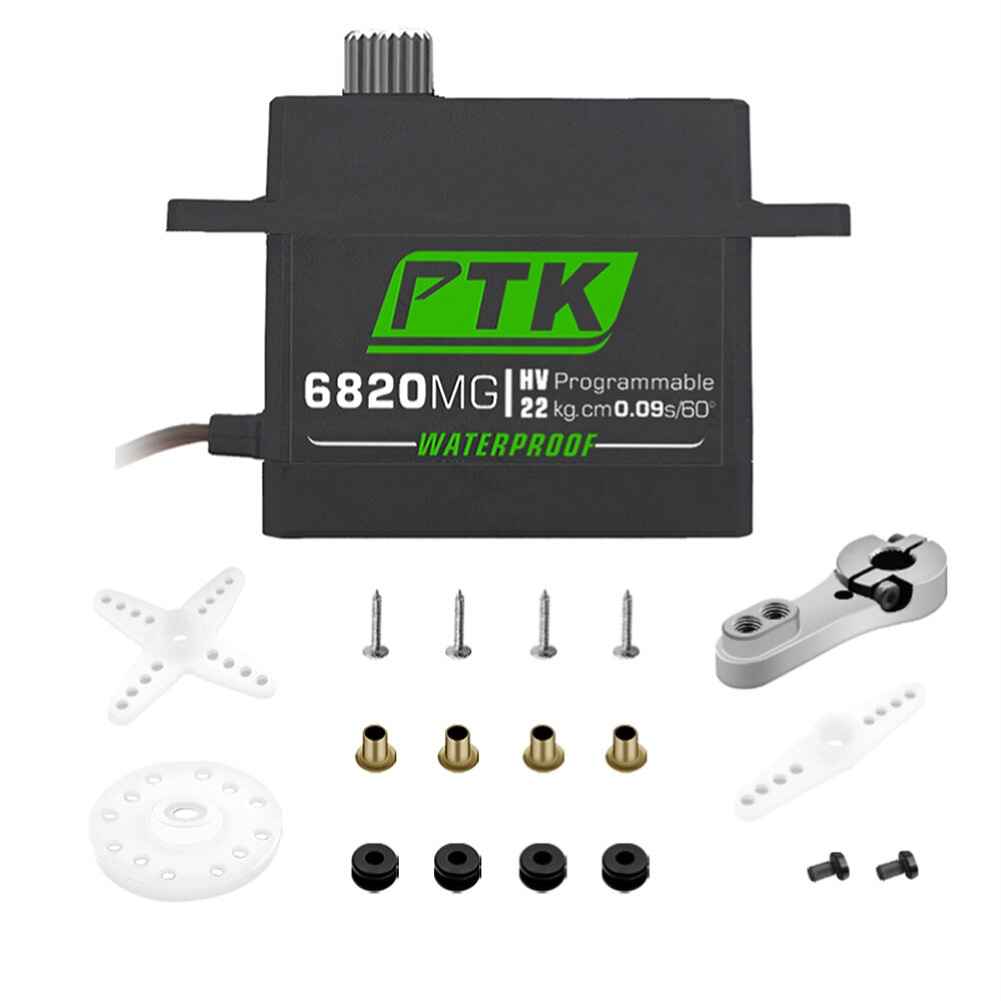

Package Included:
1 x Digital RC Servo
