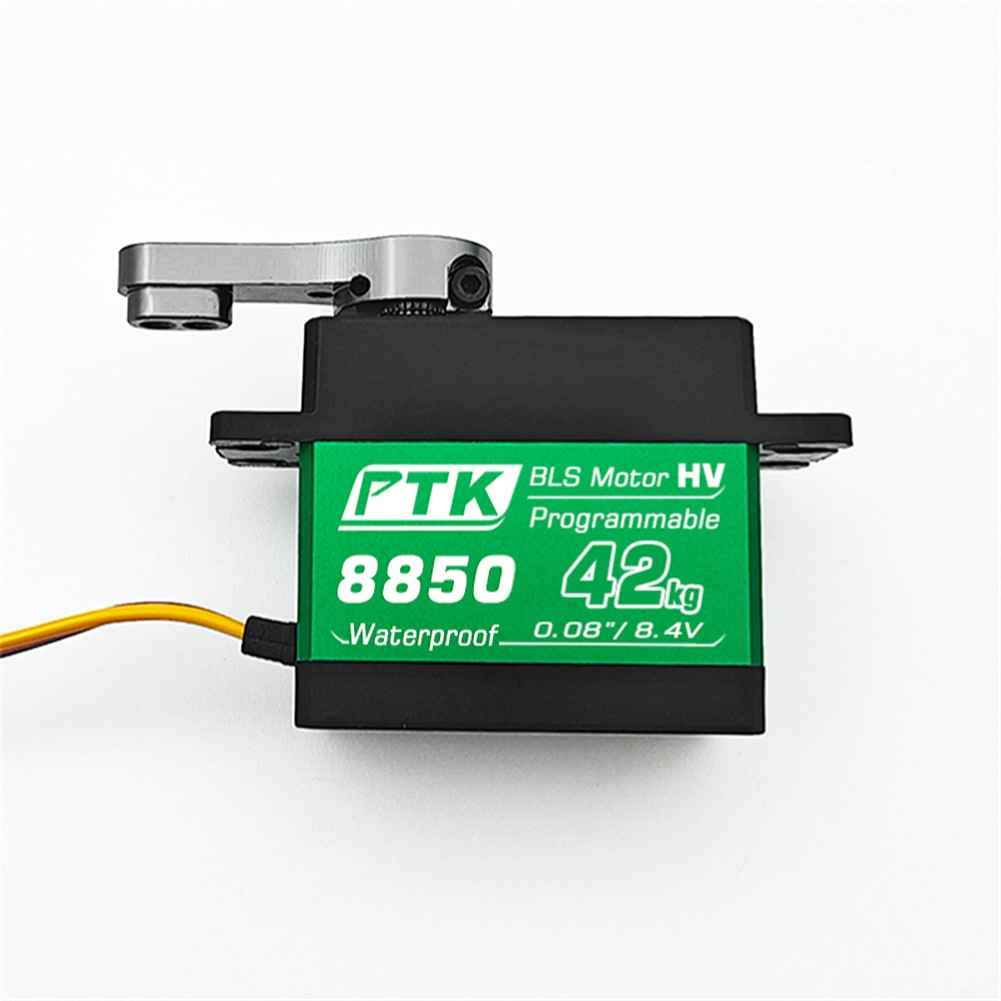

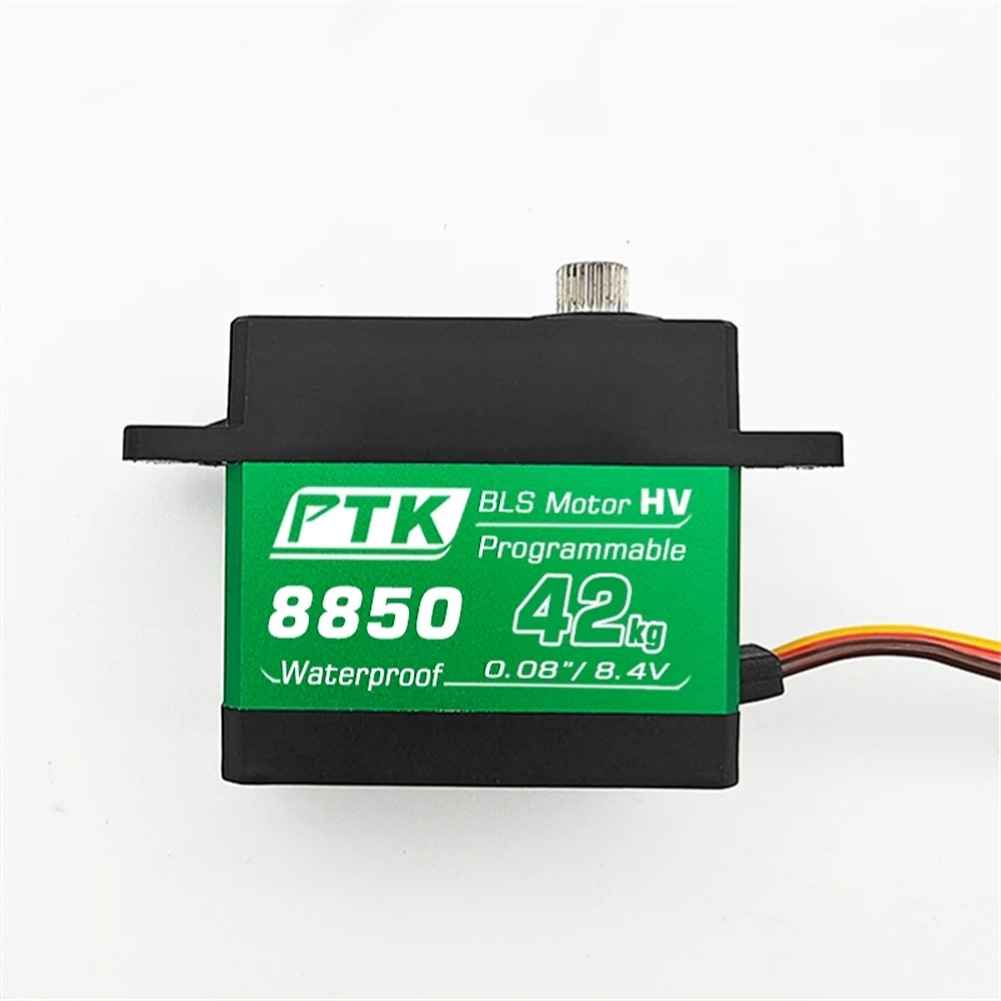

PTK High Torque Waterproof Digital RC Servo, Stainless Steel/Metal Gear, 42KG & 30KG, for Robot, Fixed Wing Car, Aircraft Model

Description

PTK 42KG 8850 30KG 8852 High Torque Stainless Steel/Metal Gear Waterproof Digital RC Servo for Robot Fixed Wing Car and Aircraft Model

The PTK High Torque Digital RC Servo is designed for robust performance in various models, including robots, fixed-wing cars, and aircraft. Available in two models, the PTK 8850 delivers a stall torque of up to 42KG, while the PTK 8852 offers up to 30KG, both providing exceptional strength and precision. Constructed with stainless steel and metal gears, these servos are housed in a CNC case, ensuring durability and reliability. With a double ball bearing design, they operate smoothly across a wide voltage range of 5V to 8.4V. The servos feature a programmable digital PCB, a refresh rate of 333Hz, and an operating temperature range from -15ç°žC to +60ç°žC. Their compact size and high efficiency make them ideal for demanding applications.

Specification券

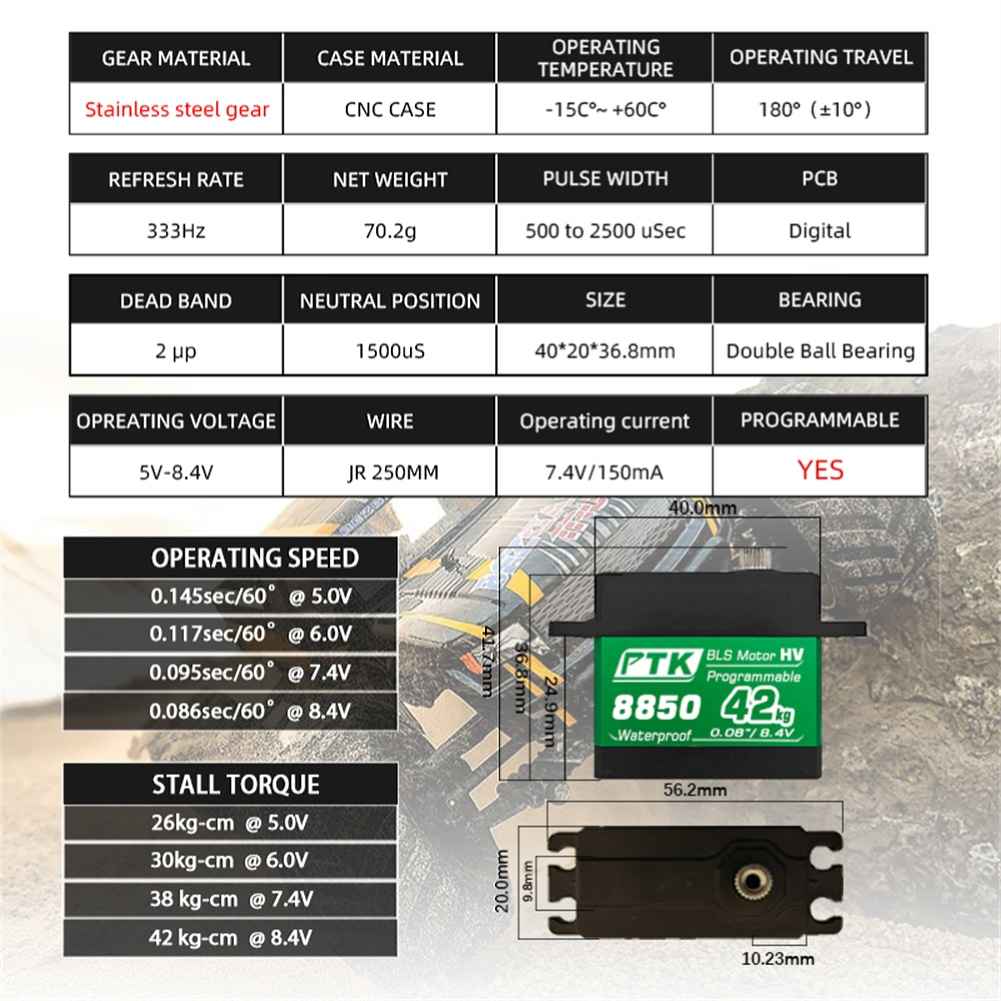

Model: PTK 8850 42KG RC Servo

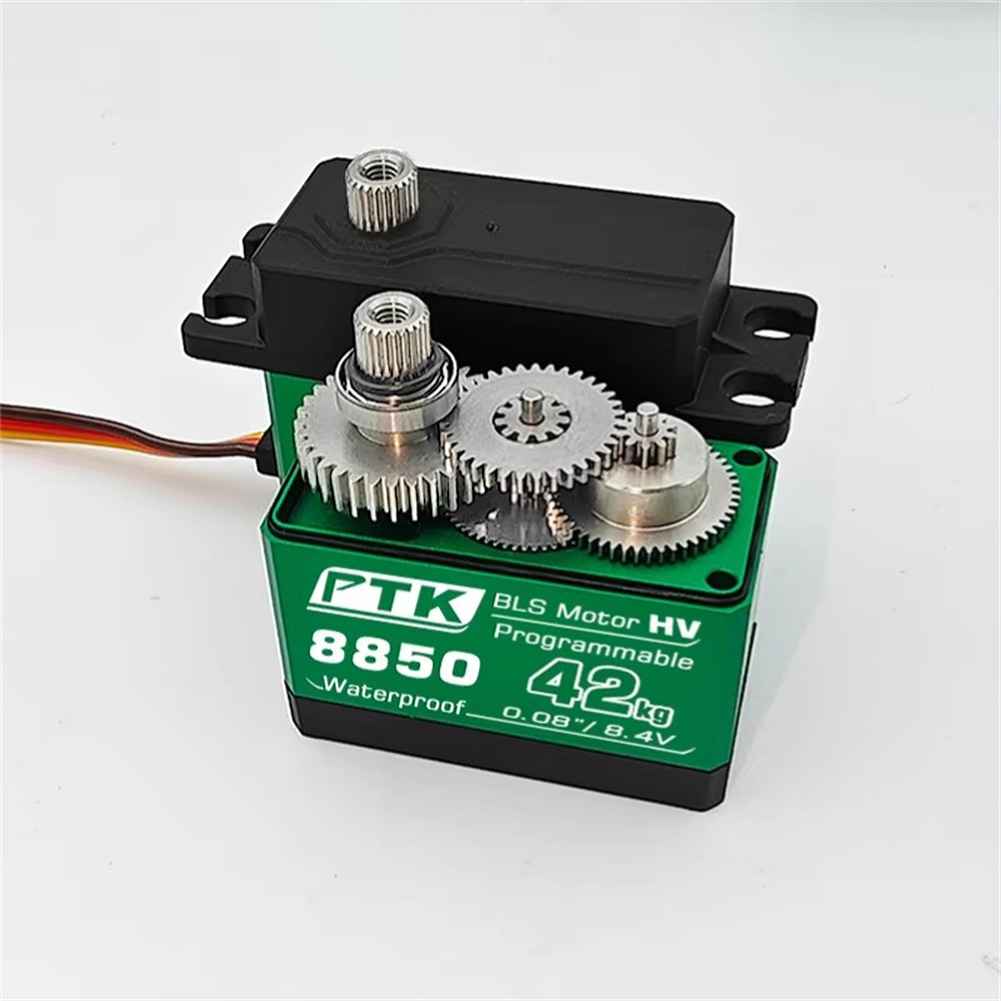

Gear Material: Stainless Steel Gear
Case Material: CNC Case
Operating Temperature: -15‵C~+60‵C
Operating Travel: 180‵ (呼10‵)
Refresh Rate: 333Hz
Net Weight: 70.2g
Pulse Width: 500 To 2500 è­™Sec
PCB: Digital
Dead Band: 2 è­™p
Neutral Position: 1500uS
Size: 40*20*36.8mm
Bearing: Double Ball Bearing
Operating Voltage: 5V-8.4V
Wire: JR 250MM
Operating Current: 7.4V/150mA
Programmable: Yes
Operating Speed @ 5.0V: 0.145sec/60‵
Operating Speed @ 6.0V: 0.117sec/60‵
Operating Speed @ 7.4V: 0.095sec/60‵
Operating Speed @ 8.4V: 0.086sec/60‵
Stall Torque @ 5.0V: 26kg-cm
Stall Torque @ 6.0V: 30kg-cm
Stall Torque @ 7.4V: 38kg-cm
Stall Torque @ 8.4V: 42kg-cm
Model: PTK 8852 30KG RC Servo
Gear Material: Metal Gear
Case Material: CNC Case
Operating Temperature: -15‵C ~ +60‵C
Operating Travel: 180‵ (呼10‵)
Refresh Rate: 333Hz
Net Weight: 66.4g
Pulse Width: 500 to 2500 è­™Sec
PCB: Digital
Dead Band: 2 è­™s
Neutral Position: 1500 è­™s
Size: 40*20*36.8mm
Bearing: Double Ball Bearing
Operating Voltage: 5V-8.4V
Wire: JR 250MM
Operating Current: 7.4V/150mA
Programmable: Yes
Operating Speed @ 5.0V: 0.085sec/60‵
Operating Speed @ 6.0V: 0.072sec/60‵
Operating Speed @ 7.4V: 0.059sec/60‵
Operating Speed @ 8.4V: 0.054sec/60‵
Stall Torque @ 5.0V: 20 kg-cm
Stall Torque @ 6.0V: 25 kg-cm
Stall Torque @ 7.4V: 28 kg-cm
Stall Torque @ 8.4V: 30 kg-cm

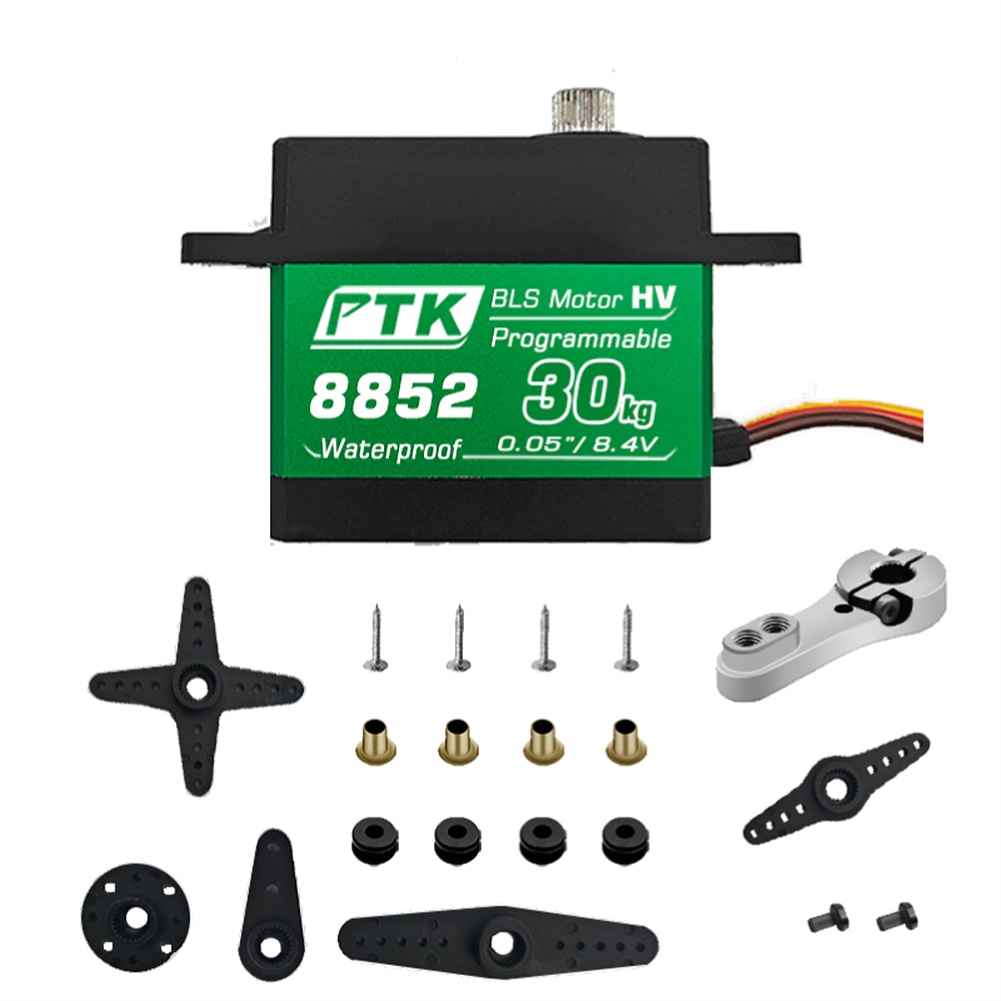

Package Included:
1 x RC Servo
