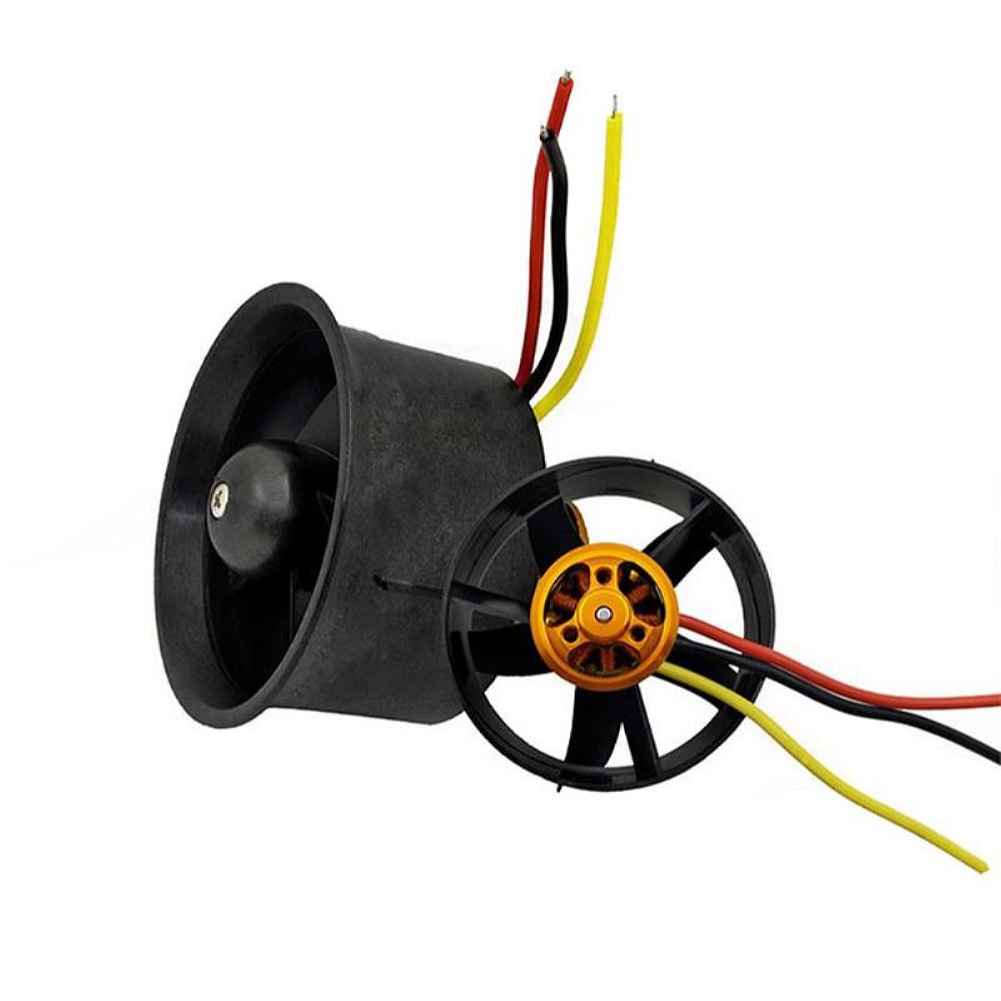

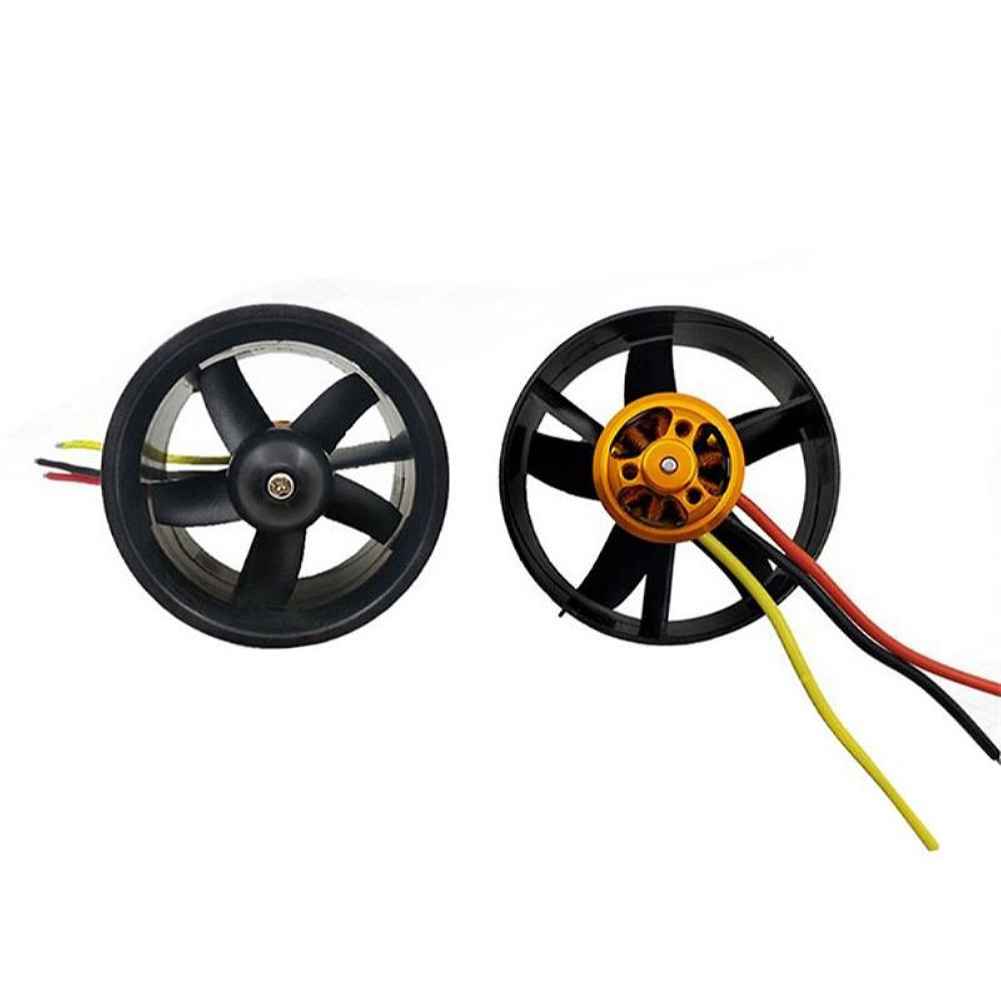

QX-Motor 64mm 5-Blade EDF Unit with QF2611 4500KV Brushless Motor, 3S Compatible for RC Airplane Jet

Description

QX-Motor 64mm 5 Blades EDF Unit With QF2611 4500KV Brushless Motor 3S for RC Airplane Jet

The QX-Motor 64mm 5-Blade EDF Unit is designed for RC airplane jets, featuring a high-performance QF2611 4500KV brushless motor. This unit offers a low vibration motor for stable flight, reduced operating noise, and enhanced efficiency, making it ideal for hobbyists seeking improved aircraft performance. The motor’s configuration includes a 9N6P stator with a diameter of 20.2mm and a length of 11mm, with a total weight of 130g. It supports a 3S Lipo battery, delivering a maximum continuous power of 280W and current of 27A for 10 seconds. This EDF unit ensures long-lasting bearings and superior efficiency to enhance your flying experience.

Specifications:
Brand Name: QX-MOTOR
Item Name: EDF unit with brushless motor set
EDF Unit: 64mm 5 blades
Brushless Motor: QF2611-4500KV
Color: Black
Configuration: 9N6P
Stator Diameter: 20.2mm
Stator Length: 11mm

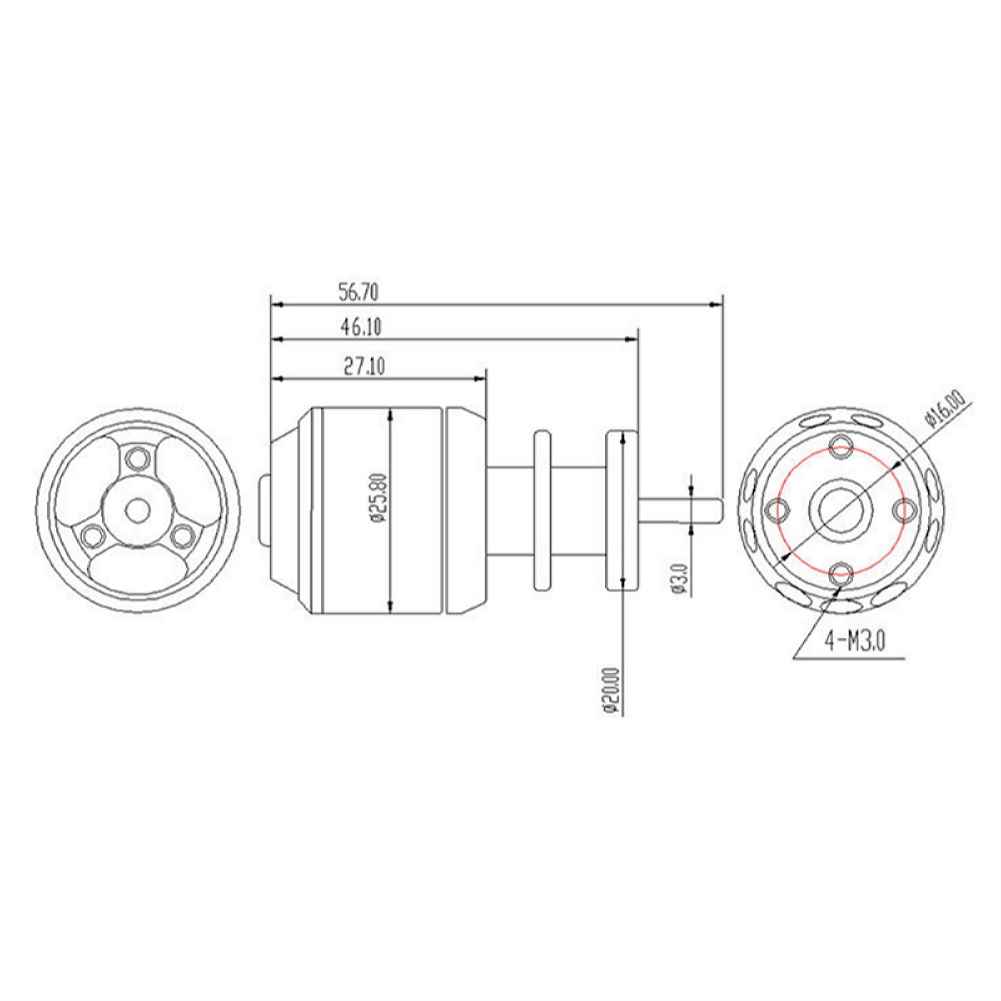

Motor Dimension(Diaxl): 28*47mm
Weight: 130g
No-Load Current: 2.0A
No.f Cells: 3S Lipo
Max. Continuous Power/10s: 280W
Max. Continuous Current/10s: 27A
Test Data:

Prop

Volts(V)

Amps(A)

Watts(W)

Thrust(g)

Thrust(oz)

Efficiency(g/W)

Efficiency(oz/W)

64Fan 5 Blade

11.1

25

278

750

26.5

2.7

0.1

Features:
– Low vibration motor great for flying
– To make aircraft more stable
– Less operating noise
– More efficient
– Bearings long life

Package Included:
1 x QX-Motor 64mm 5 Blades EDF Unit With QF2611 4500KV Brushless Motor
