Racerstar REV35 35A BLheli_S 4-in-1 ESC with Built-in Current Sensor, DShot600 Support for 3-6S RC Drone FPV Racing
Original price was: $71.98.$59.02Current price is: $59.02.
- 35A continuous current, 40A peak current (10s)
- Supports 3-6S LiPo input for versatile power needs
- Built-in current sensor for accurate monitoring
- DShot600 ready, supports multiple protocols
- Compact design, 36x36mm PCB with 30.5×30.5mm mount holes
You May Also Like
Description
30.5×30.5mm Racerstar REV35 35A BLheli_S 3-6S 4In1 Brushless ESC Built-in Current Sensor Support DShot600 for RC Drone FPV Racing

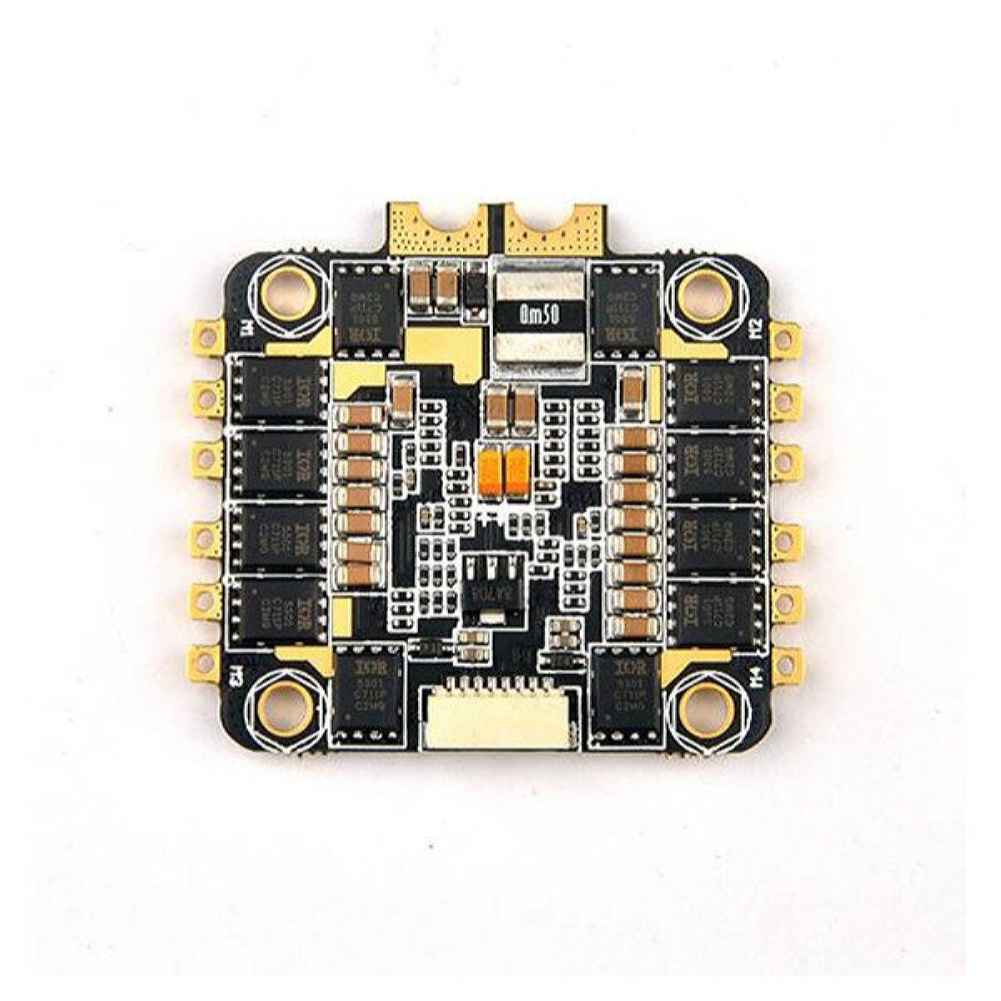

The Racerstar REV35 35A BLheli_S 4-in-1 ESC is designed for high-performance RC drone FPV racing. It supports 3-6S LiPo input and features a built-in current sensor for precise monitoring. With a compact PCB size of 36x36mm and mount holes of 30.5×30.5mm, it integrates seamlessly into your setup. The ESC runs on BB21 MCU at 48Mhz, utilizing BLHELI_S J_H_xx firmware for superior control. It’s DShot600 ready by default and supports PWM, ONESHOT, MULTISHOT, and DSHOT protocols, eliminating the need for external capacitors. This makes it an ideal choice for racers seeking reliability and efficiency.
Specification: ( User Guide)Brand Name: RacerstarItem Name: 35A BLheli_S 3-6S 4 in 1 ESCModel: REV35Con. Current: 35A
Peak Current(10s): 40A
LBEC: NO
SBEC:NO
Lipo: 3-6S
Programming: YES
Weight:13g
Size(PCB): 36x36mm
Hole size: 30.5×30.5mm
Features:-BB21 MCU, 48Mhz Runs BLHELI_S J_H_xx firmware
-Supports 3-6S Lipo input
-4PWM input
-Built-in Current sensor
-Only 36x36mm, mount holes 30.5×30.5mm M3
-No External capacitors needed
-Dshot600 ready(Default) Support PWM/ONESHOT/MULTISHOT/DSHOT

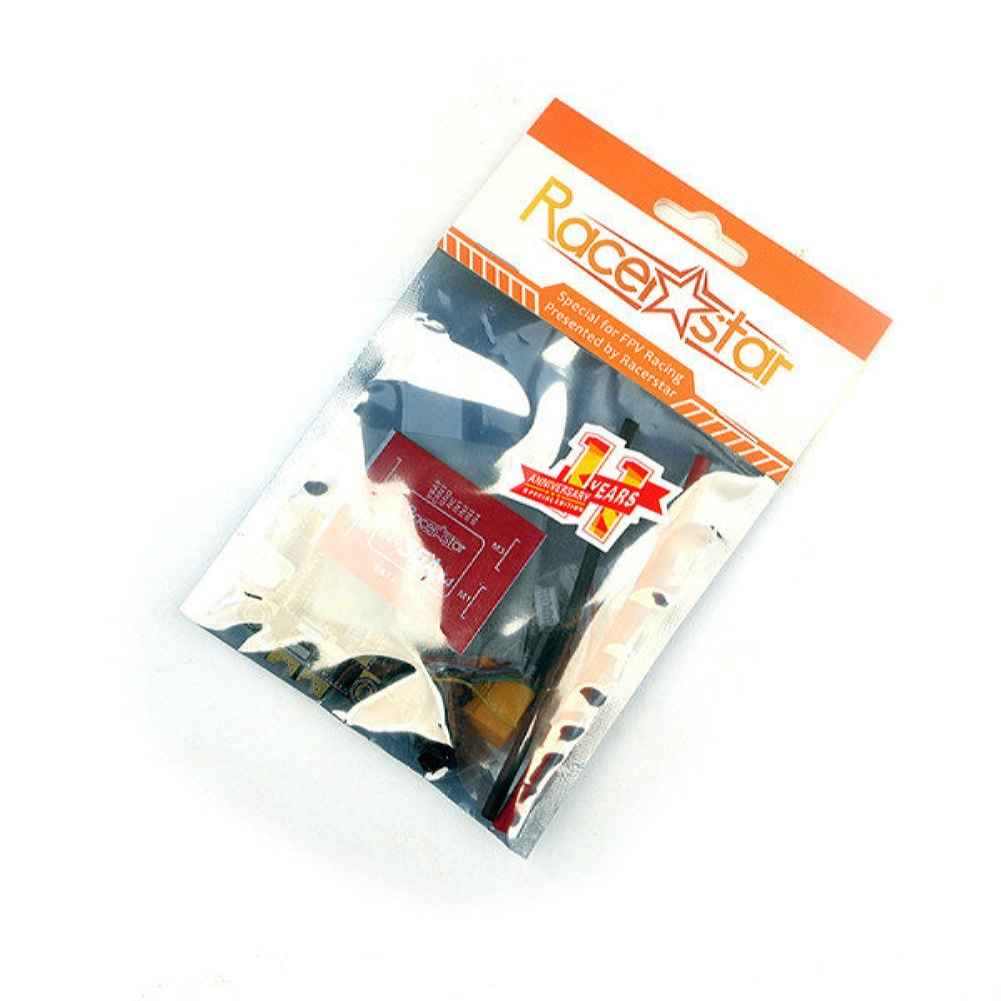

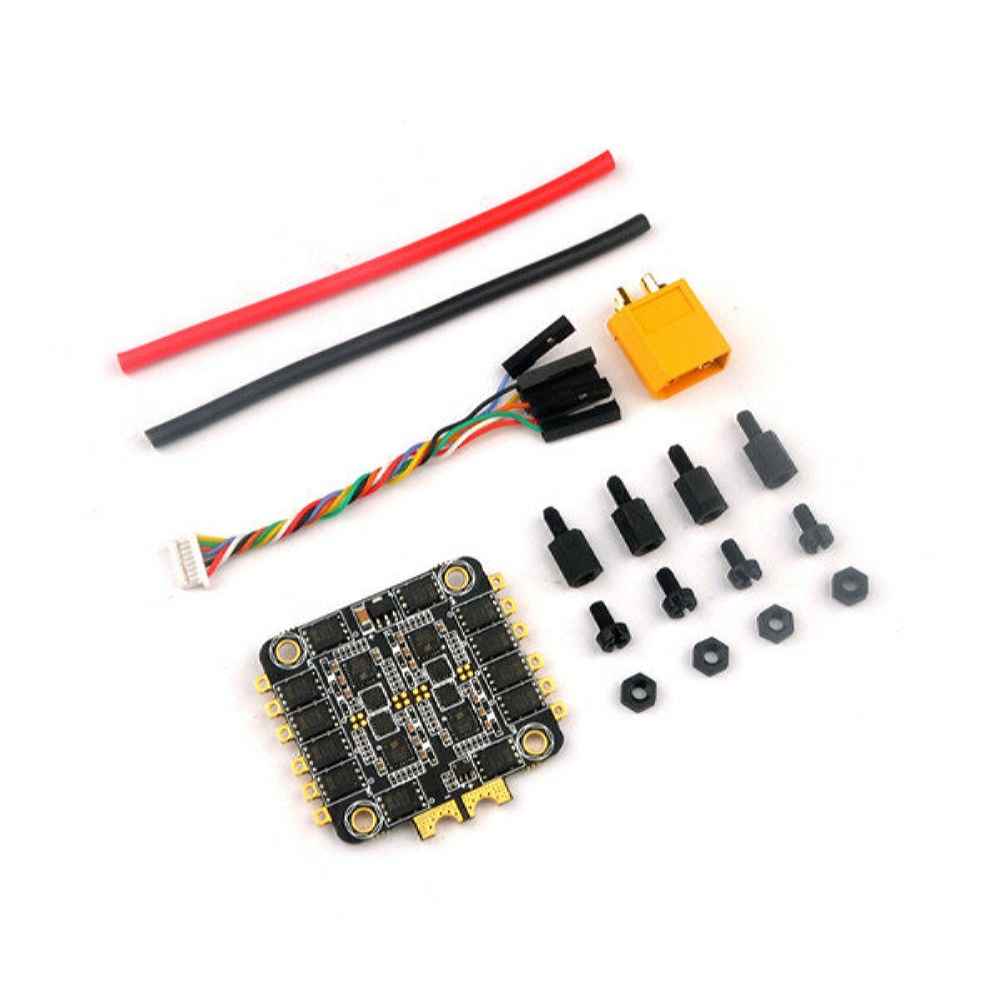

Package Included:
1 x Racerstar REV35 35A 4 in 1 ESC
2 x Power Cable (1 x Black & 1 x Red)
1 x Connector Plug
1 x Connection Cable
1 x Bag of Screws
