Realacc RHCP Pagoda Antenna & TFP-Mini Triple Feed Patch 5.8G FPV Antenna for RC Drone

Description

Realacc RHCP Pogoda Antenna + TFP-Mini Triple Feed Patch 45mm Black 5.8G FPV Antenna For FPV RC Drone

The Realacc RHCP Pagoda Antenna and TFP-Mini Triple Feed Patch are designed for optimal performance in FPV RC drones. The Pagoda Antenna is omnidirectional with a gain of 5dBi, compatible with RP-SMA and SMA connectors, and features a circular polarization for efficient signal transmission. It operates at a frequency of 5.8G with a low VSWR of less than 1.5:1, ensuring minimal signal loss. The TFP-Mini Triple Feed Patch offers an impressive gain of 8dBi and a bandwidth of 660 MHz, with a center frequency of 5.8 GHz. It provides a half power beam width of 65ç°ž and boasts a radiation efficiency of 90%, ensuring a strong and reliable connection.

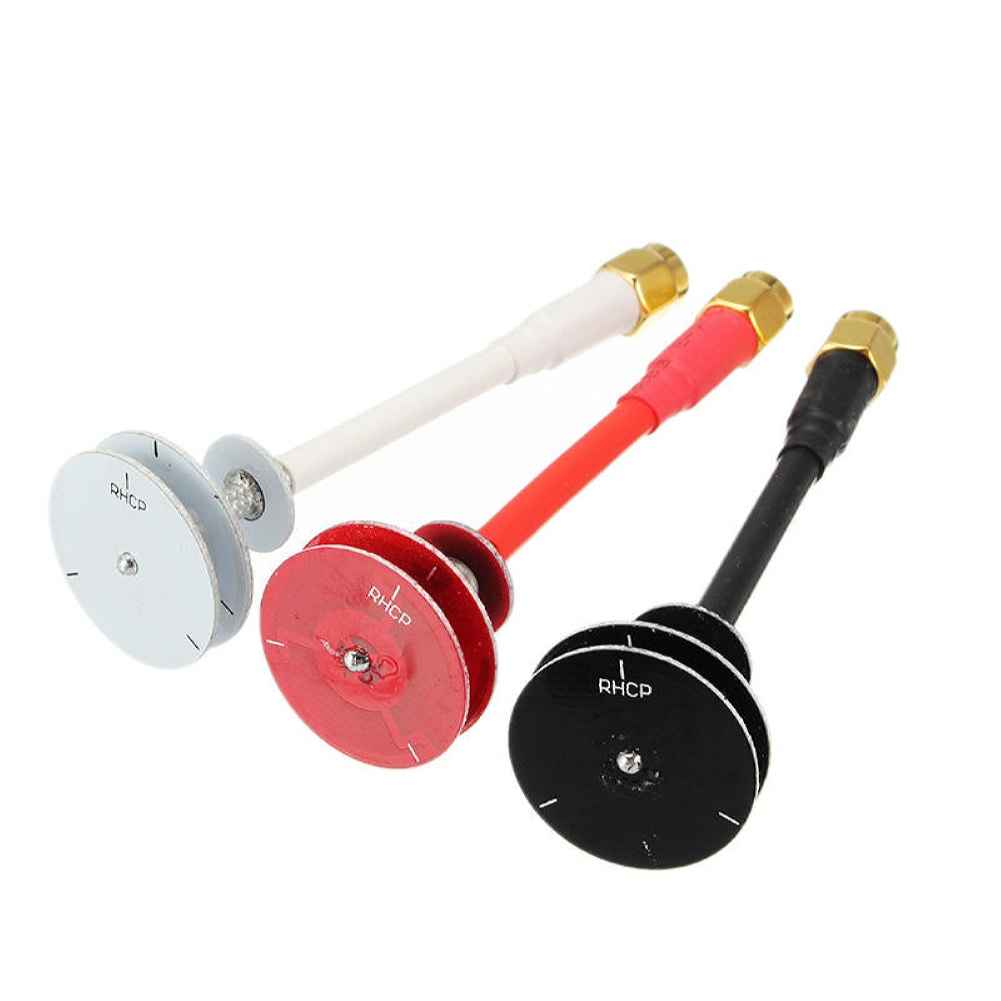

Pagoda Antenna
Description :
Brand Name : Realacc
Item Name : Omnidirectional Antenna
Gain : 5dBi
Max. Power : 50w
Connector : RP-SMA,SMA
Color : Black, Red, White
Weight : 8.6g
Length : 78呼3mm
Max. Dia. : 22.4呼1mm
Min. Dia. : 11.8呼1mm
Specification :
Frequency : 5.8G
Impedance : 50棒
VSWR : <1.5:1
Polarization : Circular Polarized
Radiation : Omni
TFP-Mini Triple Feed Patch
Description
Brand Name : RealaccColor : Black
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 è—© 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
Axial ratio: < 1.3
Antenna gain: 8 dBi
Half power beam width: 65‵ (horizontal and vertical)
Radiation efficiency: 90%
Dia.: 45mm

Package Included:
1 x TFP-Mini Triple Feed Patch Antenna
1 x SMA Antenna Extension Cable
1 x SMA Female to RP-SMA Male Adapter
1 x SMA Male Terminal Connector
1 x RHCP Pagoda Antenna
