Skystars Jupiter F405 F4 OSD Flight Controller AIO 45A BL_S 3-6S 4in1 ESC with 5V BEC for 3-5 Inch RC FPV Racing Drones
Original price was: $135.34.$108.95Current price is: $108.95.
- All-in-one flight controller and ESC with 25.5×25.5mm mount
- Supports 3-6S Lipo batteries, 45A continuous current
- F405 processor with MPU6000 gyro and integrated barometer
- Dual aluminum heat sinks for efficient heat dissipation
- Includes external USB-C board for easy access
You May Also Like
Description
25.5×25.5mm Skystars JUPITER F405 F4 OSD Flight Controller AIO 45A BL_S 3-6S 4in1 ESCwith 5V BEC for 3 4 5 Inch RC FPV Racing Drone
The Skystars Jupiter F405 F4 OSD Flight Controller AIO is a robust all-in-one board designed for 3-5 inch RC FPV racing drones. It features a 25.5×25.5mm mounting and supports 3-6S Lipo batteries with a current capacity of up to 45A. Equipped with a powerful F405 processor and MPU6000 gyro, it includes an integrated barometer, 5V 3A BEC, and 16MB blackbox memory. The board’s dual-sided aluminum heat sinks efficiently dissipate heat and protect components. It offers connectors for digital video transmission, RC receivers, and an external USB-C, ideal for Cinewhoops. The ESCs, using BlHeli_S firmware, support a burst current of 55A and include a current sensor.
Description:

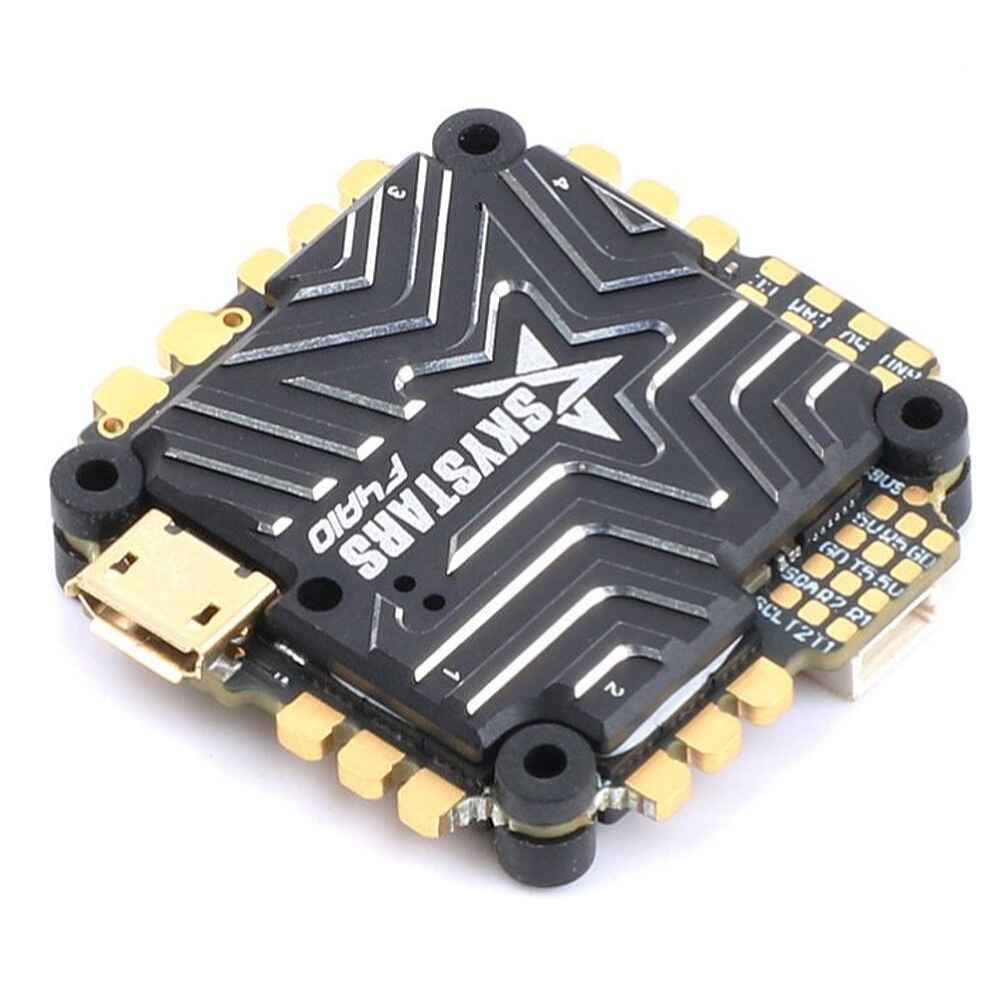

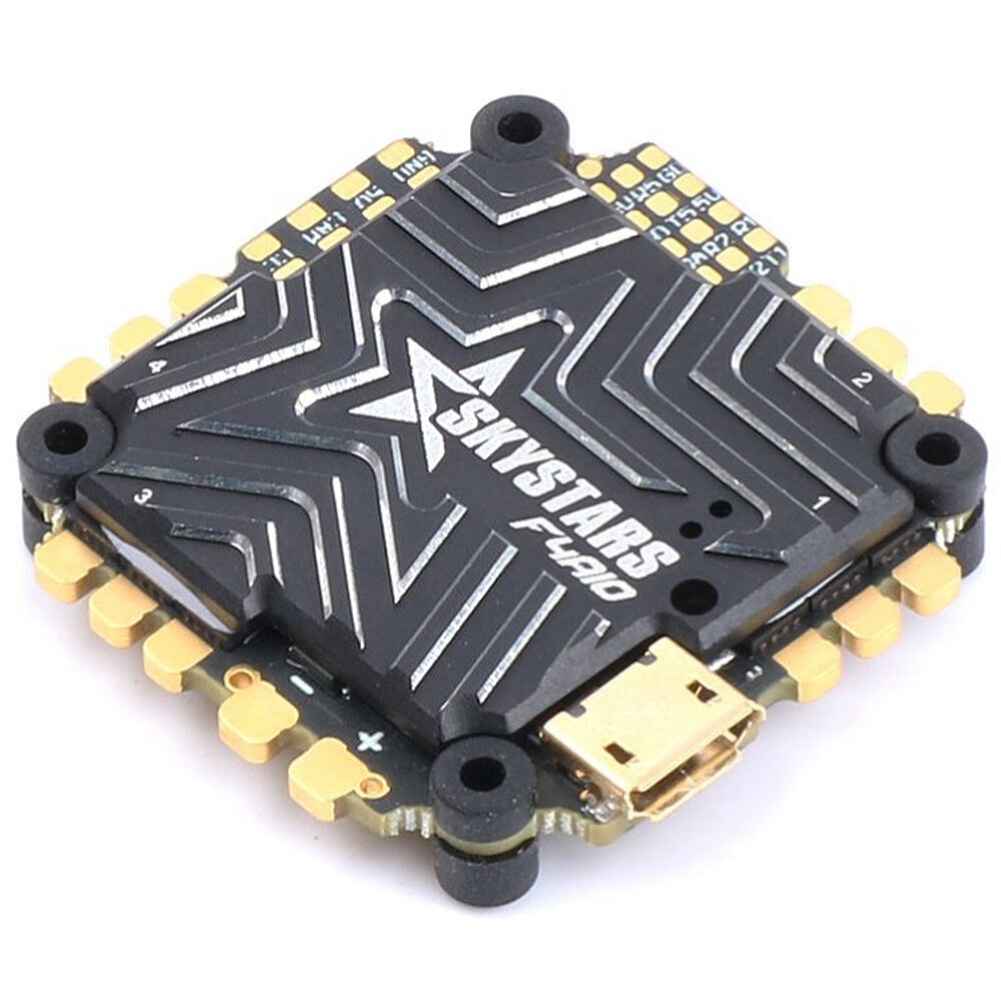

Skystars F405 45A AIO is a solid board containing a flight controller and ESCs in one. The board has a 25.5×25.5mm mount. The board can be powered by 3-6S Lipo batteries and can handle current up to 45A. It is suitable for smaller 3-4′ drones and lightweight 5′ drones. The board features an aluminum heat sink on both sides to help dissipate heat while protecting components from damage and dirt.
The flight controller uses a F405 processor complemented by a MPU6000 gyro. The board has an integrated barometer, 5V 3A BEC as well as 16MB memory for the blackbox. Also included are I2C pins for compass connection. Connectors for connecting a digital video transmission and an RC receiver are on the bottom of the board. The board also has pins for connecting an external USB-C connector, which is included in the package. The external USB connector will be especially appreciated on Cinewhoops, where the board tends to be hard to reach.
The ESCs on the board can handle current up to 45A and use the BlHeli_S firmware. The board also includes a current sensor.
Specifications:
Brand: Skystars
Model: Jupiter F405
Item Name: F4 Flight Controller AIO 45A 4IN1 ESC
CPU: STM32F405RGT6
IMU: MPU6000
Baro: BMP280
OSD: Support
BEC Output: 5V/3A
BlackBox: 16MB
Uart: 6ch
LED Trip&Buzzer: Support
Receiver: ELRS/CRSF/IBUS/TBS CRSF Supported
USB Conector: Micro USB and TYPEC
DJl/Vista Connector: Support
Power Supply: 3-6S
Continuous Current: 45A
Burst Current: 55A
Current sensor: Support
Current scale: 400
ESC Telemetry: no
Default protocol: Dshot300
FC Firmware: SKYSTARSF405AIO
ESCFirmware: JH-25
Weight: 13.5g
Mounting Hole: 25.5X25.5mm,3mm/M2
Size: 35.5X36mm

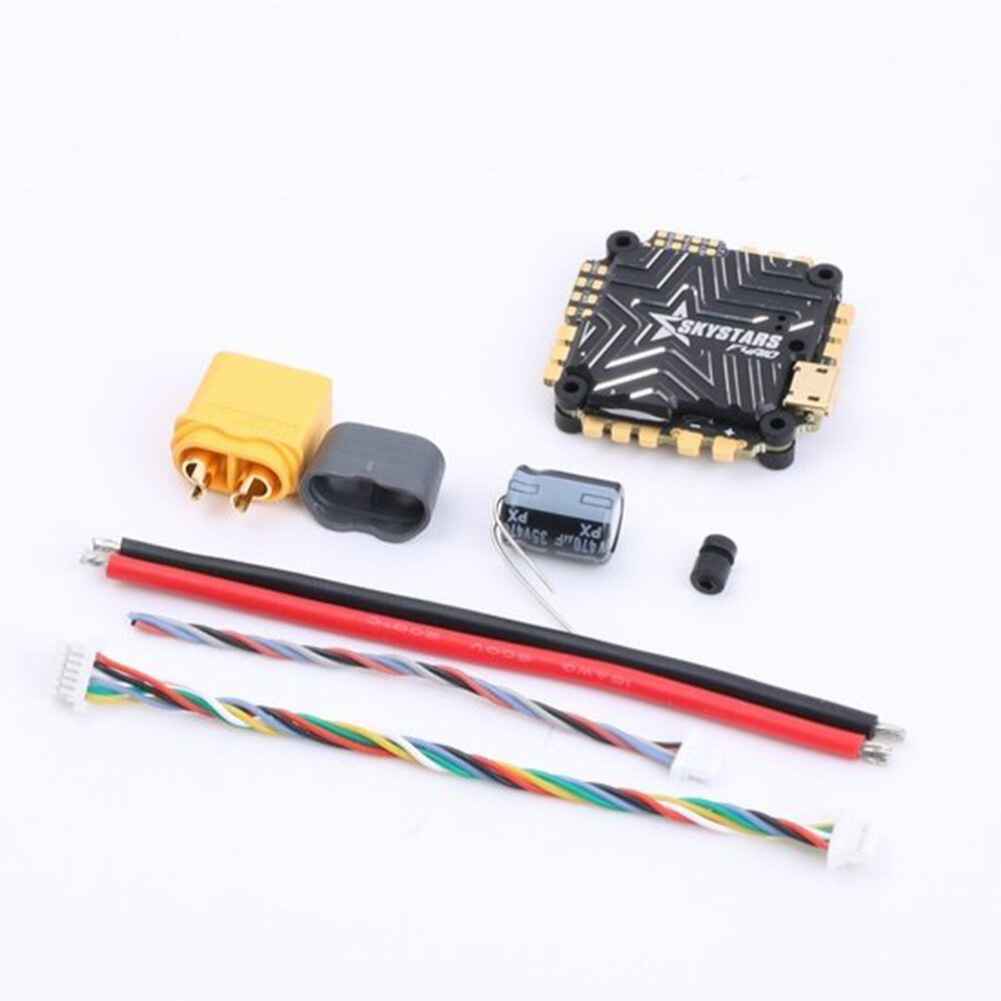

Package Included:
1 x F4 AIO 45A ESC Board
1 x 470uF 35V Ruby Capacitor
4 x M2 6.6 Anti-Vibration Grommets
1 x XT60 Cable
1 x External USB-C Board
1 x Cable Set
