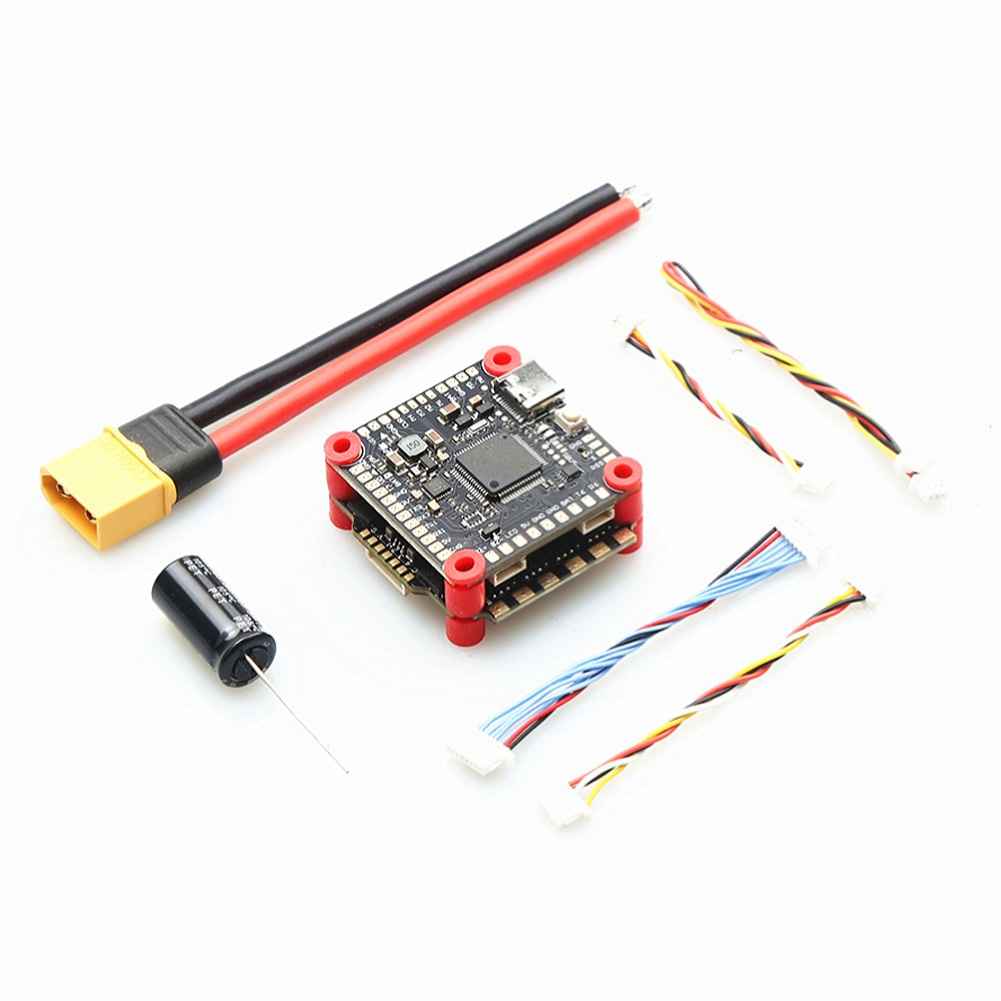

30.5*30.5mm TEARCKEP F405 F4 V3S PLUS Flight Controller 5V 9V BEC Output with 50A 60A V3 2-6S 4in1 BLS ESC Stack for RC FPV Racing Drone

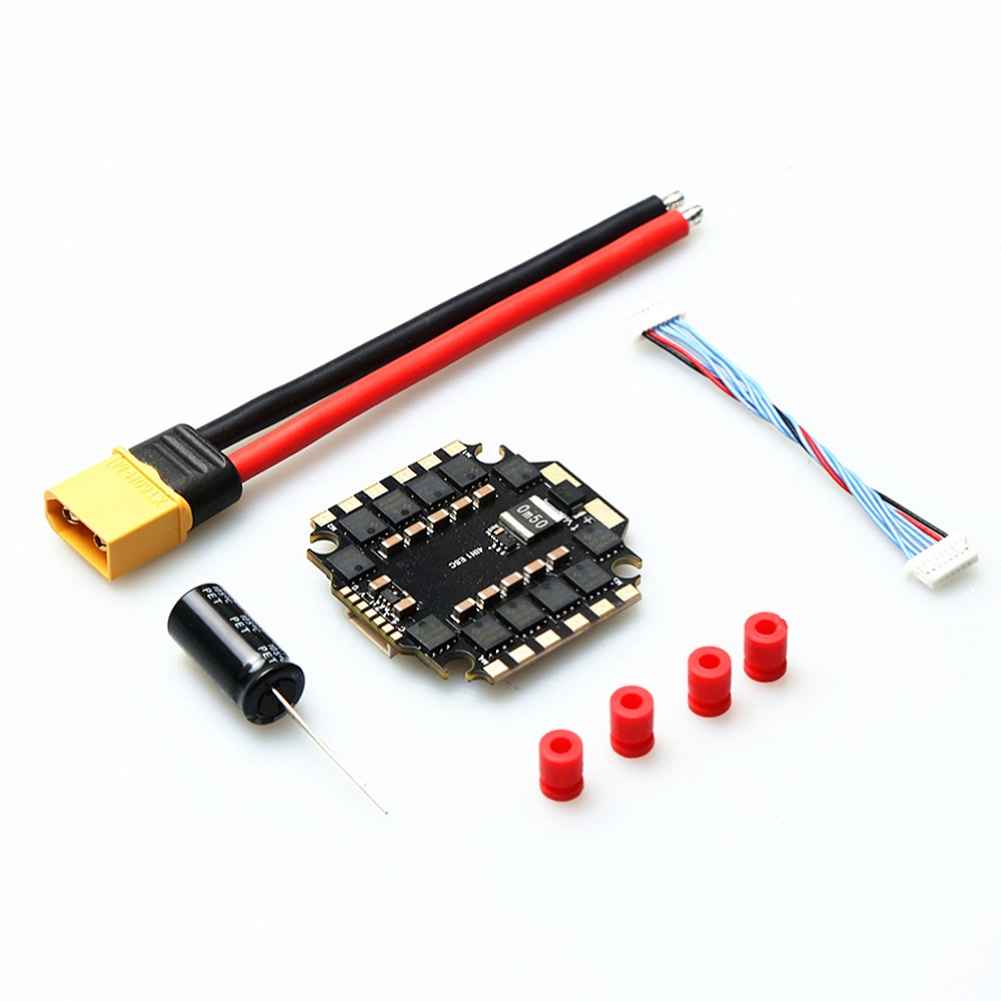

The TEARCKEP F405 V3S PLUS Flight Controller is designed for RC FPV racing drones, featuring a 30.5×30.5mm installation hole. It includes an MPU6500 gyroscope and STM32 F405 microcontroller, with Dshot support and OSD configuration via Betaflight. Compatible with various receivers including ELRS, CRSF, SBUS, IBUS, and DSMX, it also supports a MicroSD card black box and car video filter. The BEC outputs 5V3A/9V3A and the firmware is upgradeable to OMNIBUSF4SD/BF/INAV. The V3 BLHELI-S 50A/60A 4in1 ESC supports LIPO 2-6S input, with a continuous current of 55A/60A and maximum current of 65A/70A. It features DShot150-600, Multishot, Oneshot, and PMW drive signal support.
Specification: Brade: TEARCKEP Model: F405 V3S FC 50A 60A ESC
Name
Specification

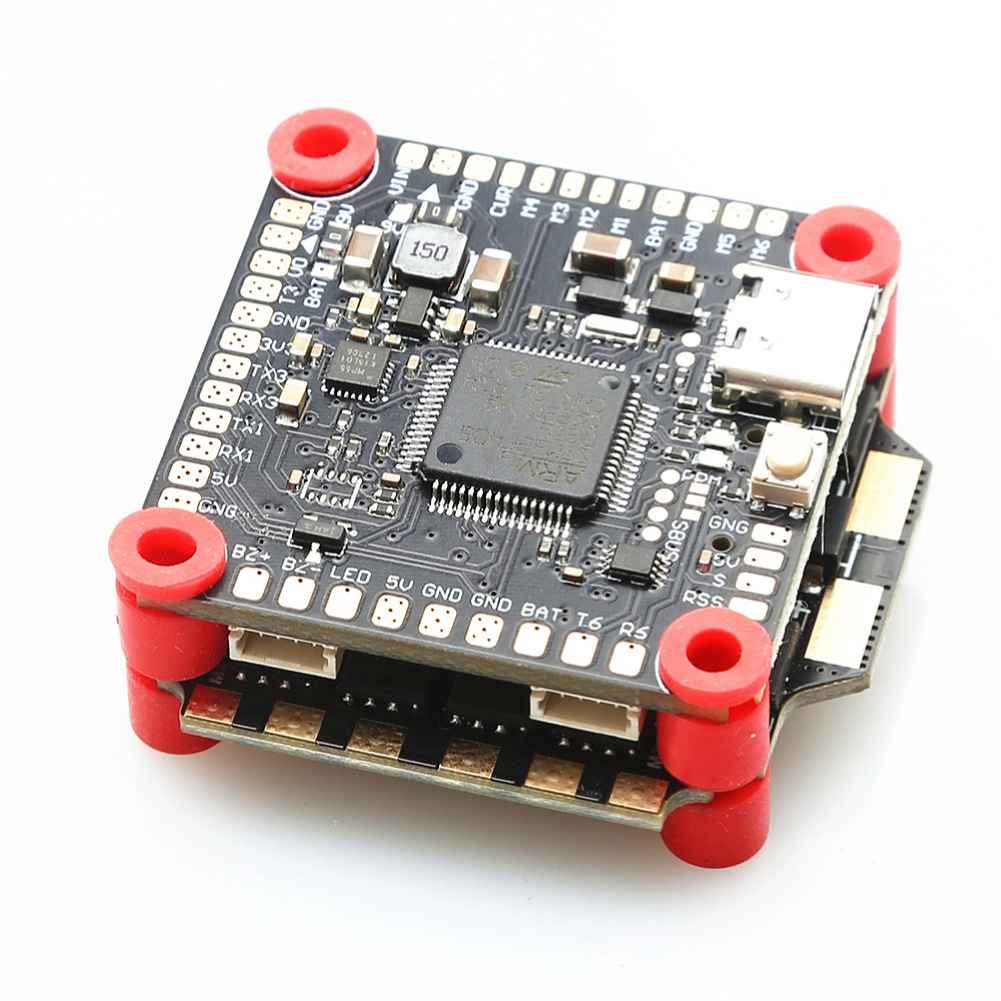

F405 V3S PLUS Flight Controller
Installation Hole: 30.5×30.5mm Gyroscope: MPU6500 – STM32 F405 Microcontroller – Dshot Support – Drag and drop OSD configured through Betaflight – Supports receivers such as ELRS/CRSF/SBUS/IBUS PPM/Spketorum DSMX, etc – MicroSD Card Black Box – Car video filter BEC: 5V3A/9V3A Firmware: OMNIBUSF4SD/BF/INAV (upgradable) Size: 36x36mm Weight: 13g Suitable Models: 5 inches, 6 inches, 7 inches, 8 inches, 9 inches, 10 inches, 13 inches, 15 inches, traversing aircraft/drones, etc
