Description

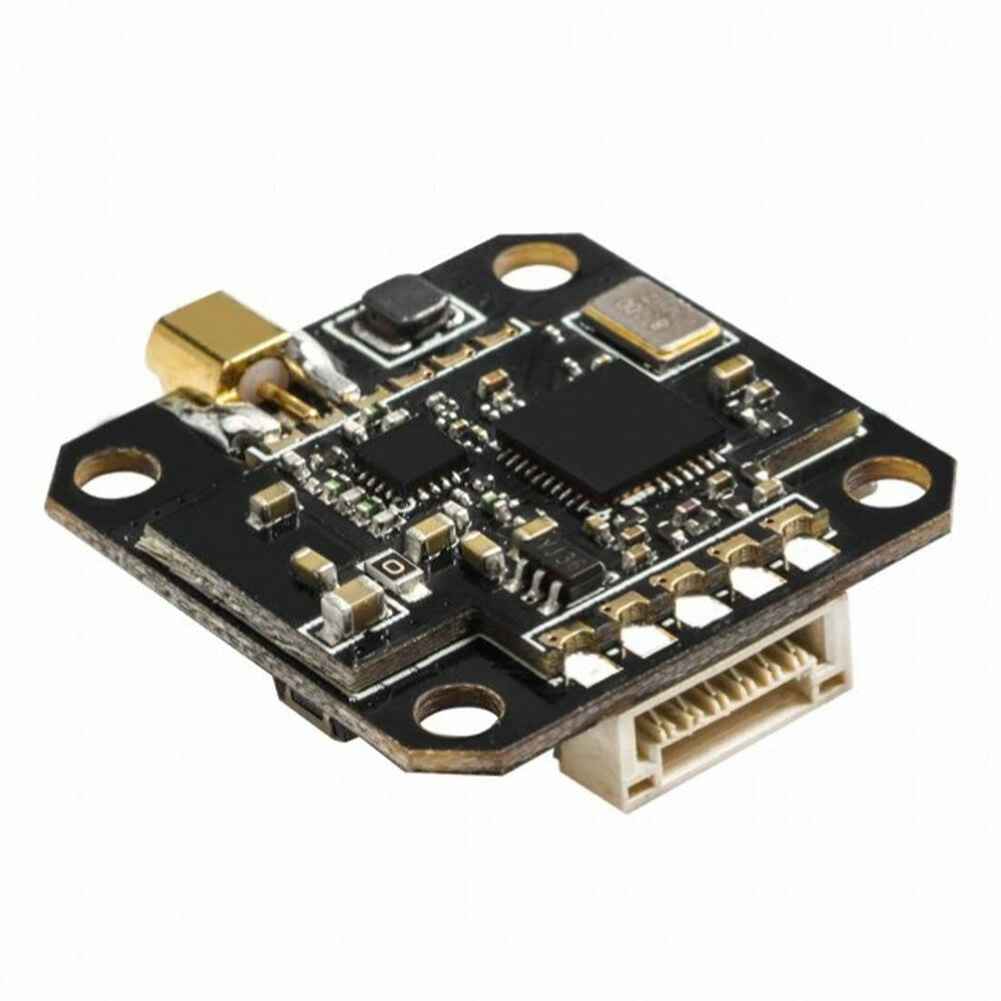

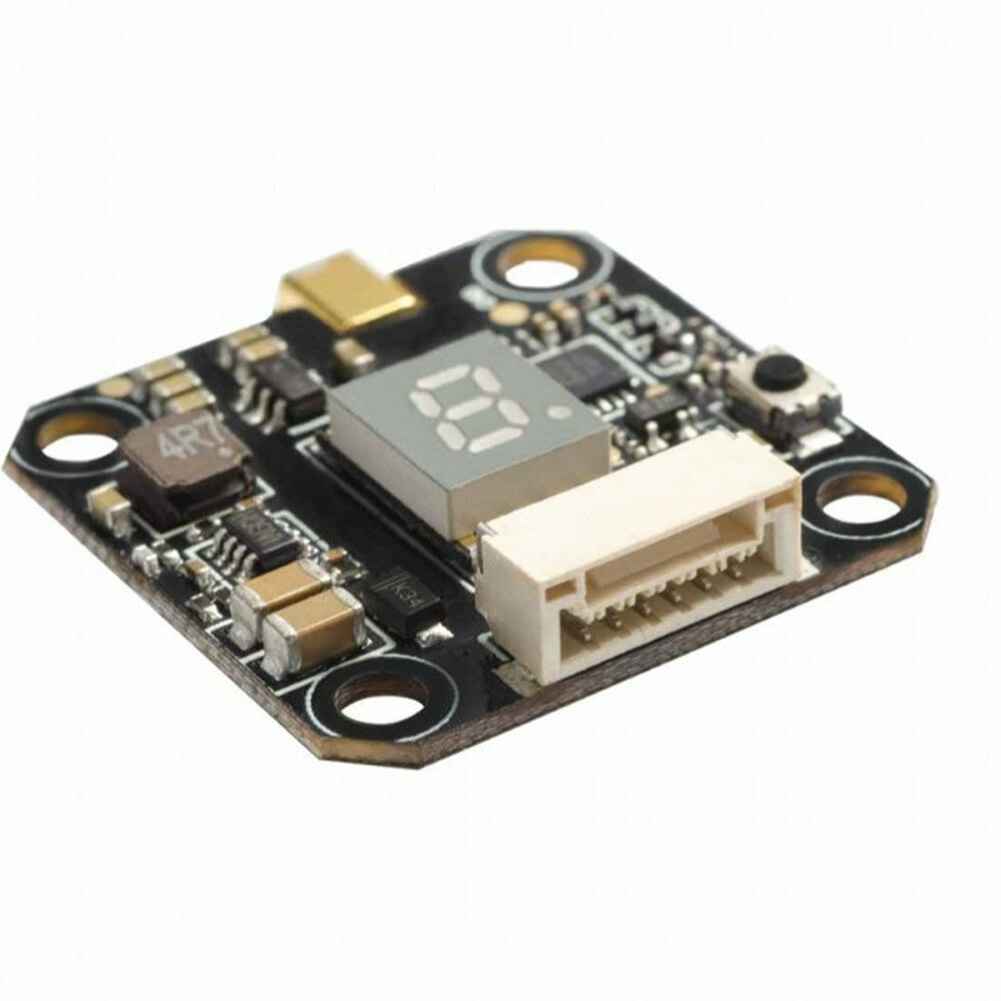

AKK FX3 5.8Ghz 37CH 25/200/400/600mW Switchable FPV Transmitter VTX with MMCX Integrated OSD FC
The AKK FX3 FPV Transmitter VTX is designed for compact micro builds, offering a smaller profile with a 20x20mm mounting pattern. It features switchable power settings of 25mW, 200mW, 400mW, and 600mW, allowing for versatile performance adjustments. The VTX supports Smart Audio and PIT Mode, enabling easy OSD configuration and efficient power management. With an input voltage range of 7-24V and a 5V camera power supply, it ensures reliable performance. The FX3 provides a range of up to 2km with an omnidirectional RHCP antenna and includes an MMCX antenna connector for secure connections.
FX3 is similar to the FX2 but has a smaller profile that uses 20x20mm mounting pattern,
in the cost of lower max output power, to be designed for smaller micro builds.
Specification:
Input voltage: 7-24V
Extra feature: Smart Audio/PIT Mode
Power supply: 5v camera@under 0.3A max
Output power: 25mW:100mA/200mW:200mA/400mW:250mA/600mW:320mA@12v
Range: Up to 2km with omnidirectional RHCP antenna
Antenna connector: MMCX
Port connector: JST,6pin
Dimensions: 26(W)x26(D)mm,20x20mm(hole)
Weight: 4.6g(excluding antenna)
Features:
Support Pit Mode
25mW/200mW/400mW/600mW switchable
One button frequency and power setup
OSD conguration using smart audio
7-24v input with 5v output

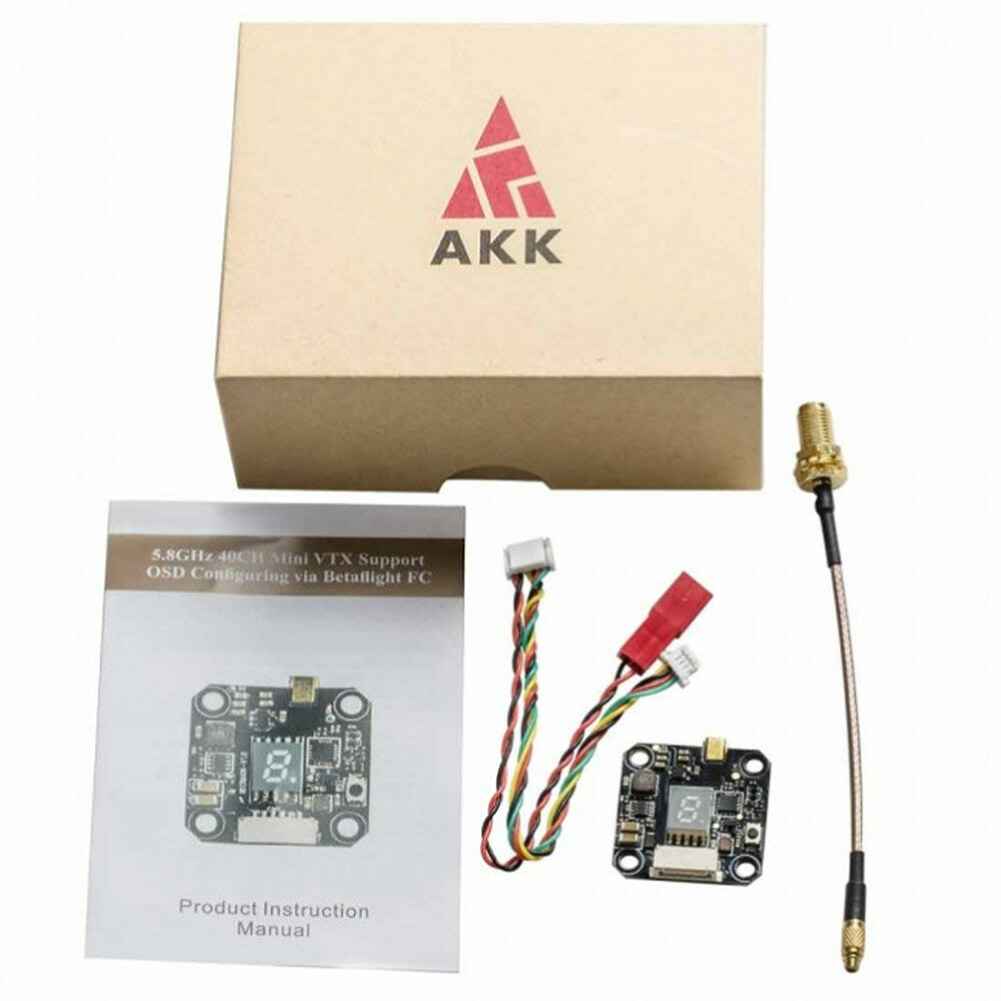

Package Included:
1 x AKK FX3 5.8Ghz 37CH 25/200/400/600mW Switchable FPV Transmitter VTX with MMCX Integrated OSD FC
1 x Cable
1 x MMCX pigtail
