FS2A 2.4GHz 4CH AFHDS 2A PWM Output Mini Compatible Receiver for Flysky i6 i6X i6S Transmitter
The Flysky FS2A 2.4GHz 4CH Receiver is designed for seamless compatibility with Flysky transmitters such as i6, i6X, and i6S. Operating on the AFHDS 2A protocol, this mini receiver offers a 4-channel PWM output with a frequency range of 2.408-2.475GHz. It features a receiver sensitivity of -92DBM and supports a supply voltage between 3.3V and 10V. With a working current of 20MA, it ensures efficient performance over distances of 400+ meters. The binding process is straightforward, and the failsafe settings enhance reliability. Compact with dimensions of 11x25mm and weighing just 0.9 grams, this receiver is ideal for RC enthusiasts seeking performance and compatibility.
FS2A 2.4GHz 4CH AFHDS 2A PWM Output Mini Compatible Receiver for Flysky i6 i6X i6S Transmitter
Description:
Item name: Flysky FS2A 2.4GHz 4CH Receiver

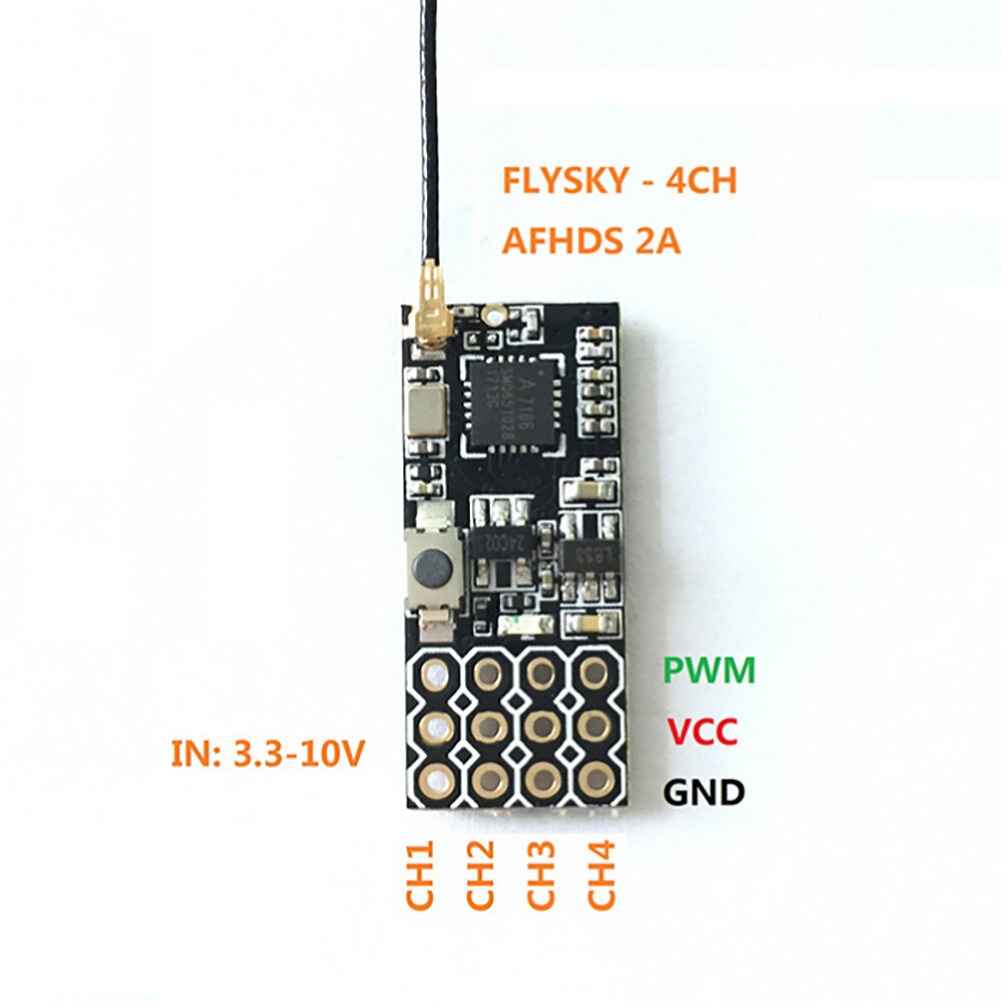

Channels: 4CH
Output signal: PWM
Frequency range: 2.408-2.475GHZ
Band width: 135
Receiver sensitivity: -92DBM
2.4G mode: AFHDS 2A
Failfe: Yes
Supply voltage: 3.3-10V
Distance: 400+ meters
Working current: 20MA

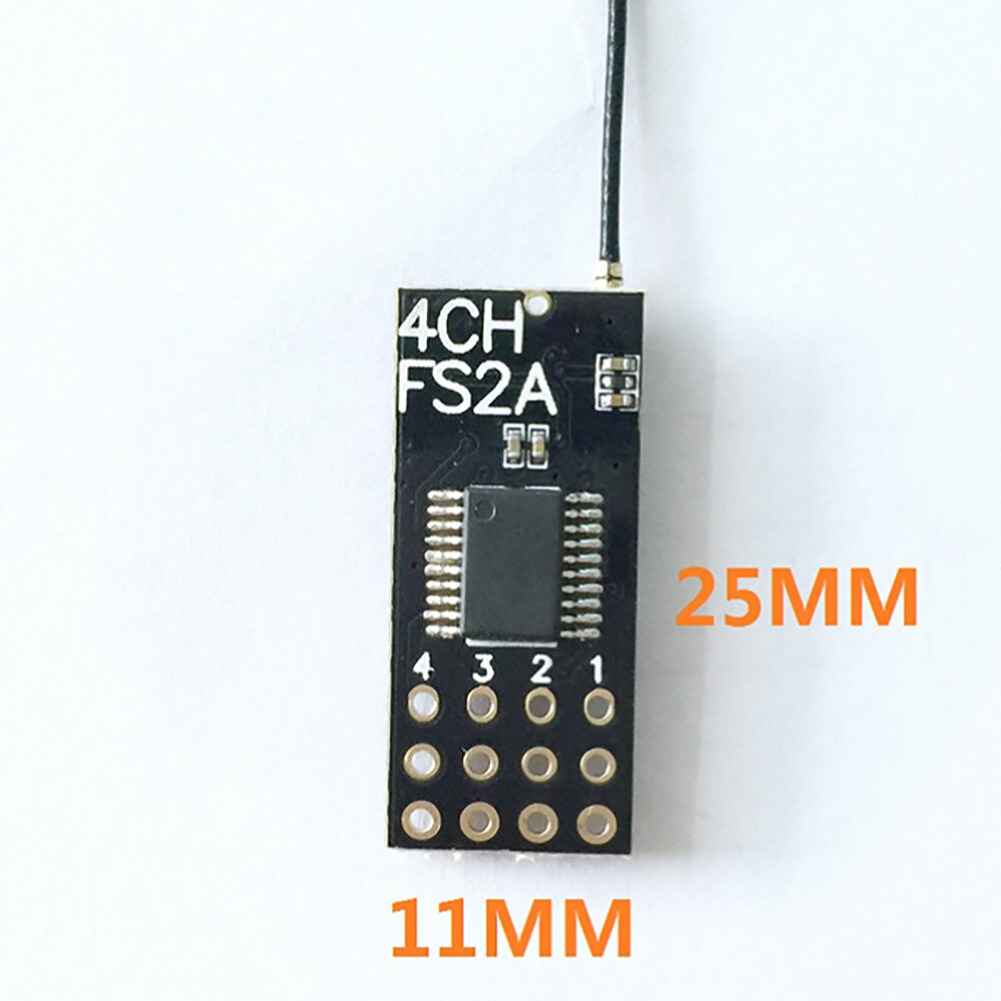

Dimensions: 11 * 25MM
Weight: 0.9 grams
Support: FS-I6, FS-I6X, FS-I6S, FS-TM8, FS-TM10, FS-I10 and other AFHDS 2A protocol transmitter
Bind:
1. Press and hold the key on the receiver and connect the power to the receiver. The blue light on the receiver flashing, get into bindind mode.
2. Set the transmitter into bind mode (confirmed AFHDS 2A protocol). After getting into bind mode, the receiver light changes from flashing to slow flash.
3. Transmitter get out of bind mode, then the receiver blue light becomes bright. Indicates that the signal receive is successful.
Failsafe settings:
The receiver can normally receive the transmitter signal, push the rocker to the the failsafe set, long press the receiver bind button, the blue light flashes quickly several times and then always bright , failsafe settings is successful.
Pacakge Included:

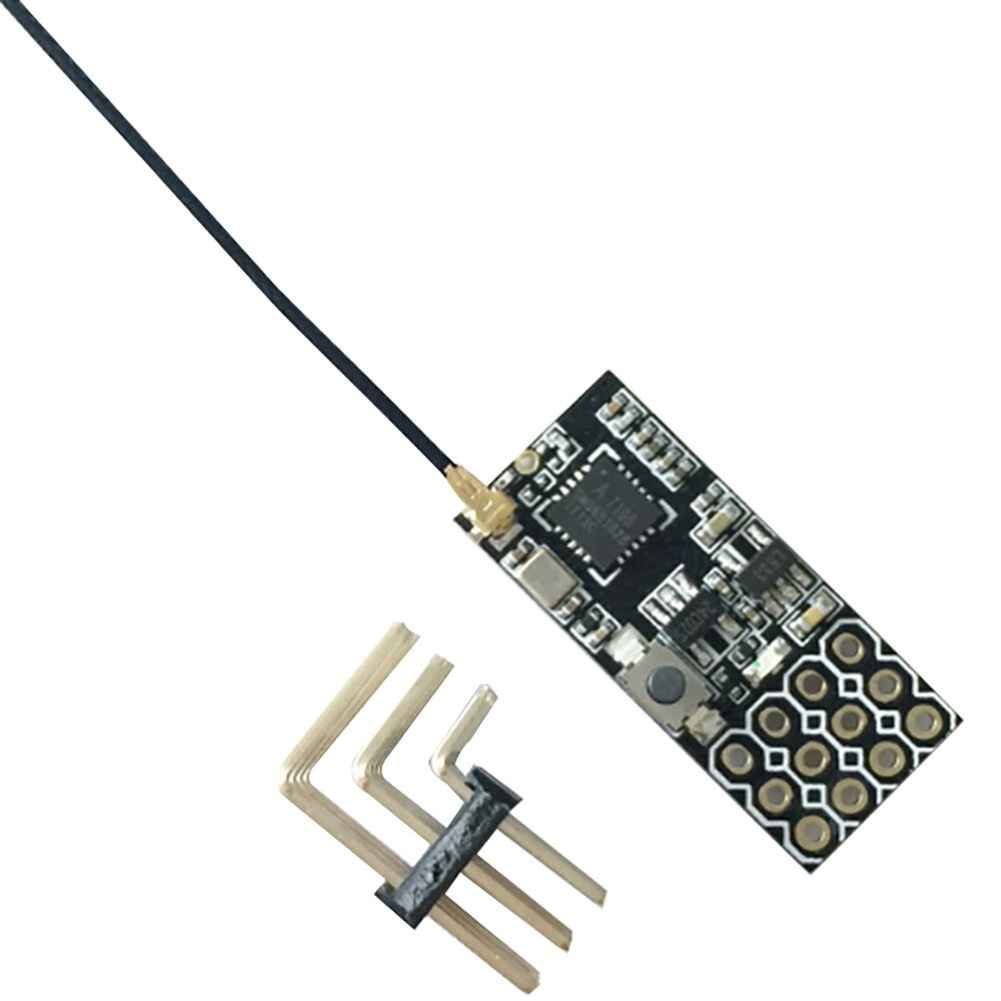

1X FS2A 4CH AFHDS 2A Mini Compatible Receiver
Package Included:
1 x FS2A 4CH AFHDS 2A Mini Compatible Receiver
