Description

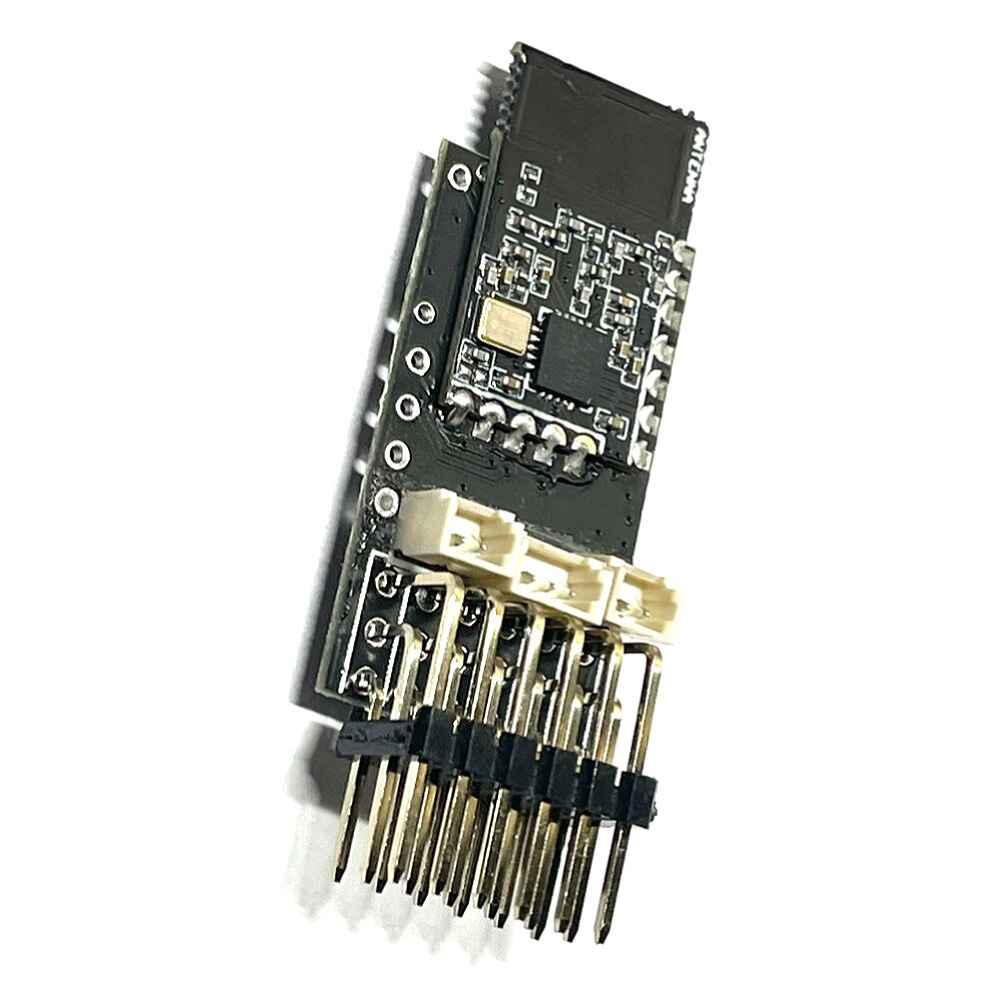

4-IN-1 Multi-protocol 6CH PWM Mini Compatible RC Receiver with Dual Brushed 5A ESC for Flysky Wfly Microzone Radio Transmitter
This 4-IN-1 Multi-Protocol 6CH PWM Mini RC Receiver is designed for seamless compatibility with Flysky, Wfly, and Microzone radio transmitters. Weighing just 4g and measuring 1.7 x 3.5cm, it features a dual brushed 5A ESC and supports an input voltage of 3.3-6V. For voltages above 6V, a BEC connection is required. The receiver operates at a remote control distance of 200-300 meters in the air and requires an external 2.4g antenna with 50 ohms impedance. It includes a built-in lighting system and offers SBUS and PPM output, voltage return, and a failsafe function. Compatible with various models, this receiver provides automatic and intelligent binding for enhanced control.
4-IN-1 Multi-protocol 6CH PWM Mini Compatible RC Receiver with Dual Brushed 5A ESC for Flysky Wfly Microzone Radio Transmitter
Specifications:
Weight: 4g
Size: 1.7℅3.5cm
Input voltage: 3.3-6V, please connect BEC if it is greater than 6V
ESC current: Maximum 5A per channel
Light strip model: ws2812b
Remote control distance: 2-3 hundred meters in the air
The external antenna must be 2.4g, Impedance 50 ohms.
Features:
* Flysky receiver, Microzone receiver, Wfly receiver, 4-in-1 multi-protocol.
* 6CH PWM, with ESC (dual-channel brushed 5A, 3.3-5v power supply).
* 2CH voltage return, failsafe function.
* SBUS and PPM Output.
* Built-in lighting system, automatic and intelligent binding.
Compatible remote control list: Microzone MCBC, MC7, MCBC Mini, MC7 Mini, E6, MC8b, MC10. Flysky AFHDS 2A, such as Flysky i6, i6x, i6s. Wfly second generation all models, such as ET07, ET08, ET12, ET16. with 4in1 high multi-protocol controls for TX Modules.
Package Included:
1 x 4-IN-1 Receiver
Toys & Games > Remote & App Controlled Vehicles & Parts > Remote & App Controlled Vehicle Parts > Remote & App Controlled Vehicle Radio Transmitters
