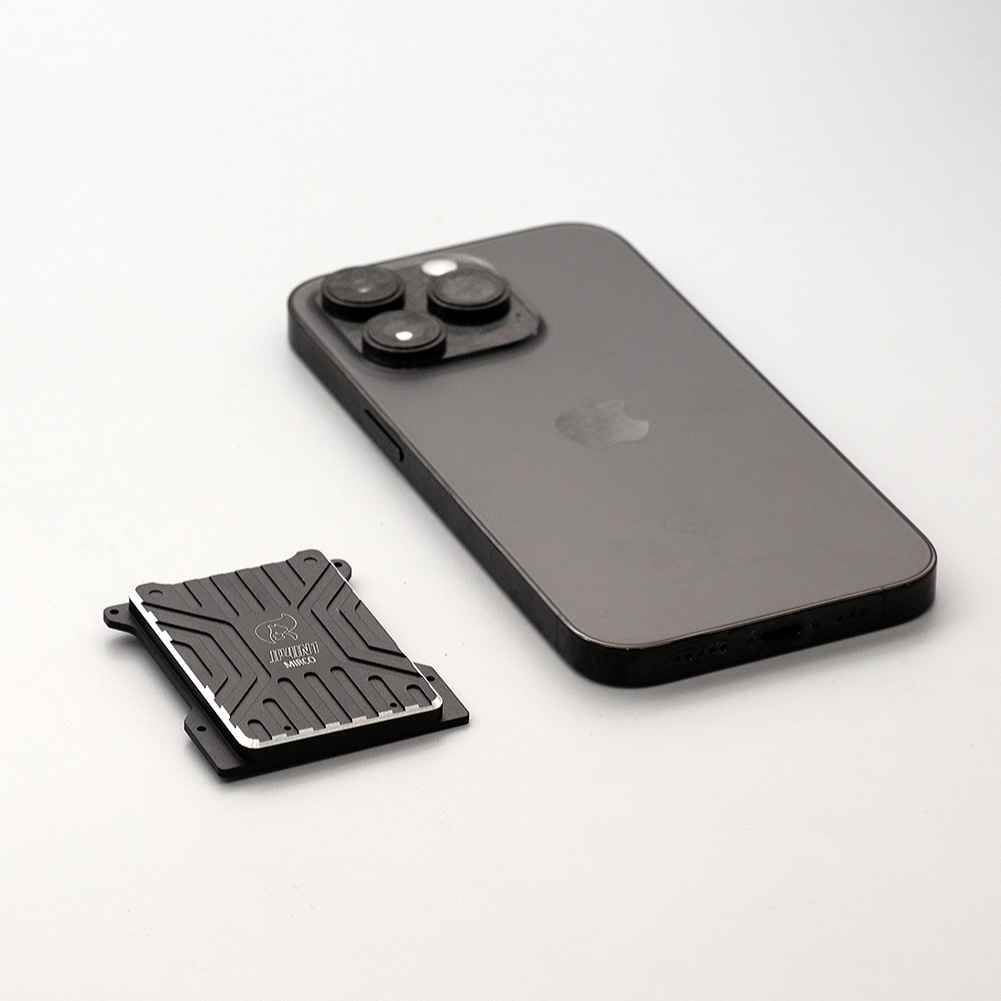

JUMPERRC 2.4GHz JP4IN1 Multi-Protocol CC2500 NRF24L01 A7105 CYRF6936 4-in-1 Micro External TX Module for T20 T20S Radio Transmitter
The JUMPERRC JP4IN1 Micro Transmitter Module is a versatile 2.4GHz device designed for seamless integration with Jumper T20 and T20S radio transmitters. Featuring four RF chip modules鈥擟C2500, NRF24L01, A7105, and CYRF6936鈥攖his module supports a wide range of protocols, including FrSky, SFHSS, FlySky, and more. With a working voltage of 6-9V and a current of 鈮?00mA, it operates efficiently in the 2.4G ISM band. The module is equipped with an STM32F103CBT6 main control chip and offers firmware updates via USB, ensuring it stays up-to-date. Its compact design includes an antenna and is compatible with the T20 module bay.
JUMPERRC 2.4GHz JP4IN1 Multi-Protocol CC2500 NRF24L01 A7105 CYRF6936 4-in-1 Micro External TX Module for T20 T20S Radio Transmitter
The Jumper JP4IN1 Module features the CC2500, NRF24L01, A7105 and CYRF6936 RF Chip modules all integrated on one board. This module is plug and play with Jumper T20
Description:
Brand: JumperRC
Item: JP4IN1 micro transmitter module
Working voltage: 6-9v
Working current: <=100ma
Operating frequency: 2.4G ISM band
RF power: +22DBM
Main control chip: STM32F103CBT6 (128K ROM, 20K RAM)

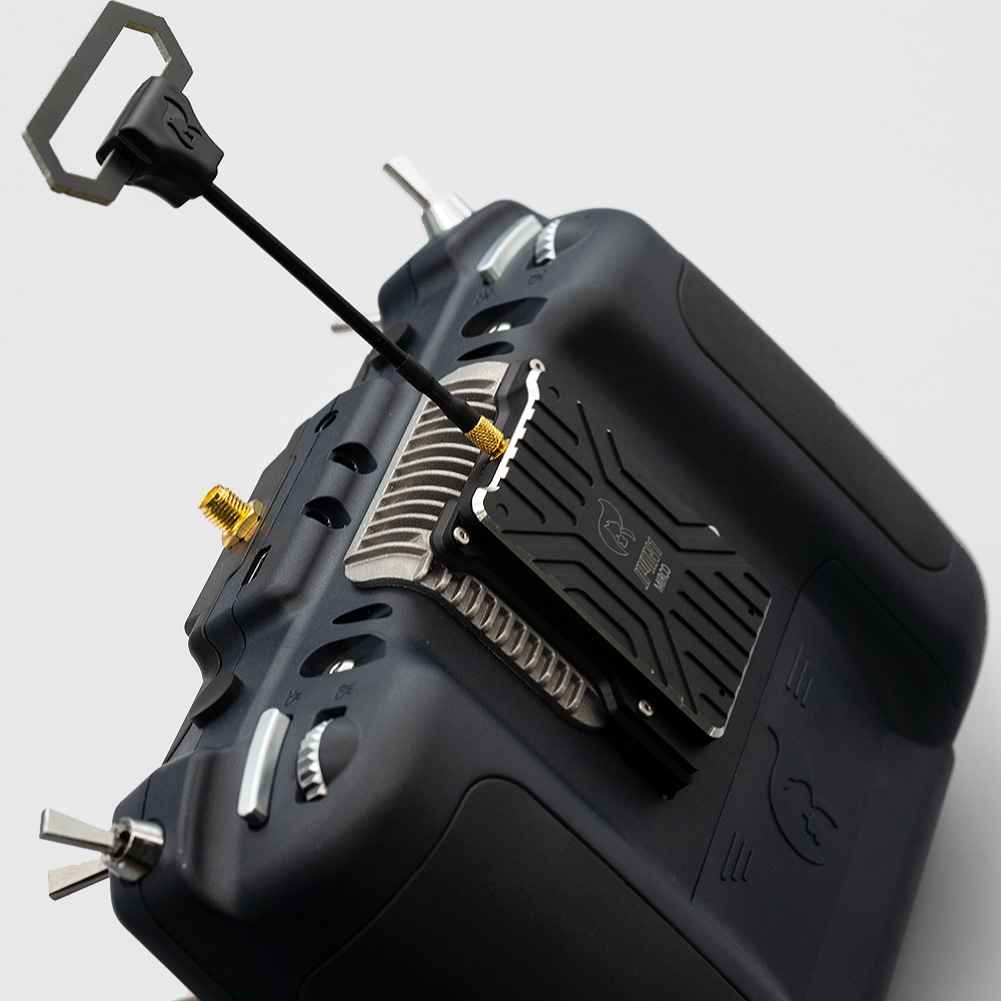

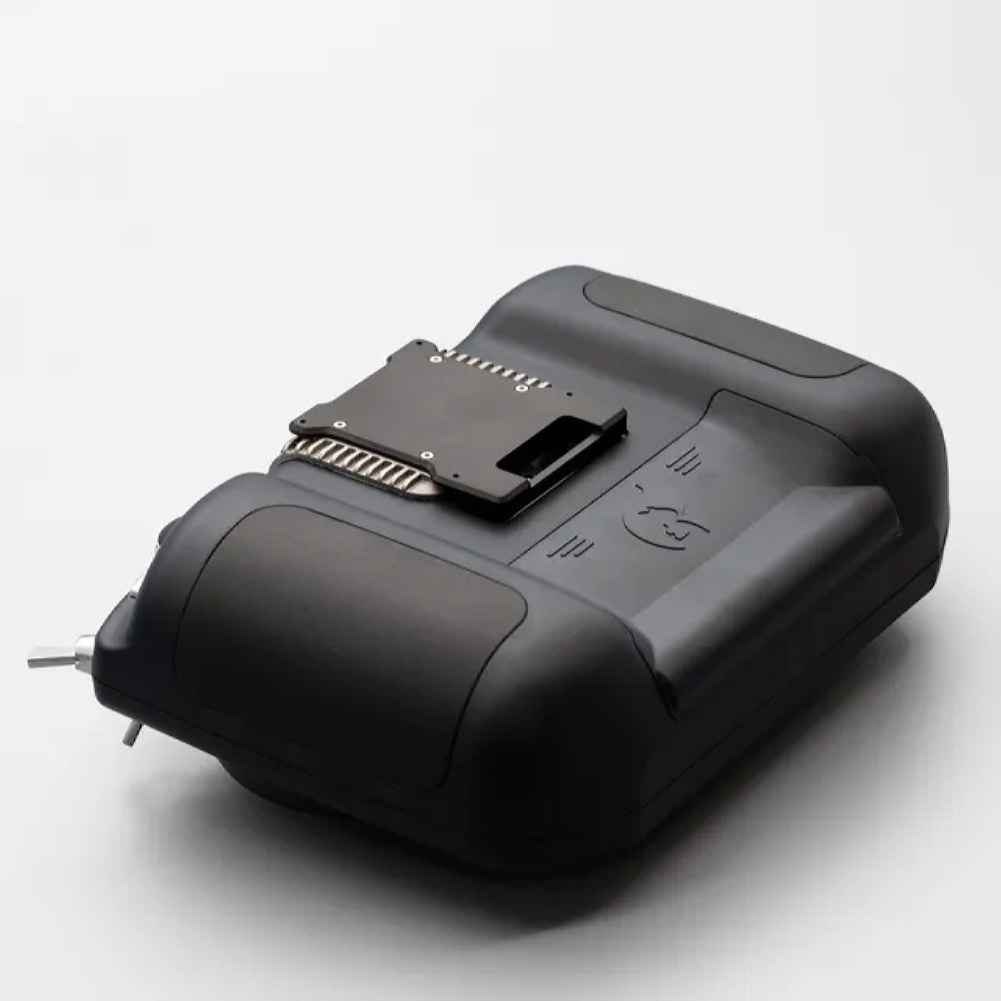

Module bay compatibility: T20
Net Weight: 42g (including antenna)
Firmware updatable: Yes, via USB.
RF Chip Data
Cyprus Semiconductor CYRF6936: DS M/DS M X, Walkera Devo
Texas Instruments CC2500: FrSky, SFHSS
Amiccom A7105: FlySky, FlySky AFHDS2A, Hubsan
Nordic Semiconductor NRF24L01: HiSky, Syma, ASSAN and most other Chinese models
Link to Github repository: https://github.com/pascallanger/DIY-Multiprotocol-TX-Module

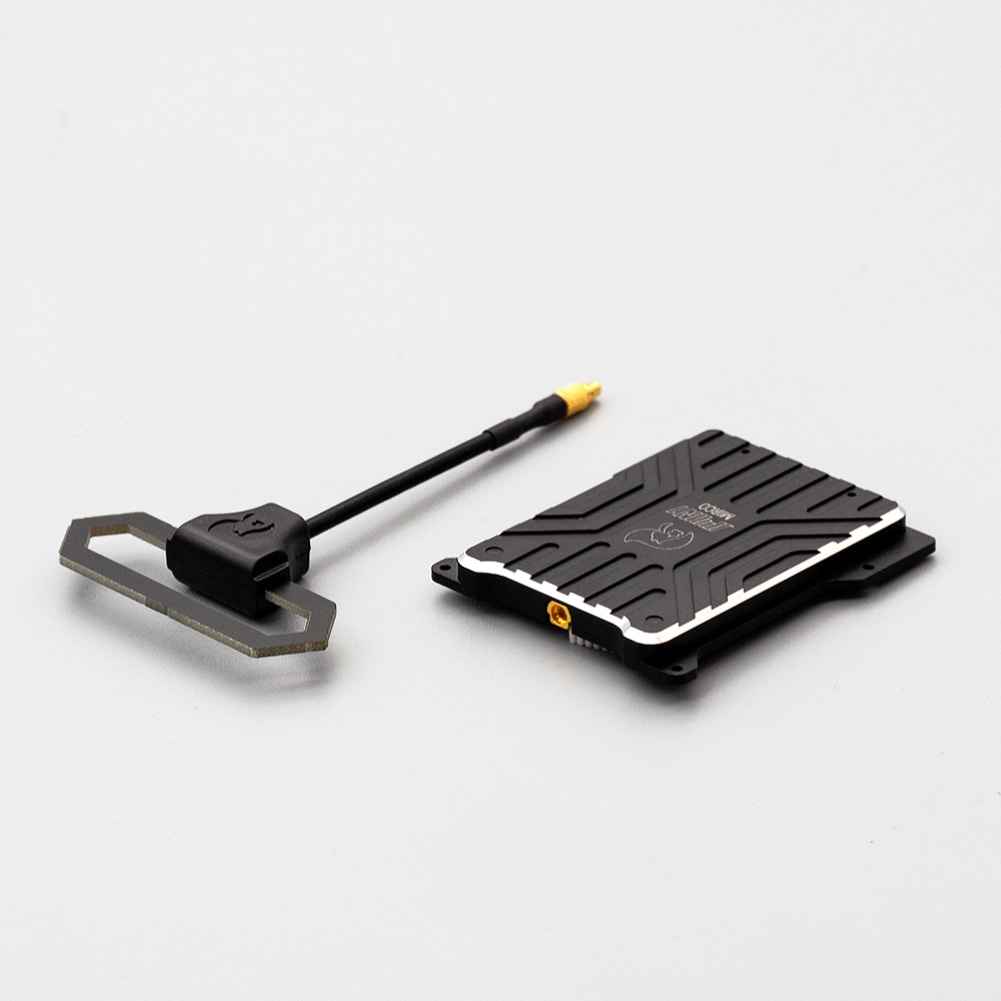

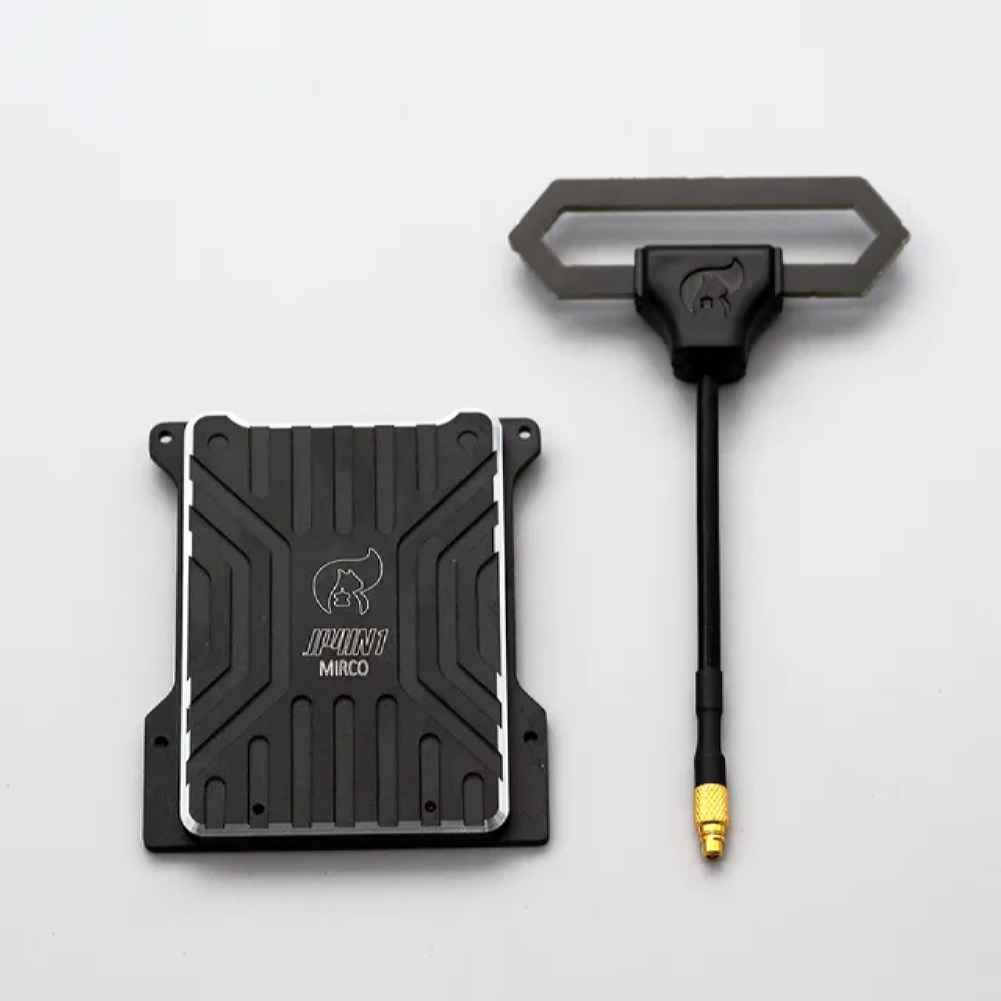

Package Included:
1 x Jumper JP4IN1 MICRO Transmitter Module
1 x Antenna
