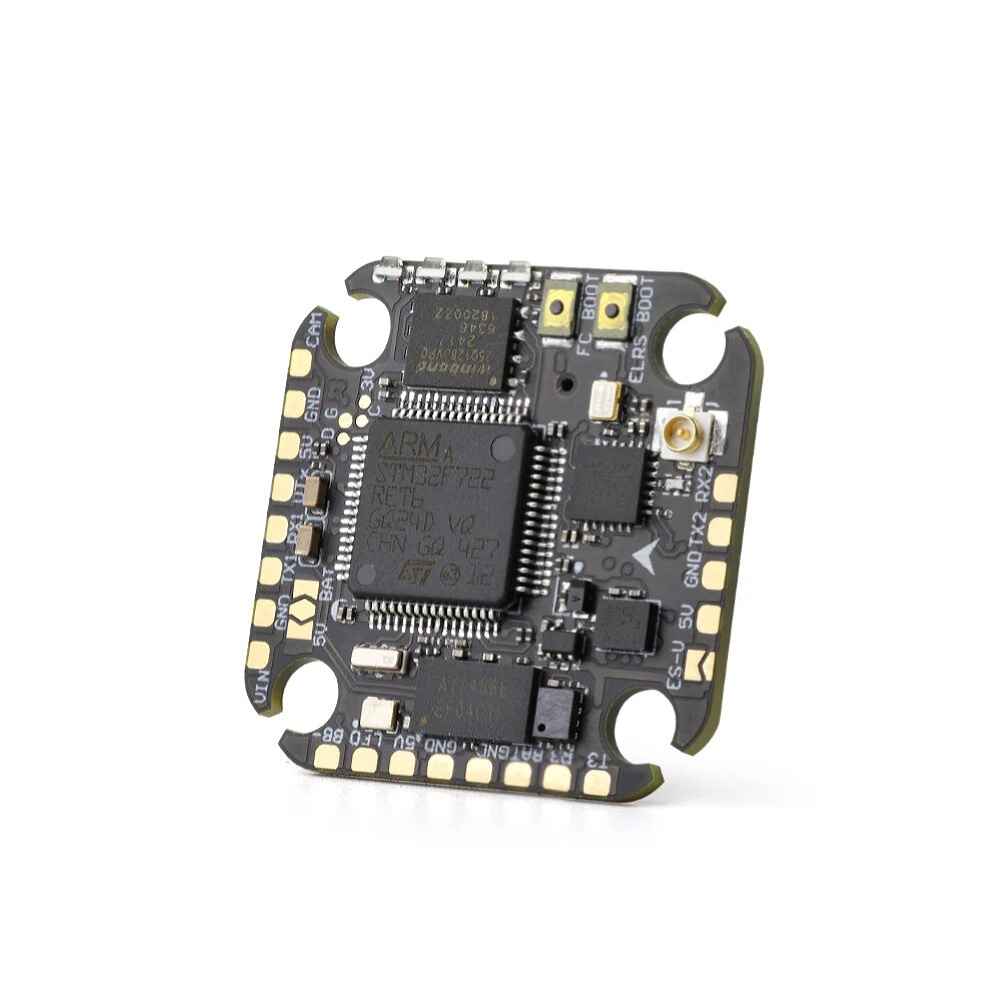

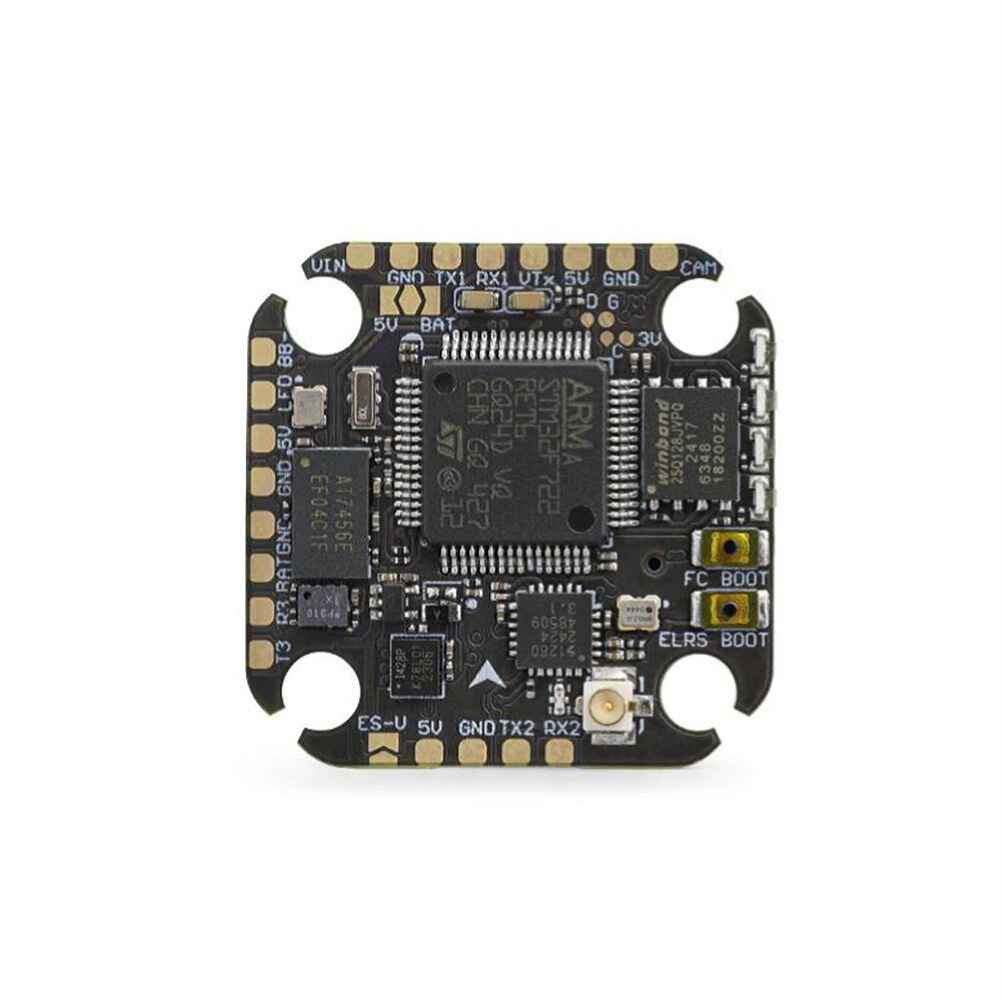

2020mm HGLRC SPECTER F722 Lite 2-6S Flight Controller ICM42688 Built-in ELRS 2.4G Receiver for 3 Inch-7 Inch RC FPV Racing Drones
The HGLRC SPECTER F722 Lite Flight Controller is designed for 3 to 7-inch RC FPV racing drones, featuring an onboard ELRS 2.4G receiver for seamless integration. Its ultra-light 4g design ensures easy installation without compromising space. The F722 main control offers double-precision floating-point acceleration and millisecond-level delay processing, providing a 40% increase in response speed compared to the F4 series. The controller supports high-frequency PID refresh, making it ideal for freestyle and high-speed racing. With a wide voltage power supply range of 8.4V-25.2V (2-6S), it eliminates the need for an external BEC module, simplifying wiring. The flight controller supports 5VBAT voltage output and is compatible with most analog and HD image transmissions.
Feature:
* Minimal integration: The flight control comes with an onboard ELRS 2.4G receiver, and an external receiver is also available. The 4g ultra-featherweight design greatly saves installation space, and the small fuselage can be installed without pressure
* F722 main control: double-precision floating point acceleration, millisecond-level delay processing flight instructions, and 40% increase in response speed (compared to the F4 series); support high-frequency PID refresh, suitable for violent freestyle and extreme speed racing scenes.
* Full scene adaptation: wide voltage power supply 8.4V-25.2V (2-6S), compatible with light 3-inch whoop to 7-inch long-range drone, eliminating the external BEC module, and the wiring is simpler. Support 5VBAT voltage output, compatible with most analog/ HD image transmission.
Specification:
Brand: HGLRC
FC Name: SPECTER F722 Lite
Firmware: HGLRCF722MINI_4.5.1
MCU: STM32F722
Gyroscope: ICM42688P
Barometer: dps310
Operating Voltage: 8.4V-25.2V (2-6S Lipo)
BEC: 5V 2A
Black Box: 16MB
Serial UARTS: 5
Built-in Receiver: ELRS 2.4Ghz R2
OSD: Supported

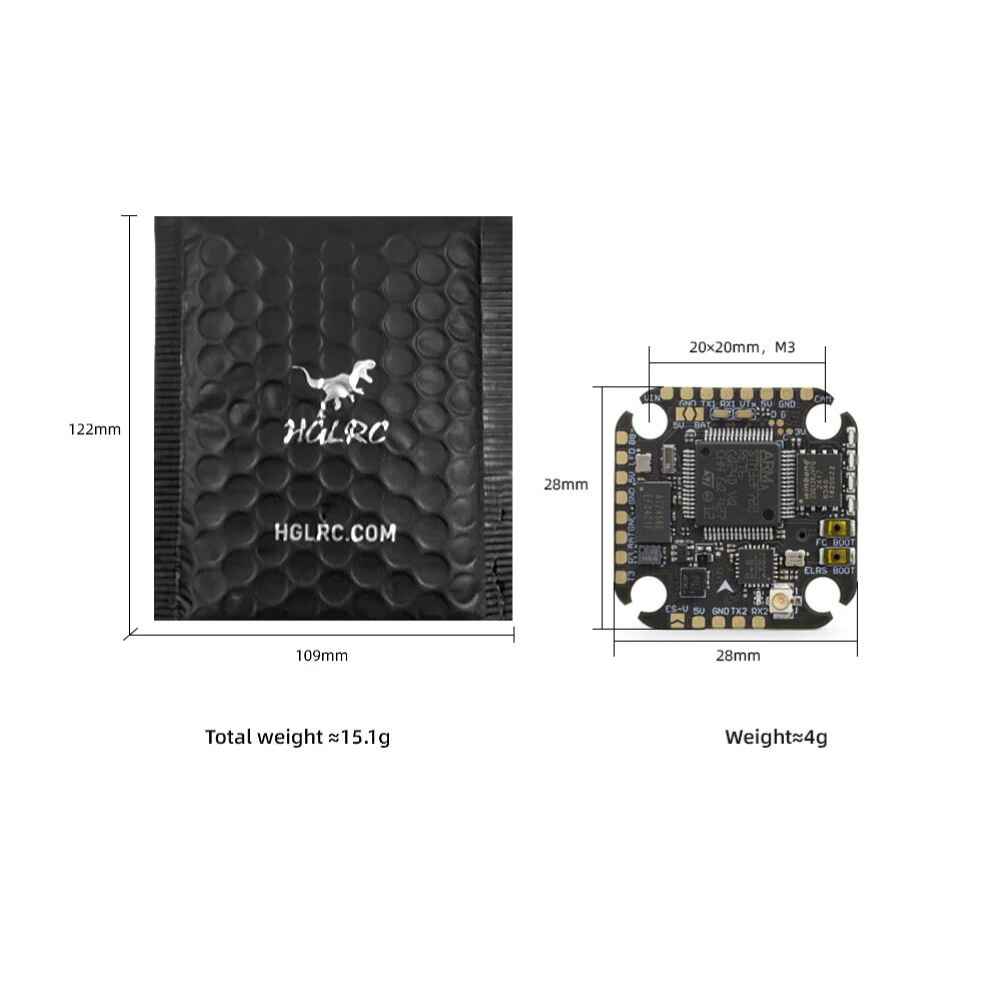

Mounting Holes: 20沁20mm, M3
Size: 28沁28mm
Weight: 4g

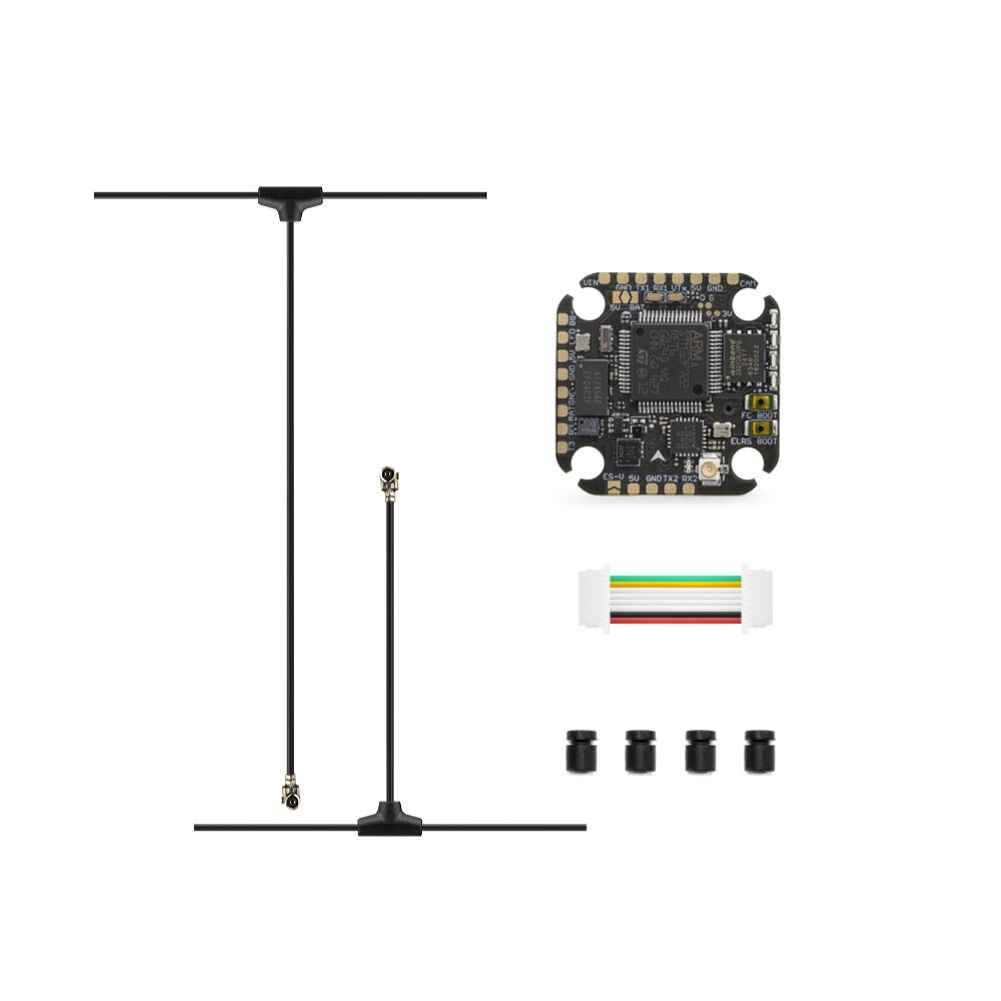

Package Included:
1x SPECTER F722 Lite Flight Controller
1x 25mm 8Pin Flight Control Cable
1x 90mm 2.4G T-type Antenna
1x 40mm 2.4G T-type Antenna
4x M3 8 Shock Absorber
