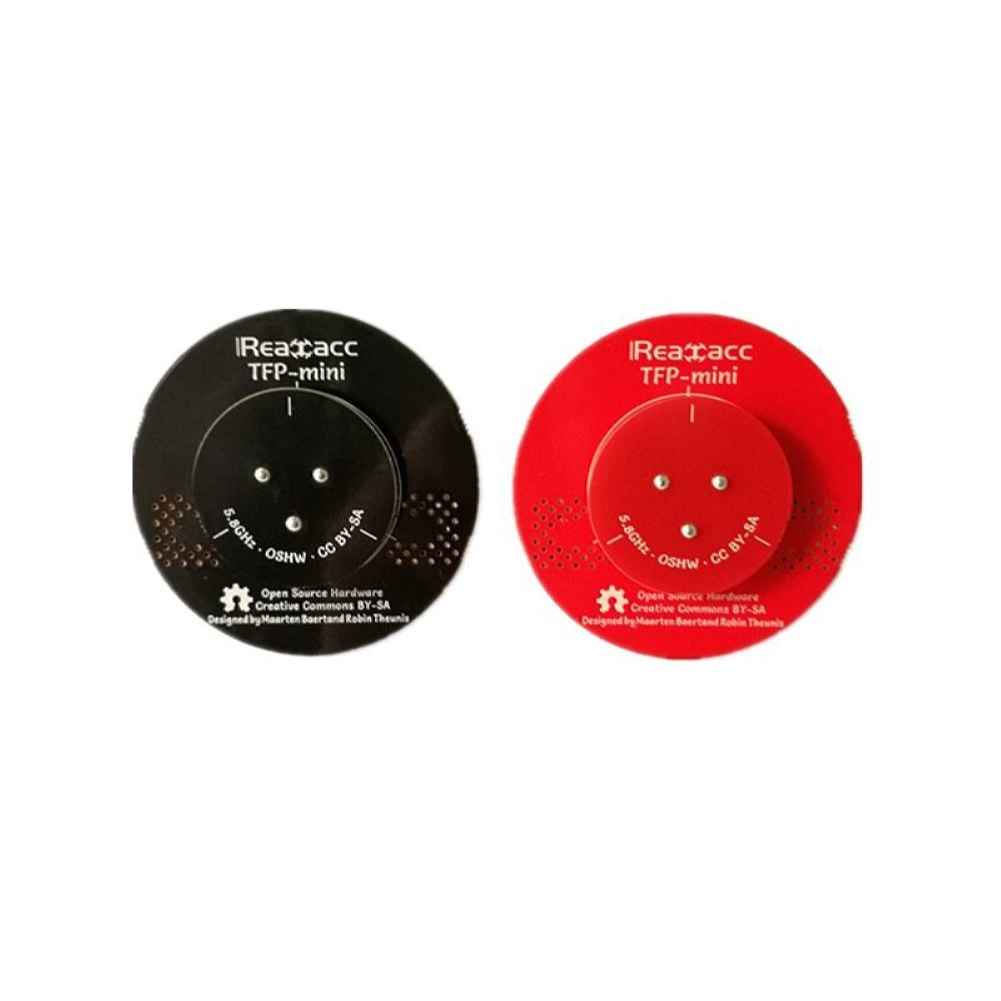

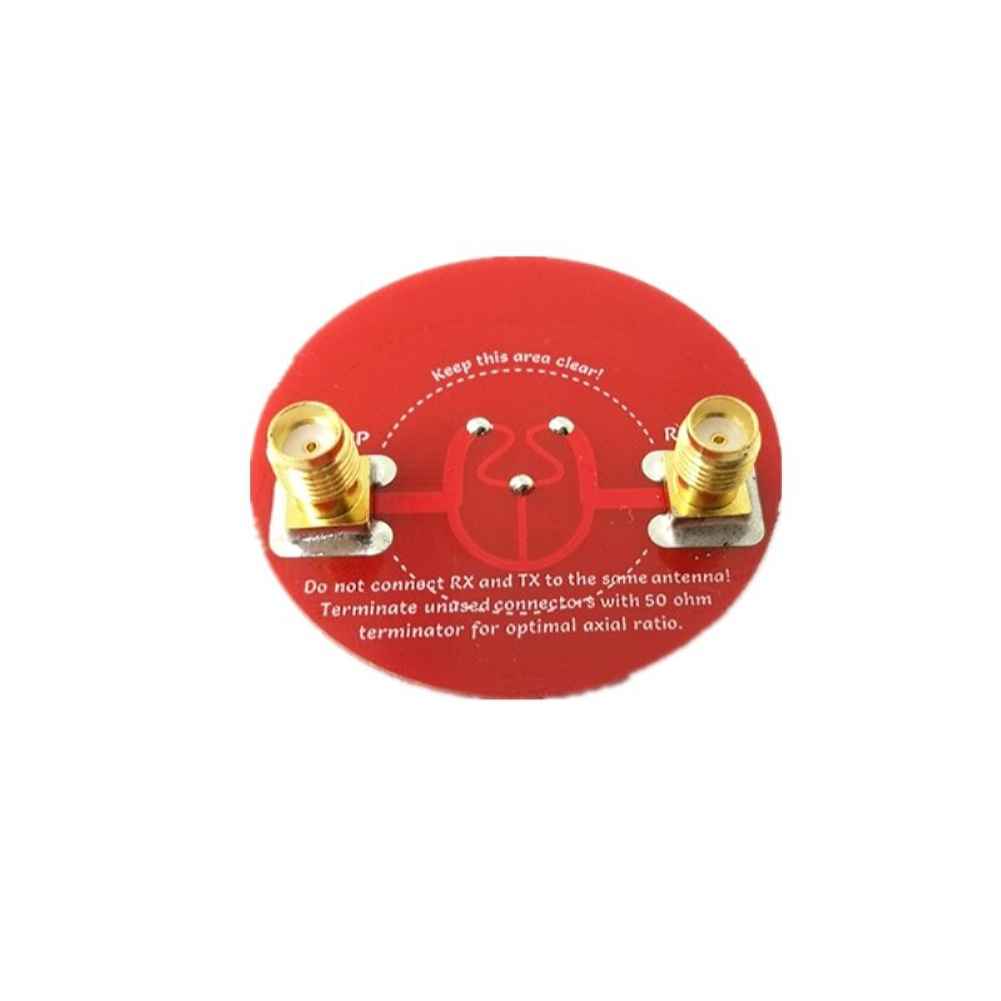

Realacc TFP-Mini Triple Feed Patch Dia. 45mm 5.8G 8dBi FPV Flat Panel Pagoda Antenna With Terminator for Eachine Fatshark Skyzone Goggles
The Realacc TFP-Mini Triple Feed Patch Antenna is designed for optimal performance in FPV systems. With a center frequency of 5.8 GHz and a wide bandwidth of 660 MHz, this antenna ensures high-quality signal reception. It features an impressive antenna gain of 8 dBi and a half power beam width of 65 degrees, both horizontally and vertically, providing excellent coverage. The antenna boasts a low axial ratio of less than 1.3 and a high radiation efficiency of 90%, making it a reliable choice for FPV enthusiasts. The compact 45mm diameter design is ideal for use with Eachine, Fatshark, and Skyzone goggles.
Description
Brand Name : Realacc
Center frequency: 5.8 GHz
Bandwidth: 660 MHz (5.47 藩 6.13 GHz)
Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)

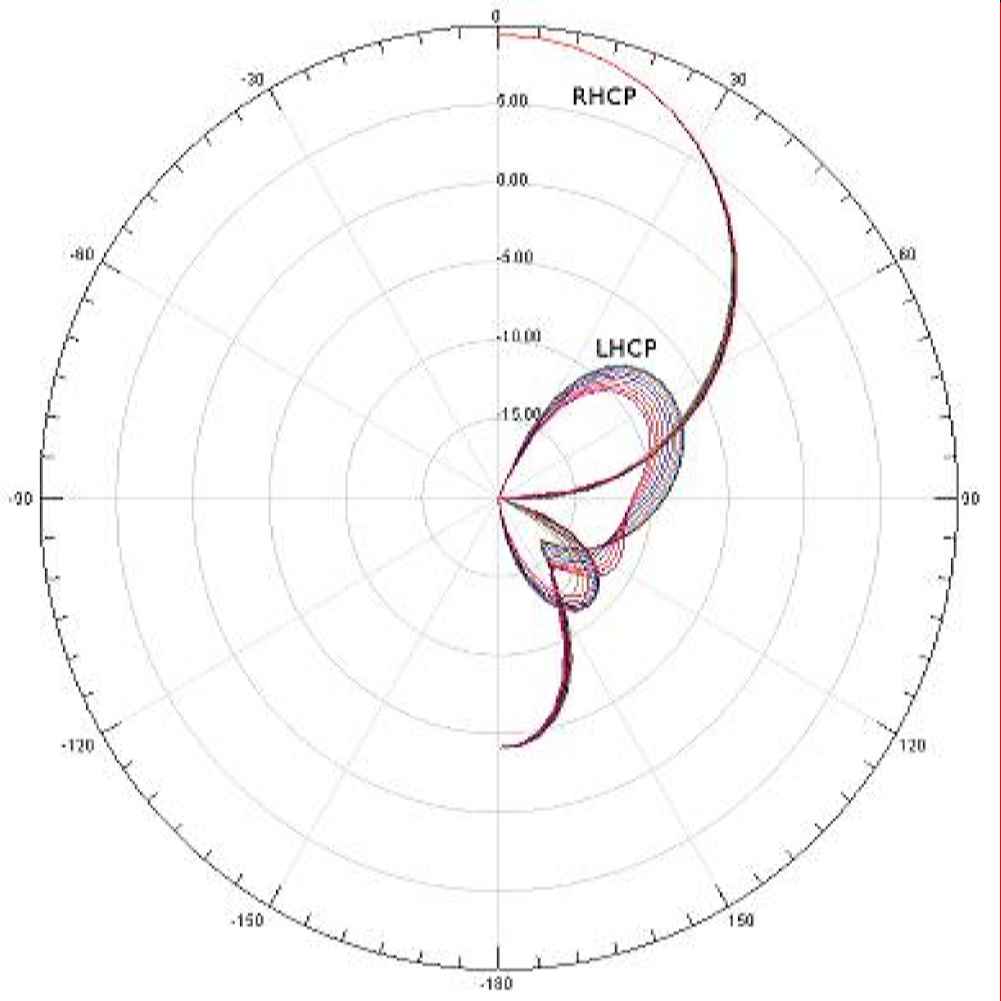

Axial ratio: < 1.3

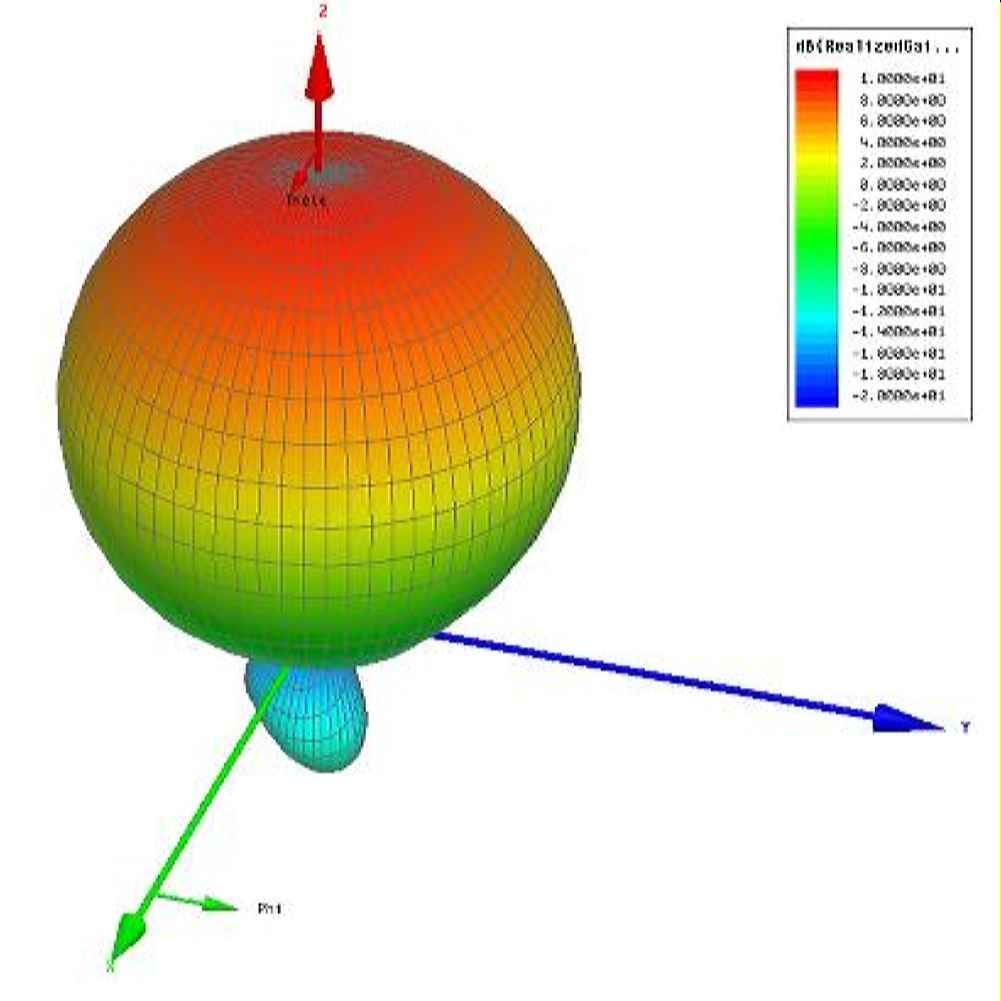

Antenna gain: 8 dBi
Half power beam width: 65‵ (horizontal and vertical)
Radiation efficiency: 90%

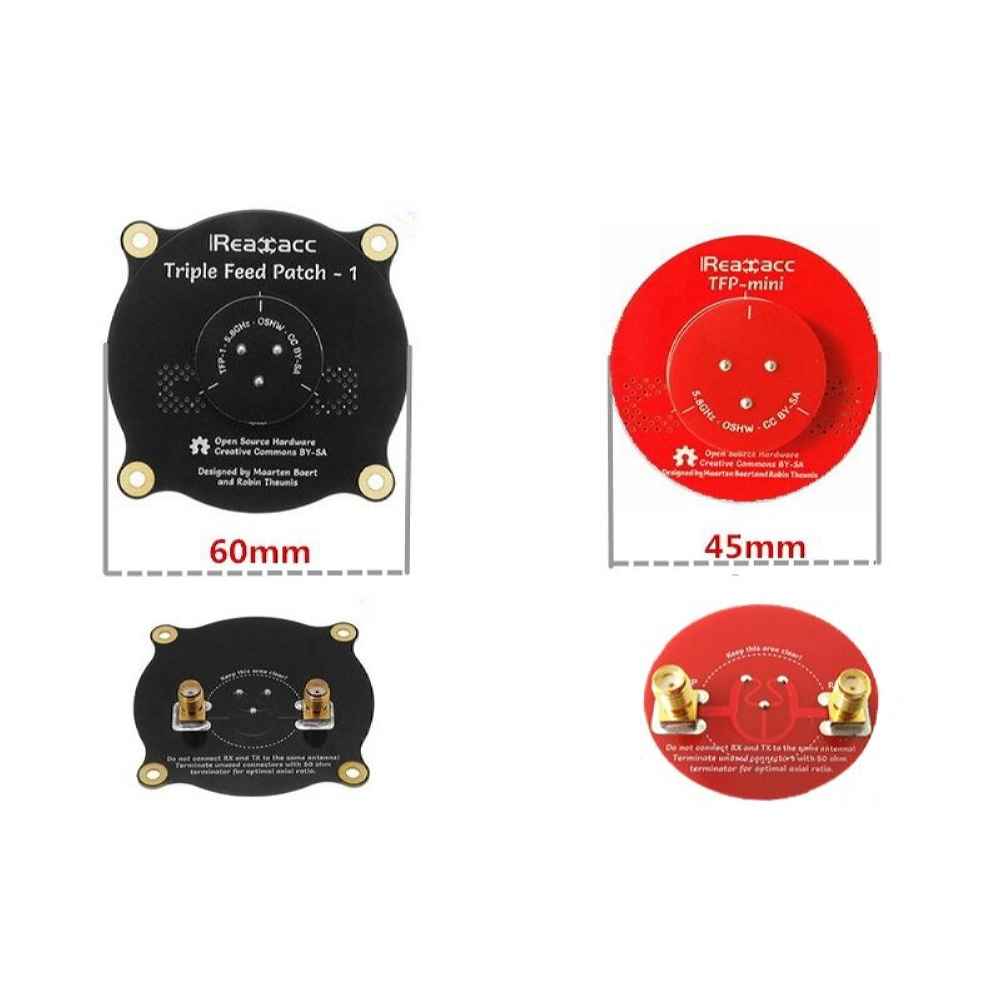

Dia.: 45mm

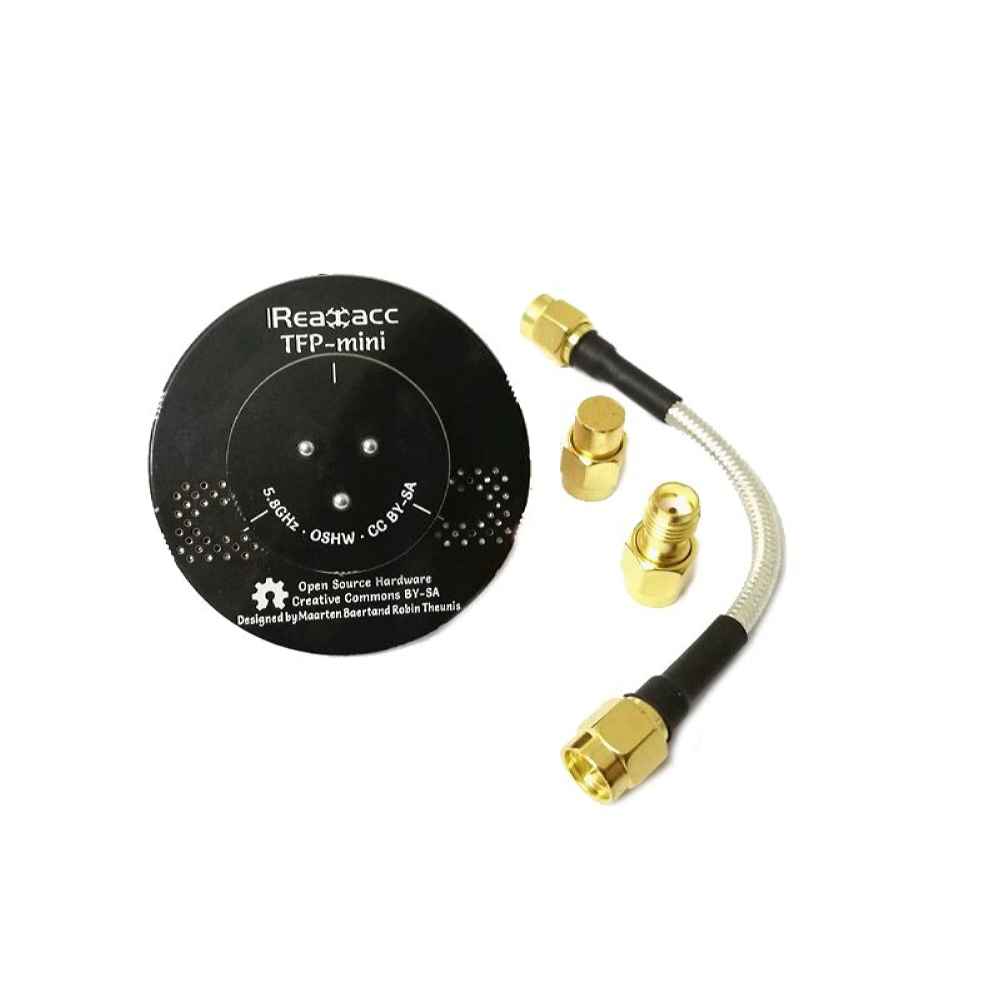

Package Included:
1 x Antenna Plate
1 x SMA Antenna Extension Cable
1 x SMA Female to RP-SMA Male Adapter

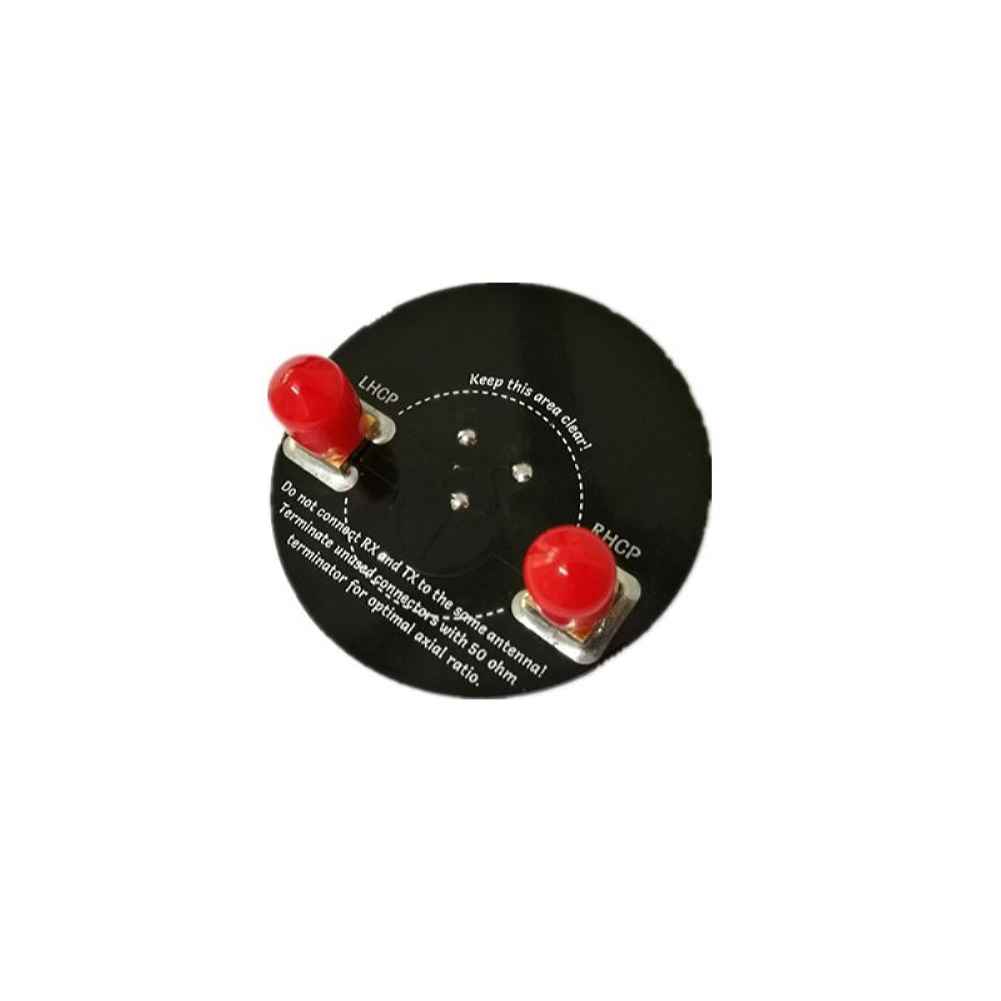

1 x SMA Male Terminal Connector
