FIMI X8 TELE MAX Drone with 4K Dual Camera, 30X Zoom, 47min Flight, GPS, Roklink 5.0, 3-Axis Gimbal

Description

[EU Direct] FIMI X8 TELE MAX Beyond Vision Roklink 5.0 20KM FPV With Dual Camera 4K 60fps 30X ZOOM 3-axis Mechanical Gimbal AI Super Night Video 47mins Flight Time GPS RC Drone Quadcopter RTF

Experience the FIMI X8 TELE MAX Drone, designed for unparalleled aerial photography. Equipped with a dual-camera system featuring a 48MP wide-angle and a 13MP telephoto lens, it offers up to 30X hybrid zoom. Capture stunning 4K/60fps video with silky smoothness, perfect for sports and dynamic scenes. The advanced RokLink 5.0 ensures stable video transmission up to 20km with ultra-low latency. With AI Super Night Video capabilities, achieve clear images even in low-light conditions. Enjoy a remarkable flight time of up to 47 minutes, making it ideal for extended explorations. Please note, returns are not supported without reason; contact official after-sales for assistance.

FIMI X8 TELE MAX Beyond Vision Roklink 5.0 20KM FPV With Dual Camera 4K 60fps 30X ZOOM 3-axis Mechanical Gimbal AI Super Night Video 47mins Flight Time GPS RC Drone Quadcopter RTF

Notice:

This Item does not support no reason to return! If you have any product problems, please contact the official after-sales service
https://www.fimi.com/contact.html
support@fimi.com
Specifications:

Drone

Dimensions

Folded: 204 x 106 x 72.6mm (without propellers)
Unfolded: 242 x 334 x 72.6mm (without propellers)

Diagonal Distance

372mm

Takeoff Weight

Intelligent Flight Battery Approx. 760g
Intelligent Flight Battery Plus Approx. 832g

Max Ascension Speed

5m/s

Max Descent Speed

4m/s

Max Flying Speed

18m/s (in a windless environment at sea level)

Max Takeoff Altitude

沌5000m

Max Hovering Time

Approximately 29 minutes
(Measured with the aircraft stationary, camera parameters set to 720p/30fps, recording mode turned off, hovering at sea level altitude until the remaining battery level reaches 0%, for reference only. Actual flight time may vary; please pay attention to app prompts during actual flights.)

Max Flying Time

38/47 minutes
(Measured with the aircraft flying forward at a speed of 25.2 km/h at sea level altitude, camera parameters set to 720p/30fps, recording mode turned off, until the remaining battery level reaches 0%, for reference only. Actual flight time may vary; please pay attention to app prompts during actual flights.)

Max Tilt Angle

35‵

Max Wind Speed Resistance

12m/s

Operating Temperature Range

0沙40‵C

Sate1lite Navigation Systems

BeiDou/GPS/ Galileo/GLONASS

Hovering Accuracy

Vertical:
呼0.1m (when Vision Positioning is active)
呼0.5m(when GPS is active)
Horizontal:
呼0.3m (when Vision Positioning is active)
呼0.5m (when GPS is active)

Expansion Port

12-PIN data interface (female)

Camera

Lens

FOV 79‵

Aperture

f/1.6

Format Length

4.71mm

Format Equivalent

24mm

Sensor

1/2-inch CMOS

Effective Pixels

48 million

ISO Range

Video Manual 100-6400Video Automatic 100-25600Photo 100-6400

Shutter Speed

2s-1/8000s

Max Photo Resolution

8064 沁 6048

Max Video Resolution

3840 沁 2160@60/30/25/24fps

Max Video Bitrate

100Mbps

Video Format

MP4

Photo Format

JPEG/DNG

Digital Zoom

1-5x

File System

FAT32/exFAT

Recommended Memory Card

Micro SD 8~256GB (Class 10 or U3 above)

Remote Controller

Product Weight

Approx. 373g

Dimensions

204 x 91 x 47mm

Operating Frequency

2.4000GHz to 2.4835GHz

Max Battery Life

8 hours (Without charging the mobile device)
4 hours (Charging the mobile device)

Battery Type

Li-ion

Battery Capacity

3900mAh

Nominal Voltage

3.7V

Input

5V=2A

Operating Temperature Range

0沙40‵C

Charging Temperature Range

5沙40‵C

Max Signal Effective Range
(No interference, no obstruction)

FCC: Approximately 20km
The above data is measured in an outdoor open environment without interference and is the farthest communication distance for one-way non-return flights under various standards. Please pay attention to the app’s return prompts during actual flights.

Minimum Latency

Approx. 120 milliseconds

Supported Mobile Device Interface Types

Lighting, USB-C, Micro-USB

Gimbal

Three-axis Mechanical Gimbal

– 115‵ ~ 40‵ (Pitch)
– 40‵ ~ 40‵ (Roll)
– 40‵ ~ 40‵ (Yaw)

Controllable Rotation Range

10‵ -90‵ (Pitch)

Angular Vibration Range

呼0.005‵

Intelligent Flight Battery

Capacity

4650mAh

Weight

Approx. 260g

Nominal Voltage

11.55V

Charging Limited Voltage

13.2V

Battery Type

Li-Po 3S

Energy

53.7Wh

Operation Temperature

0沙40‵C

Intelligent Flight Battery Plus

Capacity

5000mAh

Weight

Approx. 333g

Nominal Voltage

14.4V

Charging Limited Voltage

16.8V

Battery Type

Li-ion 4S

Energy

72Wh

Operation Temperature

0沙40‵C

Charging Hub

Input USB-C

5V-20V

Fast Charging Protocols

Supports PD, QC3.0

Output (Charging)

Battery Interface: 13.05V-17.6V

Operation Temperature

5沙40‵C

Charger

Input

100V – 240V (AC), 50Hz – 60Hz, 1.5A

Output

USB-C
5.0V – 3.0A, 9.0V – 3.0A
12.0V – 3.0A, 15.0V – 3.0A
20.0V – 2.25A

Rated Power

45W

App

FIMI Navi 3.0

iOS 12.0 or later , Android 9.0 or later

Camera Specifications:

Wide-Angle Camera

Tele Camera

Image Sensor

1/2-inch CMOS

1/2.5-inch CMOS

Lens

FOV 79‵

FOV 21.5‵

Aperture

F/1.6

F/3.0

Format Length

4.71mm

14.46mm

Format Equivalent

24mm

120mm

Focus

1m to ?

10m to ?

Effective Pixels

48 million

13 million

ISO Range

Video Manual 100-6400Video Automatic 100-25600Photo 100-6400

Video 100-6400Photo 100-6400

Shutter Speed

1/8000s – 2s

1/8000s – 2s

Max Photo Size

8064×6048

4000×3000

Max Video Resolution

3840 沁 2160@60/30/25/24fps

3840 沁 2160@30/25/24fps

Max Bitrate

100Mbps

100Mbps

Video Format

MP4

MP4

Photo Format

JPEG

JPEG

File System

FAT32/exFAT

FAT32/exFAT

Digital Zoom

1-5x

5-30x

Features:
1. Dual Cameras SystemFIMI’s dual-camera system includes a Sonies 1/2-inch 48 million pixels wide-angle camera and a 1/2.5-inch 13 million pixels 5x tele camera. The dual cameras work together to support 30x hyybrid zoom, covering both expansive scene narration and detailed insights into the distance. With up to 30x zoom capability, even details of subjects and scenes 2KM away can be discerned.2. 4K/60fps VideoSupports 4K/60fps high-speed video recording, each frame is full of lively details, and sports scenes are smoother and silkier. Higher resolution and higher frame rate bring sufficient space for post-production upscaling and lossless zoom in processing.3. New Generation RokLink 5.0 20KM digital Video Transmission SystemThe RokLink 5.0 system features enhanced RF sensitivity and improved adjacent frequency suppression. Leveraging modern communication technologies, it supports adaptive fast frequency hopping and dynamic modulation and coding, intelligently detecting electromagnetic interference and automatically adjusting uplink and downlink bandwidth. This ensures stable and clear image transmission with a range of up to 20 km and ultra-low latency as low as 120 ms, capturing distant landscapes with an immersive experience.4. AI Super Night VideoThe latest Generation AI ISP, super photosensitive and noise reduction, improves the signal-to-noise ratio by 4 times, can challenge larger image sensors, and capture pure and translucent images in low-light environments at night.

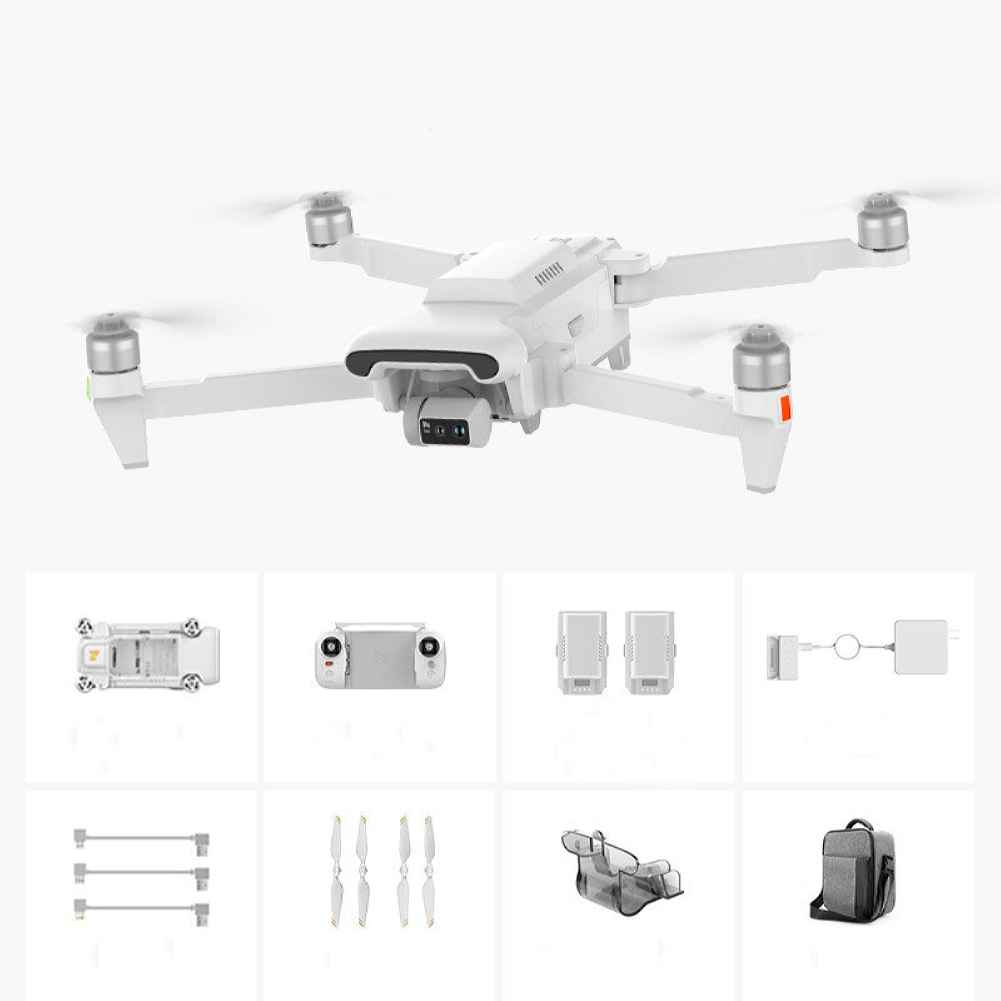

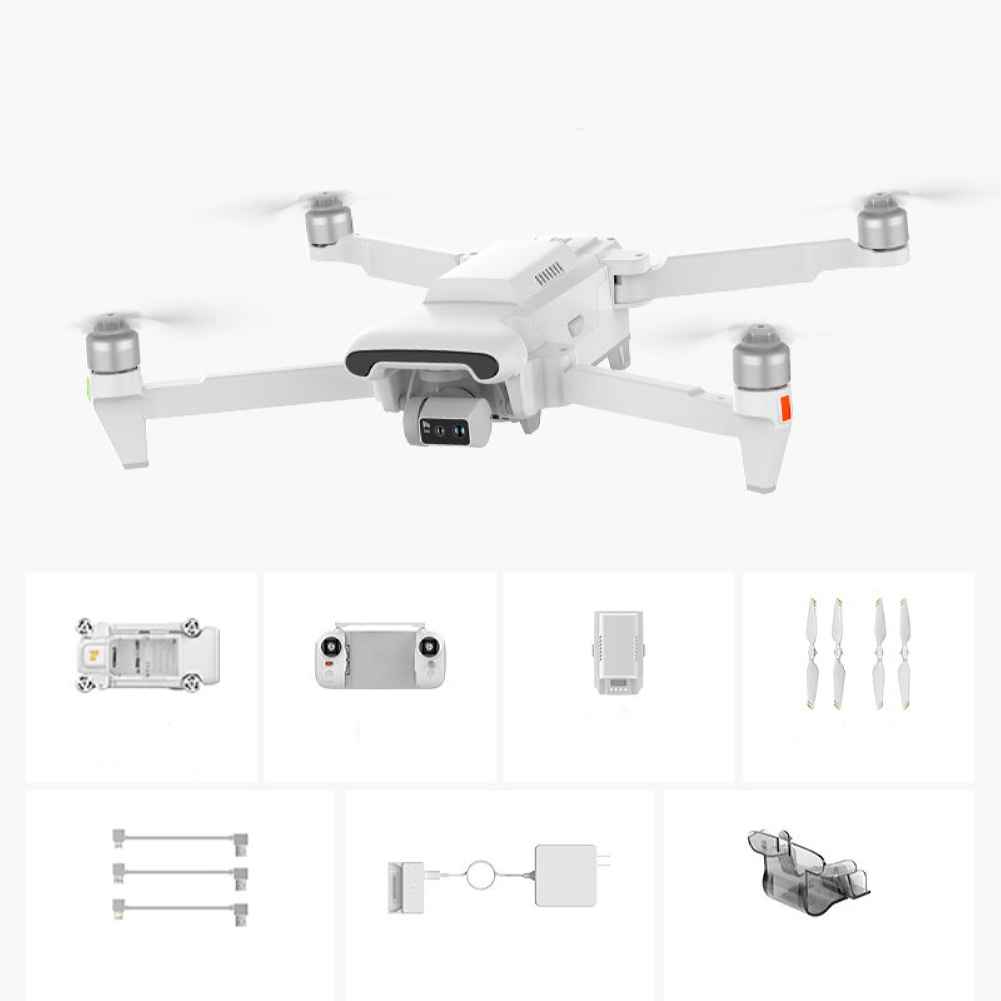

Package Included:
1 x X8 TELE MAX Quadcopter (with camera)
1 x Remote Controller
1 x Intelligent Flight Battery Plus
1 x Charger
3 x USB Cable
4 x Spare Propeller
1 x Gimbal Cover
2 x Manual
