DJI NEO 135g Ultralight Drone with 4K Stabilized Video, AI Tracking, Quickshots, Palm Takeoff/Landing, RC Quadcopter

Description

DJI NEO 135g Ultralight with 4K Ultra-Stabillized Video AI Subject Tracking Quickshots Multiple Control Palm Takeoff Landing RC Drone Quadcopter RTF

The DJI NEO is an ultralight drone weighing only 135g, designed for seamless aerial photography and videography. It features a 1/2-inch image sensor and captures stunning 4K video with advanced stabilization. With AI subject tracking and Quickshots, capturing dynamic footage is effortless. The drone offers multiple control options and supports palm takeoff and landing for ease of use. It can fly up to 18 minutes and resist wind speeds up to 8 m/s. The DJI NEO also includes full-coverage propeller guards for added safety. Compatible with the DJI RC-N3 controller, it ensures a smooth and responsive flying experience.

Specifications:

NEO

Takeoff Weight

Approx. 135 g

Dimensions

130 沁 157 沁 48.5 mm (L沁W沁H)

Max Ascension Speed

0.5 m/s (Cine Mode)
2 m/s (Normal Mode)3 m/s (Sport Mode)

Max Descent Speed

0.5 m/s (Cine Mode)
2 m/s (Normal Mode)2 m/s (Sport Mode)

Max Horizontal Speed (near sea level, no wind)

6 m/s (Normal Mode)
8 m/s (Sport Mode)16 m/s (Manual Mode)

Max Takeoff Altitude

2000 m

Max Flying Time

Approx. 18 mins (Approx. 17 mins with the Propeller Guards)
Each battery allows Neo to perform at least 20 palm takeoff and landing for shoots in succession

Max Hovering Time

Approx. 18 mins (Approx. 17 mins with the Propeller Guards)

Max Flying Distance

7 km

Max Wind Speed Resistance

8 m/s (Level 4)

Operating Temperature

-10‵ to 40‵ C (14‵ to 104‵ F)

Class

C0 (EU)

Camera

Image Sensor

1/2-inch Image Sensor

Lens

FOV: 117.6‵
Format Equivalent: 14 mmAperture: f/2.8Focus: 0.6 m to ?

ISO Range

100-6400 (Auto)
100-6400 (Manual)

Shutter Speed

Video: 1/8000-1/30 s
Photo: 1/8000-1/10 s

Max Image Size

12 MP Photo
4000沁3000 (4?3)4000沁2256 (16?9)

Still Photography Modes

Single/Timed Shot

Photo Format

JPEG

Video Resolution

EIS Off:
4K (4:3): 3840沁2880@30fps1080p (4:3): 1440沁1080@60/50/30fpsEIS On:4K (16:9): 3840沁2160@30fps1080p (16:9): 1920沁1080@60/50/30fps

Video Format

MP4

Max Video Bitrate

75Mbps

Supported File System

exFAT

Color Mode

Normal

EIS

Supports RockSteady, HorizonBalancing, and turning stabilization off.

Gimbal

Stabilization

Single-axis mechanical gimbal (tilt)

Mechanical Range

Tilt: -120‵ to 120‵

Controllable Range

Tilt: -90‵ to 60‵

Max Control Speed (tilt)

100‵/s

Angular Vibration Range

呼0.01‵

Image Roll Correction

Supports correction of footage recorded on NEO
Live view correction is unavailable only when used with additional accessories.

Sensing

Sensing Type

Downward Visual Positioning

Downward

Precise Hovering Range: 0.5-10 m

Operating Environment

Downward:
Non-reflective, discernible surfaces with diffuse reflectivity of >20%
(such as walls, trees, or people)Adequate lighting (lux > 15, normal indoor lighting conditions)

Battery

Capacity

1435 mAh

Weight

Approx. 45 g

Nominal Voltage

7.3 V

Max Charging Voltage

8.6 V

Type

Li-ion

Energy

10.5 Wh

Charging Temperature

5‵ to 40‵ C (14‵ to 104‵ F)

Charging Time

When Using the Two-Way Charging Hub (60W max charging power):
Approx. 60 minutes to charge three batteries simultaneously from 0% to 100%
When Directly Charging Neo (15W max charging power):
Approx. 50 minutes to charge from 0% to 100%

Wi-Fi

Protocol

802.11a/b/g/n/ac

Operating Frequency

2.400-2.4835 GHz5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz: < 20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz:‘20 dBm (FCC/SRRC)‘14 dBm (CE)

Effective Operating Range

50 m

Bluetooth

Protocol

Bluetooth 5.1

Operating Frequency

2.400-2.4835 GHz

Transmitter Power (EIRP)

‘ 10 dBm

Battery Charging Hub

Input

5 V, 3 A
9 V, 3 A12 V, 3 A15 V, 3 A20 V, 3 A

Output (Charging)

5 V, 2 A

Charging Type

3 batteries charged simultaneously

Compatibility

DJI Neo Intelligent Flight Battery

Charger

Recommended Charger

DJI 65W Portable Charger
USB Power Delivery charger

RC-N3 Version:

DJI RC-N3 Remote Controller

Operating Temperature

Without Charging Any Mobile Device: 3.5 hours
When Charging a Mobile Device: 1.5 hours

Operating Temperature

-10‵ to 40‵ C (14‵ to 104‵ F)

Charging Temperature

5‵ to 40‵ C (41‵ to 104‵ F)

Charging Time

2 hours

Charging Type

5 V, 2 A

Battery Capacity

2600 mAh

Weight

Approx. 320 g

Dimensions

104.2沁150沁45.2 mm (L沁W沁H)

Operating Frequency

2.400-2.4835 GHz5.170-5.250 GHz5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz:
‘33 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.1 GHz:< 23 dBm (CE)5.8 GHz:‘33 dBm (FCC)< 14 dBm (CE)< 30 dBm (SRRC)

Video Transmission

Video Transmission System

O4

Live View Quality

With DJI RC-N3 Remote Controller: Up to 1080p/60fps
With DJI Goggles 3 plus DJI RC Motion 3/DJI FPV Remote Controller 3: Up to 1080p/60fps

Operating Frequency

2.400-2.4835 GHz5.170-5.250 GHz5.725-5.850 GHz

Transmitter Power (EIRP)

2.4 GHz:
‘26 dBm (FCC)< 20 dBm (CE/SRRC/MIC)5.1 GHz:< 23 dBm (CE)5.8 GHz:‘26 dBm (FCC)< 14 dBm (CE)< 26 dBm (SRRC)

Communication Bandwidth

Max 40 MHz

Max Transmission Distance (unobstructed, free of interference)

FCC: 10 kmCE: 6 kmSRRC: 6 kmMIC: 6 km

Max Transmission Distance (unobstructed, with interference)

Strong Interference (urban landscape): Approx. 1.5-3 kmMedium Interference (suburban landscape): Approx. 3-6 kmLow Interference (suburb/seaside): Approx. 6-10 km

Max Transmission Distance (obstructed, with interference)

Low Interference and Obstructed by Buildings: Approx. 0-0.5 kmLow Interference and Obstructed by Trees: approx. 0.5-3 km

Max Download Speed

Wi-Fi: 25 MB/s

Lowest Latency

With DJI RC-N3 Remote Controller: Approx. 120 ms

Max Video Bitrate

50Mbps

Antennas

Two antennas, 1T2R

Features:
– 135g Only, Light & Portable- Palm Takeoff & Landing- Easy Editing with QuickShots- Multiple Control Options- 4K Ultra-Stabilized Video- Full-Coverage Propeller Guards

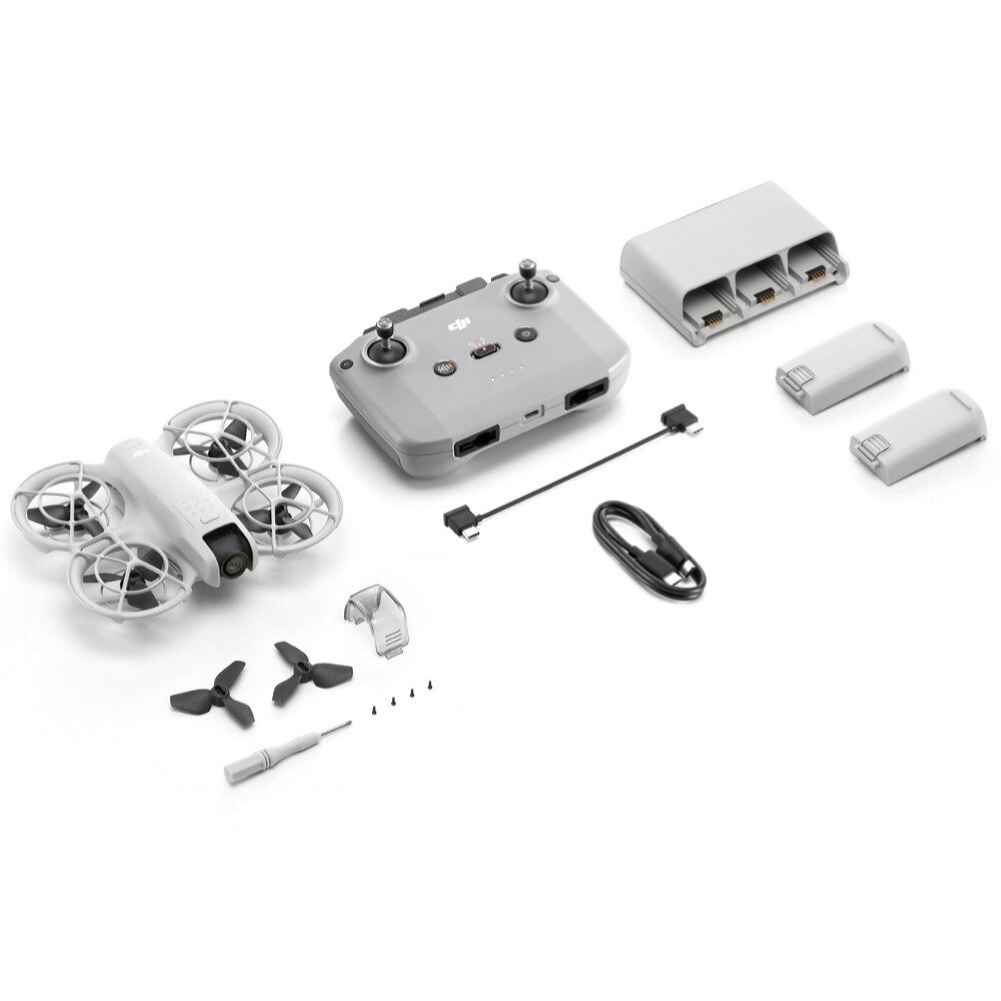

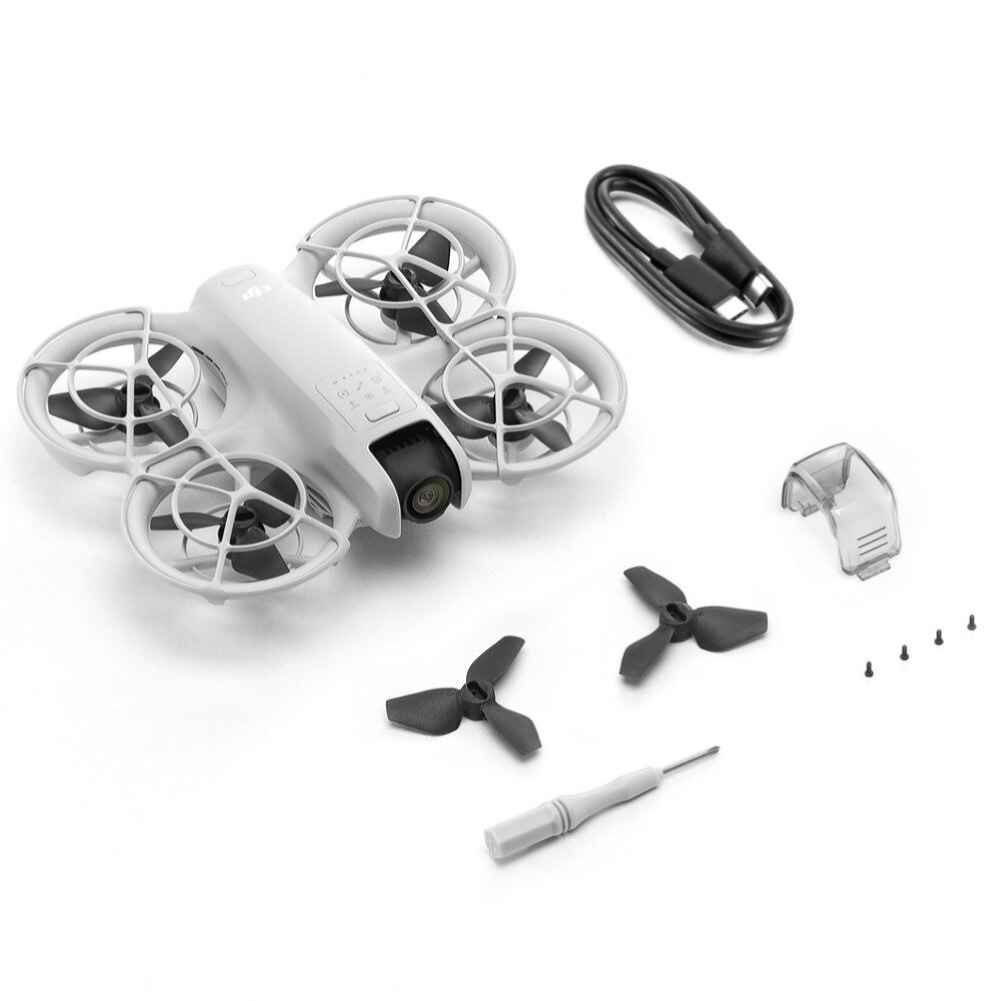

Package Included:
1 x DJI NEO 1 x Intelligent Flight Battery 1 x Propeller Guard 2 x Spare Propellers 1 x Gimbal Protector 1 x Type-C to Type-C PD Cable 1 x Screwdriver 4 x Spare Propeller Screw
