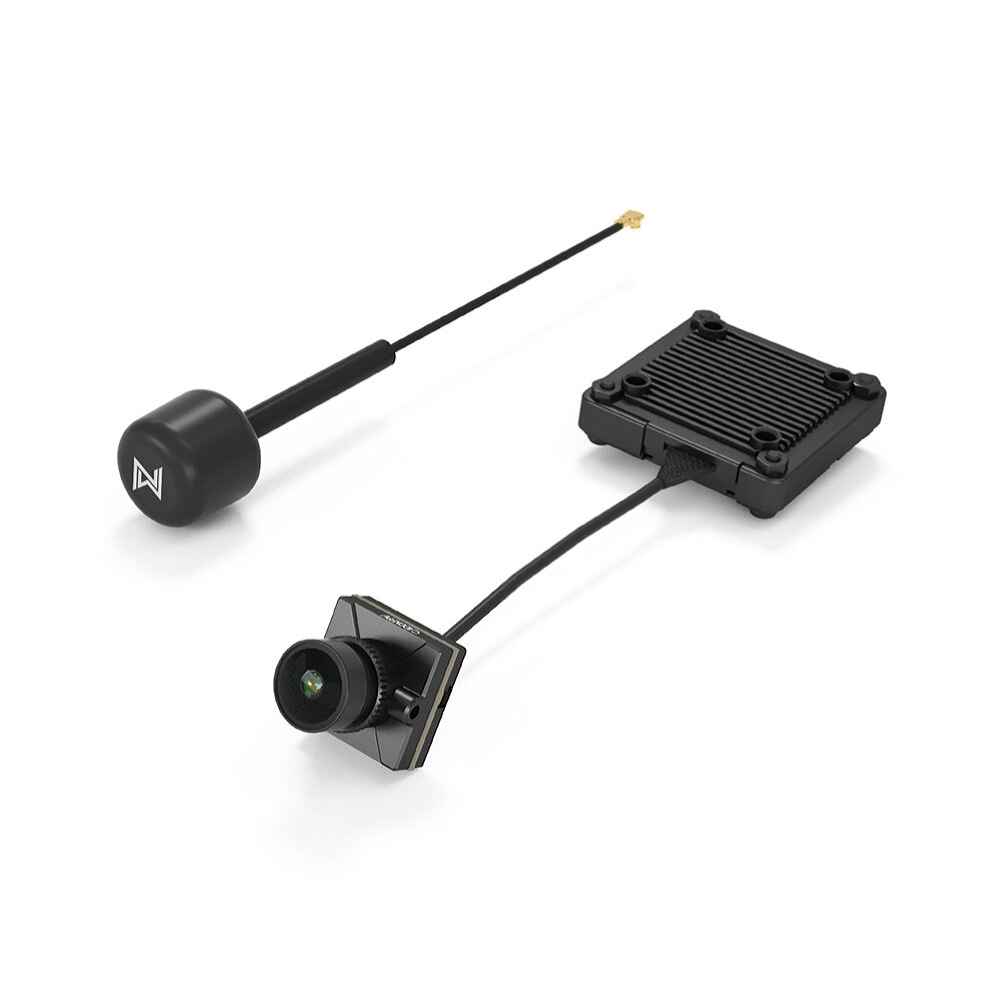

Walksnail Avatar HD Nano Kit V3, 1080P/60fps FPV Transmitter, 5.8GHz Digital System, 1/3.2 Inch 2.1mm 160‵ Camera, 14x14mm, Built-in 32G Storage

Description

Walksnail Avatar HD Nano Kit V3 5.8GHz Digital System FPV Transmitter 1080P 60fps Recording VTX 1/3.2 Inch 2.1mm 160 Camera 14*14mm

The Walksnail Avatar HD Nano Kit V3 offers high-definition FPV experience with its 1080P/60fps recording capability and a 4:3 native sensor. This compact kit includes a 2.1mm lens and 160～ field of view, ensuring clear and immersive visuals. Suitable for a variety of drones, it supports a voltage input range of 3.1V to 13V and 500mW power output. The built-in 32G storage allows for uninterrupted recording without the need for an additional SD card, reducing weight and extending flight time. Compatible with Betaflight, Inav, and Ardupilot, it offers full OSD display customization for a personalized flying experience.

Specifications:

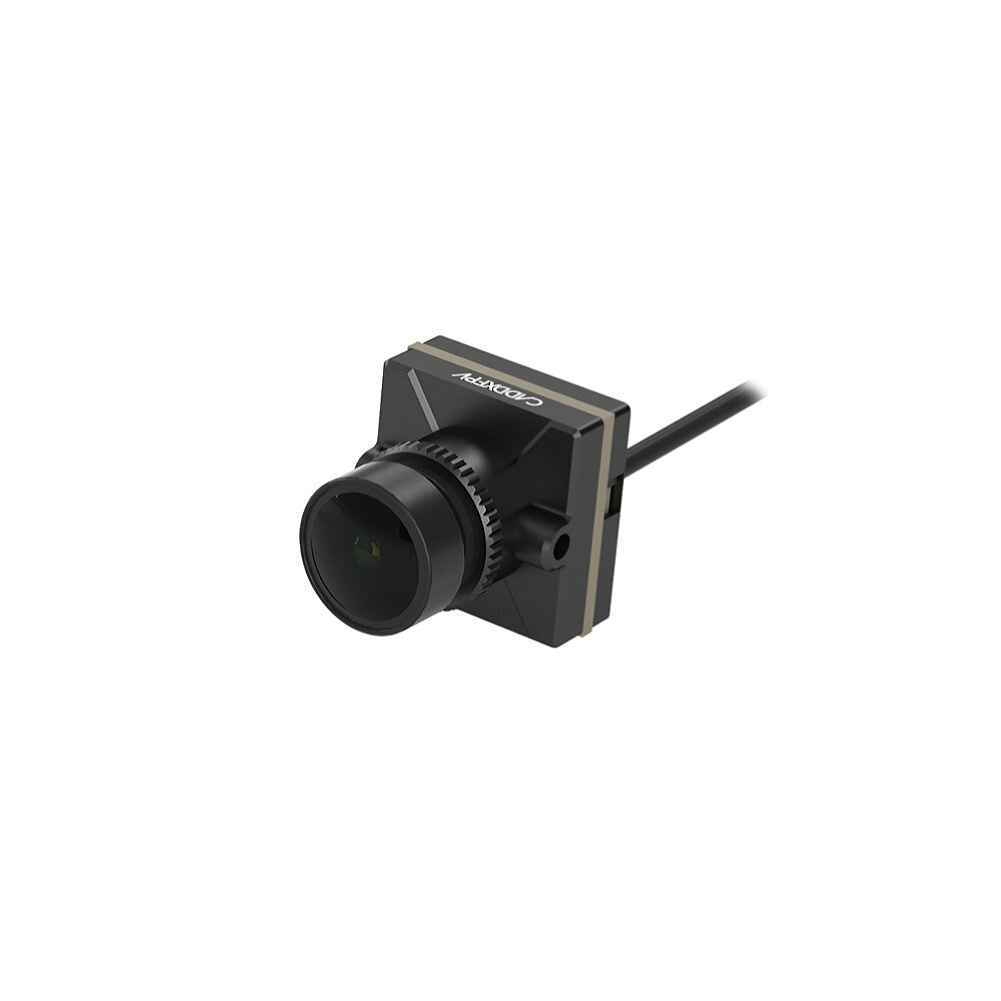

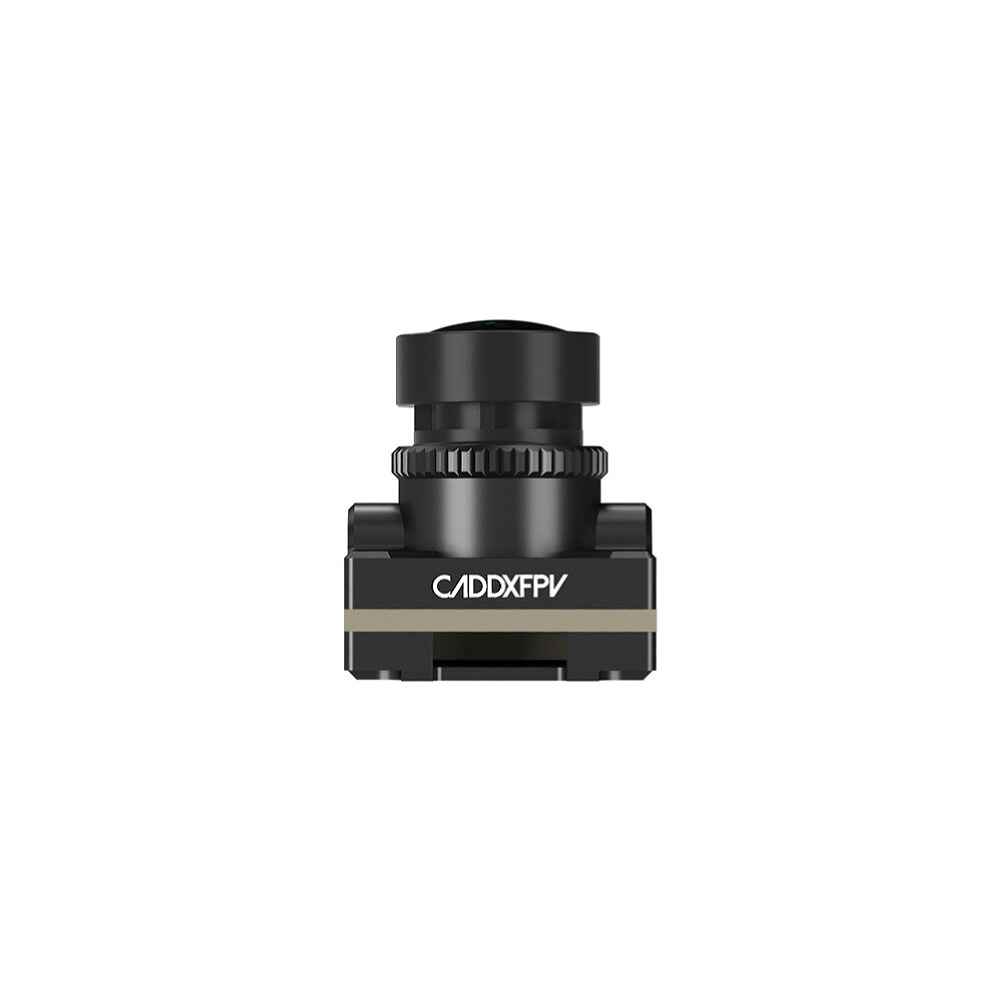

Camera

Model:

Avatar HD Nano Camera V3

Image Sensor:

1/3.2-Inch 4Mp 4:3 sensor

Resolution:

1080P/60fps,720P/120fps,720P/60fps

Ratio:

4:3 nativee / 16:9

Lens:

2.1mm

FOV:

160‵

Aperture:

F2.0

Shutter:

Rolling Shutter

Min.Illumination:

0.001Lux

Weight:

3g侈without cable佩

Dimensions:

14*14*16.8mm

Coaxial Cable:

90mm(default)/140mm

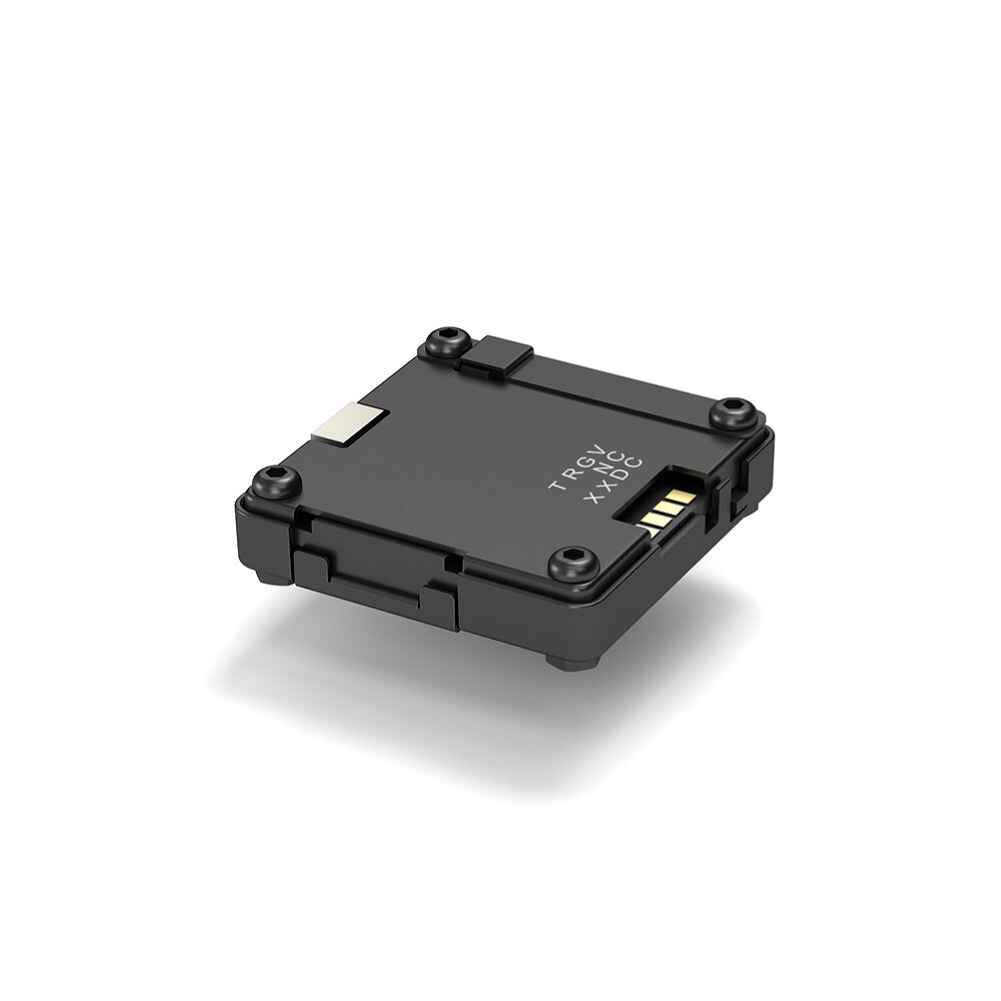

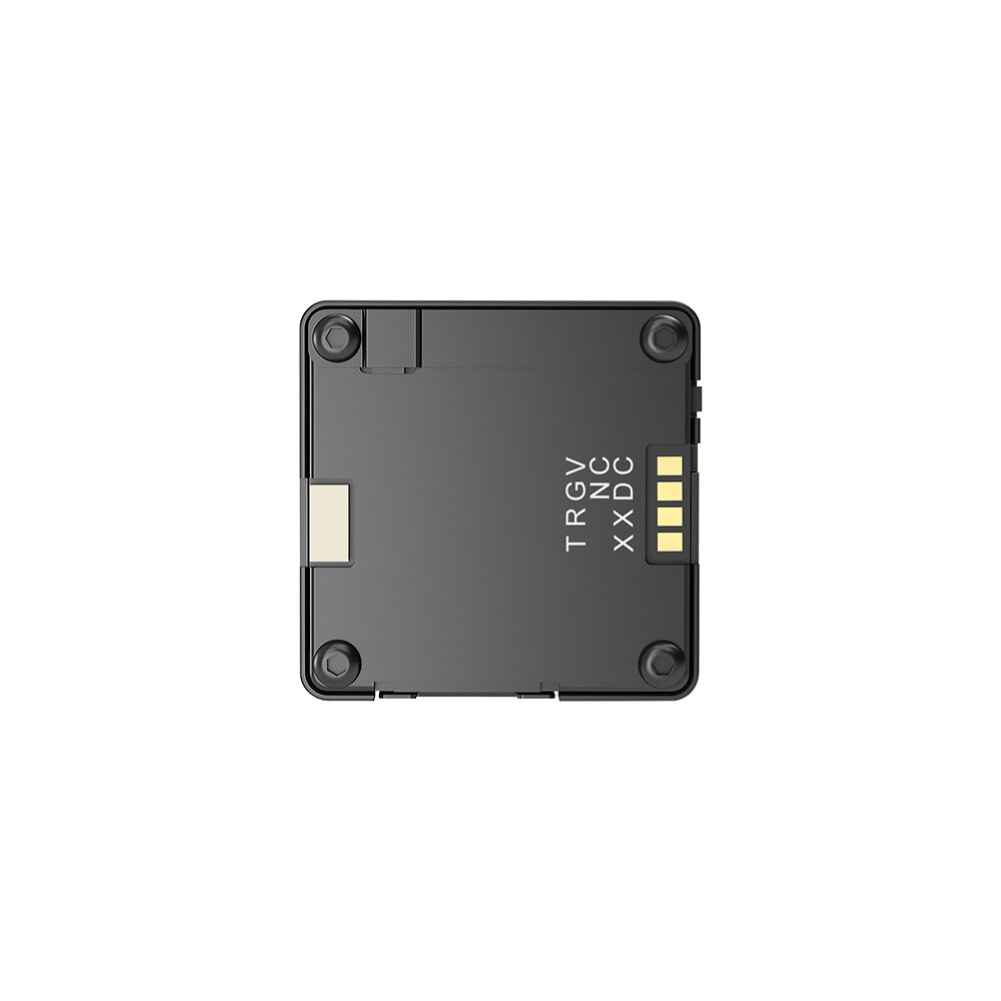

VTX

Model:

Avatar HD Mini VTX V3

Communication Frequency:

5.725-5.850GHz

Transmitter Power (EIRP):

FCC:<27dBm;
CE:<14dBm;
SRRC:<20dBm;

MIC:

<25dBm

I/O Interface:

JST1.0*4(Power in)JST0.8*4(USB)

Operating Temperature:

-20-40﹠

Channels:

8

Wide Power Input:

3.1V-13V

Supported FC System:

Betaflight; Inav; Fettec; ArduPliot

OSD:

Canvass mode

Latency:

Average latency 22ms

Antenna:

1(IPEX)

Mounting Holes:

25.5*25.5mm(M2 hole);20*20mm(M3 hole)

Dimensions:

31.5*31.5*9.4mm

Storage:

32G

Recording:

1080p/720p

Weight:

13.4g

VTX Antenna

Model:

Avatar V2 antenna

Polarization:

LHCP

Bandwidth:

5600MHz-6000MHz

Average Gain:

1.9dBi

VSWR:

沌1.5

Interface:

IPEX-1

Line Length:

105mm

Dimension:

R15*45mm(without cable)

Weight:

2g

Product features:
-3.1~13V
-500mW
-FOV160‵
-Metal case
-1080P/60fps
-4:3 nativee sensor
-Built-in 32G storage
-18.5g light-weight
-Nano Camera 14*14mm
Bullett Point for Walksnail Avatar HD Nano Kit V3
The Walksnail Avatar HD Nano Kit V3 supports 1080P/60fps, with a 4:3 nativee sensor that provides smooth and stunning images. With this kit, you can capturee flying footage with exceptional clarity and detail.
Walksnail Avatar HD Nano Kit V3 is suitable for more drones, with 3.1-13V voltage input and 500mw power output, you’ll be able to fly various kinds of drones with amazing video quality and rang.
Nano camera V3 with dimensions of 14*14mm and a weight of only 3g, equipped with a 2.1mm lens and 160‵ FOV, provides clearer and more realistic image quality.
The Avatar vtx comes with 32g built-in storage, it can recordd 1080p HD and interference-free flightt footages without adding an extra SDcardd and an action camera, reducing the overall weight of the drones and extending the flightt time, allowing you to experience a more comfortable flightt while recording 1080 HD videos.
Canvass Mode券supporting Betaflight, Inav, Ardu full OSD display and customization, you’ll be able to customize various OSD fonts, colors and patterns you like and easily adjust the parameters you want via remote control.

Package Included:
1 x Avatar HD Nano Kit V3
1 x 4 Pin USB Cable
1 x 4 Pin Power Cable
2 x M2x4/5/6mm Screws
4 x M2x14mm Screws
4 x M2 5 0.5mm Washer
5 x 2.1×3.4x1mm Gasket
1 x 14 to 19mm Bracket
