Description

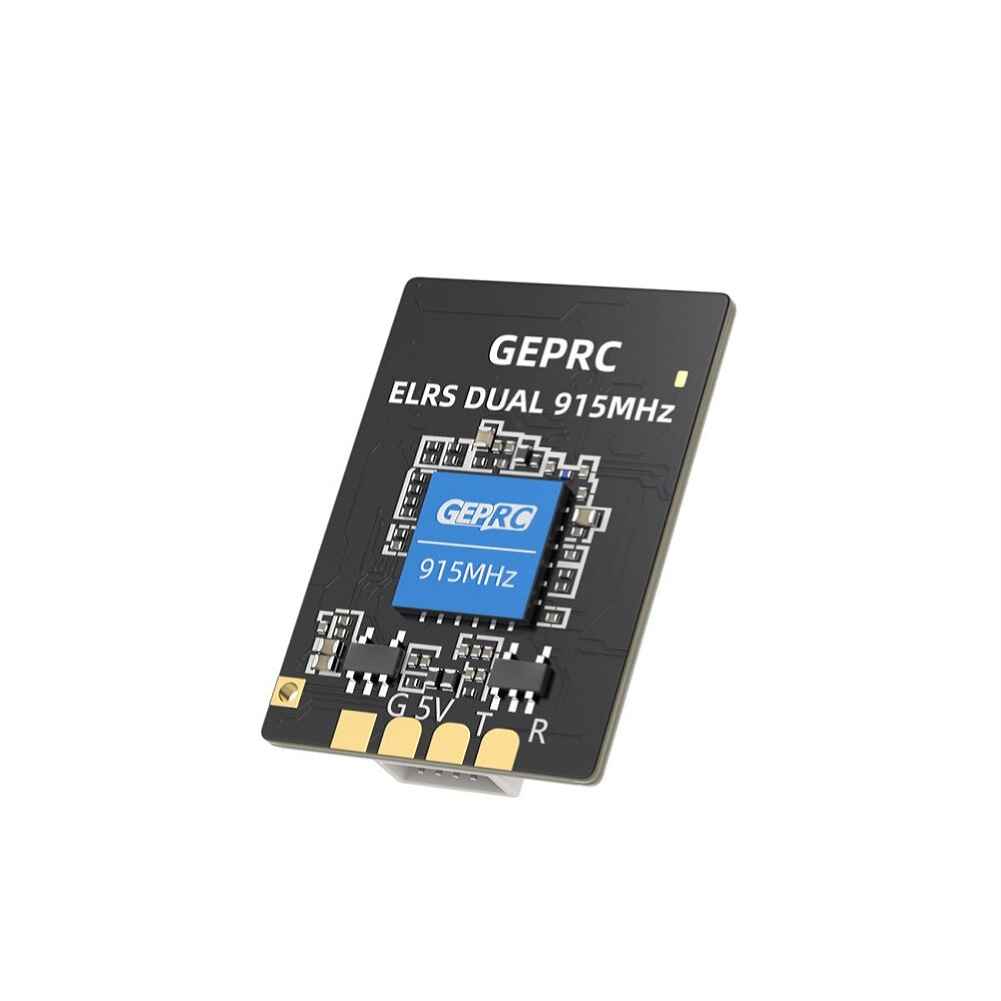

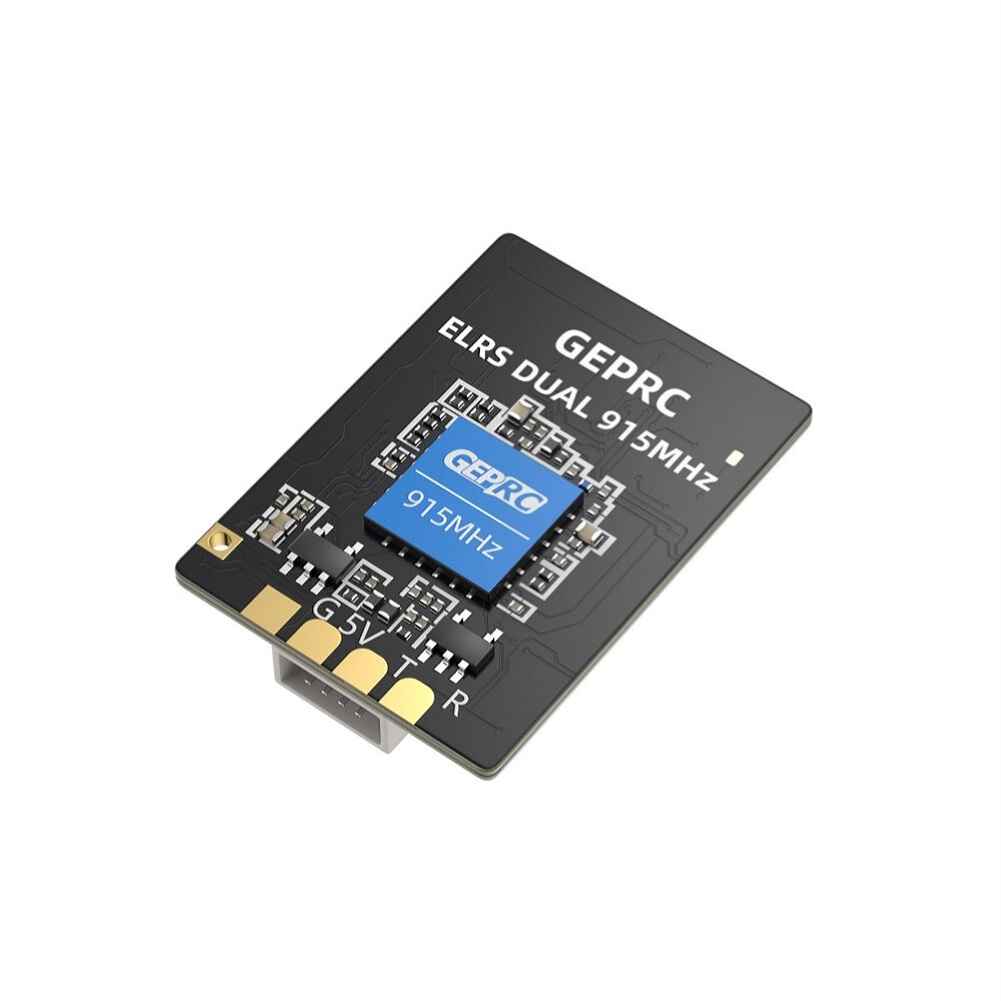

GEPRC ELRS 868/915MHz Dual Band Built-in WIFI T Antenna Long Range Diversity Receiver for RC Drones
The GEPRC ELRS 868/915MHz Dual Band Diversity Receiver is an advanced, dual-antenna system designed for RC drones. Based on the ExpressLRS open-source project, it provides long-range operation with low latency and a maximum refresh rate of 200Hz. This receiver features a TCXO temperature-compensated crystal oscillator, ensuring stable performance even in extreme temperatures. Its built-in WiFi antenna simplifies firmware upgrades, and the sh1.0 connector ensures easy installation. Weighing only 1.7g and measuring 18x25x5.5mm, it offers a compact design without compromising on performance, with telemetry power up to 50mW.
GEPRC ELRS 868/915MHz Dual Band Built-in WIFI T Antenna Long Range Diversity Receiver for RC Drones
Summary:
GEPRC ELRS DUAL 915M Diversity Receiver is a new generation of true dual-antenna diversity receiver system based on the ExpressLRS open source project. ExpressLRS features long range operation, low latency, maximum 200Hz refresh rate, and low price.

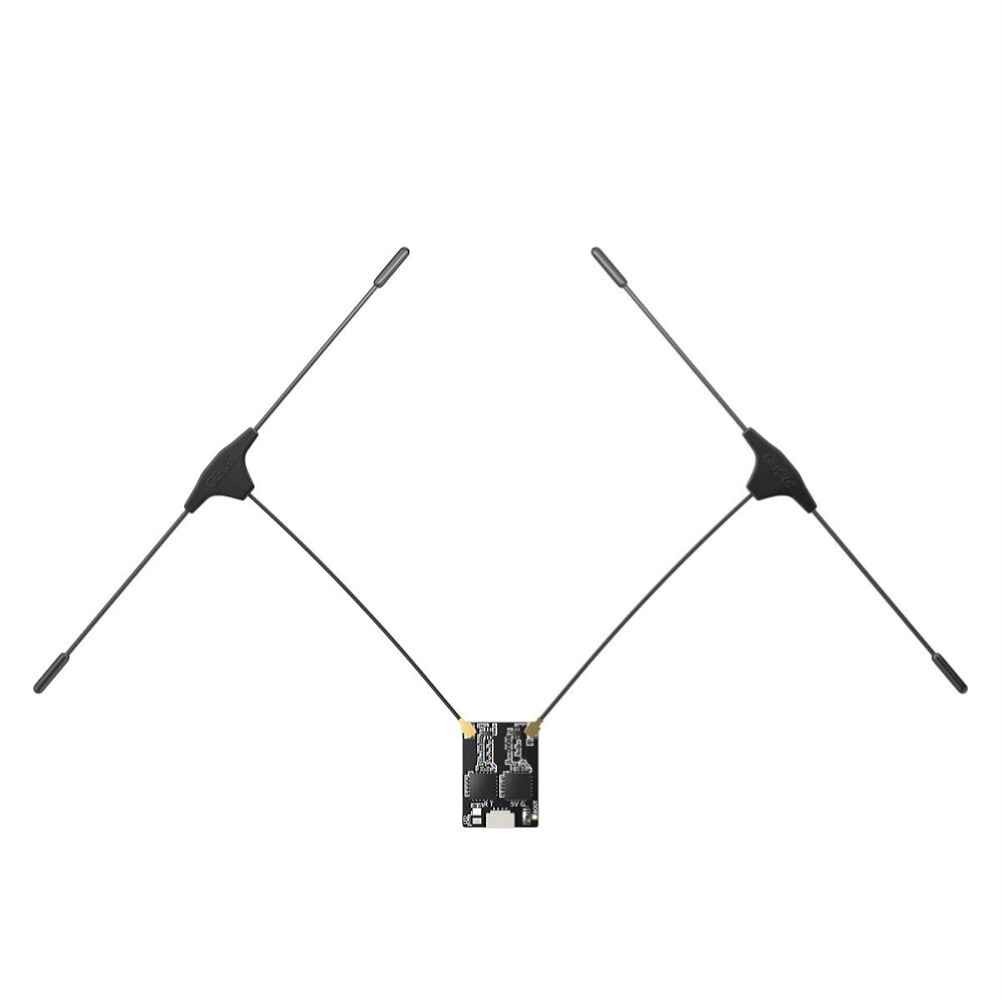

The ELRS DUAL 915M Diversity Receiver has a reasonable placement of dual antennas for wider signal reception and more stable connection than ordinary single antenna receiver systems. It uses a TCXO temperature compensated crystal oscillator to avoid frequency changes caused by temperature changes and the telemetry power is up to 50mW. Built-in WIFI antenna, facilitating firmware upgrades effortlessly via WIFI, and offers convenient installation with its sh1.0 connector.
Features:
1.Compact size of 18x25x5.5mm.
2.Weighing only 1.7g.
3.WIFI firmware upgrade.
4.ELRS open-source project, long-range remote control.
5.Maximum refresh rate of 200Hz.
6.Uses a temperature-compensated crystal oscillator (TCXO) for stable performance in extreme temperatures, ensuring control stability during long operations.
7.Equipped with an sh1.0 connector for easy installation.

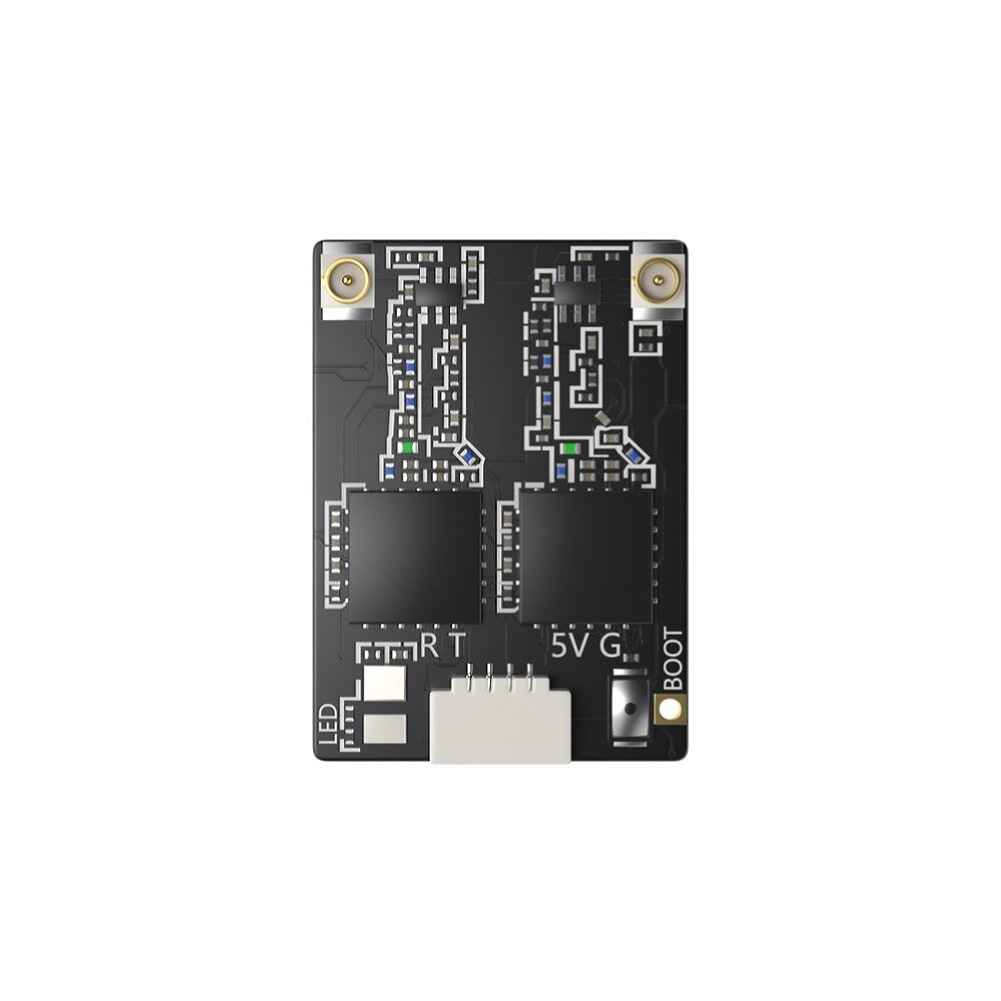

8.Two independent RF receiving links, true diversity receiver.
Specifications:
Model: GEPRC ELRS DUAL 915M Diversity Receiver
Item No.: 915M:GP106416 / 868M:GP106417
Chips: ESP32-PICO-D4, SX1276
Crystal Oscillator: TCXO
Frequency Band: 915MHz FCC/868MHz EU(Optional)
Refresh Rate: 25Hz-200Hz
Operating Voltage: 5V
Antenna Connector: ipex1
TLM Power: 50mW
Firmware: GEPRC True Diversity 900MHz RX
Dimension: 18x25x5.5mm
Weight: 1.7g (RX only)
Package Included:
1 x ELRS Receiver
2 x Antenna
1 x Heat Shrink Tube
1 x 4pin Silicone Cable
1 x User Manual
