GEPRC MATEN 1.2GHz 9CH FPV Transmitter, Adjustable Power Levels, IRC Tramp Protocol, MMCX VTX for RC Drone Airplane

Description

GEPRC MATEN 1.2GHz 9CH 25mW/ 400mW/ 800mW/ 2000mW Pitmode MMCX VTX FPV Transmitter Support IRC Tramp for RC Drone Airplane Long Rang

The GEPRC MATEN 1.2G 2W VTX is a high-performance FPV transmitter designed for long-range RC drones and airplanes. With four adjustable power levels reaching up to 2000mW, it ensures stable and penetrating transmission signals. Its robust aluminum alloy CNC shell enhances heat dissipation and impact resistance. The VTX supports the IRC Tramp protocol, allowing quick parameter adjustments via OSD. It features a wide voltage input range of 7-36V and a temperature control protection function to prevent overheating. The device is easy to control with one function button and two indicator lights, and it supports a 30.5℅30.5mm (M3) installation hole position.

Summary:
The MATEN 1.2G 2W VTX high-power image transmission newly developed by the GEPRC team is now officially released. Its performance is very powerful, with 4 adjustable power levels and a maximu power of up to 2000mW. The transmission signal is very stable and the penetration ability is excellent.

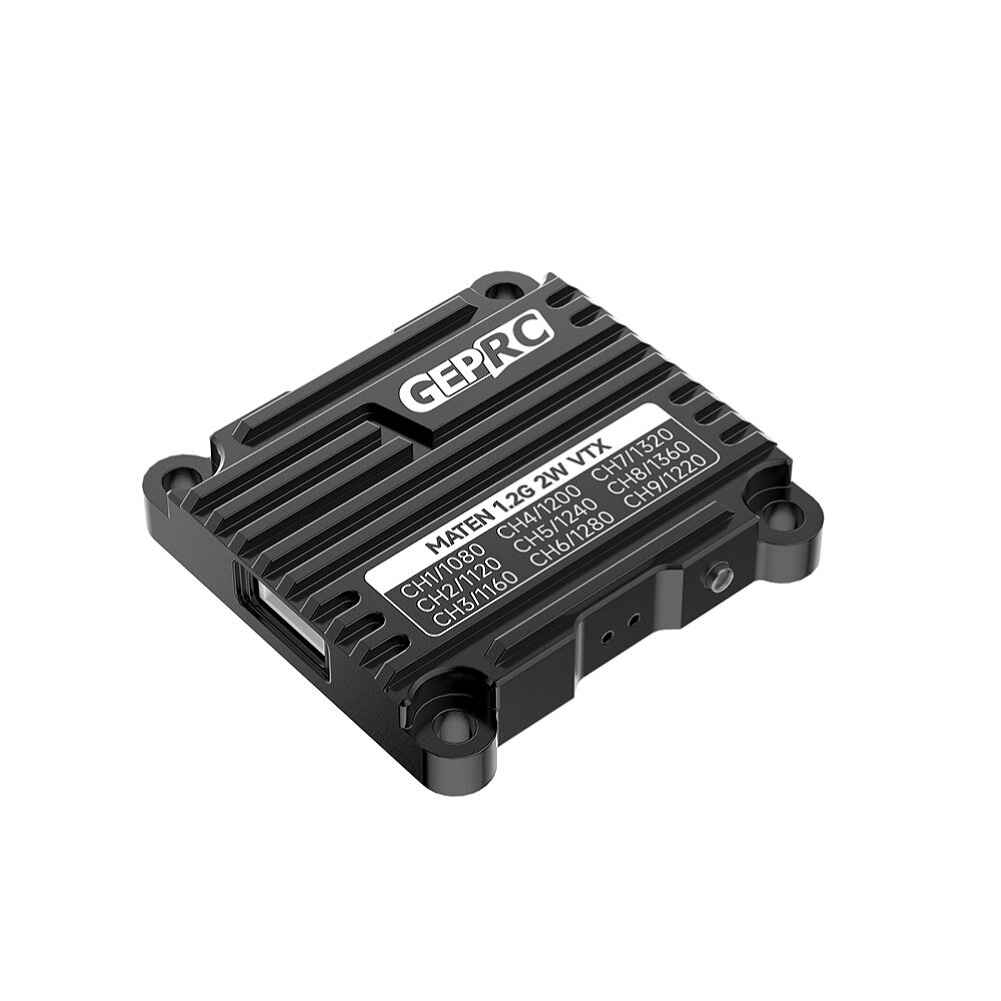

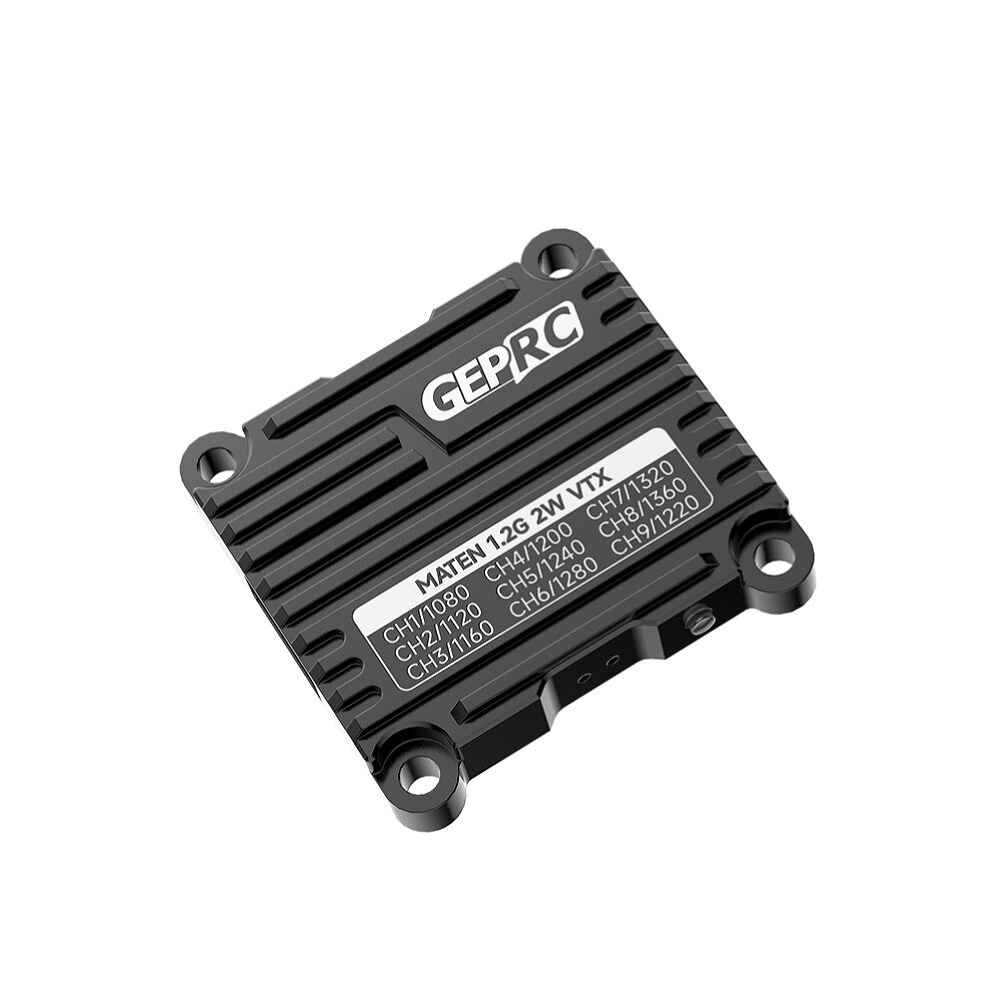

MATEN 1.2G 2W VTX uses high-strength aluminum alloyy CNC shell to assist heat dissipation. The unique appearance design stronger impact resistance and better heat dissipation performance.
It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters.
It has a wide voltag input of 7-36V and temperature control protection function to prevent overheating and burning.Support 30.5沁30.5mm(M3) installation hole position.
Features:
1. Four levels of adjustable power, up to 2000mW, suitable for long distance flightt.
2. optional channels.
3. Selected high strength aluminum alloyy CNC shell, auxiliary heat dissipation.
4. Wide voltag input, Supports 7V-36V Voltag input.

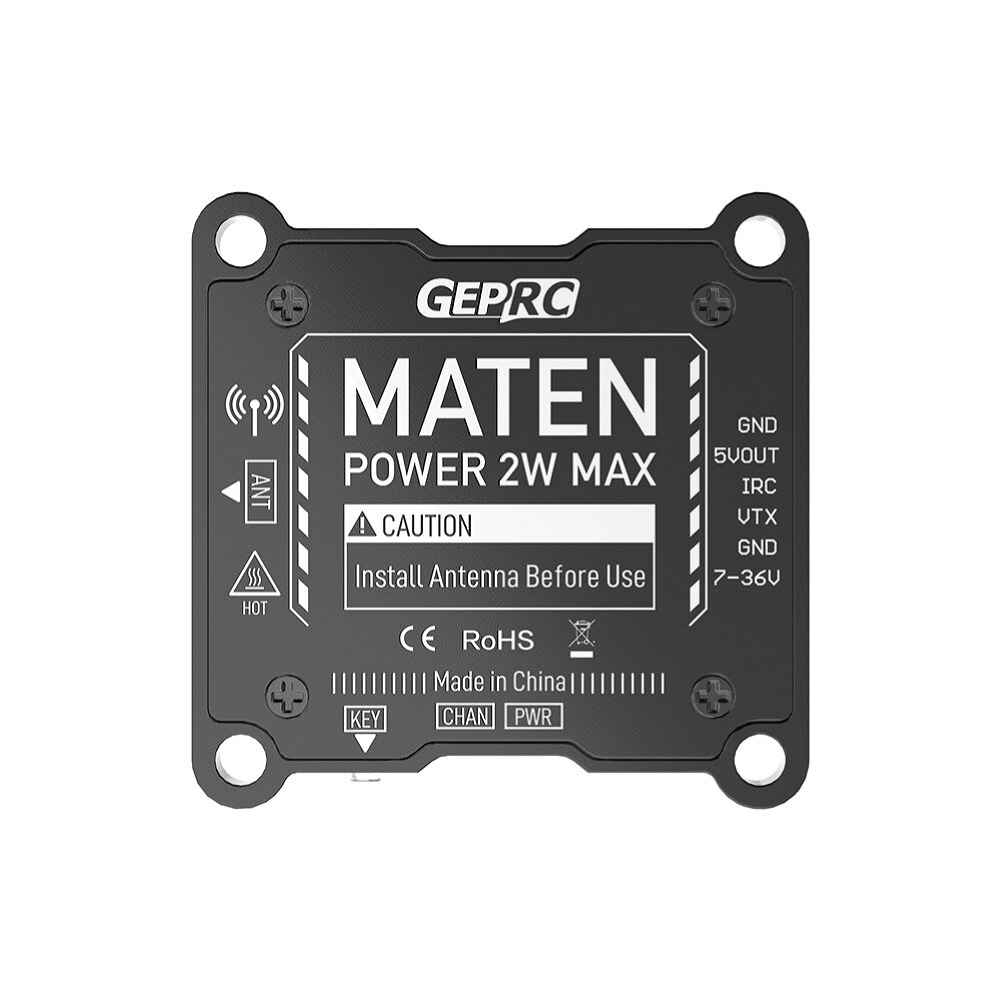

5. One function buttons, two indicator lights, easy to control.
6. VTX control protocol is IRC Tramp,supports OSD parameter adjustment.
7. Temperature control protection function that can prevent high temperature burning.
8. Support 30.5沁30.5mm(M3) installation hole position.
Specifications:

Model:

GEPRC MATEN 1.2G 2W VTX

Frequency Band:

1080MHz-1360MHz

Channel Customer:

9

Channel Frequency:

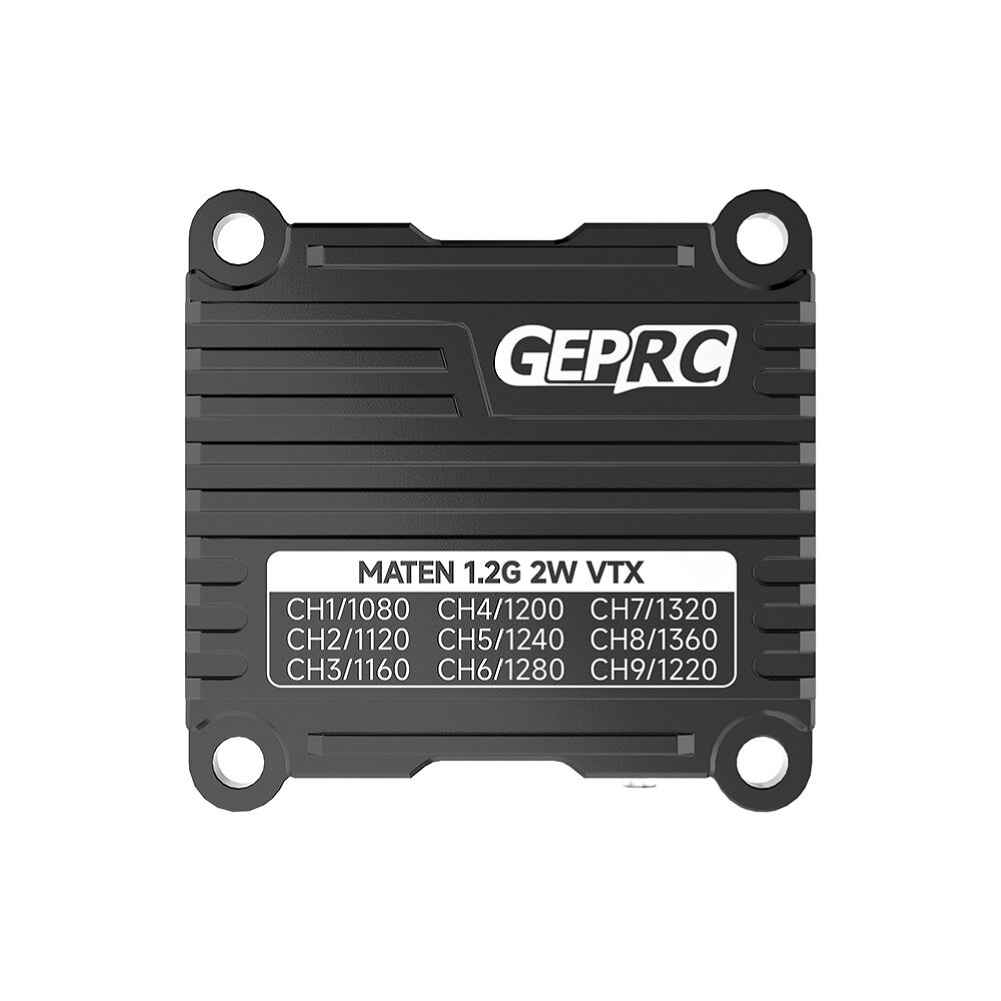

1080/1120/1160/1200/1240/1280/1320/1360/1220(MHz)

Output Power:

25mW/400mW/800mW/2000mW/Pit mode

Frequency Stability:

呼100KHz (Typ.)

Frequency Precisio:

呼200KHz (Typ.)

S/N(Fo呼3MHz):

>70dBc

Antenna Port:

50 Ohms

Input Voltag:

DC7-36V侈2-8S Battery佩

Output Voltag:

5V@600mA

Protocol:

IRC Tramp

Antenna Interface:

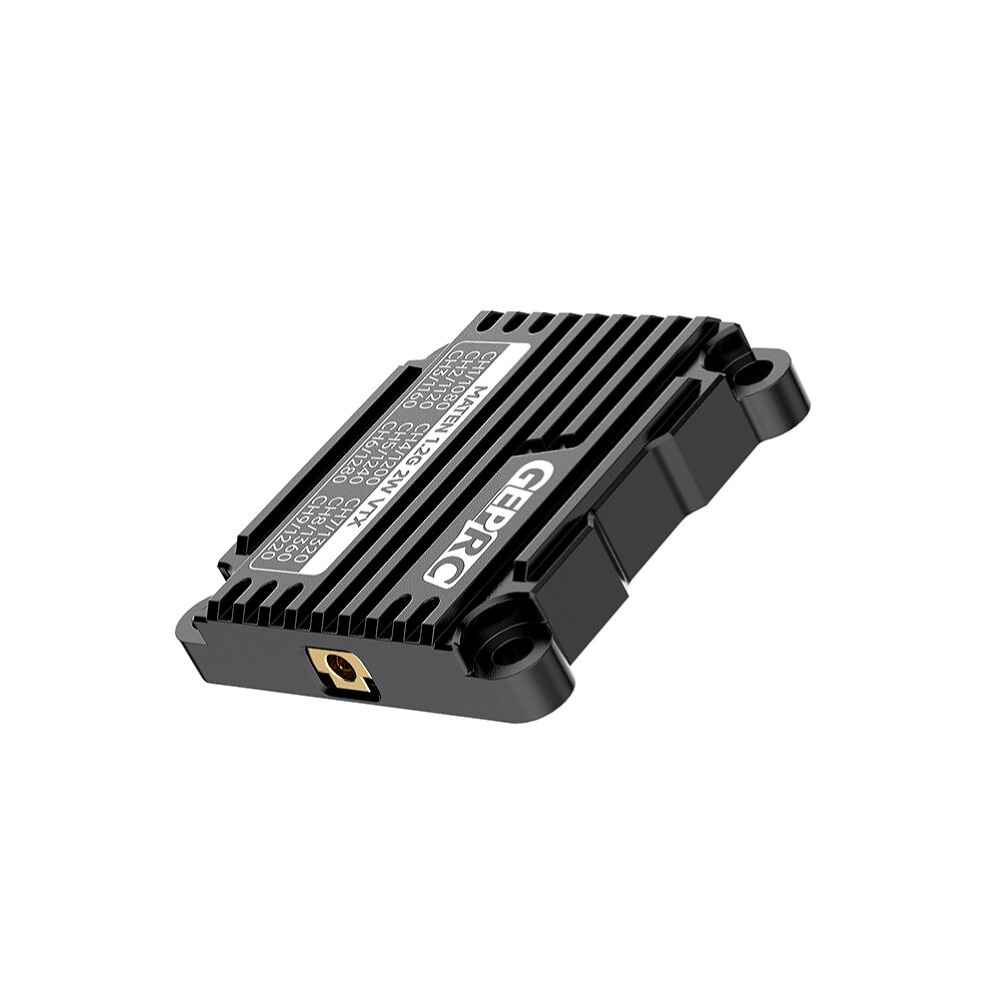

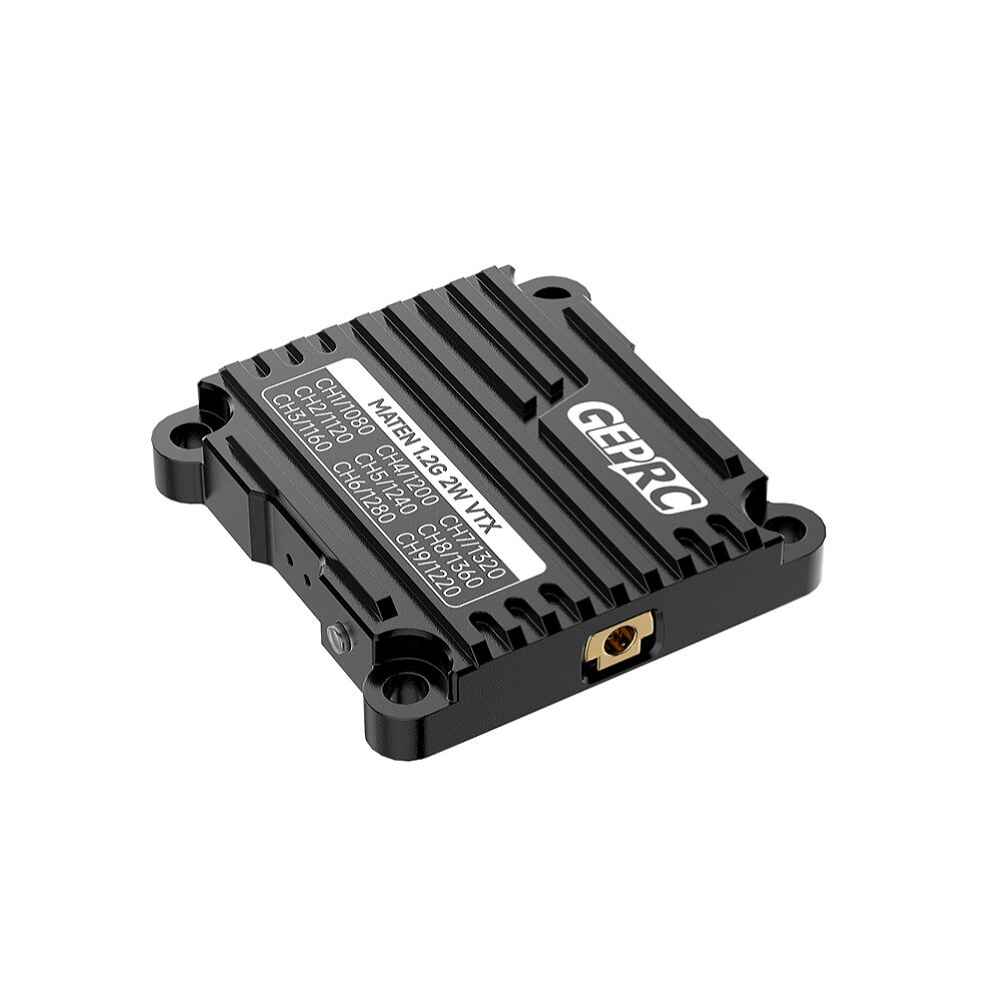

MMCX

Cable Interface:

sh1.25 6pin

Video Format:

PAL/NTSC

Operating Temperature:

-10﹠~+60﹠

Weight:

14.5g侈VTX only佩

Mounting Hole:

30.5沁30.5mm(M3)

Size:

36.4沁36.4×7.4mm

Notes:
1. Install Antenna before use.
2. To prevent overheating,provide constant airflow and a well ventilated environment.Install a cooling fan if operating in confined conditions.
3. The 5V Output is for a Camera/Cooling Fan use only!Do not connect Power Input/Battery to 5V Out. Serious damage will occur to VTX.
Includes:
1 x MATEN 1.2G 2W VTX
1 x MMCX to SMA侈internal needle佩connector

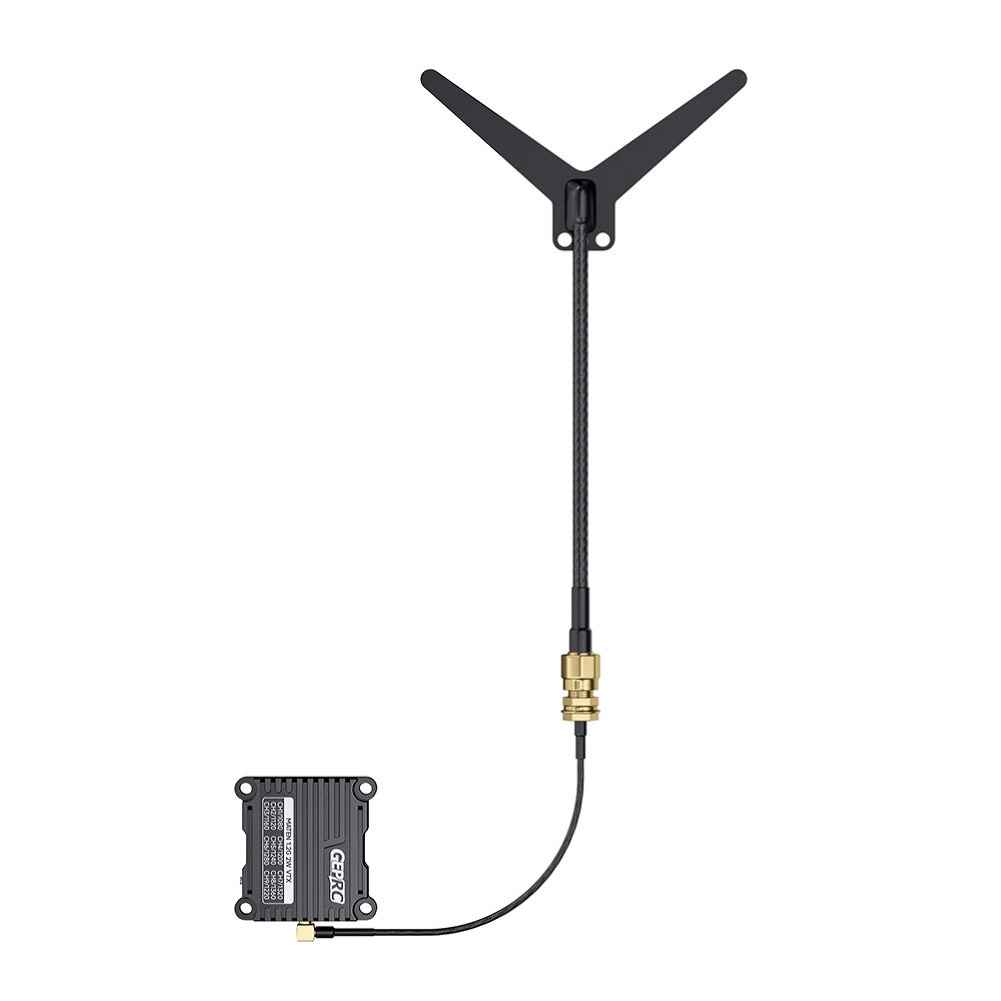

1 x 1.2G antenna(SMA inner hole)
1 x sh1.25 6P Connecting cable
5 x M3*7 screws
5 x M3*8 screws
5 x M3 x 10 hexagon
5 x M3*5 isolation column
5 x M3 nylon nut
1 x product description

Package Included:
1 x MATEN 1.2G 2W VTX
1 x MMCX to SMA (internal needle) connector
1 x 1.2G antenna (SMA inner hole)
1 x sh1.25 6P Connecting cable
5 x M3 7 screws
5 x M3 8 screws
5 x M3 x 10 hexagon
5 x M3 5 isolation column
5 x M3 nylon nut
1 x product description
