5.8G 48CH 2W FPV Transmitter and 1000TVL 2.5mm Camera with Mic and MMCX Antenna for RC FPV Racing Drone

Description

5.8G 48CH 2W 2-4S FPV Transmitter VTX 1000TVL 2.5mm FPVCamera Built-in Mic MMCX FPV Antenna with Cooling Fan Image Transmission FPV System for RC FPV Racing Drone

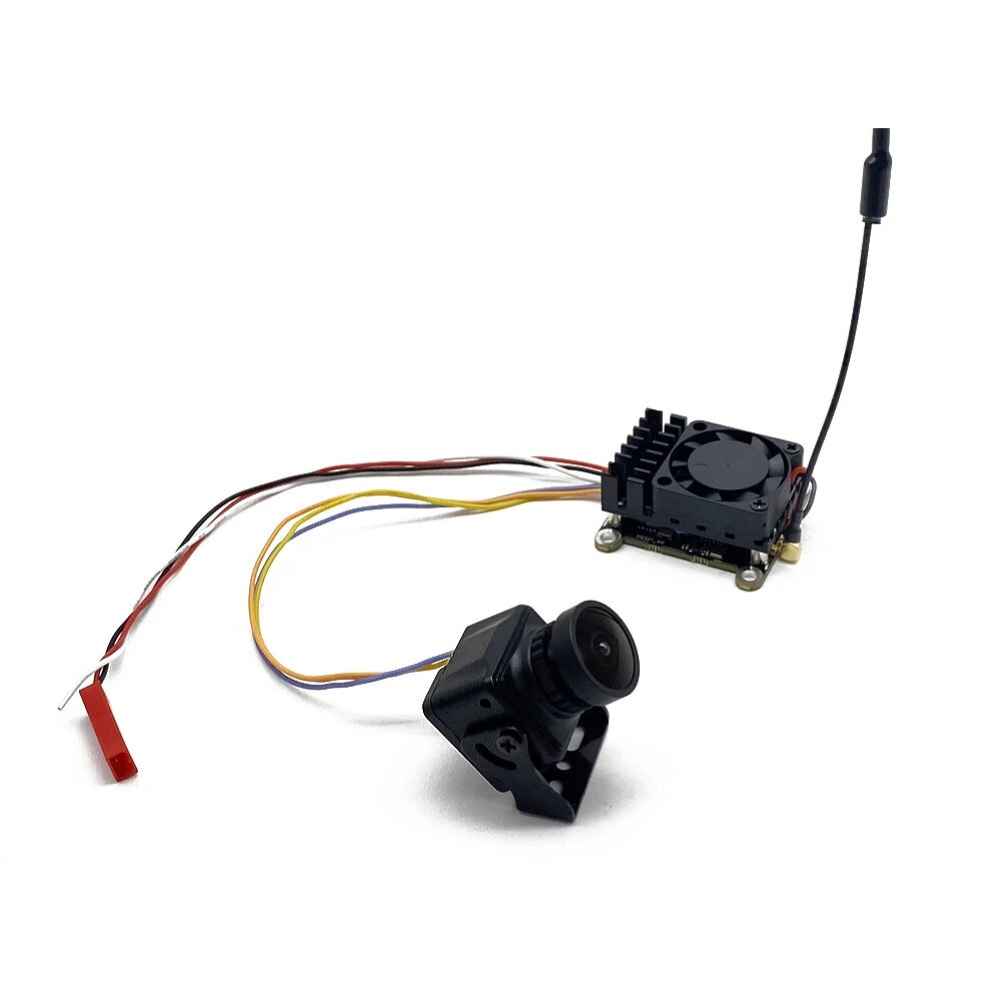

The 5.8G 48CH 2W FPV Transmitter and 1000TVL 2.5mm Camera system is designed for RC FPV racing drones. This system includes a powerful transmitter with selectable power options of 200mW, 500mW, 1W, and 2W, ensuring strong and clear signal transmission over extended distances. The built-in cooling fan and heat sink maintain optimal performance during intense use. The 1000TVL Mini Camera offers high-resolution video output in both PAL and NTSC formats, with adjustable AGC and electronic exposure settings. A built-in microphone enhances audio capture, while the compact design ensures easy integration into various setups without adding unnecessary weight.

Specifications:

Model:

2W VTX + 2.5mm Camera

Input Voltage:

DC 7V-32V

Channels:

5.8G 48CH

Power:

200mW (300mA) / 500mW (380mA) / 1W (460mA) / 2W (600mA) – 12V supply current

Antenna Type:

MMCX

Weight:

35g (with antenna)

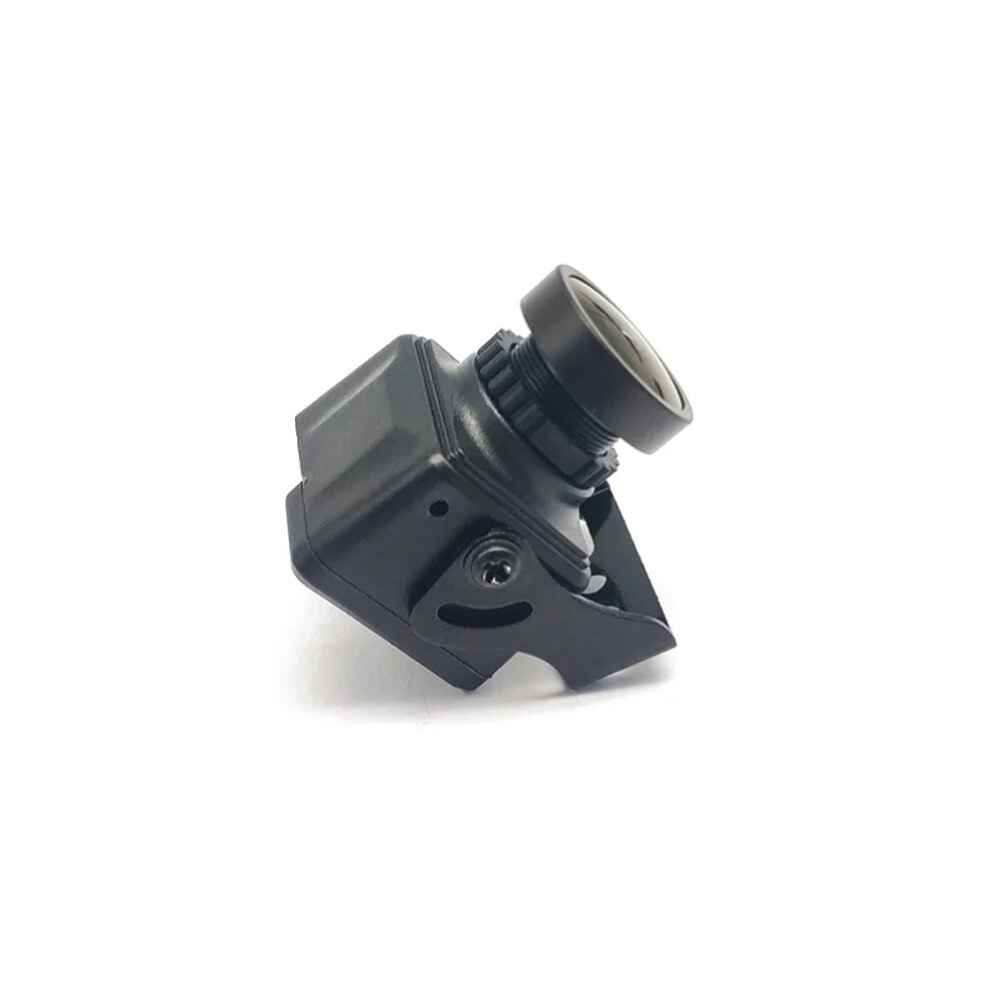

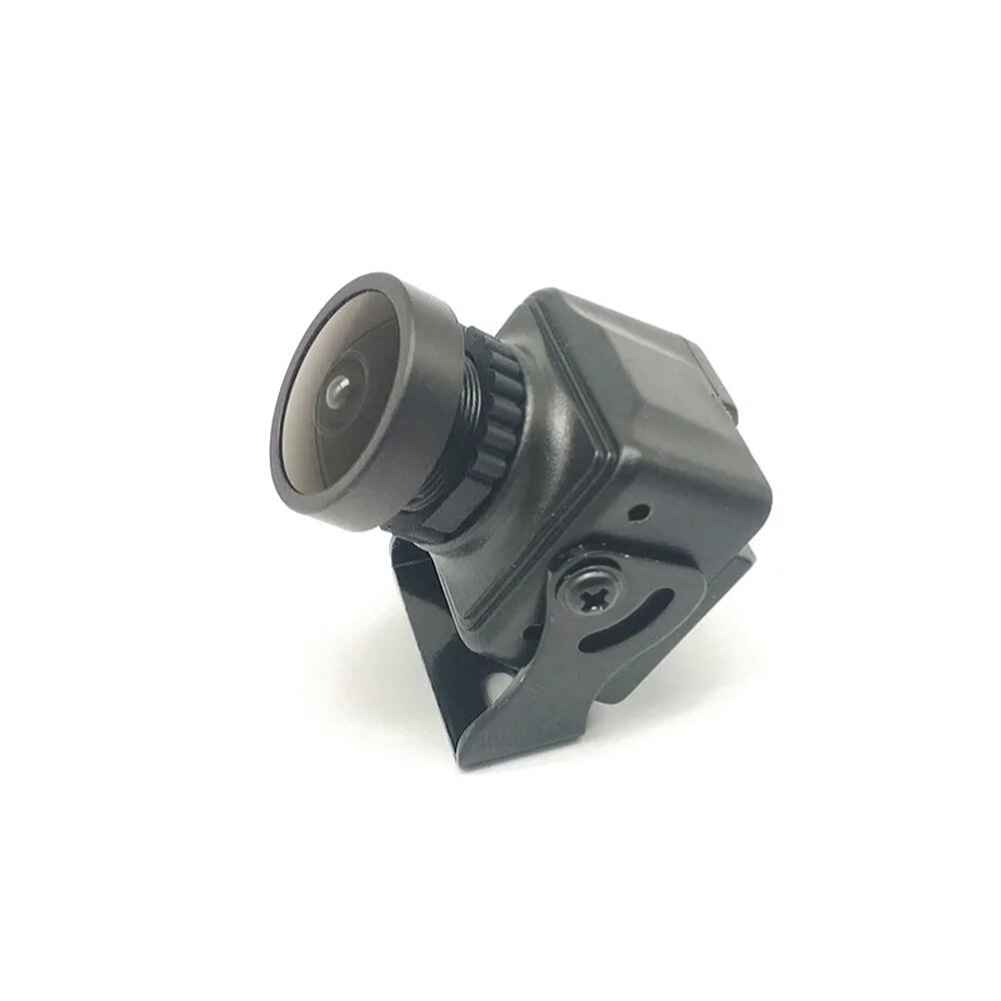

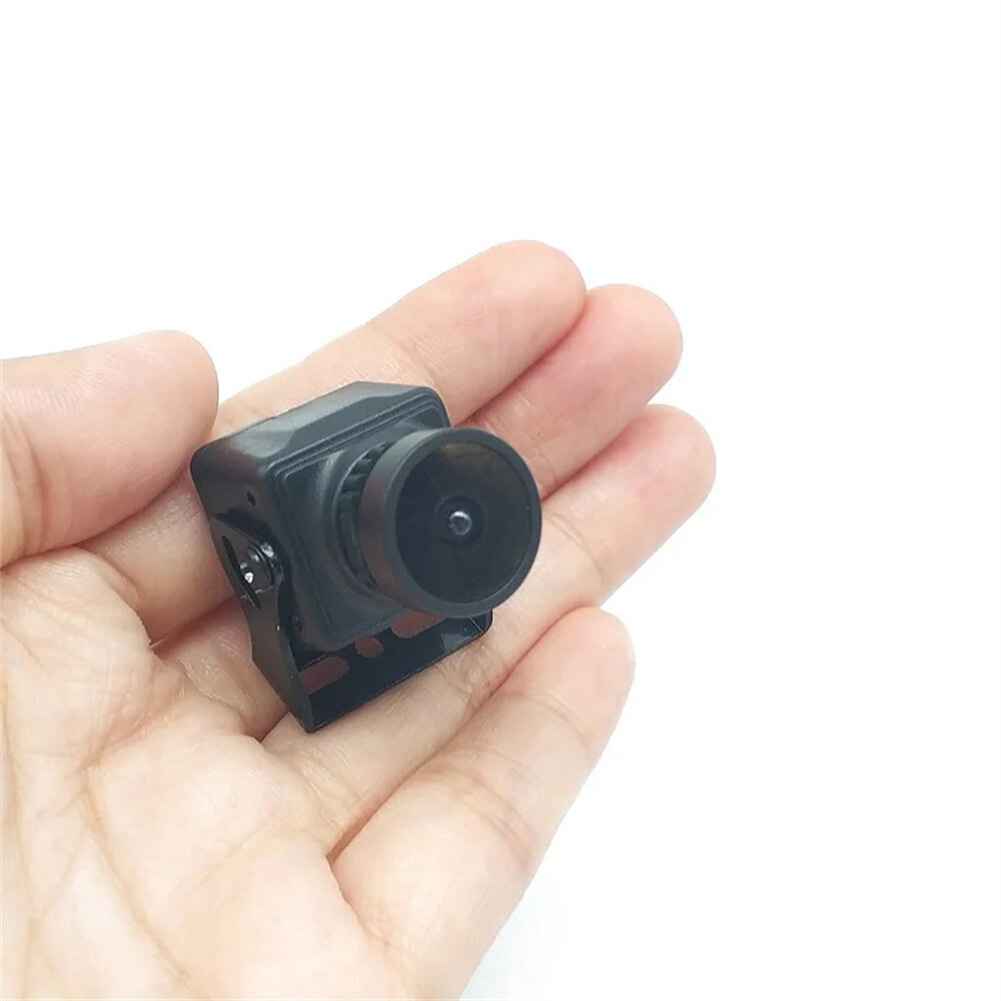

Camera Description :

Item Name:

1000TVL MiniiCamera

Size:

22mm x 22mm

Format:

PAL Optional

PAL:

1920H沁1080V(1MP)

NTSC:

1020H沁1920V (1MP)

Horizontal Resolution:

1000TVL

Video Output:

1.0Vp p/75ohm

AGC:

0.25/0.50/0.75/1.00 4 levels adjustable, up to max. 55dB

WB:

ON/OFF

Exposure Type:

electronic exposure

Electronic Shutter:

1/50(1/60) 1/100000 second

Gamma Correction :

0.45/1.0

Synchronization Mode:

inter sync

Lens :

2.5mm 130 degree/2.8mm 120 degree optional

Working Voltage:

DC5 to 12V(wide voltage, measured 5 to 13V)

Working Current:

70mA(ow power consumption)

Working Temp.:

-20degree to 60degree

Wetness:

0%~98%

Features:
1. High Power Output: Supports power options of 200mW, 500mW, 1W, and 2W, ensuring a robust and clear signal transmission over long distances.

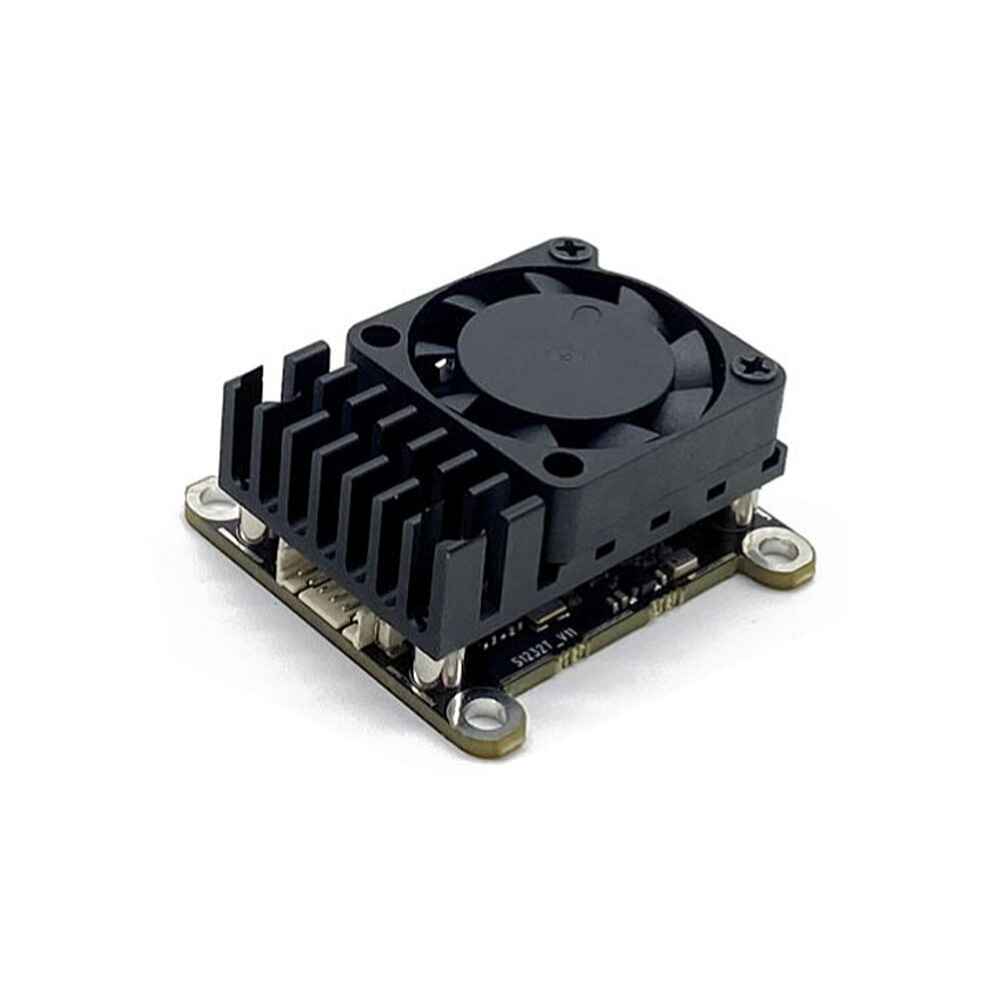

2. Efficient Cooling System: Equipped with an integrated cooling fan and heat sink design to maintain optimal temperature and performance during intensive usage.
3. Multi-Channel Flexibility: Features a versatile 5.8G 48CH frequency range providing flexibility to switch between channels for optimal signal clarity and strength.
4. Built-in Microphone: Includes a silicone microphone for high-quality audio capture during transmission, integrally enhancing communication and performance monitoring.
5. Compact Design: The VTX dimensions of 35mm by 30.5mm, and total weight of only 35g, make it easy to incorporate into various setups without adding significant weight.

Package Included:

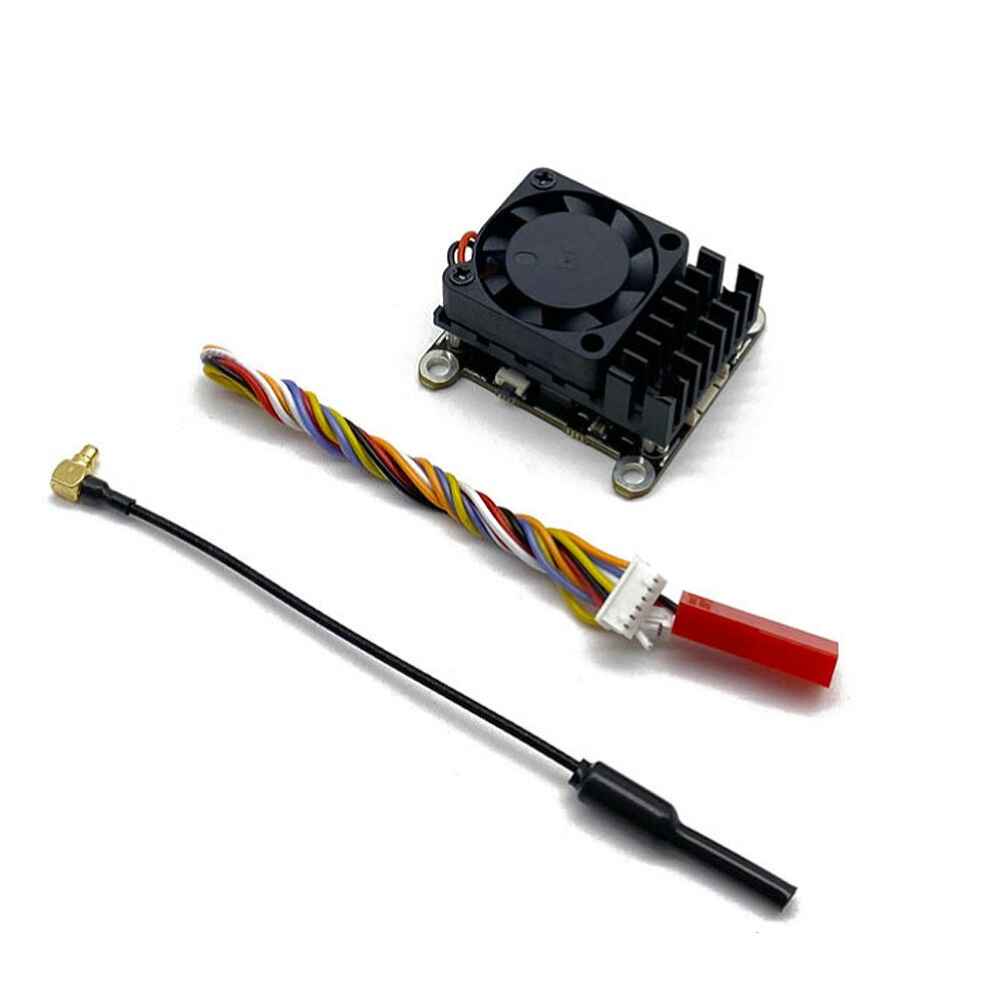

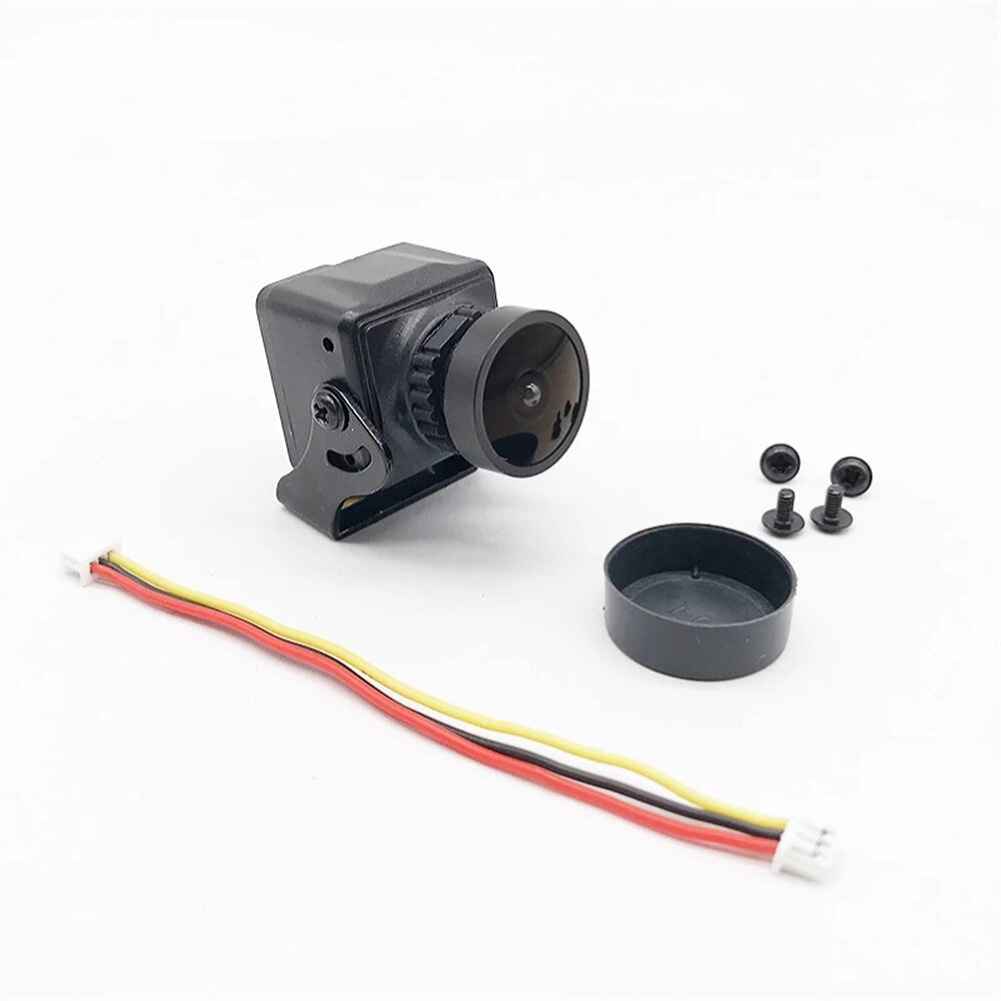

1 x 2W VTX 1 x 1000TVL Mini Camera 2.5mm 1 x Cable
