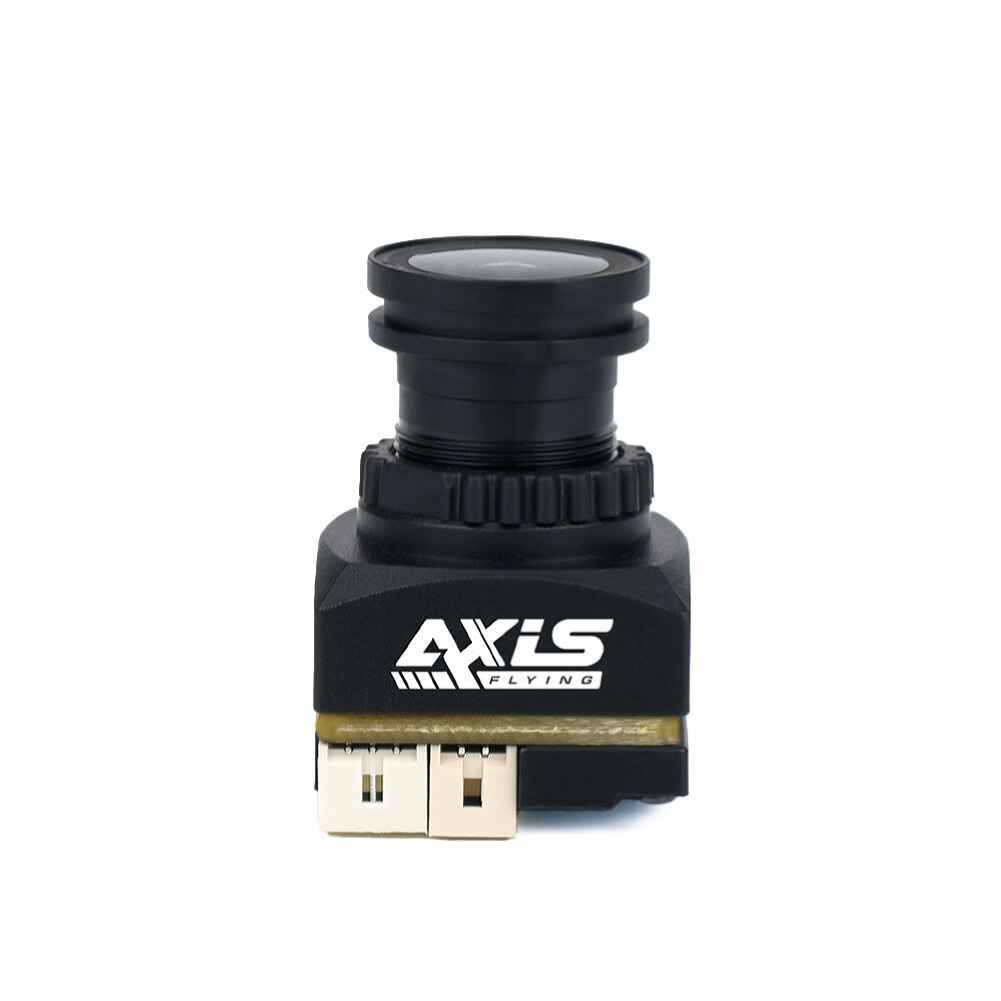

Axisflying Owl Pro 1800TVL FPV Camera, 1/1.8” Sensor, 1080P 60fps, Night Vision, 118? FOV for Drone Racing

Description

Axisflying Owl Pro 1800TVL HD Night Vision 1/1.8” Sensor 1080P 60fps NTSC FPV Camera 118 FOV for Drone Racing & Cinematic

The Axisflying Owl Pro FPV Camera is designed for superior performance in both day and night conditions, thanks to its advanced Black Light Technology. With a 1/1.8” sensor and 1800TVL resolution, this camera delivers sharp, high-resolution images at 1080P and 60fps. The wide dynamic range of 100dB ensures excellent image quality even in high-contrast settings, making it ideal for precise object recognition. Its ultra-wide 118簞 field of view minimizes blind spots, enhancing monitoring capabilities. The compact 19.6 x 19.6 mm design allows for versatile mounting, perfect for drone racing and cinematic applications. The included square lens hood protects the camera during crashes, ensuring durability.

Note 券 Future firmware updates will enable PAL/NTSC auto-switching and parameter configuration via tuning boards
Features:
1. Day & Night Vision Compatibility: Featuring advanced Black Light Technology, this camera captures vivid images regardless of lighting conditions, ensuring consistent performance indoors and outdoors. (Black light is more suitable for dark nights.)
2. Wide Dynamic Range: With a 100dB dynamic range, it delivers superior image quality in high-contrast environments. Perfect for precise object recognition in challenging scenarios.
3. High-Resolution Clarity: Equipped with 1928x1088V effective pixels and 1800TVL resolution, it provides sharp and realistic images for detailed analysis.
4. Ultra-Wide Field of View: A diagonal FOV of 118‵ allows extended coverage, reducing blind spots and enhancing monitoring effectiveness.
5. Compact Design for Versatile Mounting: Compact 19.6*19.6 mm dimensions make the camera easy to install, perfect for lightweight applications like drones and robotics.

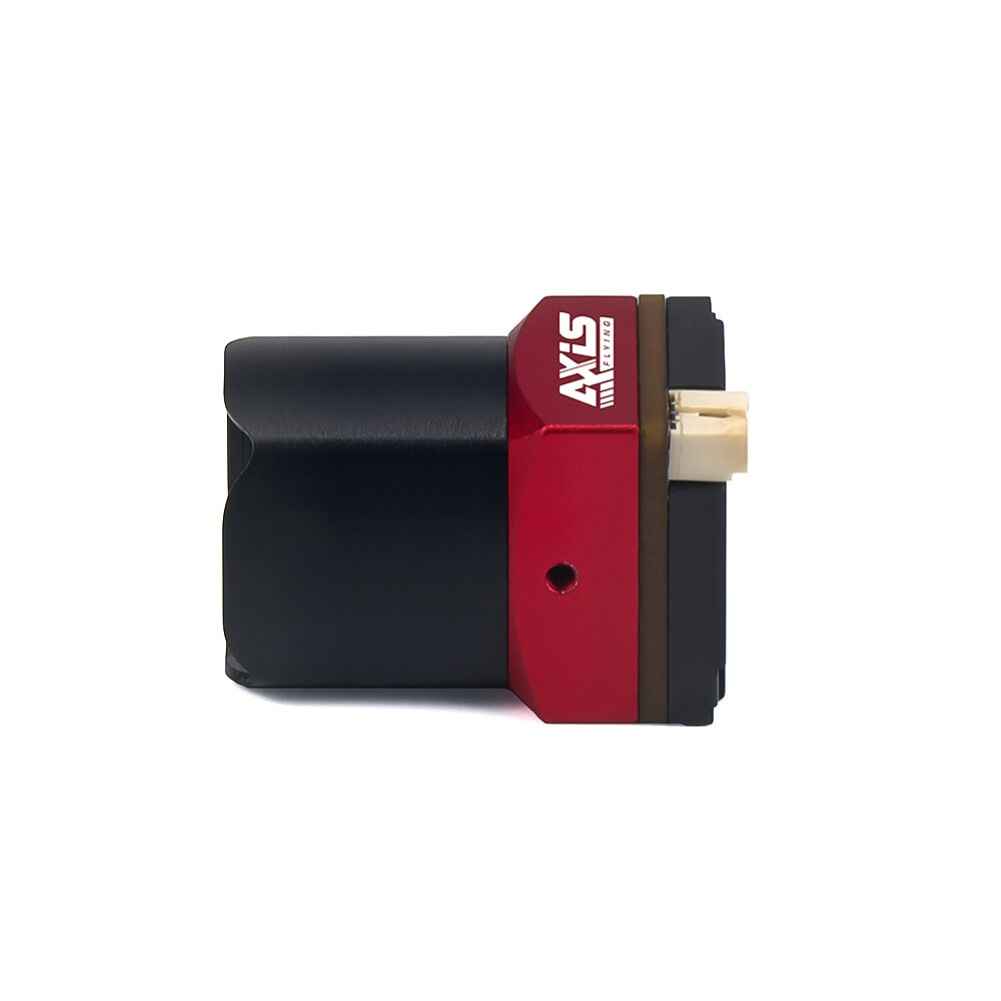

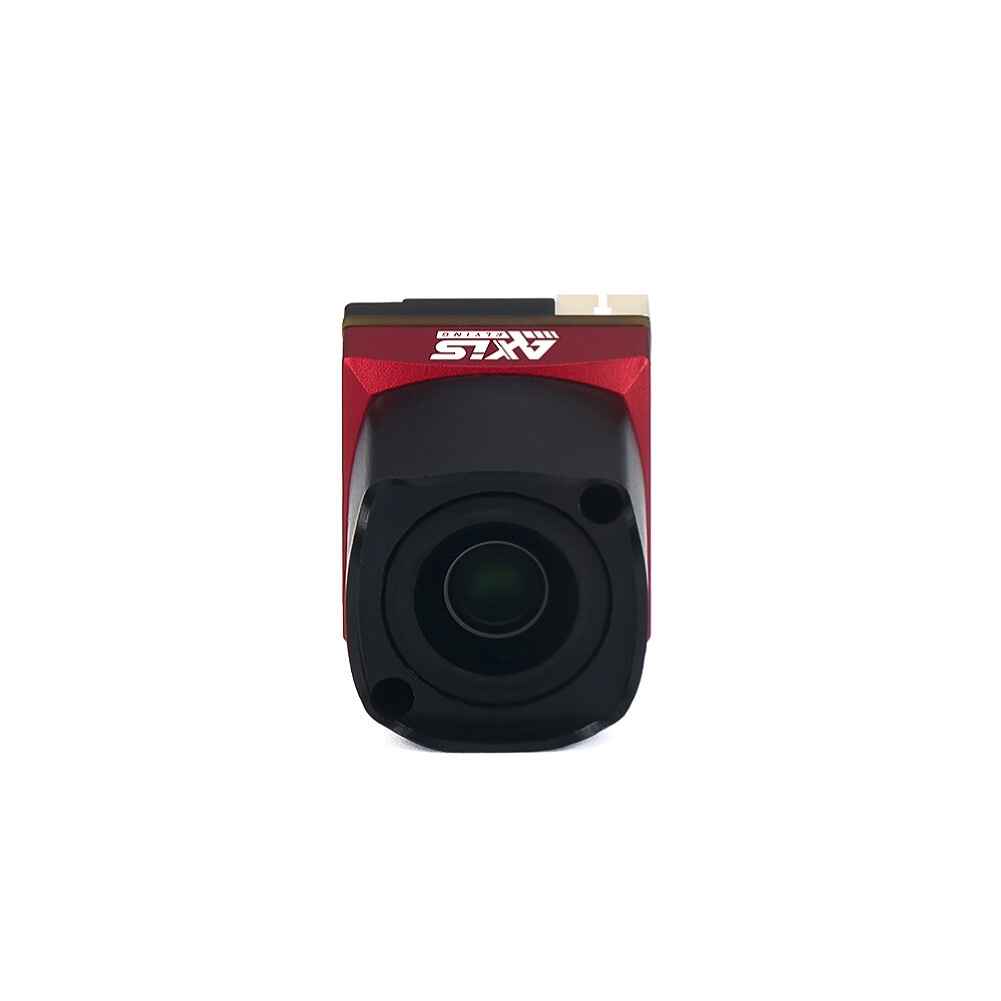

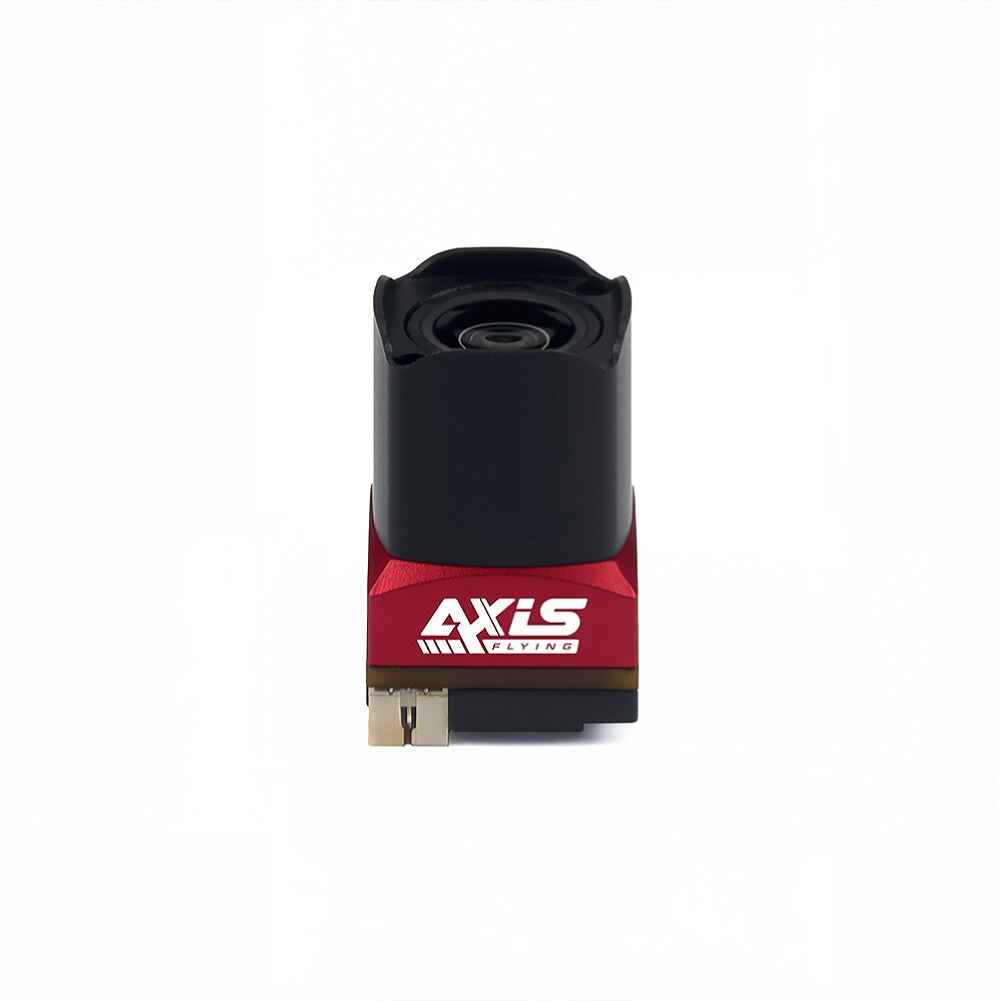

6. Square lens hood: To protect the lens when the camera crashes. Just like the camera lens with a hood.侈The plastic film in front of the lens is to prevent the lens from being scratched during transportation and can be torn off during use.佩
Specification:

Model

Black Light Pro Camera

Black Light Camera

Module Specifications

Sensor Type: 1/1.8′
System Format: NTSC
Effective Pixels: 1928H沁1088V
Pixel Size: 4.0譙m沁4.0譙m
Dynamic Range: 100dB
Signal-to-Noise Ratio: 43dB
Minimum Illumination: 0.00001 Lux
Shutter: AUTO
Day/Night Mode: External Control (Default)/Auto/Color/Black & White
Night Vision: Yes (night vision is supported but infrared is not supported)
Sync Method: Internal Sync
Frame Rate: 1080P@60fps
Video Output: CVBS

Sensor Type: 1/2.7′
System Format: NTSC
Effective Pixels: 1928H沁1088V
Pixel Size: 3.0譙m沁3.0譙m
Dynamic Range: 72dB
Signal-to-Noise Ratio: 40dB
Minimum Illumination: 0.00001 Lux
Shutter: AUTO
Day/Night Mode: External Control (Default)/Auto/Color/Black & White
Night Vision: Yes (night vision is supported but infrared is not supported)
Sync Method: Internal Sync
Frame Rate: 1080P@60fps
Video Output: CVBS

Lens Specifications

Focal Length: 3.3mm
Aperture: 1.0
Diagonal: 101‵
Design: 2G5P
Distortion: <-54%
Relative Illumination: 43.5%

Focal Length: 3.3mm
Aperture: 1.1
Diagonal: 101‵
Design: 2G5P
Distortion: <-54%
Relative Illumination: 43.5%

General Specifications

Operating Temperature: -40‵C to 75‵C
Operating Humidity: Relative Humidity Below 90%
Power Supply & Current: 4.5~42v, 80ma@12v
Dimensions: 19.6*19.6 (mm)

Operating Temperature: -40‵C to 75‵C
Operating Humidity: Relative Humidity Below 90%
Power Supply & Current: 4.5~42v, 80ma@12v
Dimensions: 19.6*19.6 (mm)

Functions/Control

/

Exposure: Brightness/Exposure Mode/Gain/Digital WDR
White Balance: Auto Tracking/Manual White Balance
Menu Control: OSD Menu Control
Image Settings: Contrast/Sharpness/Saturation/Digital Noise Reduction/Mirroring
Language: Support for 14 languages
Restore Factory Settings: Yes

Package Included:
1 x Black Light / Black Light Pro Camera
