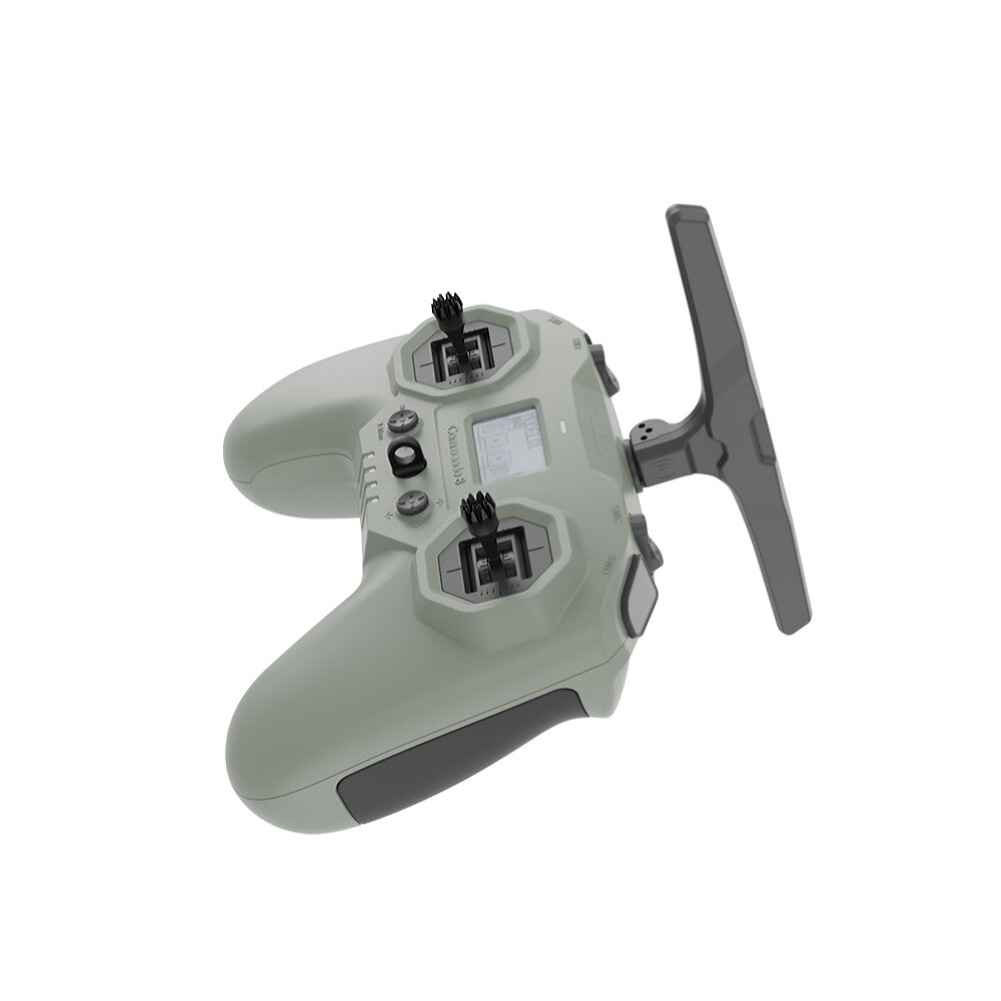

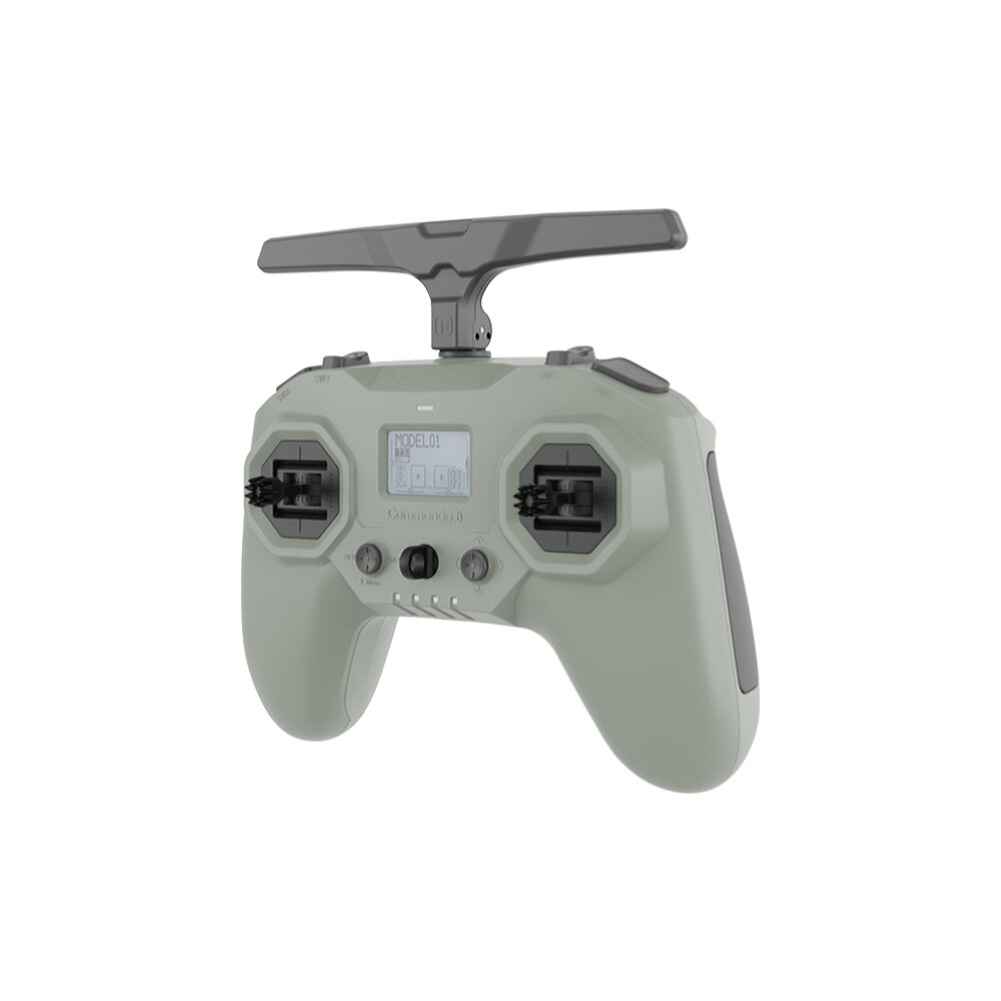

iFlight Commando 8 V2 ELRS 2.4GHz/868/915MHz Radio Transmitter with Hall Sensor Gimbals for FPV Racer Drone

Description

iFlight Commando 8 V2 ELRS 2.4GHz/868/915MHz 8CH Hall Sensor Gimbals EdgeTX/OpenTX Radio Transmitter for FPV Racer Drone

The iFlight Commando 8 V2 is an advanced radio transmitter designed for FPV racer drones, featuring integrated iFlight ExpressLRS hardware and a Temperature Compensated Crystal Oscillator for enhanced performance. This transmitter provides a seamless flying experience with its high-quality digital hall sensor gimbals and upgraded cooling system. It includes an internal ExpressLRS transmitter, eliminating the need for additional external modules. The device supports both EdgeTX and OpenTX systems, and it comes with a built-in 4000mAh battery for up to 20 hours of operation. The Commando 8 V2 also introduces a backpack function and antenna diversity mode for improved connectivity and reliability.

iFlight Commando 8 V2 ELRS 2.4GHz/868/915MHz 8CH Hall Sensor Gimbals EdgeTX/OpenTX Radio Transmitter for FPV Racer Drone
Description:
-The upgraded iFlight Commando 8 is here, equipped with fully integrated iFlight ExpressLRS hardware, a Temperature Compensated Crystal Oscillator, and an upgraded cooling system. The inclusion of a Temperature Compensated Crystal Oscillator further improves the drone’s performance. These enhancements not only improve the drone’s performance and reliability but also provide a more enjoyable and seamless flight experience for drone enthusiasts.

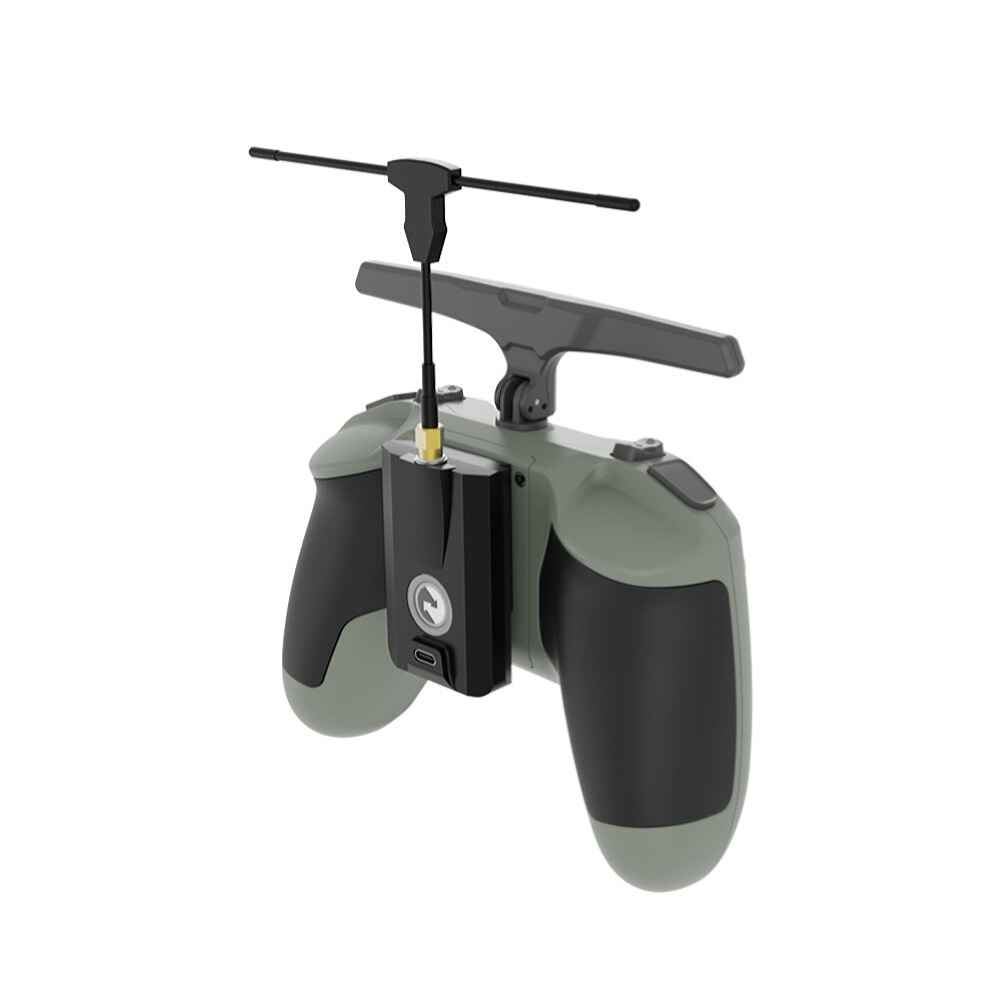

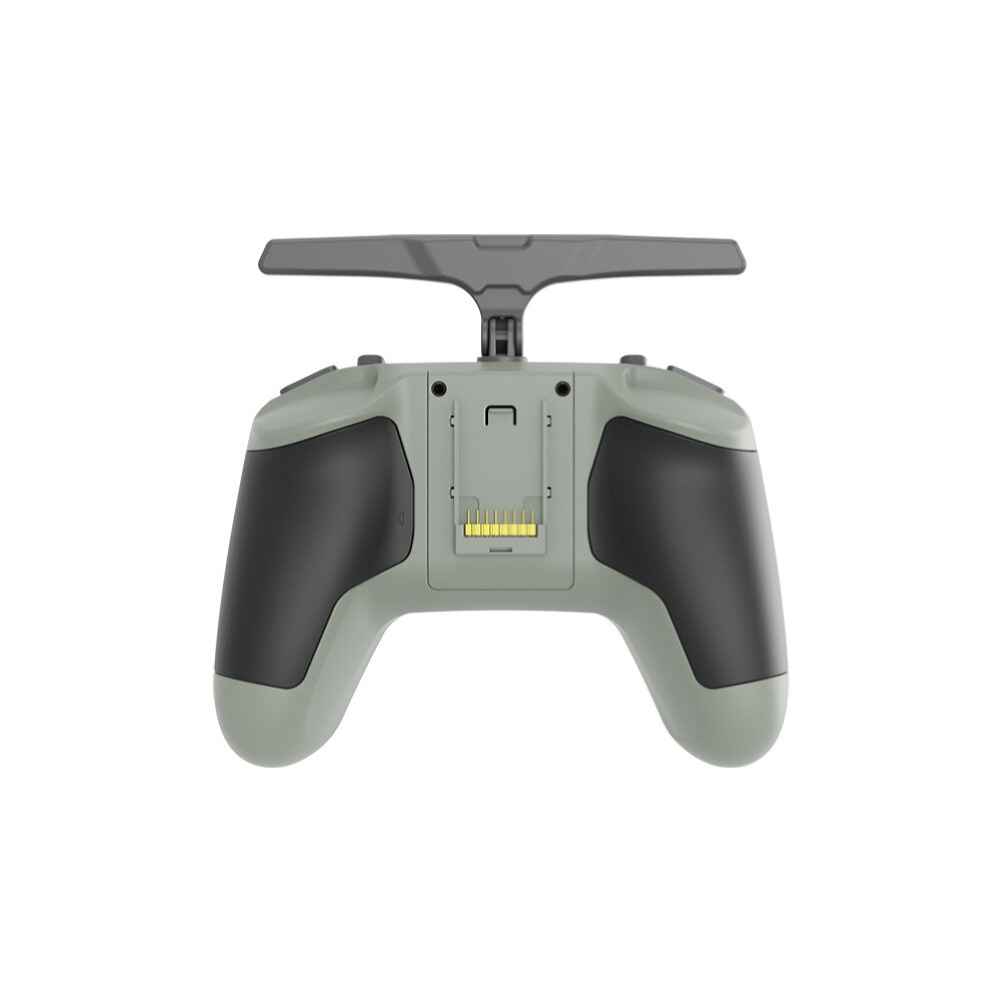

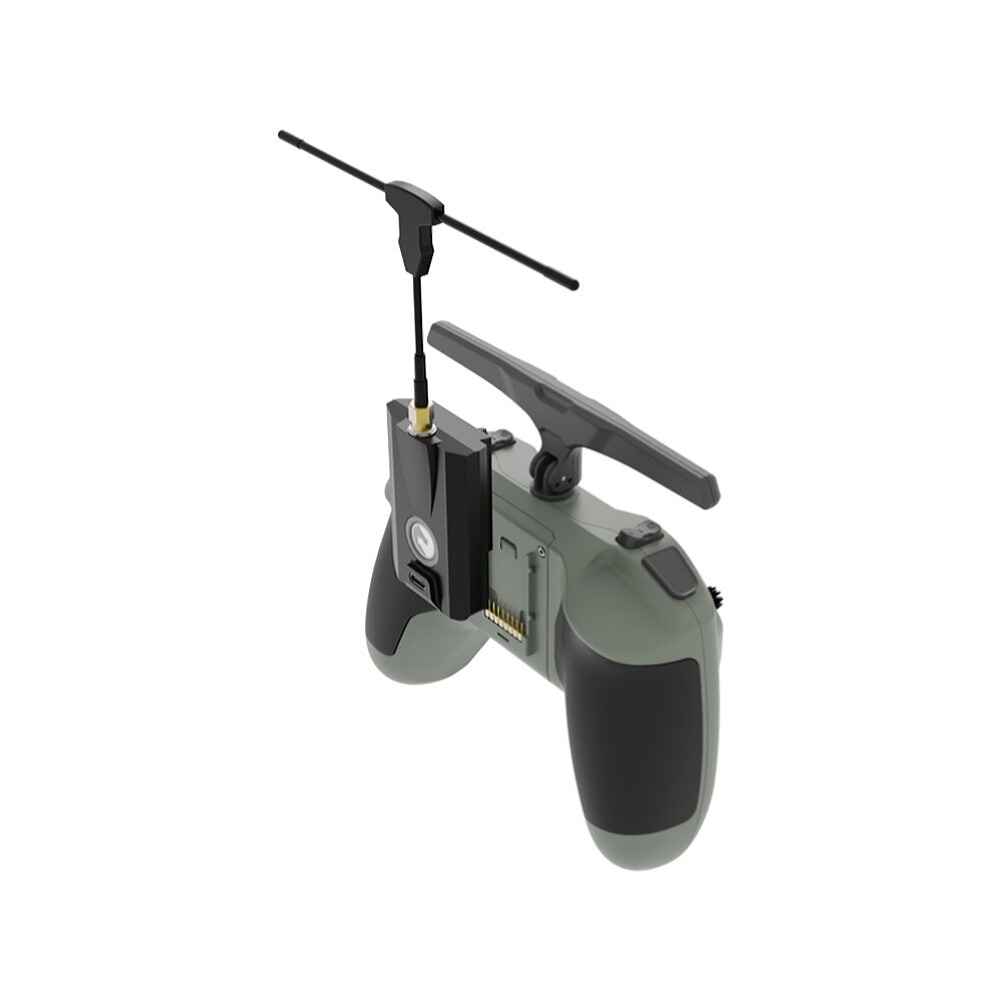

-No additional external module is necessary to run ELRS. If you’re planning to run another TX module, please check out the optional add-on external module bay.
-ExpressLRS TX modules were developed in close cooperation with the ExpressLRS Team with firmware targets already released.
-Checkout the official ExpressLRS website: https://www.expresslrs.org
-Official ExpressLRS Quick Start: https://www.expresslrs.org/2.0/quick-start/getting-started/
Features:

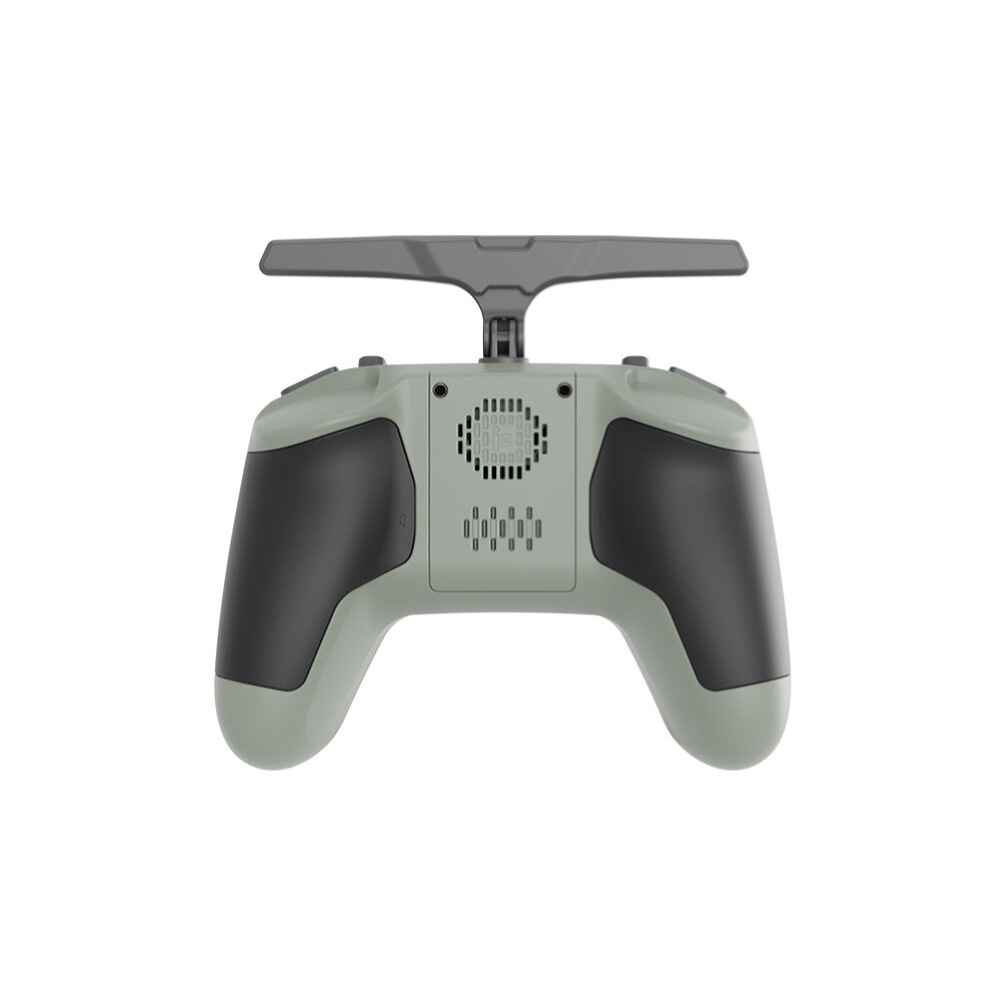

-Internal iFlight ExpressLRS (ELRS) transmitter (additional fan and aluminum sheet for cooling)
-Backpack Function
-Newly upgraded Temperature Compensated Crystal Oscillator (lower packet loss, high frequency stability)
-Highest quality digital hall sensor gimbals for maximum precision
-High-performance PCB Single Band (900/2400MHz) radio antennas
-Inbuilt 4000mAh for up to 20h power (2x 2000mAh 18650 batteries)
-Stock EdgeTX firmware with pre-installed Lua scripts
-Several Gimbal Stick Ends available (stock 18mm)
Upgrade from v1:
1. Commando 8 v2 adds the Backpack function. Please refer to the following article for the backpack function: https://www.expresslrs.org/hardware/backpack/esp-backpack/

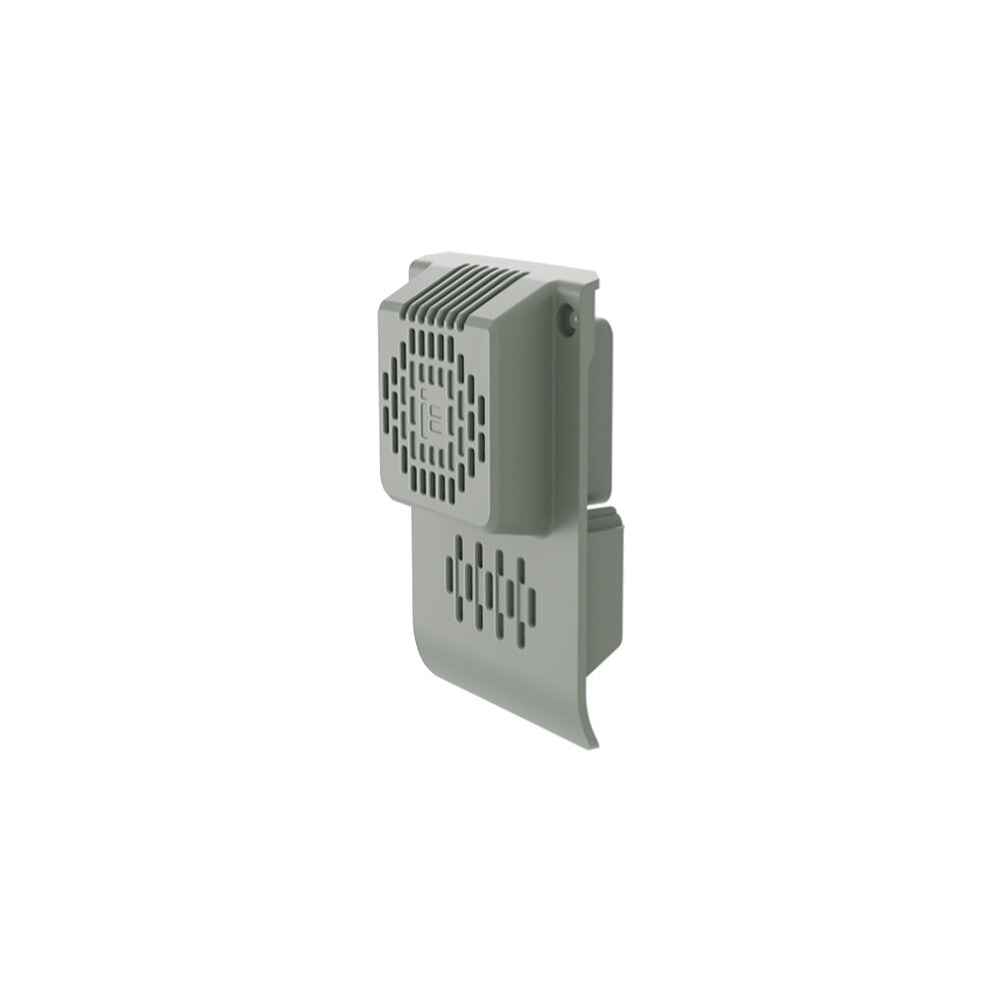

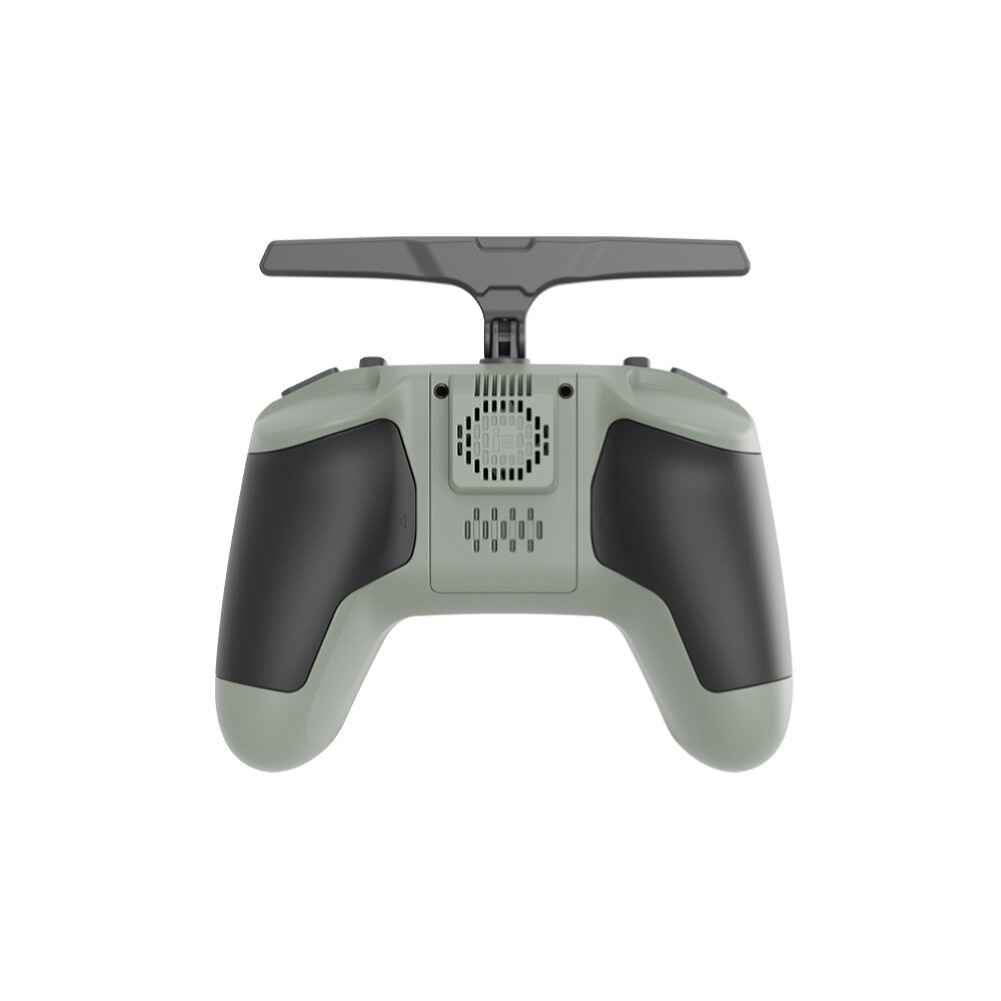

2. Cooling function Upgrade.
3. Crystal Oscillator Upgrade: Upgraded from ordinary active crystal oscillator to TCXO (Temperature Compensated Crystal Oscillator), which can improve the frequency-error problem.
4. Antenna ?ode Upgrade: ELRS 2.4GHz RX module is changed from single antenna mode to Antenna Diversity mode.
5. Antenna Change: The antenna of ELRS 2.4GHz V2 changed from a single-frequency 2.4GHz antenna to a 2.4GHz single-frequency dual antenna; ELRS 915 V2 antenna remains unchanged.
Antenna Options:
single-band dual antenna(2.4GHz)
Single-Band (868/915MHz)
Button Functionality:
2x 5-axis menu buttons for full OpenTX or EdgeTX control
2x 2-position switches (can be used for arming; not momentary)
2x 3-position switches
RF Power:
2.4GHz system: SX1281
868/915MHz system: SX1276
ExpressLRS 2.4GHz // Max Output 500mW
ExpressLRS 868/915MHz // Max Output 1000mW
Radio Channels: 8
Input: Mini High Precision Digital Hall Gimbals with NMB bearings

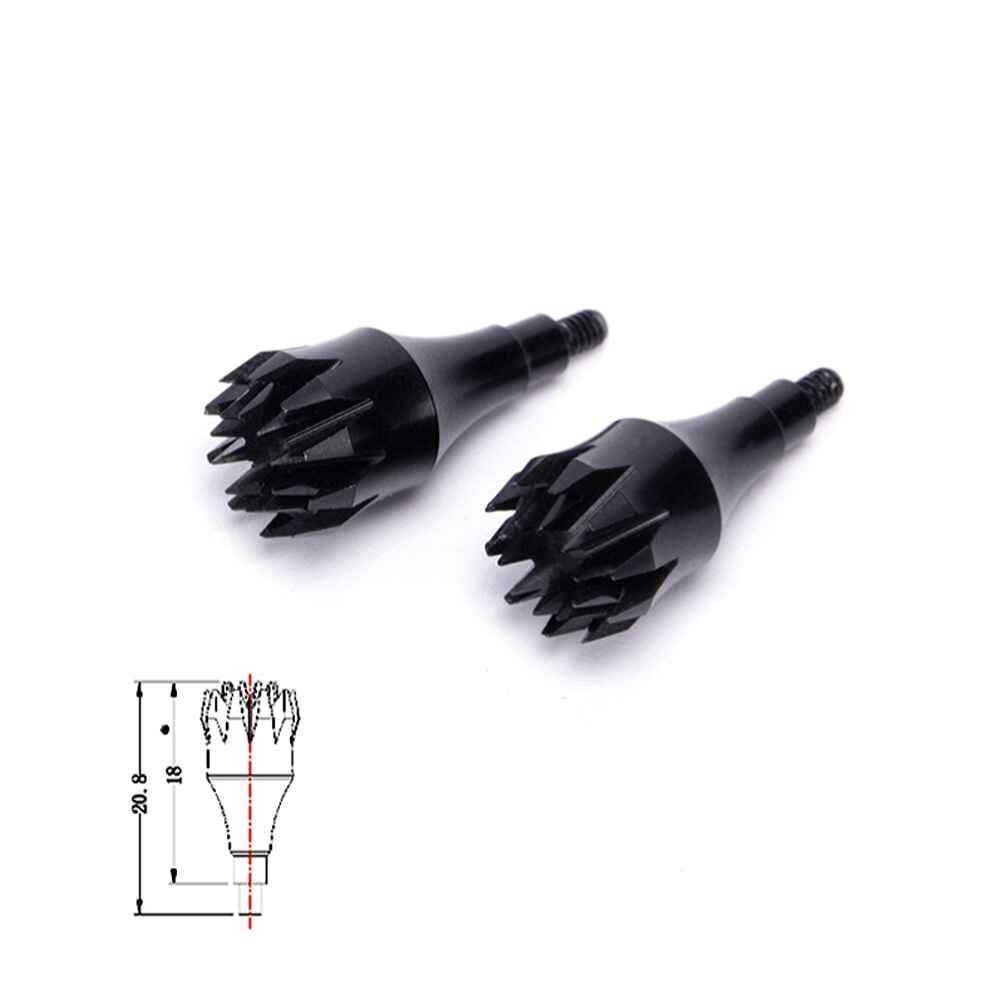

Gimbal Stick Ends: 18mm
Charging: Type-C 20W Quick Charge
Battery: Built-in 4000mAh 1S2P 18650 Battery
Charging Connector: Type-C
Weight: 310g

Package Included:
1 x Commando8 Radio Transmitter ELRS V2 (Please select your option) 2 x 18650 Li-Ion batteries included (pre-installed)
