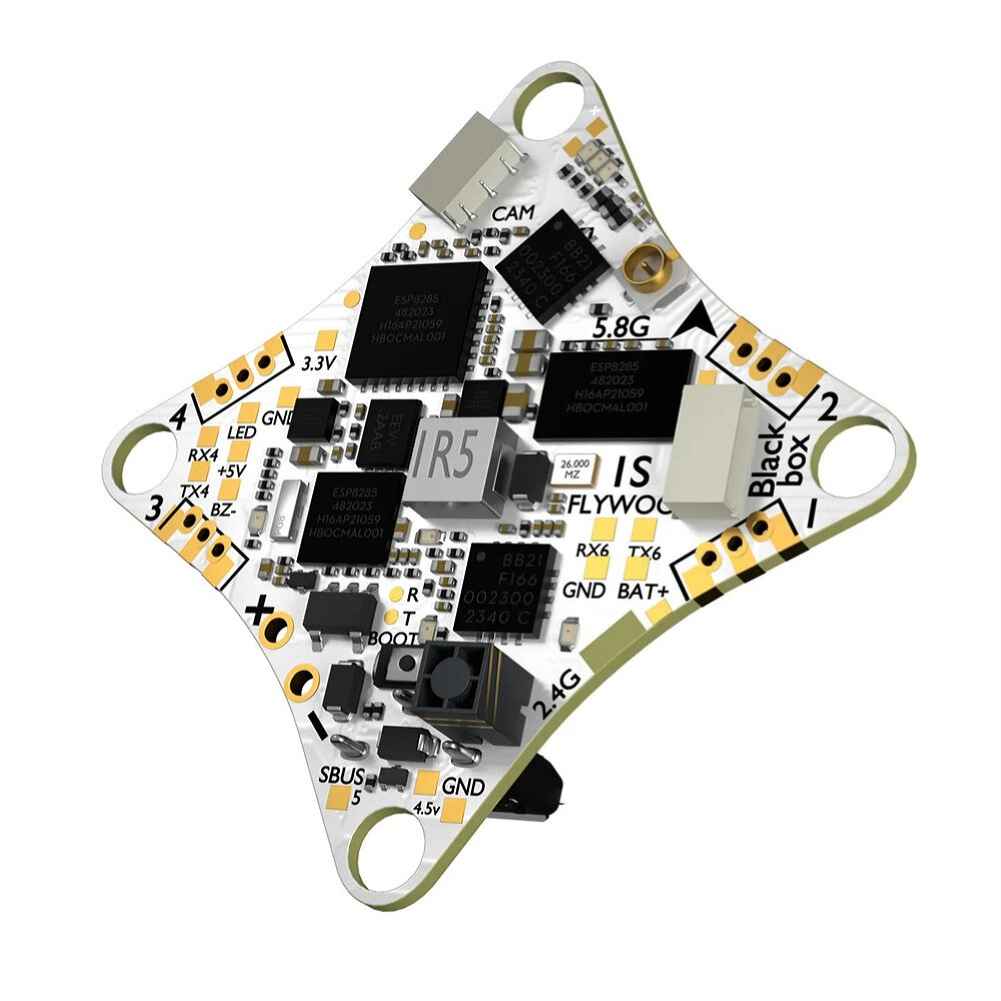

FLYWOO GOKU F405 ERVT 1S Flight Controller with 5A ESC & 400mW VTX for RC FPV Racing Drones

Description

25.5 x25.5mm FLYWOO GOKU F405 ERVT 1S ELRS Flight Controller 5V BEC & 5A 5in1 ESC Built-in 400mw VTX for RC FPV Racing Drone

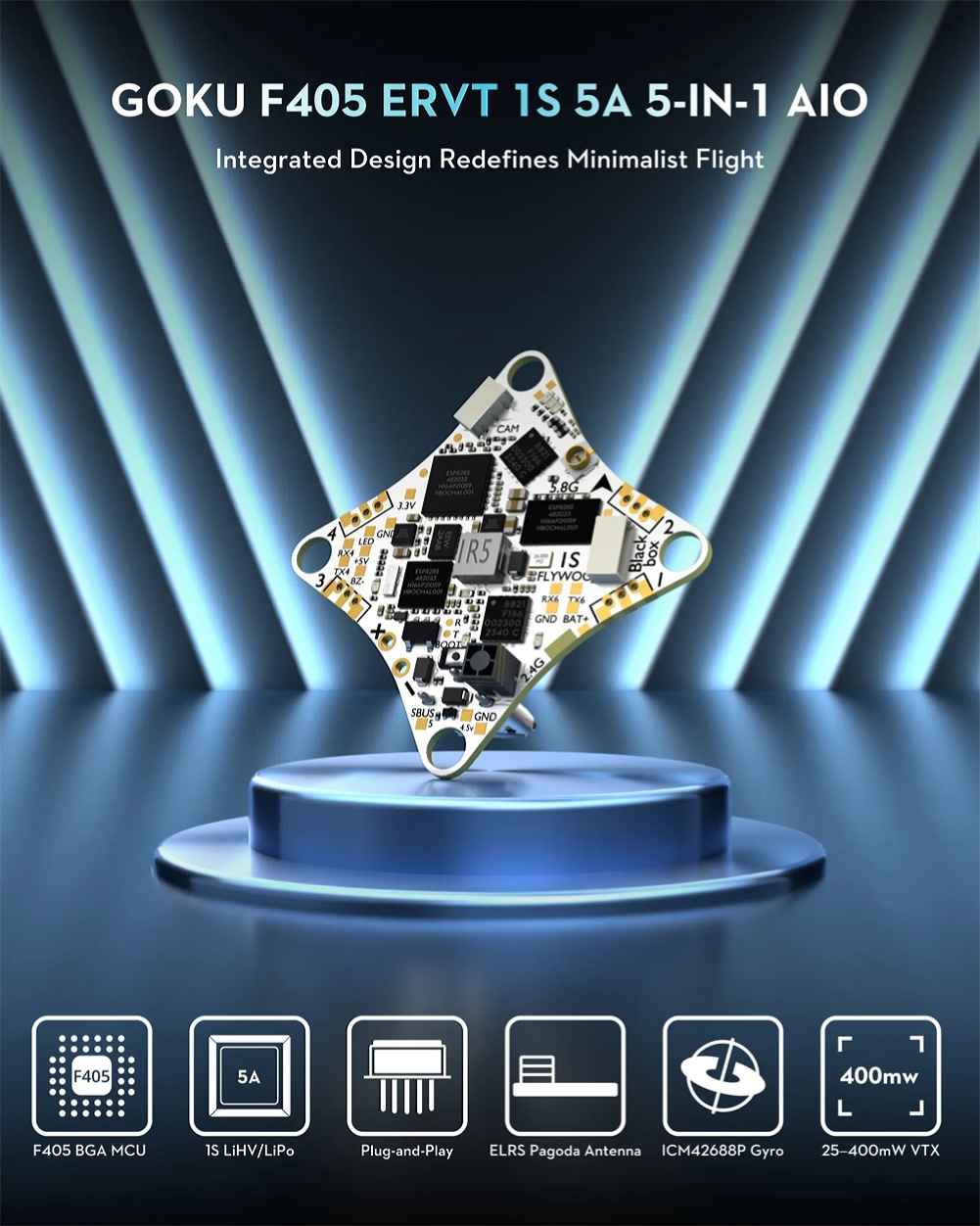

The FLYWOO GOKU F405 ERVT 1S Flight Controller is a cutting-edge 5-in-1 solution for RC FPV racing drones. It integrates a flight controller, ESC, VTX, receiver, and OSD into one compact unit. Powered by the F405BGA MCU, it offers 68% more processing power than traditional F411 chips, ensuring ultra-low latency for competitive racing and acrobatics. The controller features modular plug-and-play interfaces for easy, solder-free installation. With adjustable 25-400mW transmission power and a pagoda-style antenna, it provides up to 1.5km range. It’s compatible with Betaflight, INAV, and other mainstream firmware, making it highly versatile for professional use.

Description:
GOKU F405 ERVT 1S 5A 5-in-1 AIO Flight Controller è—© A revolutionary all-in-one solution integrating flight controller, ESC, VTX, receiver, and OSD. Powered by an F405BGA MCU , it delivers 68% higher processing power than traditional F411 chips, enabling ultra-low latency for competitive racing and acrobatic maneuvers.
Highlights:

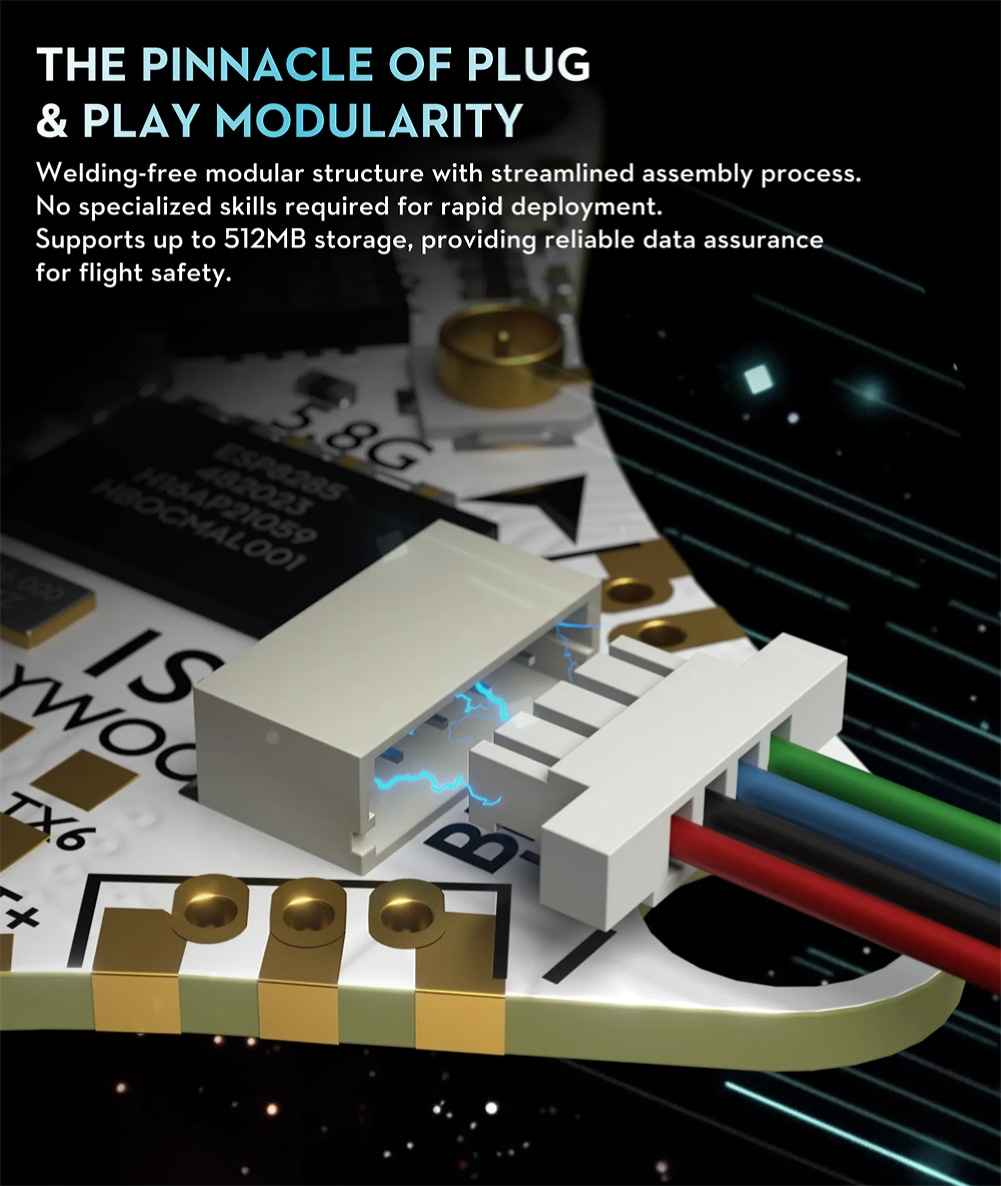

1. Integrated Design 券Modular plug-and-play interfaces for solder-free installation of motors, cameras, and blackbox.
2. Unmatched Processing券
– F405BGA chipset with 68% faster clock speed for lighning-fast reponse.
– 1S LiPo, 5A continuous current output ensures stable power delivery (supports Bluejay firmware).
– Built-in 4kHz gyro
3. Video Transmission Switch券
-Featuring adjustable 25-400mW transmission power and electronic switch

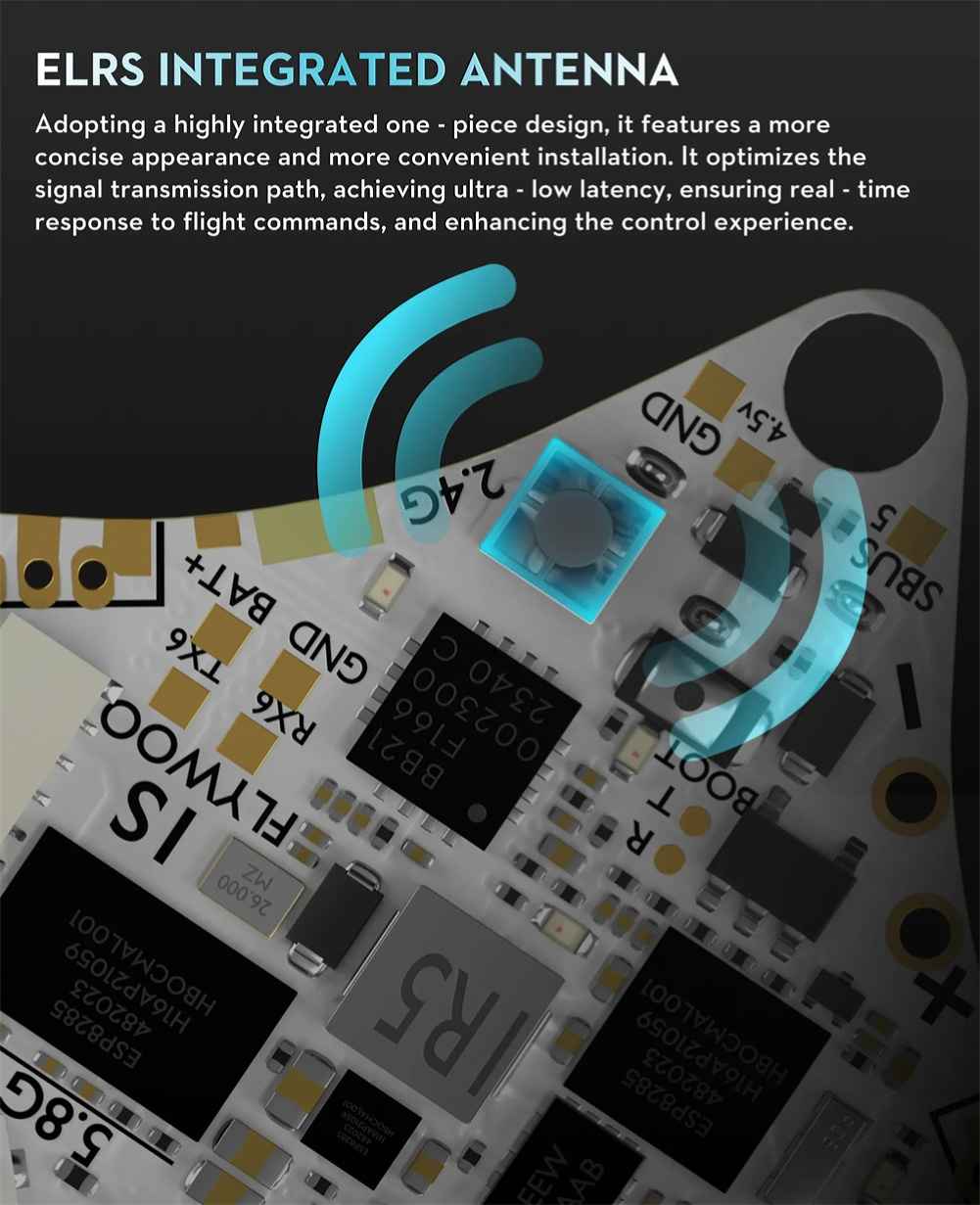

-The pagoda-style integrated antenna delivering √1.5km range
-1S-optimized circuitry for sub-50ms video latency
4. Professional Expandability:
– Optional Flywoo plug-and-play Flight Blackbox (512MB storage) .
– Fully compatible with Betaflight, INAV, and other mainstream firmware
Specification:
Brand: FLYWOO
Model: GOKU F405 ERVT
Item Name: 1S 5A ELRS AIO Built-in VTX

FC

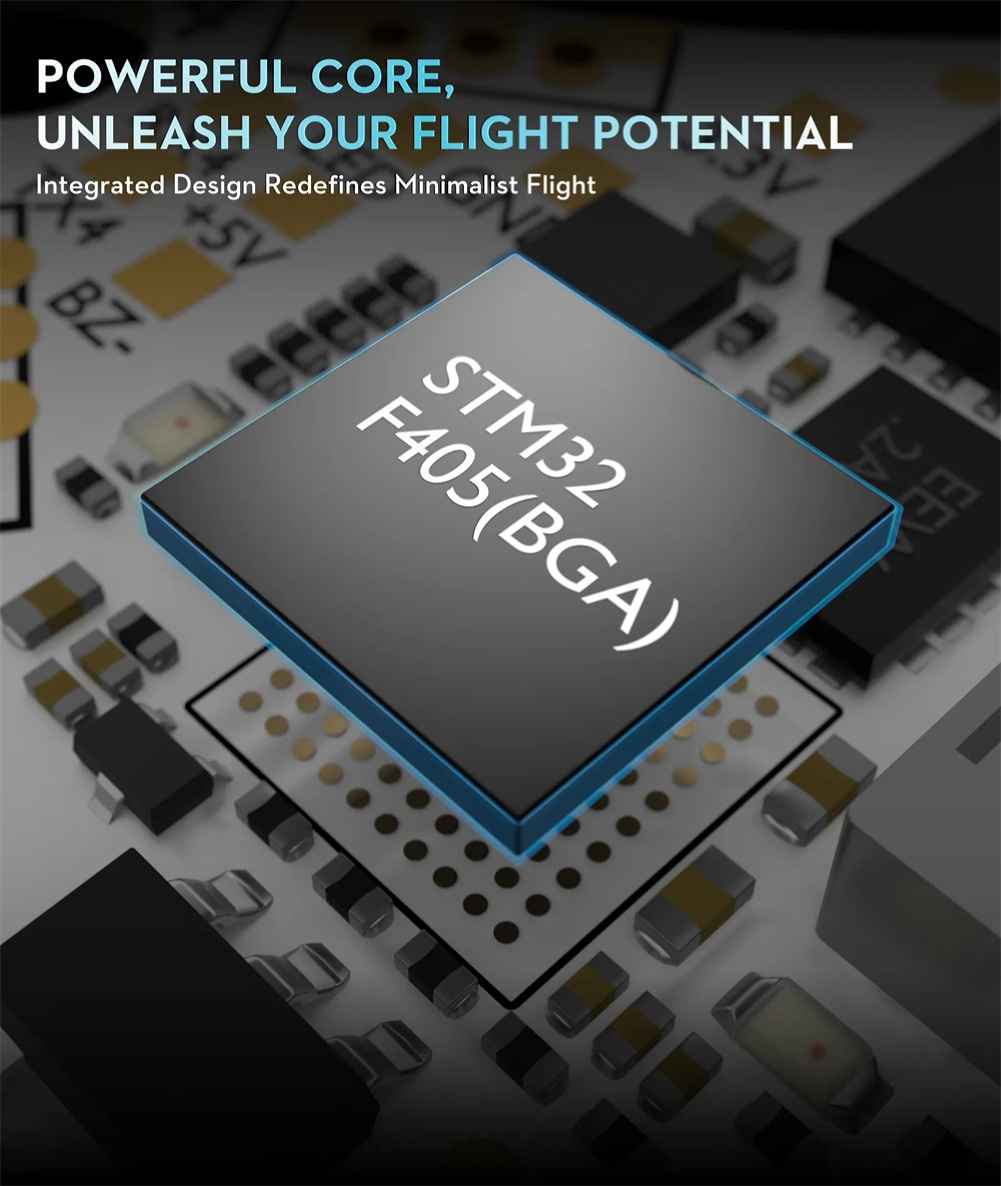

MCU: STM32F405BGA
IMU: ICM42688P
Barometer: No
Black Box: No (Up to 512M external)
OSD Support: AT7456E (LGA16)
UART:UART1 (VTX IRC),UART2(Blackbox),UART3 (ELRS RX),UART4,UART5 (SBUS),UART6
Supported Protocols: CRSF, SBUS, iBus, Spektrum
BEC: 5V 2.0A max
RX: Flywoo EL24E 2400 RX 3.0.0
FC Firmware: FLYWOOF405S_AIO

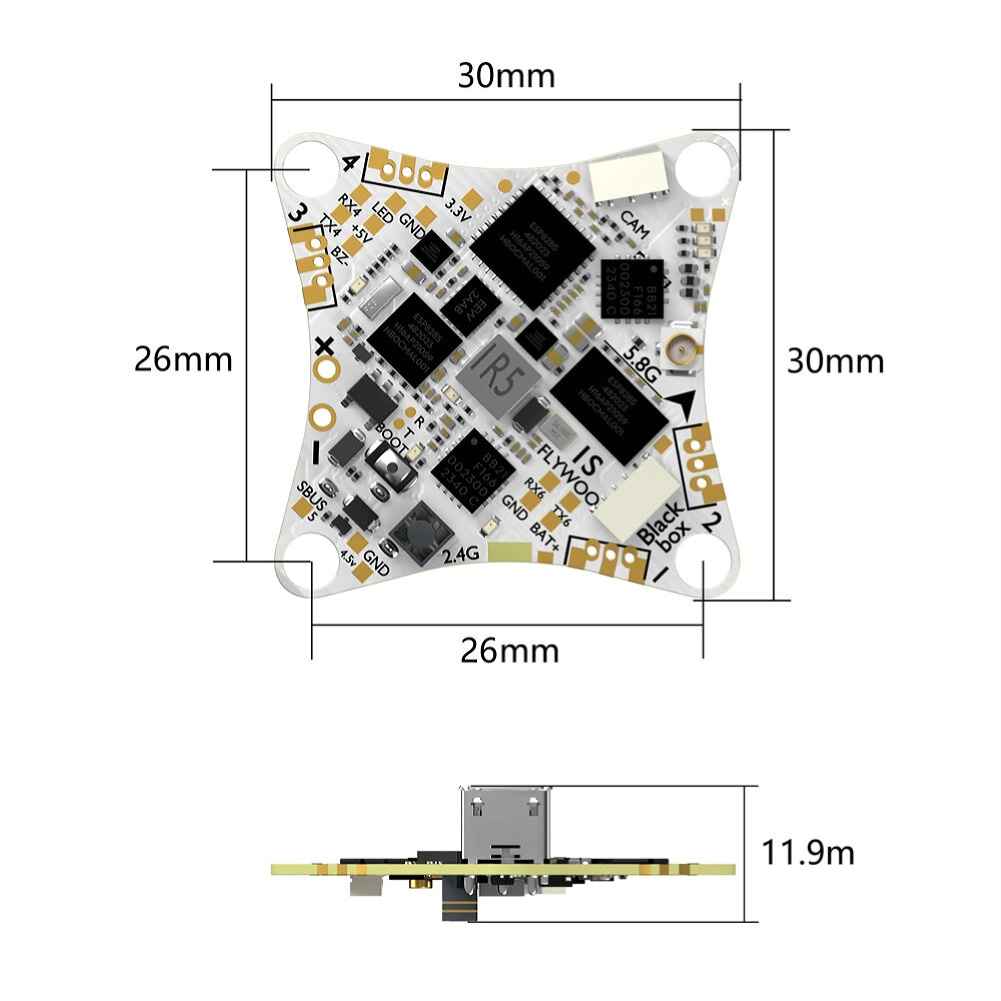

Dimensions: 30.5 x 30.5mm
Mounting Holes: Standard 25.5/25.5mm square to center of holes

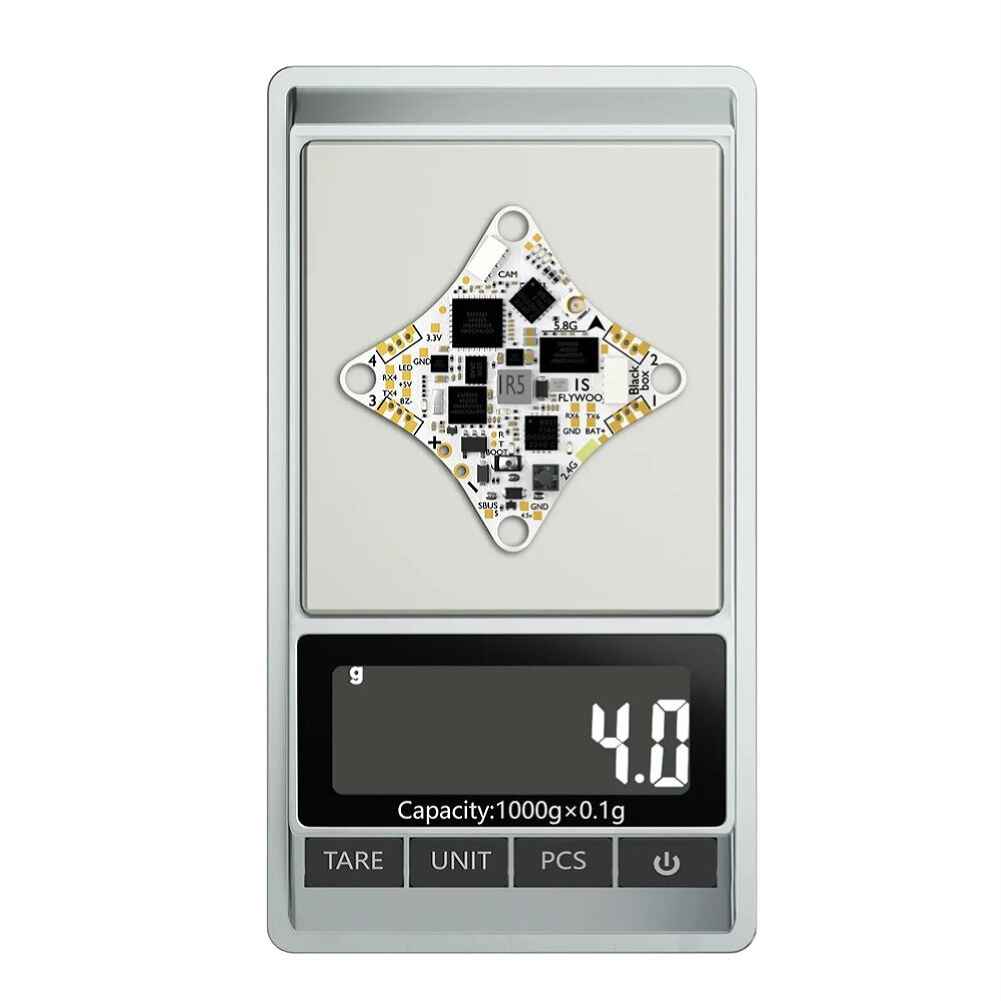

Weight: 4g

Onboard 4in1 ESC

Power input: 1S Only
Current: 5A continuous, 8A peak
ESC firmware: O_H_5_48KHz_V0.19.hex Bluejay firmware
Digital signal protocol: DShot300, DShot600
Motor Connector: JST1.25
Battery connector: A30

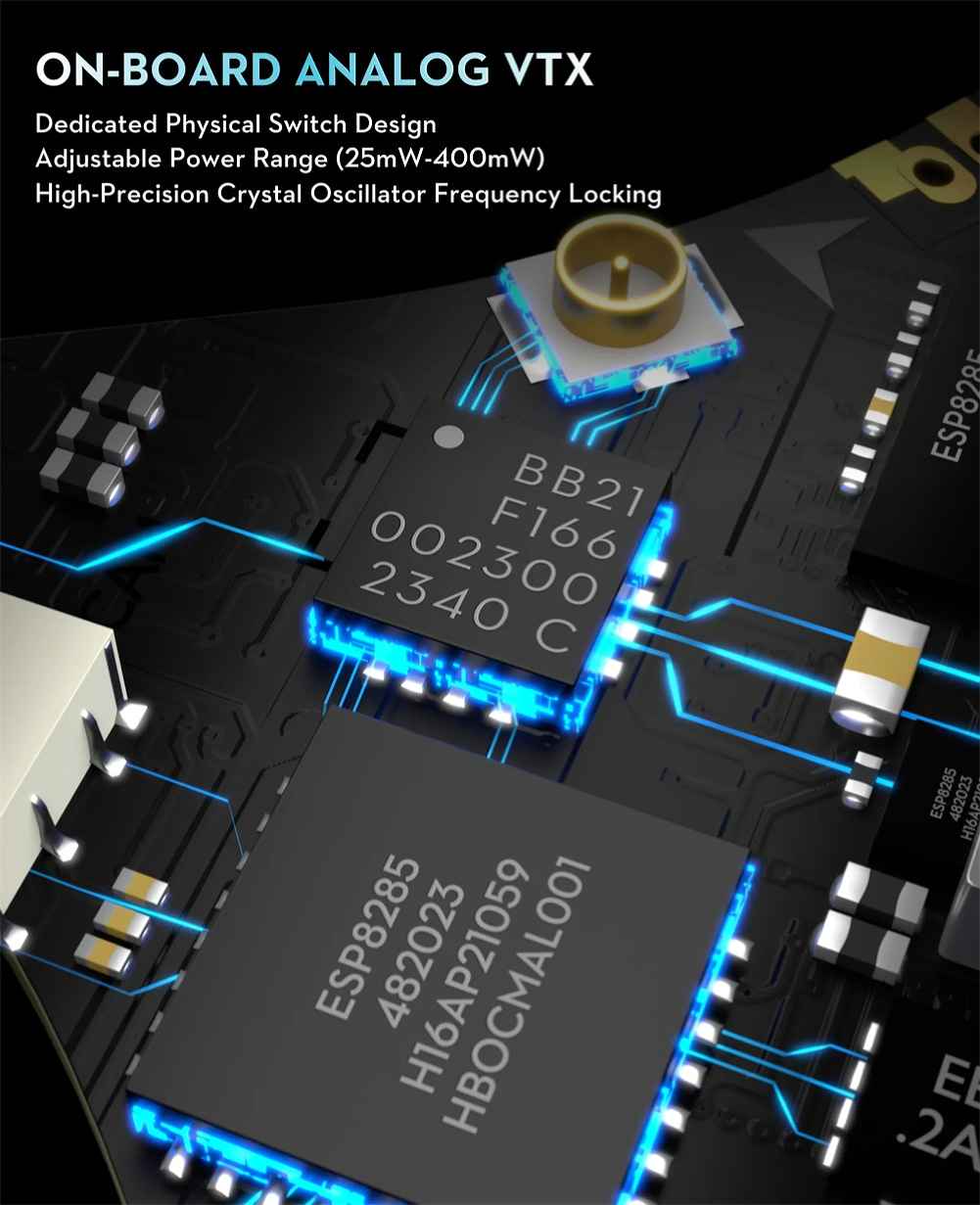

Onboard analog VTX

Built-in VTX : 25/50/100/200/400/0mw
VTX Protocol : IRC Tramp
Frequency:5.8GHz 40 channels
Raceband: 5658-5917MHz
Operating temperature:-15‵~+80‵

Package Included:
1 x GOKU F405 ERVT 1S 5A 5-in-1 400mw ELRS AIO 1 x A30 Power Cable 1 x JST-0.8 3pin 50mm Camera Cable 1 x Flywoo Black Box Connector Cable 4 x 1.25mm 3-Pin Vertical Straight Socket 4 x M2x6.6 Shock-Absorbing Ball
