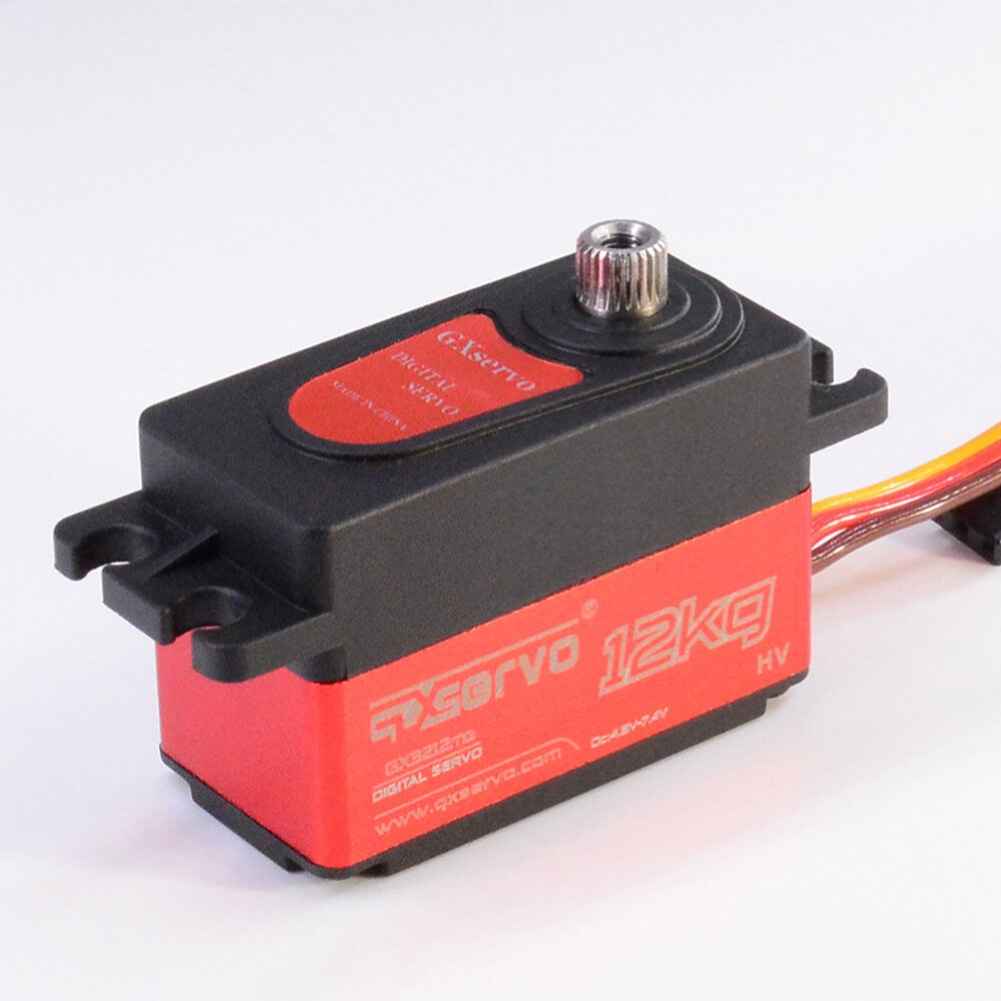

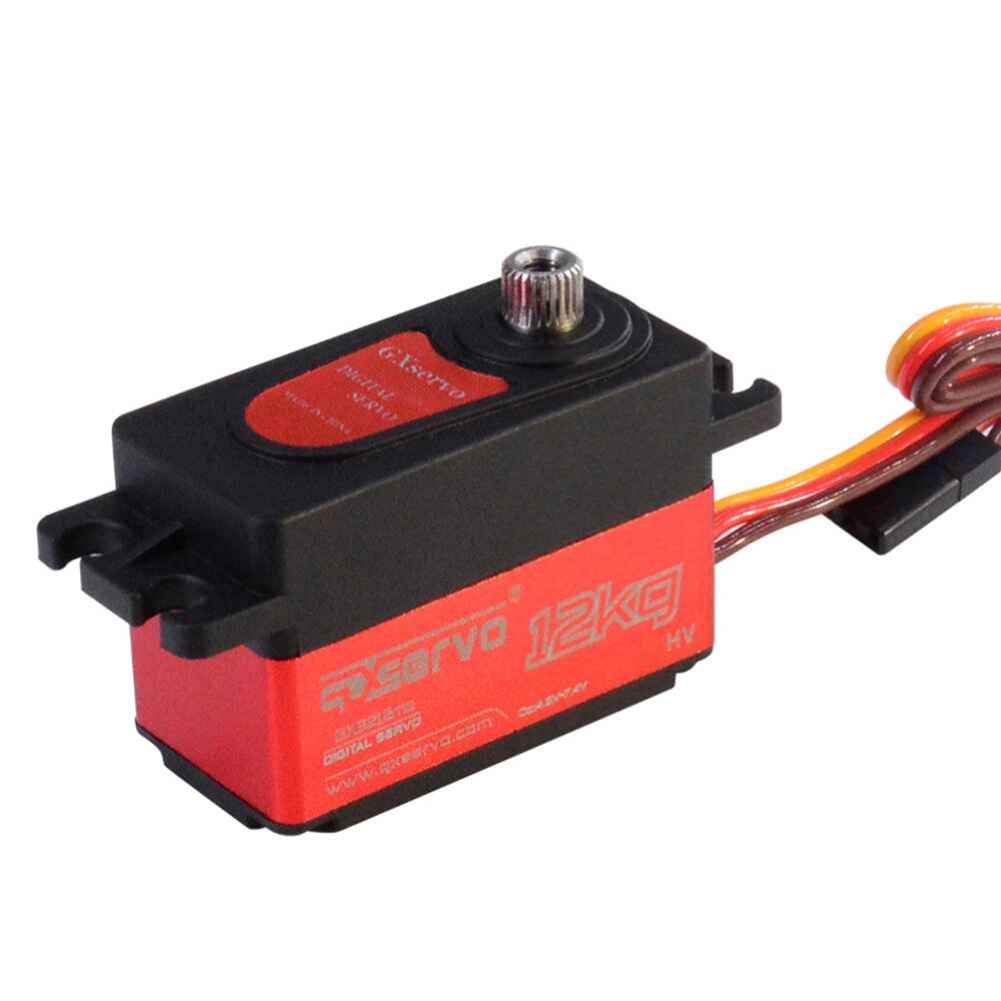

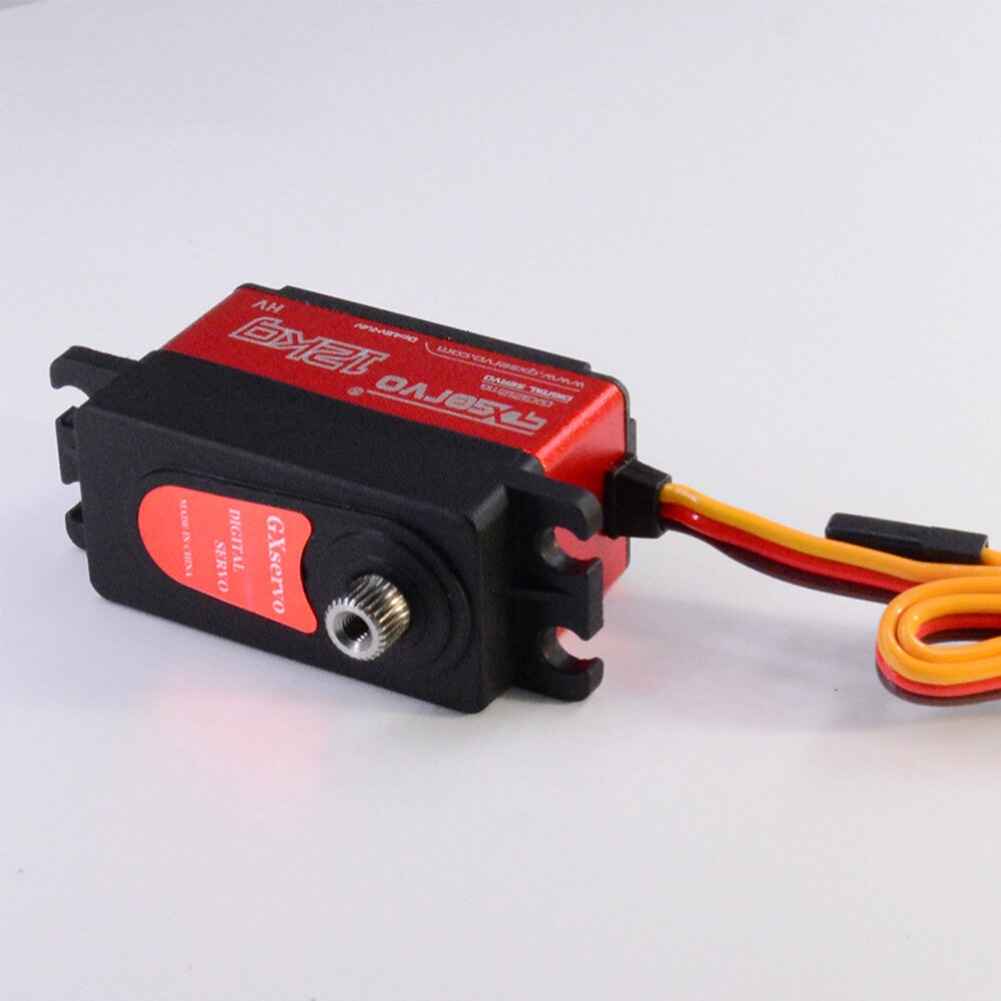

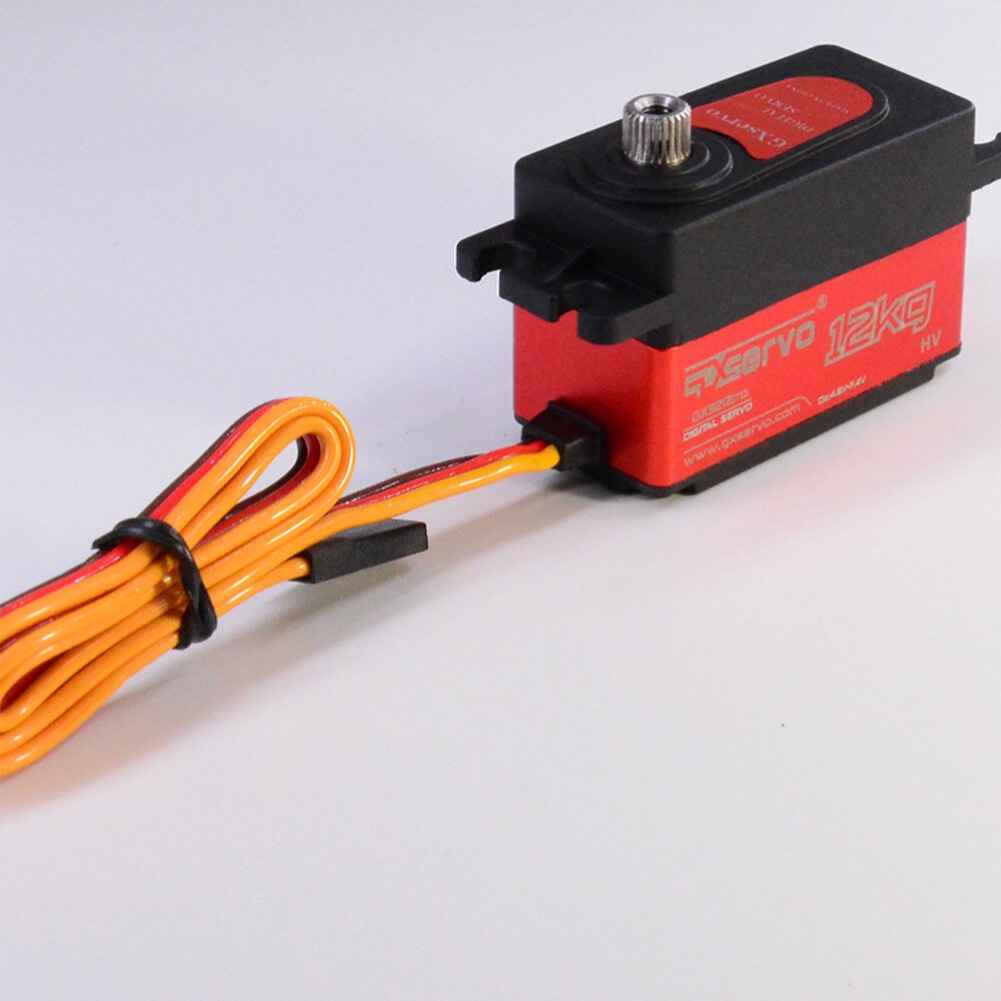

GXservo GX3212mg 12kg Digital Servo, 1/8 1/10 1/12 RC Cars & Planes, Tamiya Compatible, All Metal Gear

Description

GXservo GX3212mg 12kg Digital Servo for 1/8 1/10 1/12 Racing Cars Tamiya Cars and Planes

The GXservo GX3212mg Digital Servo is a compact and lightweight servo designed for high performance in RC models, including 1/8, 1/10, and 1/12 scale racing cars and Tamiya cars, as well as planes. Crafted from high-quality aluminum alloy, it offers exceptional strength and resistance to rust and corrosion. Operating within a voltage range of 4.8V to 6.0V and a signal frequency of 330Hz, it ensures smooth and reliable performance. The servo features an all-metal gear system and a Futabas 25T output gear, making it ideal for precise control in RC car drift models, fixed-wing aircraft, robot arms, and Arduino projects.

Specifications:
Brand: GXservo
Motor: Core
Neutral Point: 1500ç±³s
PWM Voltage: 3.3V-5.0V
Feedback Angle: No
Cycle: 20ms
Default Direction: CCW
Remote control Angle: 90～
Quiescent Current: 50mAh
Blocking Current: 1.8A
Output Gear: Futabas 25T
Shell Material: Half Aluminum Shell
Connector Wire Length: 260MM
Operating Speed: 4.8V/0.11’/60～
Stall Torque: 4.8V10 kg.cm
Potentiometer: Mechanics
Voltage Range: 4.8V/6.0V
Signal Frequency: 330Hz
PWM Voltage: 3.3V-5.0V
Operating Temperature: -10⊥-50⊥
Dead band: 4ç±³s
Yes / no Lock: Lock
500-2500米s Angle: 180～ / PWM
Rated Current: 1.0A
Weight / Dimensions: 50g / 40*20*28.3mm
Gear Material: All Metal Gear
Bearing: 2BB
Line Definition: Brown-/Red+/Orange s
Features:
The GXservo Digital Servo is a compact and lightweight device that is easy to carry and store.
It is engineered from top-grade aluminum alloy material for strength, durability, and resistance against rust and corrosion.
The servo includes a Mechanics Potentiometer, ensuring smooth operation.
This device operates at an optimal voltage range of 4.8V/6.0V and signal frequency of 330Hz, delivering high performance.
It comes with an output gear of Futabas 25T, making it ideal for RC car drift models like 1:8, 1:10, 1:12 Tamiya Sakuras carFix-wing, robot arm, and Arduinos.

Package Included:
1 x GXservo GX3212mg Digital Servo
