HAKRC 45AF7 V2 Stack F7 Flight Controller with Dual Gyro, 5V/10V BEC, 45A BL_S 2-6S 4in1 ESC for DJI O3 Air Unit RC FPV Racing Drone

-21%

HAKRC 45AF7 V2 Stack F7 Flight Controller with Dual Gyro, 5V/10V BEC, 45A BL_S 2-6S 4in1 ESC for DJI O3 Air Unit RC FPV Racing Drone

Original price was: $112.92.Current price is: $88.91.

Upgraded HAKRC 45AF7 V2 Stack with dual gyro for enhanced stability
Includes 5V/3A and 10V/2.5A BEC outputs for versatile power supply
Compatible with DJI O3 Air Unit for seamless integration
Supports Dshot150/300/600, Multishot, PWM, and Oneshot signals
Designed for DIY RC FPV racing drones

SKU: RC1774879 Category: Multi Rotor Parts Tags: 2-6S input voltage, 45A 4in1 ESC, 5V 10V BEC output, DJI O3 Air Unit support, F7 dual gyro stack, FPV racing drone parts, HAKRC flight controller, STM32F722RET6 processor Brand: HAKRC

Description

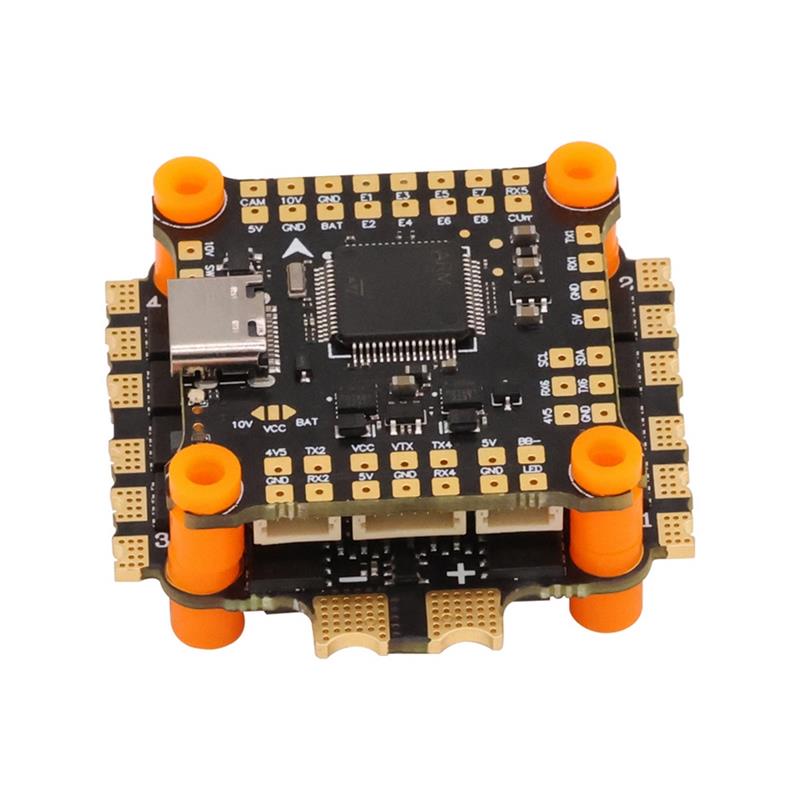

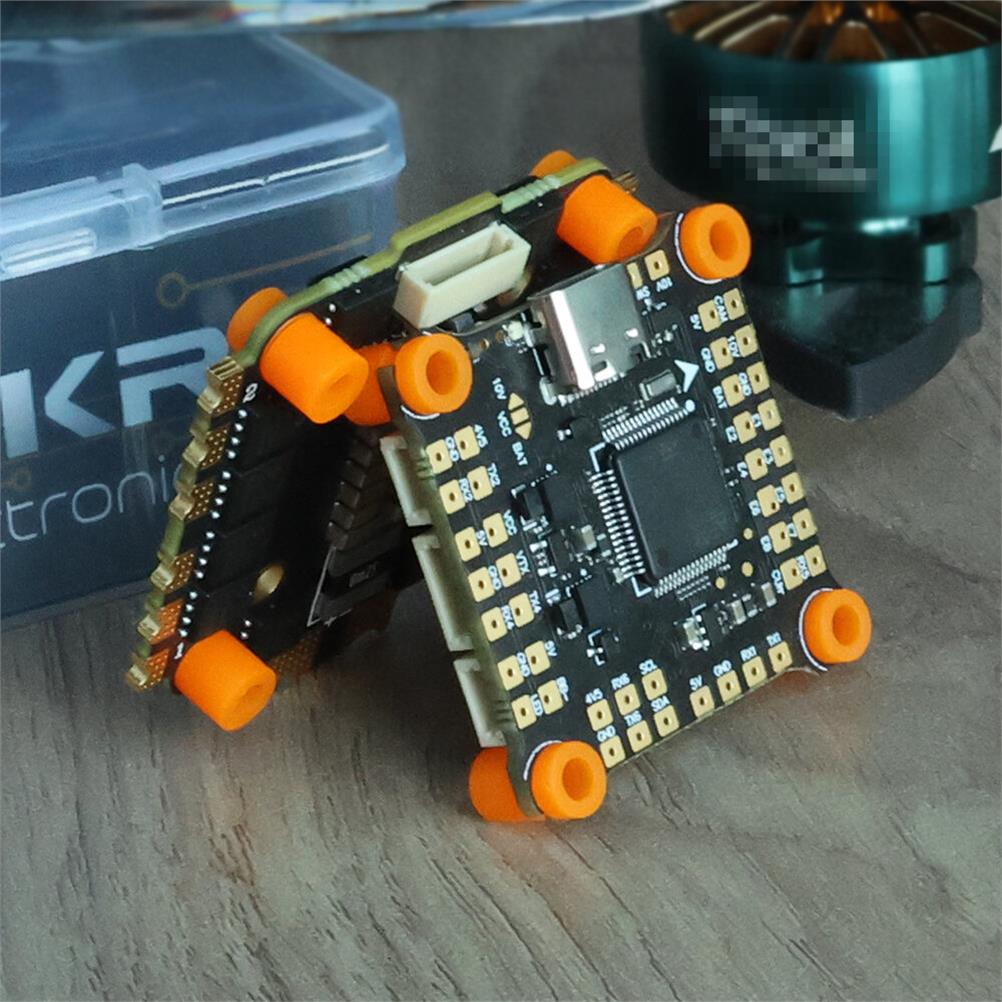

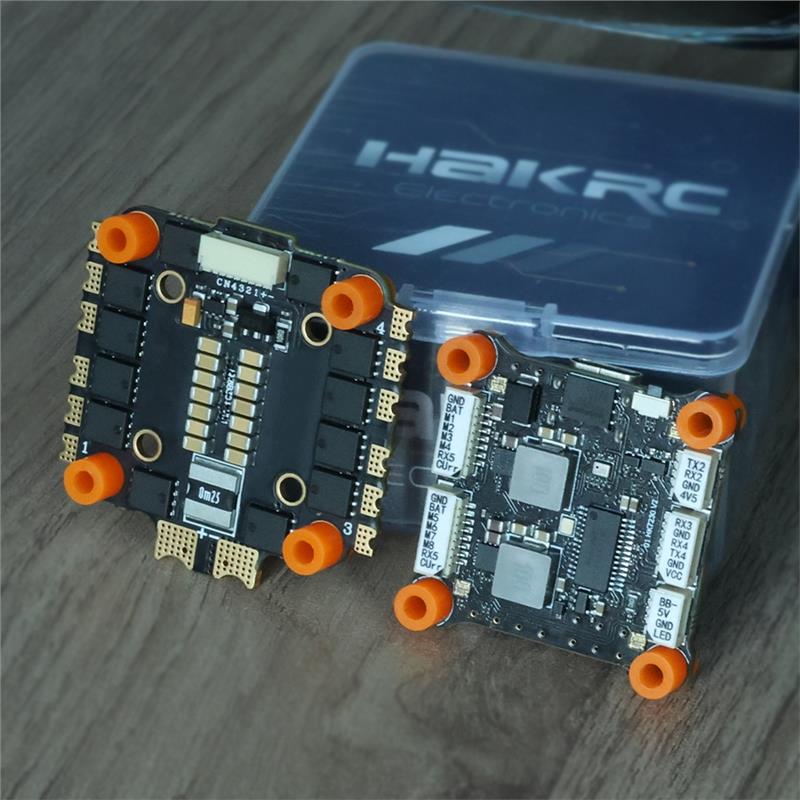

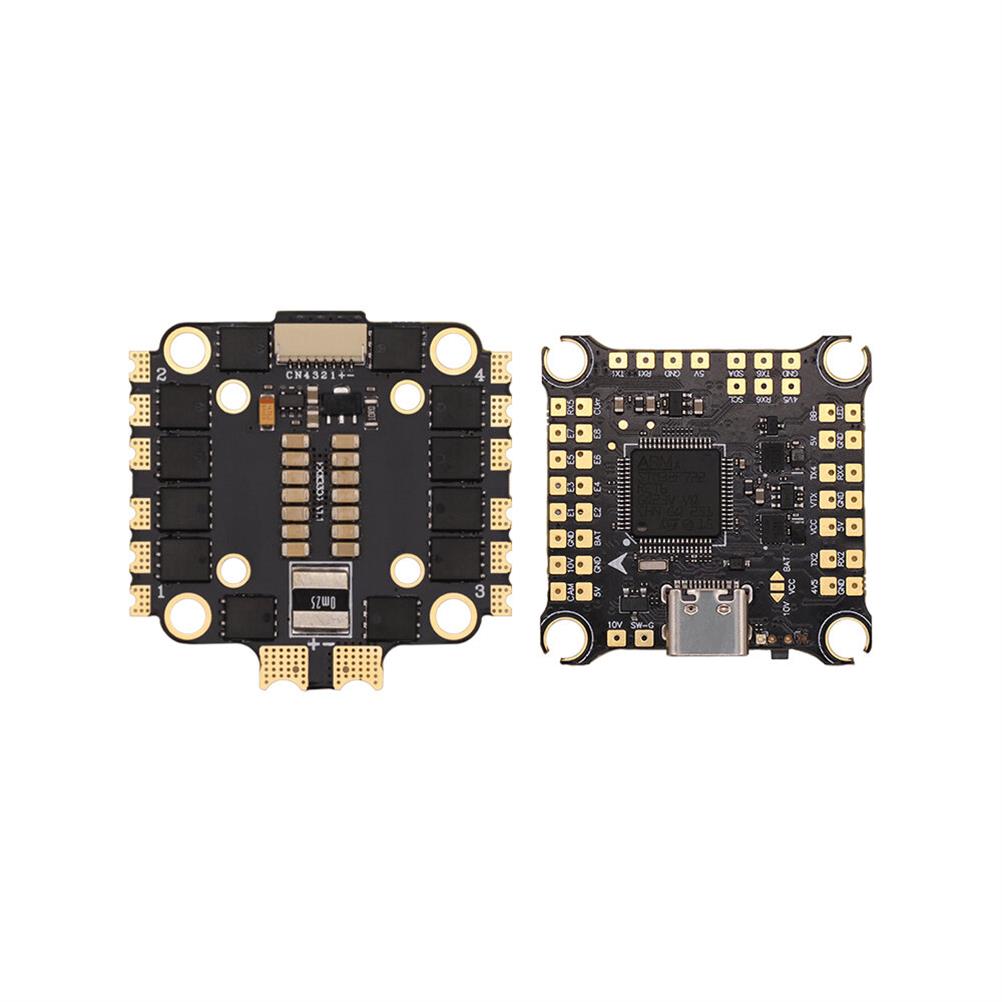

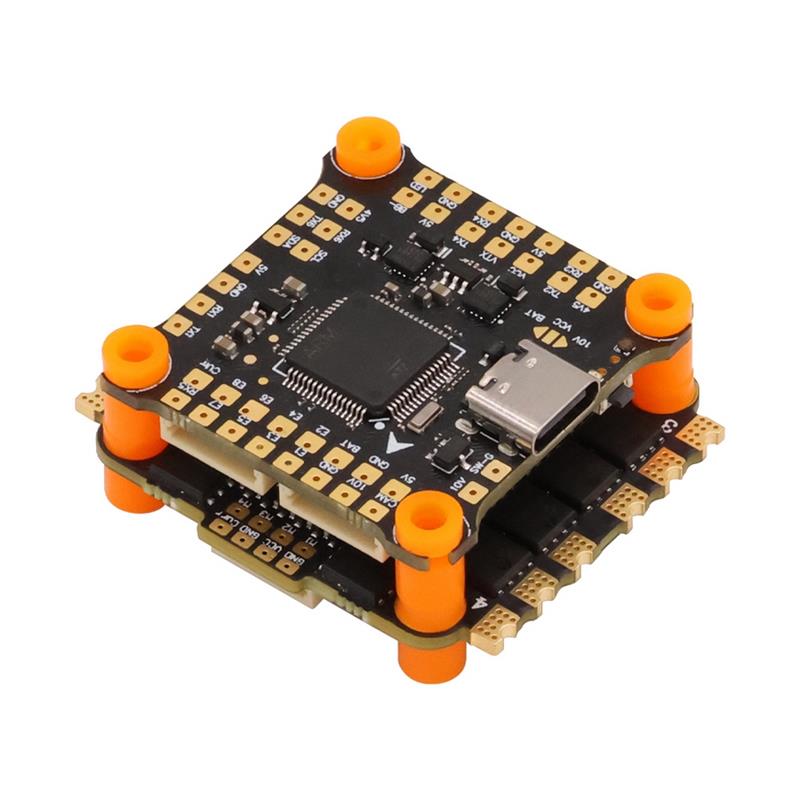

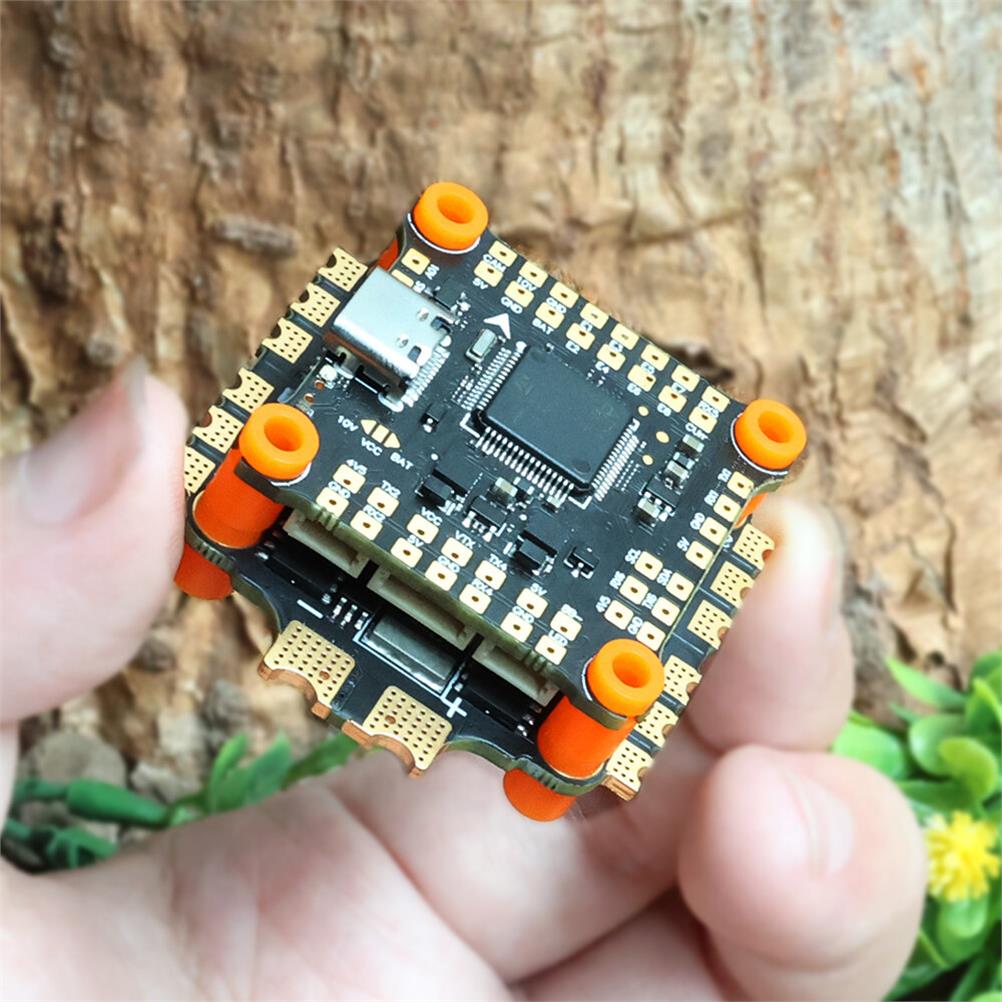

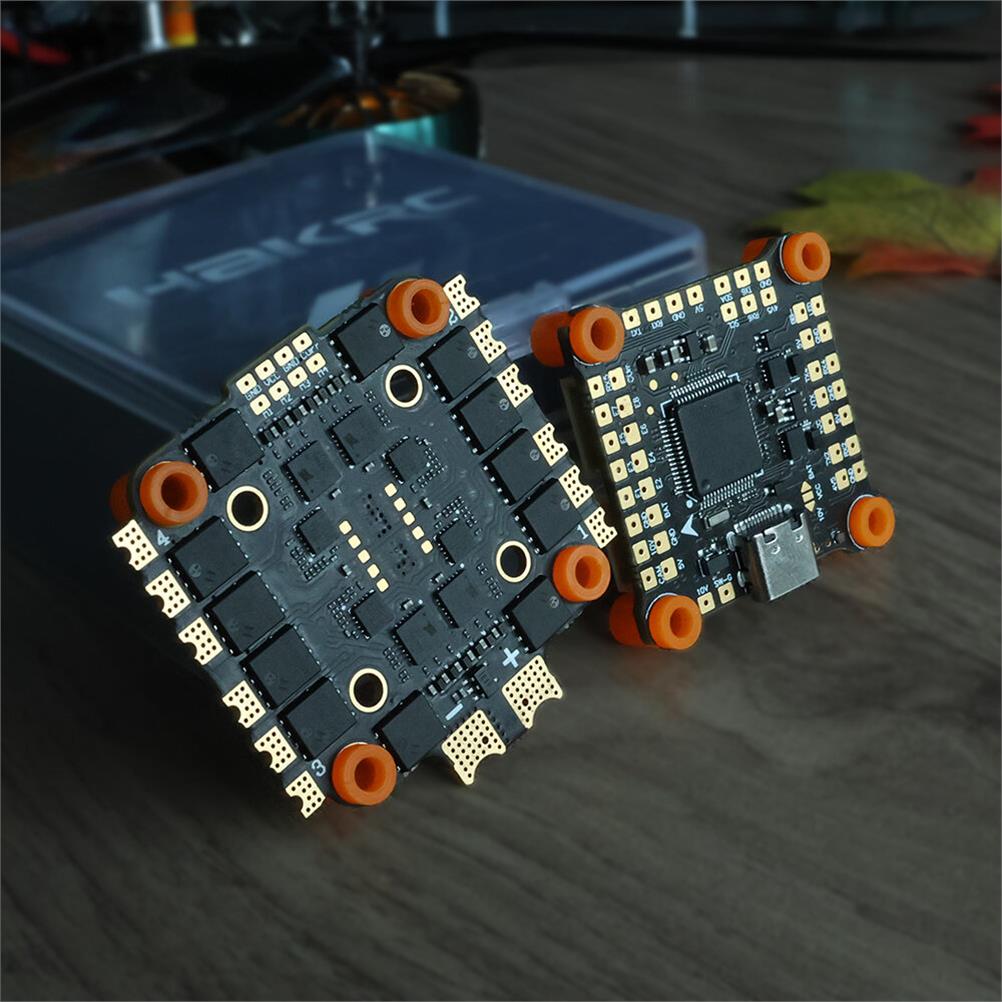

30.5×30.5mm HAKRC 45AF7 V2 Stack F7 Flight Controller Dual Gyro with 5V 10V BEC Output 45A BL_S 2-6S 4in1 ESC Flytower Support DJI O3 Air Unit for DIY RC FPV Racing Drone

The HAKRC 45AF7 V2 Stack is an upgraded flight controller designed for DIY RC FPV racing drones. Featuring a dual gyro system with ICM42688 sensors, it ensures precise control and stability. The controller is equipped with a powerful STM32F722RET6 processor and offers 16MB of storage. Supporting a 2-6S input voltage, it includes a 5V/3A and 10V/2.5A BEC output. The 4in1 ESC supports continuous currents of 45A and peak currents of 50A, compatible with Dshot150/300/600, Multishot, PWM, and Oneshot signals. Ideal for integration with DJI O3 Air Unit, the stack is perfect for enhancing your drone’s performance.

Notice: Upgrade into new V2 Version like photos showed.
July 19th, 2023. BeiJing Time
Specification:
Brand: HAKRC

New V2 Version

Old Version

Model: 45AF7 V2 Stack
Stack Net Weight: 23g
Packing Size: 64x64x35mm
Packing Weight: 71.5g
Flight Controller:
Installation Hole Distance: 30.5×30.5mm, 耳4mm
Processor: STM32F722RET6
Gyroscope: Dual ICM42688
BEC: 5V/3A; 10V/2.5A
Storage: 16MB
Input Voltage: 2-6S
Firmware: HAKRCF722V2
Uart serial port: 6
FC Size: 36x36mm
FC Net Weight: 8.5g
ESC:
Input Voltage: 2-6S
ESC Hole Distance: 30.5*30.5/20*20mm, 朴4mm
Continuous Current: 45A
Maximum Current: 50A (Sustainable 10S)
Assistant Software: BLHeliSuite16.7.14.9.0.3
Current Scale: 160
Drive Signal Support: Dshot150/300/600, Multishot, PWM, Oneshot42, Oneshot125.
ESC Size: 44x44mm
ESC Net Weight: 13.5g

Model: F722 DJI 45A Stack
Packing Size: 朴62*33mm
Stack Weight: 25g
Packing Weight: 30g
Flight Controller:
Installation Hole Distance: 30.5*30.5mm, 耳4mm
Processor: STM32F722RET6
Gyroscope: MPU6500
BEC: 5V/3A; 9V/2.5A
Storage: 16MB
Input Voltage: 3-6S
Firmware: Betaflight_4.1.0_MATEK722se
Uart serial port: 5
FC Size: 36x36mm
FC Net Weight: 8g
ESC:
ESC Hole Distance: 30.5*30.5/20*20mm, 朴3mm
Continuous Current: 45A
Maximum Current: 50A (Sustainable 10S)
Assistant Software: BLHeliSuite
Input Voltage: 2S-6S
Drive Signal Support: Dshot150/300/600, Multishot, PWM, Oneshot.
ESC Size: 44*44*5.5mm
ESC Net Weight: 14g

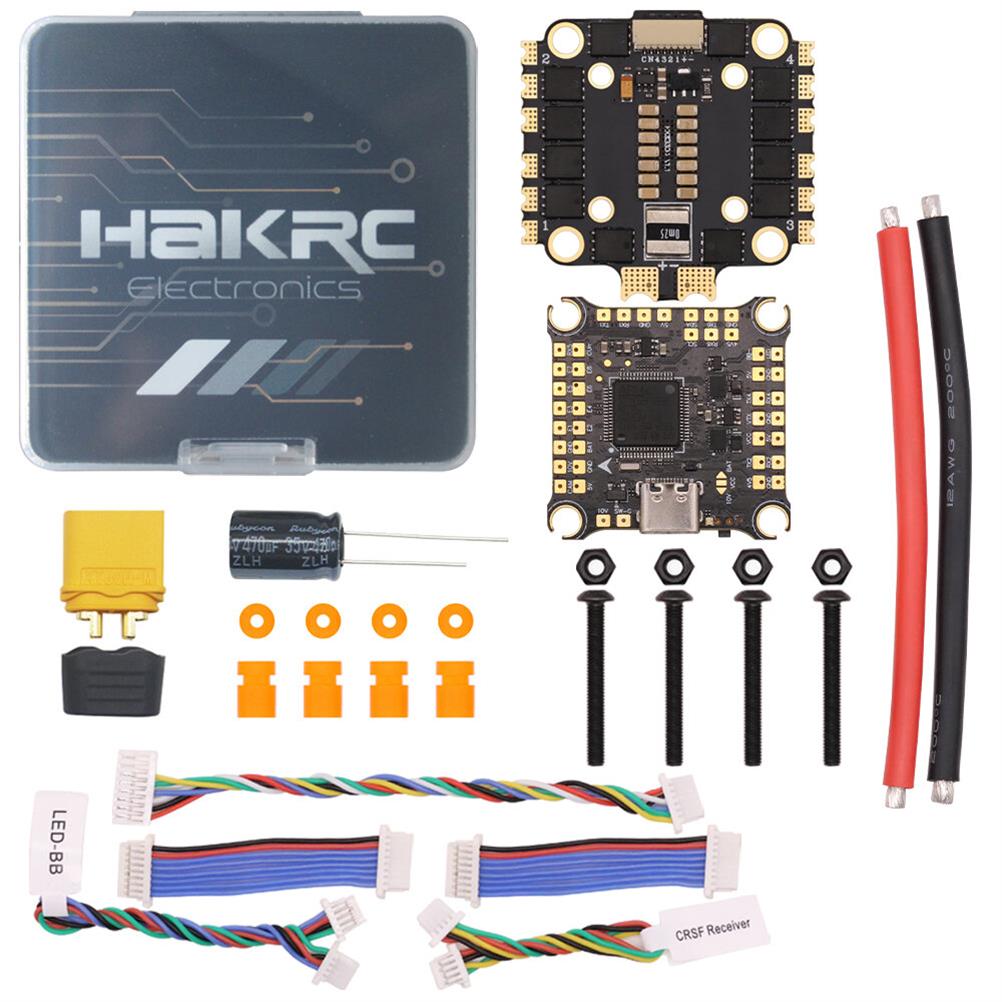

Package Included:
1 x HAKRC F7 Flight Controller
1 x HAKRC 45A 4in1 ESC
8 x M3 Orange Shock Absorption
2 x 8p Cable
1 x 4p LED Cable
1 x 4P CRSF Receiver Cable
1 x 6P Cable for DJI Digital System
1 x Capacitor (35v470uf)
1 x XT60 Plug
1 x Red and Black Cable
4 x M3 25 Screws
4 x Black Nuts
