Description

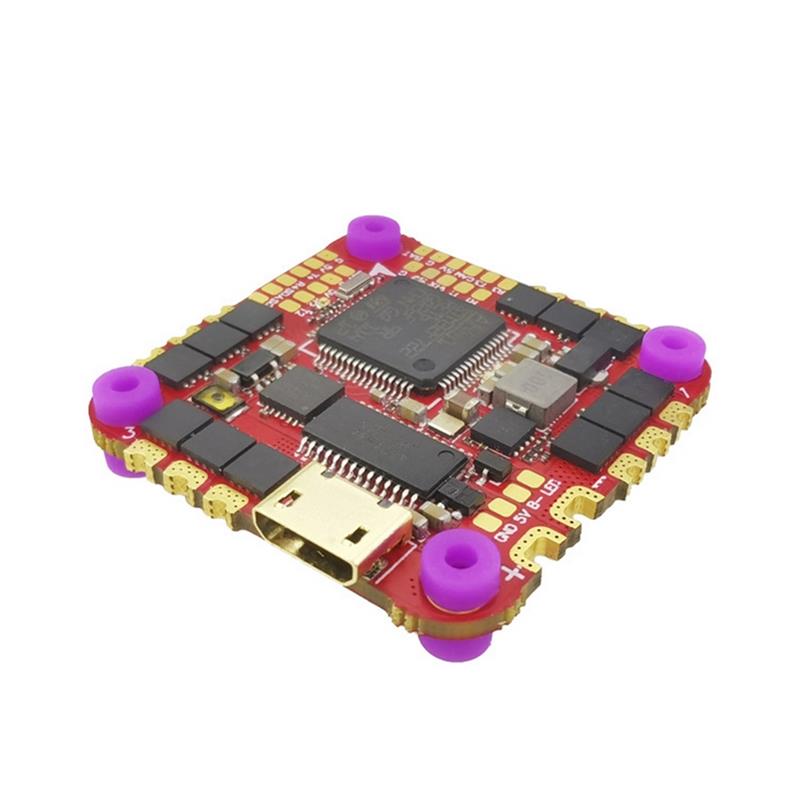

25.5×25.5mm HAKRC F722 F7 Flight Controller AIO 40A BLHELI_ S 2-6S ESC w/ 5V 3A BEC Output for FPV Racing Drone
Notice: Because MPU6000 has stopped produced. This item Replace it into ICM42688.
Features:
1. The PCB adopts high-end 8-layer 2oZ thick copper skin, which has stronger over-current capability and good heat dissipation.
2. MOS adopts imported 40V high current resistance MOS, long life and strong load capacity.
3. Using industrial grade LDO, high temperature resistance.
4. Using high-quality Japanese Murata capacitors, strong filtering performance
Description:
Brand: Hakrc
Item Name: F722 FC Built-in 40A BLHELI_ S 2-6S AIO ESC
Size: 32* 32mm (25.5mm-26.5mm mounting hole)
Packing size: 63*32mm
Product net weight: 7g
Package weight: 25g
Flight control parameters:
CPU: STM32F722RET6
OSD: AT7456E
Barometer: integrated
BEC: 5V/3A
Uart: 5
LED: Support WS2812 and other programmable
Sensor: Built-in current sensor
Flight control firmware version: HAKRC F722D
Receiver: CRSF / Frsky/ Futaba/ Flysky/
TBS Crossfire/ DSMX: DSM2 receiver
ESC parameters:
Firmware support: BLHELI_ S
Protocol support: PWM, Oneshot125, Oneshot42,
Multishot, Dshot150, Dshot300, Dshot600
Input voltage: 2S-6S Lipo
Continuous current: 40A
Peak current: 50A
Current meter proportional value: 450
Firmware version: BLHELI _S (G- H-30)
Package Included:
1x F722 Flight Controller AIO
4x Yellow shock-absorbing ball
1x XT30 power cord
1x Type-C USB small board
1x 80mm long SH1.0/7P single-head cable
1x 270uf/35V capacitor
