iFlight XING2 2207 4S / 6S Brushless Motor Unibell Black for Nazgul Evoque F5X / F5D HD Digital FPV Racing Drone
The iFlight XING2 2207 Brushless Motor is designed for optimal performance with the Nazgul Evoque F5X and F5D HD Digital FPV Racing Drones. This motor features a robust 5mm titanium alloy shaft, ensuring durability and strength. It is equipped with a crash-resistant 7075 aluminum bell and smooth NSK 9x4x4 bearings for long-lasting performance. The motor’s configuration of 12N14P and center slotted N52H curved arc magnets provide exceptional efficiency and power. The XING O-ring bearing gap protection and motor wires protector enhance reliability, while the dynamically balanced design ensures stability during flight.
Specification:
Brand: iFlight
Model: XING2 2207
Item Name: XING2 2207 4S / 6S Brushless Motor
– Version: CW Screw Thread
– Input Voltage: 4S / 6S Lipo
– Configuration: 12N14P
– Dimension: 耳29*19.25mm
– Stator Length: 5mm
– Weight: 34g with short wire
– Wire length: 20AWG 160mm
– Mounting pattern: 16*16 耳3mm
Application: Original Replace Motor for iFlight Nazgul5 Evoque F5X HD / F5D HD Digital FPV Racing Drone
Features:
– 5mm titanium alloy shaft, our strongest prop shaft ever!
– Crash resistant 7075 aluminum bell
– Smooth and long-lasting NSK 9x4x4 bearings
– Center slotted N52H curved arc magnets
– XING O-ring bearing gap protection
– Motor wires protector
– Dynamically balanced

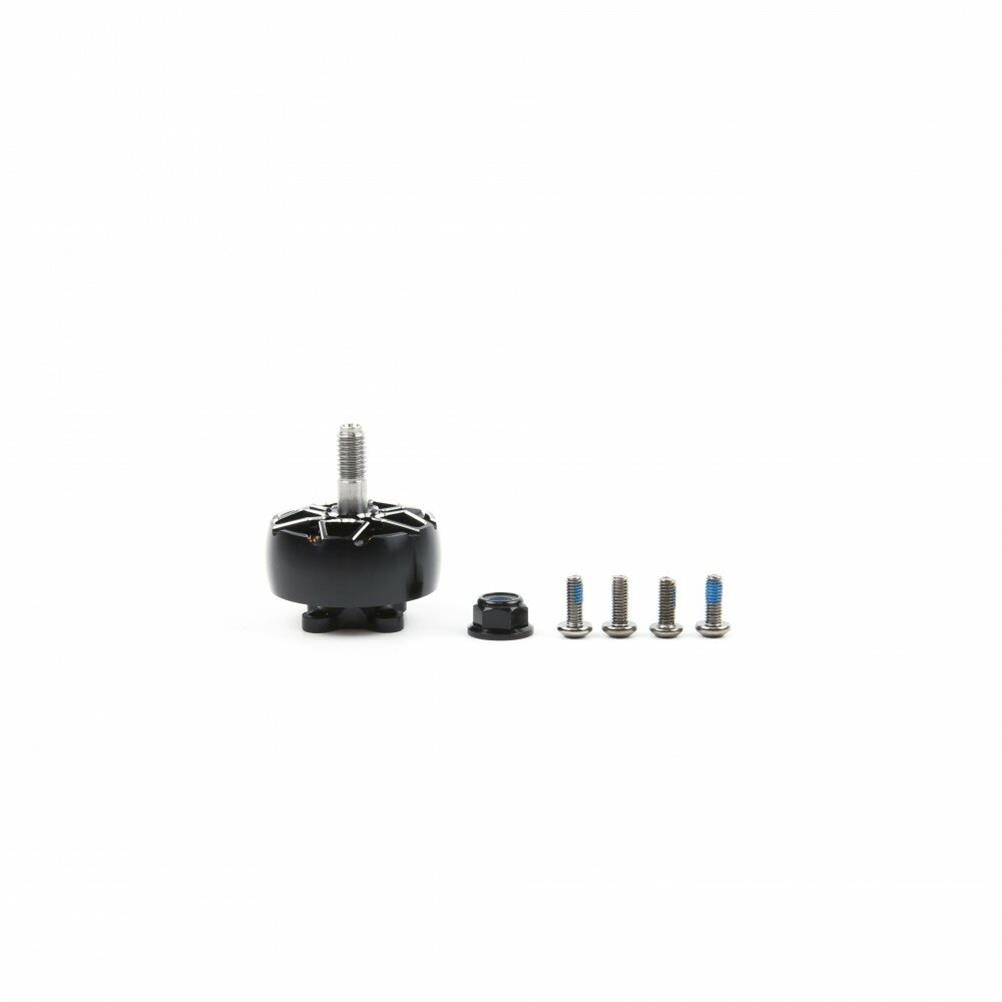

Package Included:
1 x XING2 2207 Black Brushless Motor
4 x M3 6 Screws
1 x M3 Flanged Nylon Insert Lock Nut
