25.5×25.5mm GEPRC GEP F722 45A AIO V2 F7 Flight Controller AIO 45A BL_S 2-6S 4in1 Brushless ESC for Cinelog35 HD Whoop RC Drone FPV Racing

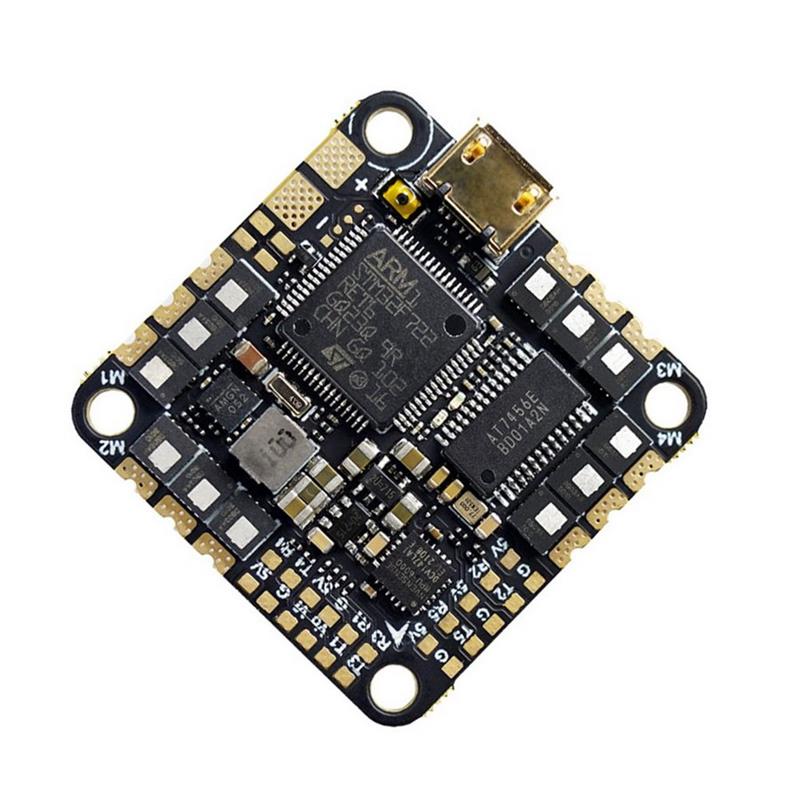

The GEPRC GEP-F722-45A AIO V2 Flight Controller is engineered for high performance in FPV racing drones like the Cinelog35 HD Whoop. Featuring an STM32F722 MCU, this controller offers robust processing power and enhanced speed. It includes a 42688 gyro/accelerometer and supports Betaflight OSD with AT7456Ev. The controller is equipped with 5 full UART ports for extensive connectivity, an integrated LC Filter, and a BEC output of 5V@1A. The BL_S 45A ESC supports 2-6S LiPo batteries, delivering 45A continuous and 55A burst current. Weighing only 8.8g, it features a 25.5×25.5mm mounting hole, making it compatible with most frames. This flight controller is ideal for those seeking improved flight performance and versatility in their drones.
Changelog:
June 5th,2022: this flight controller has started to use a new MOS tube, the appearance has changed, but the performance is the same as before.
June 14th,2022: Gyro updated to 42688
June 25th,2022:Mounting Hole Size changed from 26.5鈩?6.5mm to 25.5鈩?5.5mm.
Specification: ( Manual)
Model Name: GEP-F722-45A AIO V2
MCU: STM32F722
IMU: 42688 gyro/accelerometer(SPI)
Firmware target: GEPRC_F722_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper: YES
LED: YES
USB: Micro USB
BEC output: 5V@1A
Intergrated LC Filter
ESC MCU: 8BB21F16G
Continuous current: 45A
MAX current: 55A (10s)
Input: 2~6S
Supports: Dshot600,Oneshot,Multishot
BlackBox: 16Mb
Traget: G_H_30
Size: 32x32mm Board
Mounting Hole: 25.5鈩?5.5mm

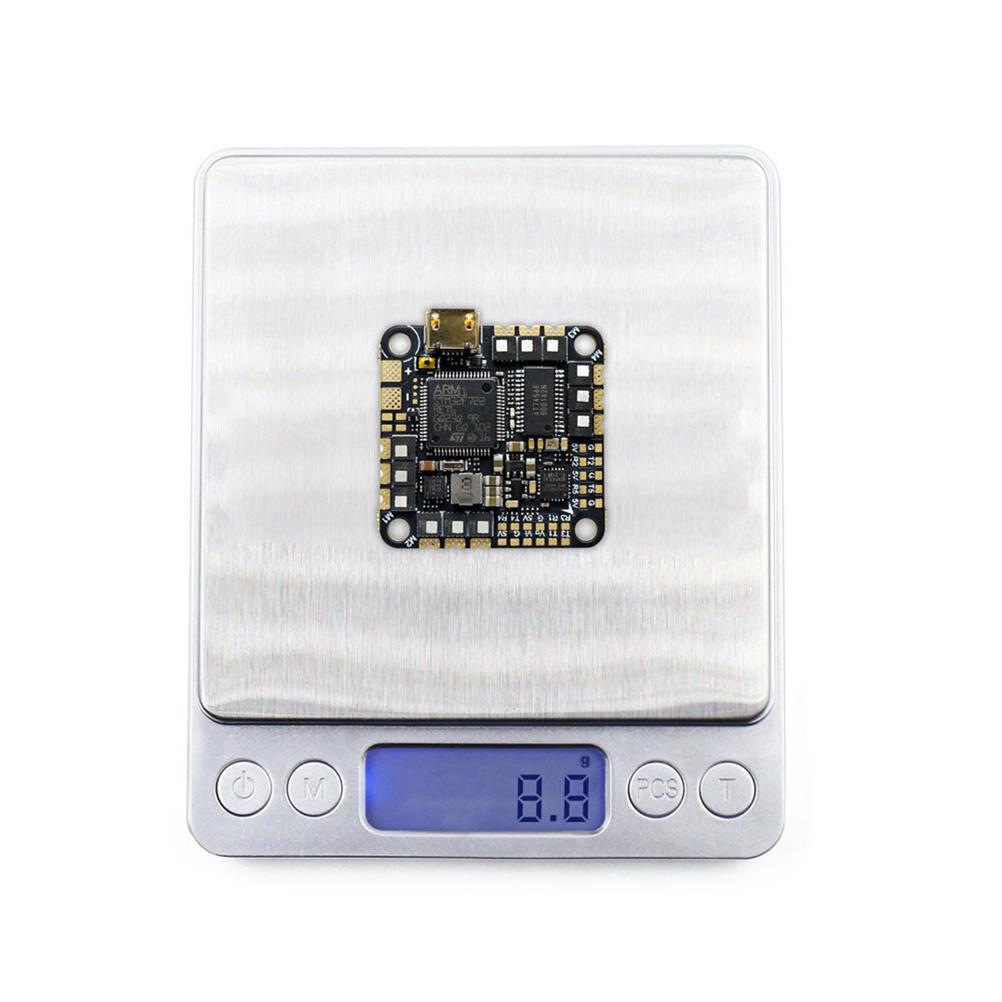

Weight: 8.8g
Features:
– MCU:STM32F722,with strong performance and higher computing speed.
– It has 5 full UART ports, which can connect more external devices
– Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
– The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2- -6S lipo battery, which can bring the drone a stronger flight performance.
– Support OSD parameter adjustment, buzzer, led and other functions.
– 8g ultra light weight
– 25mm * 25.5mm mounting hole, suitable for most frames

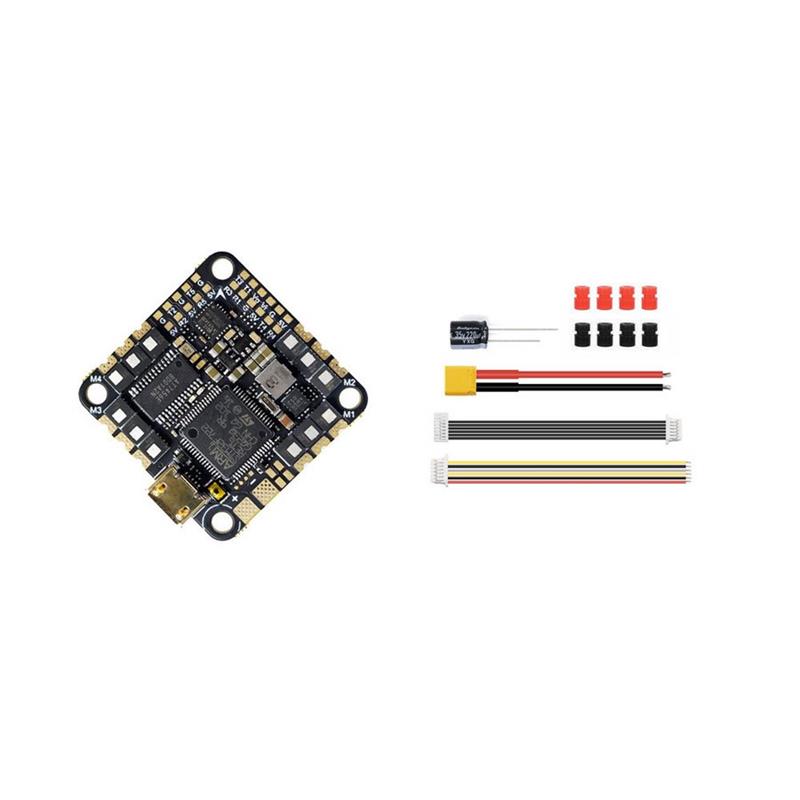

Package Included:
1 x GEP-F722-45A AIO V2
1 x XT30-7CM-18AWG Power cables
1 x 35V220UF capacitor
1 x SH1.0-6Pin to GH1.25-8Pin cables
8 x M2 6.5mm Damping rings
