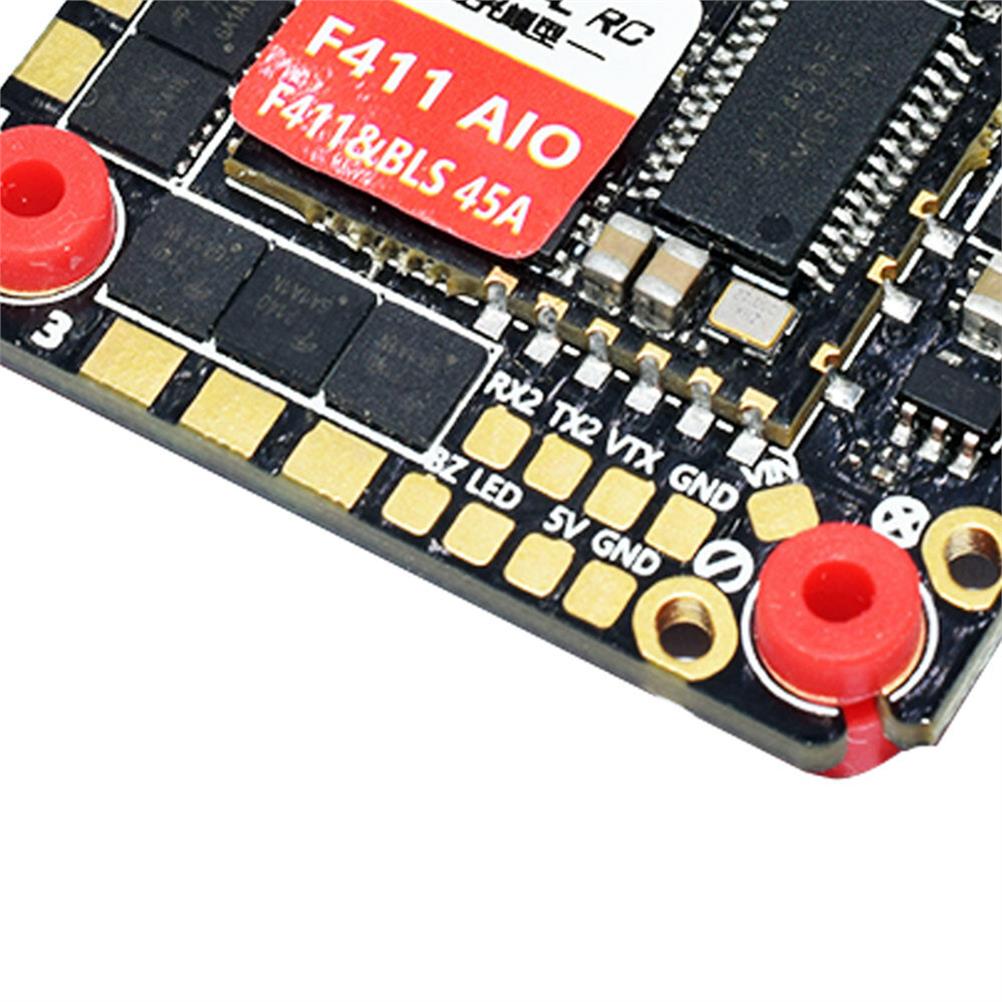

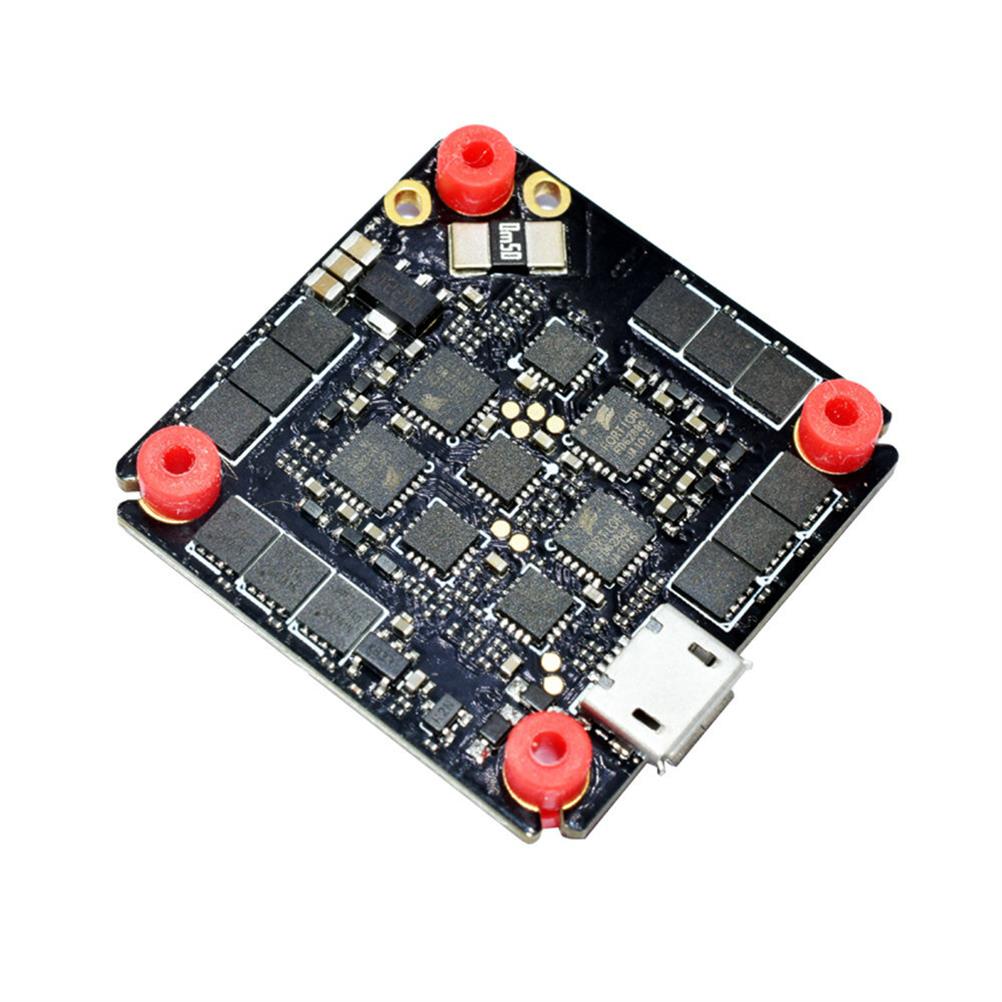

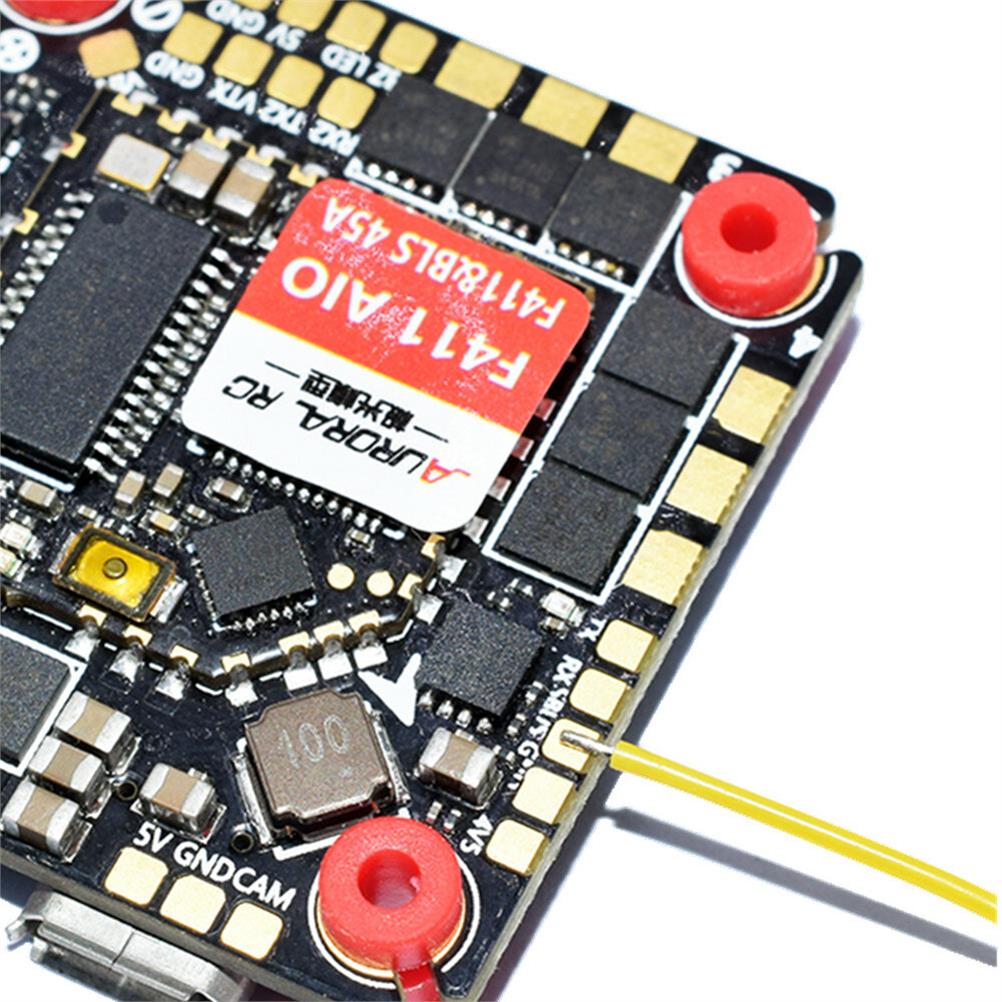

25.5×25.5mm AuroraRC F411 F4 Flight Controller MPU6500 AIO 45A BLheli_S 2-6S 4in1 Brushless ESC for RC Drone FPV Racing

25.5×25.5mm AuroraRC F411 F4 Flight Controller MPU6500 AIO 45A BLheli_S 2-6S 4in1 Brushless ESC for RC Drone FPV Racing

Specification:
Brand: AuroraRC
Item Name: F4 Flight Controller Built-in 45A 4In1 ESC
MCU: STM32F411CEU16
Gyro: MPU6500
OSD: Support
LED: Support
BlackBox: NO
Barometer: NO
Support Receiver Procotol: BUS/IBUS/DSM/PPM/CRSF ( BlackSheep and ELRS)
BEC Output: 5V 2.5A
VBAT filter power supply: Yes (for 7-26V voltage equipment, interference has been filtered)
current meter: Built-in
Flight Controller Firmware Target: AOCODARCF411
ESC Firmware Target: BLHELI_S(H-H-50)
ESC Procotol: Support Oneshot125/Oneshot42/Multishot/Dshot150/Dshot300/Dshot600
Input Voltage: 2-6S Lipo ( Support LIHV)
Con. Current: 45A
Dimension: 32.5×32.5mm
Mounting Hole: 25.5-26.5mm, ( M3 Hole, Install Anti-vibration Ball to M2 Hole, and use M2 Screw)
Weight: 8.2g
Indicindicator Light/b>
Blue light – flight controller status indicator
Red light- VBAT working indicator light (on=normal / off=abnormal)
Green light- 3.3V voltage working indicator light (on=normal / off=abnormal)
Package Included:
1x F411 Flight Controller

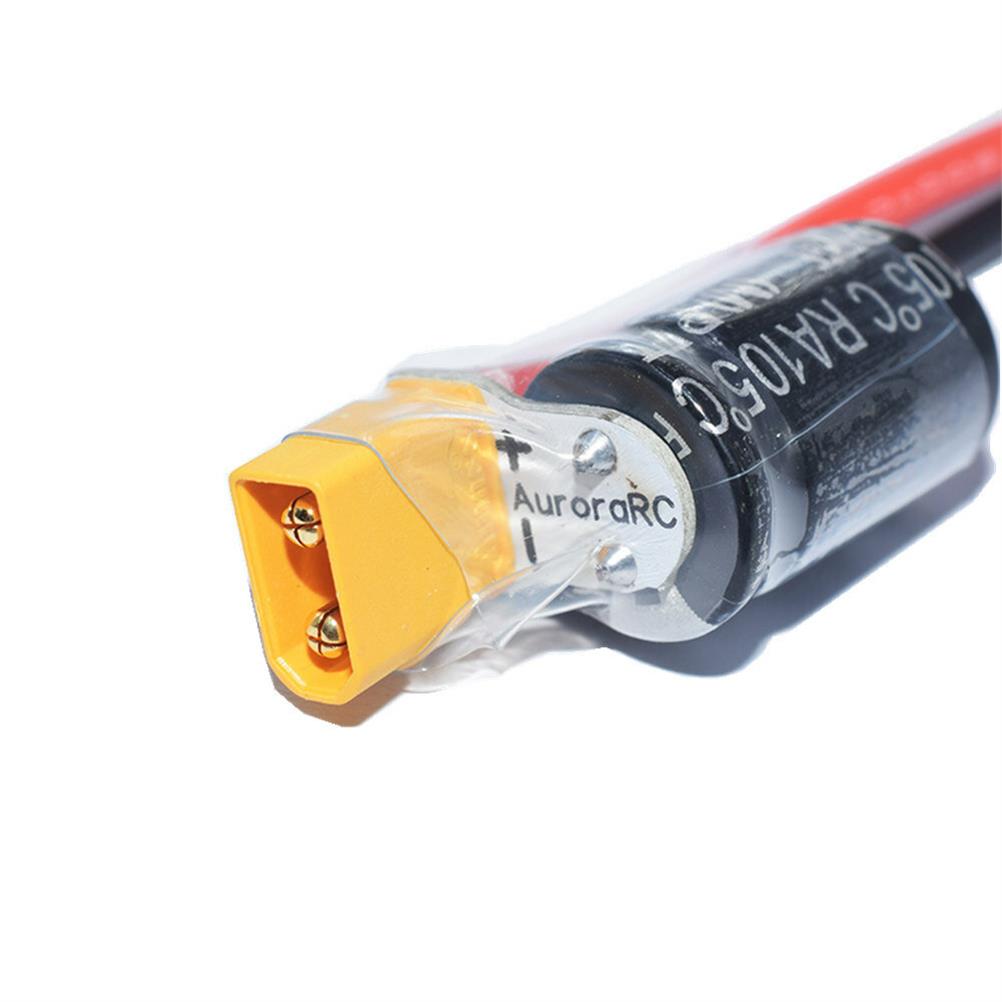

1x XT30 Cable Connector
4x Anti-Vibration Balls
